Seamlessly Redeploy Windows VMs in Azure: A Step-by-Step Guide

Updated: 12 Jun, 2025 • 0 • min read

Table of Contents

Azure Virtual Machine Redeploy

When managing Windows Virtual Machines (VMs) in Microsoft Azure, connectivity issues can sometimes arise, impacting Remote Desktop (RDP) access or the ability to connect to applications hosted on the VM. While many troubleshooting steps exist, one powerful technique provided by Azure is redeploying the virtual machine. This action can often resolve underlying infrastructure-related problems by moving the VM to a new healthy node within the Azure fabric.

Redeploying your VM is a specific operation within Azure designed to address persistent connectivity or performance issues that might stem from the host infrastructure rather than the guest operating system or network configuration within the VM itself. It essentially involves Azure shutting down your VM, migrating it to a different physical server node in the same region, and then powering it back on. This process maintains all your VM’s configurations, associated disks, and network settings (except for dynamic IP addresses).

This guide will walk you through the process of redeploying your Windows VM using three common methods: the Azure CLI, Azure PowerShell, and the Azure portal. Understanding when and how to use this capability is a key skill for any Azure administrator managing Windows workloads.

Understanding the Redeploy Operation¶

The primary purpose of redeploying a VM is to move it from its current host server within an Azure datacenter to a new one. Azure’s infrastructure is composed of many host servers, and occasionally, an issue with a specific host might negatively impact the performance or connectivity of VMs running on it. Redeploying forces Azure to find a different, presumably healthy, host for your VM.

This operation is distinct from simply restarting the VM. A restart typically only reboots the guest operating system and the VM’s virtual hardware simulation on the same host. Redeployment, conversely, targets potential issues at the physical hardware layer or the Azure fabric managing that hardware. It’s a more disruptive but potentially more effective step when standard restarts fail to resolve connectivity problems.

When to Consider Redeploying¶

You should consider redeploying your VM if you experience persistent issues such as:

Inability to connect via RDP, even after checking network security groups, firewall rules, and the RDP service status within the OS.
Severe and unexplained network latency or packet loss affecting connections to services on the VM.
Application connectivity problems that don’t appear to be related to the application configuration or VM’s operating system health.
General VM unresponsiveness or performance degradation that a simple restart does not alleviate.

Before redeploying, it’s often prudent to try less disruptive troubleshooting steps first, such as verifying network security rules, checking the guest OS firewall, restarting the RDP service, or performing a standard VM restart. If these fail, redeployment becomes a valuable next step.

Prerequisites and Considerations¶

Before initiating a VM redeployment, there are a few important points to understand and potential steps to take:

Data Loss: Crucially, data stored on the temporary disk (often labeled D: on Windows VMs) and Ephemeral OS disks will be lost. The temporary disk is intended for temporary storage only, such as swap files or temporary application data. Do not store critical, persistent data on this drive. Ensure any necessary data has been moved to persistent data disks (like Premium SSDs, Standard SSDs, or Standard HDDs) before proceeding.
Dynamic IP Addresses: If your VM uses a dynamic public or private IP address assigned to its network interface, these addresses will be updated after redeployment. This means you might need to update DNS records or other configurations that rely on these dynamic IPs. If your VM requires a stable IP, ensure it’s configured with a static IP address before deployment; static IPs are retained during redeployment.
Downtime: The VM will be shut down and unavailable during the redeployment process. The duration varies but typically takes several minutes. Plan this operation during a maintenance window if the VM hosts production workloads.
VM State: Ensure the VM is not already in a failed or updating state that might prevent the redeploy command from being processed. If the VM is stuck, you might need to try “reapplying” the VM’s state first, as mentioned in some Azure documentation.
Permissions: You need appropriate permissions in Azure (e.g., Contributor or Virtual Machine Contributor role) to perform the redeploy operation on the VM.

Understanding these implications is vital to avoid unexpected issues or data loss. Always verify where your critical data is stored before proceeding with redeployment.

Step-by-Step Guide to Redeploying Your VM¶

Here are the methods you can use to redeploy your Windows VM in Azure. Choose the method that is most convenient for your workflow.

Method 1: Using the Azure CLI¶

The Azure Command-Line Interface (CLI) provides a powerful, scriptable way to manage your Azure resources.

Install and Log In: If you haven’t already, install the Azure CLI on your local machine or use the Azure Cloud Shell. Log in to your Azure account using the az login command. Follow the on-screen prompts to authenticate.
```
az login
```
Find Your VM Details: You need the name of your VM and the name of the resource group it belongs to. You can find this information in the Azure portal or by using CLI commands like:
```
az vm list --output table
```
This command lists all VMs in your subscription. Note down the Name and ResourceGroup for the VM you want to redeploy.
Execute the Redeploy Command: Use the az vm redeploy command, providing the resource group name and the VM name.
```
az vm redeploy --resource-group myResourceGroup --name myVM
```
Replace myResourceGroup with the actual name of your resource group and myVM with the actual name of your VM.
Monitor the Process: The command will initiate the redeployment. The CLI might show output indicating the status change. You can also monitor the activity log for the VM in the Azure portal or use CLI commands like az vm show --resource-group myResourceGroup --name myVM --query instanceView.vmState to check the VM’s state. The state should change from starting to deallocating, then potentially stopped, and finally back to running on the new host.

Method 2: Using Azure PowerShell¶

Azure PowerShell is another robust command-line tool for managing Azure resources, particularly favored by Windows administrators.

Install and Connect: Ensure you have the Azure PowerShell module (Az module) installed. Connect to your Azure account using Connect-AzAccount. Follow the authentication prompts.
```
Connect-AzAccount
```
Find Your VM Details: Similar to the CLI, you need the resource group and VM name. You can list VMs using PowerShell:
```
Get-AzVM | Format-Table Name, ResourceGroupName
```
Note down the Name and ResourceGroupName for your target VM.
Execute the Redeploy Cmdlet: Use the Set-AzVM cmdlet with the -Redeploy parameter. Specify the resource group name and the VM name.
```
Set-AzVM -Redeploy -ResourceGroupName "myResourceGroup" -Name "myVM"
```
Again, replace "myResourceGroup" and "myVM" with your actual resource and VM names.
Monitor the Process: The cmdlet will initiate the redeployment. PowerShell might return information about the operation. You can track the progress via the Azure portal’s activity log or by periodically checking the VM’s status using Get-AzVM -ResourceGroupName "myResourceGroup" -Name "myVM" -Status. Look for changes in the ProvisioningState or PowerState.

Method 3: Using the Azure Portal¶

The Azure portal provides a user-friendly graphical interface for managing your resources, including performing VM redeployments.

Navigate to the Portal: Go to the Azure portal and log in with your Azure account.
Select Your VM: Use the search bar at the top to find your Virtual Machine by name, or navigate through “Virtual machines” in the Azure services menu and select your VM from the list.

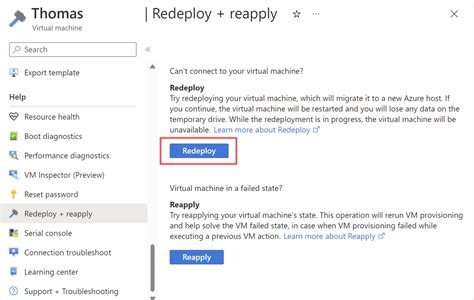

Access Redeploy Option: On the VM’s overview blade (the main page after selecting the VM), scroll down the left-hand menu pane. Under the Help section, select the Redeploy + reapply option.
Initiate Redeploy: In the Redeploy + reapply blade that opens, you will see a brief explanation and the option to “Redeploy”. Click the Redeploy button.
Confirm and Monitor: A confirmation dialog will appear, reminding you that the VM will be restarted and warning about temporary/ephemeral disk data loss and dynamic IP changes. Read this carefully and click Redeploy to confirm.

Once confirmed, the redeployment process will begin. You can monitor the progress by checking the notifications (the bell icon in the top right corner) or by navigating to the VM’s Activity log (under the “Monitoring” section in the left menu). The VM’s status on the overview page will change as it goes through the deallocation and starting process on the new host.

Comparing Troubleshooting Methods¶

Redeployment is one tool in your troubleshooting arsenal. It’s helpful to understand how it compares to other common steps:

Method	Action Taken	Primary Purpose	Impact on Data / Configuration	Downtime
Restart (Guest OS)	Reboots the operating system inside the VM.	Resolve OS-level issues, hung processes.	None (unless unsaved data)	Short
Restart (Azure Portal)	Forces a power cycle of the VM hardware simulation.	Similar to guest OS restart, addresses some VM-level hangs.	None (unless unsaved data)	Short
Redeploy	Shuts down VM, moves to new Azure host, powers on.	Resolve underlying host infrastructure issues.	Temporary/Ephemeral disk data loss, Dynamic IP change.	Moderate
Reapply State	Reapplies the VM’s desired configuration state.	Resolve issues where VM configuration seems stuck.	None (usually)	Minimal
Reset RDP Configuration	Resets firewall rules, RDP registry settings, etc.	Restore default RDP connectivity settings.	None	Minimal
Recreate VM	Deletes and recreates the VM (often from a disk).	Major issues requiring a fresh start.	Requires careful disk management to preserve data.	Significant

Redeployment is a good intermediate step when simple restarts don’t work but you don’t want to go through the complexity and potential downtime of recreating the VM.

What to Expect After Redeployment¶

After you initiate the redeployment, the VM will go offline. Azure will then perform the migration. Once the process is complete, the VM will be powered back on. You should verify the following:

VM Status: Check the Azure portal, CLI, or PowerShell to confirm the VM is in the Running state.
Connectivity: Attempt to connect to the VM via RDP or check application access to confirm if the original issue is resolved.
IP Addresses: If your VM uses dynamic IPs, verify the new public and private IP addresses and update any configurations (like DNS records) that relied on the previous IPs.
Temporary Disk: Confirm that the temporary disk is available (usually D:) and understand that its contents have been reset.

If connectivity or performance issues persist even after redeployment, it suggests the problem may not be related to the underlying Azure host infrastructure. In such cases, you would need to explore other troubleshooting avenues, such as:

Investigating issues within the guest operating system (Event Viewer logs, service status).
Reviewing network configuration within the VM and associated Network Security Groups (NSGs).
Checking application-specific logs or configurations.
Considering performance metrics in Azure Monitor to identify bottlenecks.

Visualizing the Redeployment Flow¶

While not a complex process visually, a simple diagram can help understand the state changes during redeployment:

mermaid graph LR A[VM is Running] --> B{Troubleshooting Required?}; B --> C{Restart VM?}; C --> D[Restart Initiated]; D --> A; C --> E{Consider Redeploy?}; E --> F{Identify VM Details}; F --> G{Initiate Redeploy via CLI/PS/Portal}; G --> H[VM Shutting Down]; H --> I[Migrating to New Host]; I --> J[VM Starting on New Host]; J --> K[VM is Running]; K --> L{Verify Connectivity}; L --> M[Issue Resolved]; M --> End; L --> N[Issue Persists]; N --> O{Explore Other Troubleshooting}; O --> End; E --> O;
Flowchart illustrating the decision process and steps involved in VM redeployment.

This diagram shows where redeployment fits into the overall troubleshooting workflow.

Next Steps After Redeploying¶

Successfully redeploying your VM is a significant step in resolving connectivity problems. As mentioned earlier, if issues connecting to your VM persist after the redeploy operation, you’ll need to delve deeper into other troubleshooting areas.

Azure provides comprehensive documentation and tools to help diagnose connectivity issues:

For RDP connection issues, specific troubleshooting guides cover common causes like network security group rules, local firewall settings, or RDP service configuration within the VM.
For detailed RDP troubleshooting steps, resources are available to walk you through diagnosing client-side and server-side configurations.
For application connectivity problems, guides can help you identify issues with application configuration, ports, or dependencies within the VM environment.

Remember to leverage Azure Monitor for performance metrics and diagnostics logs, which can provide valuable insights into what’s happening within your VM and its interaction with the Azure infrastructure.

Redeploying a VM is a powerful troubleshooting technique that can often resolve persistent connectivity or performance issues by moving your VM to a new, healthier host. By following the steps outlined above using the Azure CLI, Azure PowerShell, or the Azure portal, you can perform this operation efficiently and effectively. Always be mindful of the implications, particularly regarding temporary disk data and dynamic IP addresses.

Have you used the redeploy feature for your Azure VMs? Share your experiences or ask questions in the comments below!
