SQL Server Merge Replication: Mastering Article Processing Order for Optimal Performance

Table of Contents

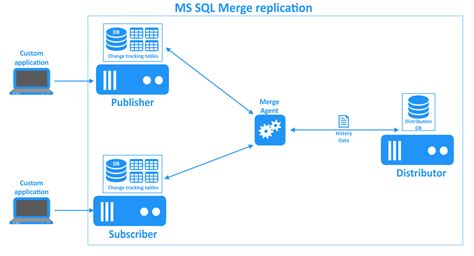

Understanding the nuances of article processing order within SQL Server Merge Replication is crucial for ensuring efficient synchronization and maintaining data integrity across all replicas in a topology. The Merge Agent, the component responsible for applying changes during synchronization, operates based on a specific set of rules that dictate the sequence in which modifications to various articles (tables) are processed. Adhering to this order helps optimize performance and prevent common replication issues.

The significance of article processing order stems primarily from two critical factors. Firstly, transactional consistency and referential integrity constraints, such as Declarative Referential Integrity (DRI), demand a specific sequence for applying changes. For instance, when inserting rows, parent rows must exist before child rows that reference them. Conversely, when deleting rows, child rows must be removed before their corresponding parent rows. If the Merge Agent attempts operations out of this required order, it can lead to errors that necessitate retries, significantly impacting synchronization performance and increasing the duration of the merge process.

Secondly, applications often rely on database triggers to enforce business rules or maintain referential integrity not handled by DRI. These triggers are sensitive to the order in which data modifications (INSERTs, UPDATEs, DELETEs) are applied. If the Merge Agent delivers changes in an unexpected sequence, a trigger might fail, potentially rolling back the operation and preventing the change from propagating correctly throughout the replication topology. This can lead to data inconsistencies between replicas, compromising the reliability of the replication solution.

To fully grasp how the Merge Agent determines processing order, it is essential to understand two foundational concepts within the context of merge replication: Article Nicknames and Generations. These concepts provide the framework the Merge Agent uses to categorize and sequence the changes it applies.

Understanding Key Concepts: Article Nicknames and Generations¶

Two fundamental concepts underpin the Merge Agent’s logic for processing changes: the article nickname and the generation. These concepts are central to how the Merge Agent tracks and applies modifications across replicas.

Article Nicknames¶

An article nickname is an integer identifier assigned to each article (typically a table) included in a merge publication. This nickname serves as the Merge Agent’s internal reference for the article. The process of adding an article to a merge publication involves the assignment of a unique nickname. The assignment logic takes into account any existing Declarative Referential Integrity (DRI) constraints defined between tables being published.

Specifically, for tables participating in foreign key relationships, the merge setup process endeavors to assign article nicknames that reflect these dependencies. A table referenced by a foreign key constraint (the parent table) is typically assigned a smaller article nickname compared to the table that contains the foreign key constraint (the child table). This intentional assignment helps facilitate the correct processing order for operations like inserts and deletes relative to DRI. For tables that do not participate in any DRI constraints with other published articles, the article nickname is generally assigned sequentially based on the order in which the article was added to the publication during its creation, usually in ascending integer order. This strategic nickname assignment provides the Merge Agent with an ordered list of articles that can be used to govern the application of changes.

Generation¶

A generation represents a logical grouping of changes (INSERTs, UPDATEs, DELETEs) made to a specific article at a particular replica between synchronization sessions. Think of a generation as a batch of changes captured for an article. Each time the Merge Agent runs a synchronization session at a replica, it effectively “closes” the current open generation for each article and opens a new generation. All subsequent changes to that article at that replica before the next synchronization are associated with this new generation. Generations allow the Merge Agent to track which changes have occurred and which need to be exchanged between replicas during subsequent merge synchronizations. The Merge Agent uses generations to determine the starting point for uploading and downloading changes, ensuring that all modifications since the last successful synchronization are considered.

How the Merge Agent Processes Articles¶

The Merge Agent organizes articles within a publication into two distinct conceptual groups to manage the overall processing order of changes (UPDATEs, INSERTs, and DELETEs). This grouping, combined with article nicknames and generations, dictates the sequence of operations.

The first group comprises articles that are not involved in any join filter relationships and are not related through DRI to any articles that are involved in join filters. These are often standalone tables or tables related only to other tables in this same group.

The second group consists of articles that are explicitly part of join filter relationships, as well as any articles linked through DRI to those articles involved in join filters. Join filters are commonly used in merge replication to partition data horizontally for subscribers.

Every article defined within the merge publication belongs to one, and only one, of these two groups. The Merge Agent uses this grouping structure to prioritize and order the application of changes.

Within each of these two distinct groups, the Merge Agent applies changes in a specific order relative to article nicknames and operation types. INSERT and UPDATE operations are processed in ascending order of article nickname. This aligns well with DRI, as parent tables (smaller nicknames) are processed before child tables (larger nicknames) for inserts and updates. Conversely, DELETE operations are processed in descending order of article nickname. This sequence ensures that child rows (larger nicknames) are deleted before their corresponding parent rows (smaller nicknames), again respecting DRI constraints. The Merge Agent completes all DELETEs within a specific group before proceeding to process the INSERTs and UPDATEs for that same group.

Conceptually, the Merge Agent prioritizes processing changes from the first group before moving to the second group. However, it’s crucial to understand that while processing order based on nicknames is maintained within each group, strict article processing order is not guaranteed across the two groups. This means that an INSERT or UPDATE for an article in the first group with a relatively high article nickname could potentially be applied after an INSERT or UPDATE for an article in the second group with a lower article nickname. Similarly, a DELETE for an article in the first group with a low nickname might be processed after a DELETE for an article in the second group with a higher nickname. This behavior is an inherent part of the Merge Agent’s design and primarily relates to how generations and batches are handled, as discussed in the next section. While this inter-group flexibility exists, the intra-group ordering by nickname for each operation type remains consistent.

Let’s visualize the processing flow within the Merge Agent:

```mermaid
graph TD
A[Start Synchronization] → B{Categorize Articles};
B → C(Group 1: Non-Filtered/Non-DRI Related);
B → D(Group 2: Filtered/DRI Related to Filtered);
C → E{Process Group 1};
D → F{Process Group 2};
E → G(DELETEs - Descending Nickname);
E → H(INSERTs/UPDATEs - Ascending Nickname);
F → I(DELETEs - Descending Nickname);
F → J(INSERTs/UPDATEs - Ascending Nickname);
G → H;
I → J;
H → K{Complete Group 1};
J → L{Complete Group 2};
K → M[Changes Applied (Potentially Interleaved across Groups)];
L → M;
M → N[End Synchronization];

```
Figure 1: Conceptual Merge Agent Processing Flow by Article Group

This diagram illustrates the internal processing logic, showing how articles are categorized and how operations are sequenced within those categories. The potential interleaving across groups (K to M, L to M) is where generation batching can play a significant role.

The Role of Generation Batching in Processing Order¶

As mentioned earlier, generations logically group changes for an article between synchronizations. The Merge Agent uses these generations to determine which changes need to be exchanged between replicas. During the upload (subscriber to publisher) and download (publisher to subscriber) phases of synchronization, the Merge Agent negotiates a common generation, establishing a baseline from which to identify and send newer generations of changes.

To manage resources and improve efficiency, the Merge Agent processes these generations in batches, known as generation batches. By default, a generation batch contains up to 100 generations. This batch size is controlled by the Merge Agent parameters -UploadGenerationsPerBatch and -DownloadGenerationsPerBatch, which can be configured through the agent profile or command line.

Consider a scenario where a large volume of changes has occurred, resulting in more than 100 generations needing synchronization between replicas (e.g., 150 generations). In the default configuration, the Merge Agent will process these changes in multiple generation batches (e.g., one batch of 100 generations and a second batch of 50 generations). The Merge Agent applies changes batch by batch.

The interaction between generation batching and article processing order introduces a potential complexity. While article processing order (based on nicknames and operation type) is strictly maintained within each individual generation batch, this strict order is not necessarily maintained across different generation batches.

This means it’s possible for changes related by DRI, such as a parent row insertion and a child row insertion, to be placed in different generation batches. If, for instance, the parent row was inserted in generation 105 and the child row in generation 98, and the batch size is 100, the child insertion might be included in the first batch (generations 1-100) while the parent insertion is in the second batch (generations 101-150). When the Merge Agent applies these batches, it might apply the batch containing the child insertion before the batch containing the parent insertion.

This out-of-order application of related changes across batches can lead to foreign key constraint violations or trigger failures, potentially causing the synchronization to fail or, in rare and specific hierarchical merge topologies, leading to non-convergence (replicas having different data states).

To mitigate this risk, especially in environments with high transaction volumes or complex DRI structures, database administrators can adjust the -UploadGenerationsPerBatch and -DownloadGenerationsPerBatch parameters. Increasing the generation batch size allows the Merge Agent to include more generations within a single batch. By bundling a larger number of generations together, you reduce the likelihood that related parent and child changes, which might occur in different generations, will be split across separate batches during synchronization. While increasing the batch size can help maintain order for related changes, it might also increase the memory footprint and transaction size of the Merge Agent, so tuning should involve testing.

Here’s a table illustrating a hypothetical scenario with nicknames and generations:

Article Name	Nickname	DRI Relation	Generation (Replica A)	Change Type
ParentTable	10	Parent	95	INSERT
ChildTable	20	Child	98	INSERT
AnotherTable	30	None	105	INSERT
GrandchildTable	40	Child	110	INSERT
ParentTable	10	Parent	120	UPDATE
ChildTable	20	Child	130	DELETE
ParentTable	10	Parent	140	DELETE

If the batch size is 100, Generations 1-100 are in Batch 1, and Generations 101-150 are in Batch 2.
* The INSERT for ParentTable (Gen 95) and ChildTable (Gen 98) are in Batch 1. Within Batch 1, ParentTable (nickname 10) INSERT will be processed before ChildTable (nickname 20) INSERT (ascending nickname order for INSERTs). This works correctly.
* The INSERT for AnotherTable (Gen 105) is in Batch 2.
* The INSERT for GrandchildTable (Gen 110) is in Batch 2.
* The UPDATE for ParentTable (Gen 120) is in Batch 2.
* The DELETE for ChildTable (Gen 130) is in Batch 2.
* The DELETE for ParentTable (Gen 140) is in Batch 2.

Now consider a different scenario:

Article Name	Nickname	DRI Relation	Generation (Replica A)	Change Type
ParentTable	10	Parent	105	INSERT
ChildTable	20	Child	98	INSERT

With a batch size of 100:
* Batch 1 contains changes up to Generation 100. This includes the INSERT for ChildTable (Gen 98).
* Batch 2 contains changes from Generation 101 onwards. This includes the INSERT for ParentTable (Gen 105).
If Batch 1 is applied before Batch 2, the Merge Agent will attempt to insert the child row before the parent row, potentially causing a foreign key violation error. Increasing the batch size to, say, 200 would include both generations in the same batch, allowing the Merge Agent to apply them in the correct order within that batch.

Best Practices and Considerations¶

Designing a merge replication topology with article processing order in mind is crucial for preventing errors and achieving optimal performance. Here are some best practices:

1. Define DRI Correctly: Ensure that all relevant parent-child relationships are defined using Declarative Referential Integrity constraints (FOREIGN KEYs) in the database schema before configuring replication. The merge replication setup process uses these constraints to assign appropriate article nicknames, facilitating correct ordering.
2. Review Article Nicknames: After creating a publication, you can examine the assigned article nicknames to understand the processing order. While direct modification of nicknames is not standard practice, understanding them helps predict behavior. Tools or system tables related to replication metadata can provide this information (though specific table names are omitted as per instructions).
3. Consider Join Filters: Understand how join filters group articles. Articles related through DRI to filtered articles will fall into the second processing group. Design filters thoughtfully to group logically related data effectively.
4. Tune Generation Batching: Monitor synchronization performance and errors. If you observe repeated foreign key violations or trigger errors that seem related to the order of operations across different generations, consider increasing the -UploadGenerationsPerBatch and -DownloadGenerationsPerBatch parameters. Test these changes in a non-production environment to assess their impact on performance and resource usage.
5. Minimize Trigger Complexity: If possible, reduce reliance on complex triggers for referential integrity in replicated tables. DRI is often more robust and explicitly handled by the Merge Agent’s nickname-based ordering within batches. If triggers are necessary, ensure they are idempotent and can gracefully handle operations that might arrive slightly out of a ‘perfect’ order, perhaps by checking for the existence of related rows.
6. Hierarchical Topologies: In hierarchical merge topologies involving re-publishers, pay extra attention to generation batching. The potential for non-convergence due to out-of-order processing across batches is a known issue in specific scenarios involving re-publishers. Adjusting batch sizes is a primary mitigation strategy.
7. Monitor Merge Agent Logs: Regularly review the Merge Agent logs. These logs provide detailed information about the synchronization process, including the application of changes, errors encountered (like foreign key violations), and generation batch processing. Analyzing these logs can help diagnose issues related to processing order.

Optimizing SQL Server Merge Replication performance involves a deep understanding of its internal mechanisms. The Merge Agent’s logic for ordering article processing, driven by article nicknames, generation grouping, and generation batching, is a key factor. By correctly designing publications, utilizing DRI effectively, and strategically tuning generation batching parameters, administrators can minimize synchronization errors, enhance performance, and ensure data consistency across their replicated environments.

What are your experiences with tuning Merge Replication performance, particularly related to article processing order or generation batching? Share your thoughts and tips in the comments below!
