Troubleshoot Azure Virtual Network Issues with Microsoft's Dedicated Package

Table of Contents

Troubleshooting network connectivity within cloud environments like Microsoft Azure can present unique challenges. Unlike traditional on-premises networks where you have direct control over all physical and virtual components, Azure requires a different approach, often relying on diagnostic tools and data collected from the platform’s infrastructure. Virtual Networks (VNet) in Azure serve as the fundamental building block for your private network in the cloud, enabling resources like Virtual Machines (VMs) to securely communicate with each other, the internet, and your on-premises data centers via VPNs or ExpressRoute. When connectivity problems arise within or across VNets, particularly with VPN gateway connections to on-premises locations, pinpointing the root cause requires systematic data collection and analysis.

Microsoft provides a dedicated troubleshooter package designed specifically to assist in diagnosing and resolving issues related to Azure Virtual Networks, with a particular focus on VPN connectivity problems involving Azure Gateways and site-to-site connections. This package is not a publicly downloadable tool but is distributed through Microsoft Support, allowing support professionals and customers to collaboratively gather comprehensive data for analysis. It leverages the capabilities of the Azure PowerShell module and Azure Virtual Network REST APIs to interact with your Azure environment and collect essential configuration and diagnostic information. By automating the collection of relevant data points, the package streamlines the initial diagnostic steps, saving valuable time and ensuring that critical information is captured accurately.

Capabilities of the Diagnostic Package¶

The Azure Virtual Network Troubleshooter package is equipped with several key capabilities designed to gather the necessary data for diagnosing common VNet and VPN-related issues. These capabilities cover identifying the network components involved, parsing configuration data, collecting real-time diagnostics, and requesting information from the on-premises side of a hybrid connection. Each function plays a crucial role in building a complete picture of the network environment and the problem being experienced.

Identifying Involved Network Components¶

A critical first step in troubleshooting any network issue is accurately identifying the network segments and devices involved. For Azure VPN gateway connections, this means identifying the specific Azure Virtual Network (VNet) and the corresponding Local Network Gateway that represents your on-premises site. The troubleshooter package assists by listing only Azure VNets within your subscription that have associated gateways, filtering out VNets without gateway connections which are irrelevant to VPN issues. Furthermore, once a VNet is selected, it only shows local network connections that are specifically linked to that VNet’s gateway. This targeted approach helps narrow down the scope of the problem to the specific connection causing the issue. If a user selects a VNet without a local network connection, or if the subscription contains no VNets with gateways configured, the diagnostic tool recognizes this and provides links to relevant Microsoft documentation on setting up Azure VNets and gateways, guiding users toward necessary prerequisites.

Network Configuration XML Parsing¶

Azure networks, particularly those configured using the classic deployment model or hybrid connections defined in the network configuration file, rely on XML configuration data. This configuration XML contains vital information about your Azure VNets, site-to-site VPN definitions, and other network settings. Manually reading and interpreting this XML file can be complex and prone to errors. The troubleshooter package includes functionality to parse this network configuration XML. It processes the raw XML data and incorporates a summarized and potentially more readable version into a report. This parsing capability makes it significantly easier for support professionals and users to understand the customer’s network setup, identify potential configuration discrepancies, and quickly grasp the intended topology without having to navigate the raw, verbose XML structure. Analyzing this configuration is essential for spotting misconfigured address spaces, incorrect gateway types, or other setup errors that could be preventing connectivity.

Azure Gateway Diagnostics Collection¶

Azure Virtual Network Gateways provide their own set of diagnostic logs and metrics that are invaluable for troubleshooting VPN connections. These diagnostics can reveal details about the IPsec negotiation process, tunnel status, data flow statistics, and error events occurring on the Azure side of the connection. Similar to a standalone tool previously released, this diagnostic package can trigger and collect Azure Gateway diagnostics for a specific period. The package is configured to collect diagnostics for a three-minute window. During this period, the user is explicitly asked to attempt to reproduce the issue they are experiencing (e.g., trying to ping a resource across the VPN tunnel, attempting to establish a connection). Collecting diagnostics while the issue is actively occurring ensures that the relevant events and errors are captured in the logs, providing direct insight into what is failing at the moment of impact. This targeted data collection is far more effective than reviewing general logs that might not correlate with the specific problem instance.

Collection of On-Premises Device Files¶

Hybrid connectivity relies on both the Azure components (VNet Gateway) and the customer’s on-premises VPN device (router, firewall, etc.). Issues can originate from either side. To get a complete picture, it is crucial to examine the configuration and operational status of the on-premises device. The troubleshooter package prompts the customer to provide configuration files and logging files from their on-premises VPN equipment. The configuration file is needed to verify settings like IPsec policies, encryption parameters, pre-shared keys, tunnel interfaces, and routing configurations to ensure they correctly match the settings configured on the Azure gateway. The log files from the on-premises device, especially those captured during the same three-minute window when the Azure Gateway diagnostics were running and the issue was being reproduced, are critical for correlating events. For instance, Azure logs might show a failed IPsec negotiation attempt, while the on-premises logs can provide specific error codes or messages from the device explaining why the negotiation failed (e.g., mismatching parameters, authentication failure, local firewall blocking traffic).

Virtual Network Features Configuration Data Collection¶

Beyond the core VPN gateway configuration, other settings within the Azure VNet can significantly impact connectivity. The troubleshooter package collects data on several key VNet features:

• Network Security Groups (NSGs): NSGs act as virtual firewalls for VMs and subnets, controlling inbound and outbound traffic based on rules. An overly restrictive NSG rule can easily block legitimate traffic, including traffic traversing a VPN tunnel. Collecting NSG configurations helps identify if security rules are inadvertently blocking the required ports or protocols.

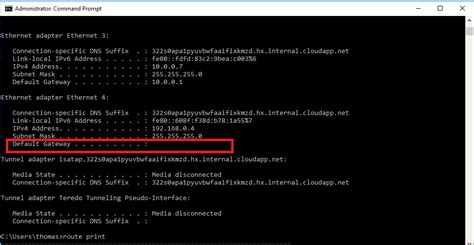

• Static IP (VNet and public): Static IP addresses, whether assigned to VMs within the VNet or as public IPs (PIP), are fundamental to network addressing. Issues with static IP assignment or conflicts can cause connectivity problems.
• Instance-level public IP (PIP): Public IP addresses assigned directly to a VM instance. While not directly related to site-to-site VPNs, collecting this data provides a fuller picture of the VM’s network configuration, which can be relevant in complex scenarios or when troubleshooting external access issues alongside VPN problems.
• DNS (VNet, instance, and subnet level): Correct DNS resolution is vital for connecting to resources by name. Azure allows configuring DNS servers at the VNet, subnet, or even instance level. Incorrect DNS settings (e.g., pointing to an unreachable server, misconfigured conditional forwarders) can lead to connection failures even if the underlying network path is fine. Collecting DNS configuration details helps diagnose name resolution problems.

By collecting data on these features alongside the core VPN configuration and diagnostics, the package provides a more holistic view of the Azure VNet environment, enabling a more thorough analysis of potential root causes that might not be directly related to the VPN tunnel itself.

Obtaining the Diagnostic Package¶

Unlike standard troubleshooting tools that might be available for direct download from public repositories, the Microsoft Azure Virtual Network Troubleshooter package is a supported package distributed through Microsoft Support channels. This approach ensures that users obtaining the package are typically already engaged with Microsoft Support for a specific issue, allowing for guided use of the tool and direct assistance in analyzing the collected data.

To obtain the Microsoft Azure Virtual Network Troubleshooter package, you need to submit a support request to Microsoft Online Customer Services. This process usually involves opening a support ticket through the Azure portal or the Microsoft Support website, describing the virtual network issue you are experiencing. A Microsoft Support professional will then work with you, and if the troubleshooter package is deemed appropriate for diagnosing your specific problem, they will provide you with access to the package and guide you through its usage.

To initiate a support request, you can typically navigate to the Azure portal, go to “Help + support,” and then select “New support request.” Fill in the details regarding the service (Virtual Network), the problem type (e.g., Connectivity), and provide a detailed description of the issue. Once the support case is created and a support engineer is assigned, they will communicate the steps for potentially using the troubleshooter package.

Information Collected by the Package¶

The troubleshooter package is designed to aggregate diverse sets of network data points from both your Azure environment and potentially your on-premises network. The primary types of information collected are:

• Network configuration XML: A parsed and potentially summarized version of your Azure network configuration file, providing details about VNets, gateways, and connections, especially relevant for classic deployment models or complex hybrid setups.
• On-premises VPN device configuration: The configuration file exported from your physical or virtual VPN appliance located on your premises. This file details how the device is configured to establish and maintain the VPN tunnel to Azure.
• On-premises VPN device log: Log files captured from your on-premises VPN device, ideally covering the time frame when the issue was reproduced. These logs contain events related to tunnel establishment, data transmission, errors, and security associations.
• Azure Gateway diagnostics log: Detailed diagnostic logs collected from the Azure Virtual Network Gateway for a specific time window, providing insights into the Azure side of the VPN connection, including IPsec events, BGP status (if configured), and tunnel health.
• Azure Gateway connection statistics: Metrics and statistics related to the specific VPN connection(s) on the Azure Gateway, such as tunnel status (connected/disconnected), bytes in/out, and error counts.

Collecting these various data sources allows support professionals to correlate events across both ends of the VPN tunnel and within the Azure VNet itself, facilitating a more accurate and efficient diagnosis of the root cause of the connectivity problem.

Execution Details: A Walkthrough¶

Using the Microsoft Azure Virtual Network Troubleshooter package involves a step-by-step process that guides the user through authentication, component selection, data collection, and providing on-premises information. The typical execution flow is as follows:

1. Provide Azure Credentials: The very first step requires the user to authenticate to their Microsoft Azure subscription. This is usually done by providing account credentials that have sufficient permissions to access and collect data from the relevant Azure resources (Virtual Networks, Gateways, etc.). This step is essential for the package to interact with your specific Azure environment via PowerShell and APIs.
2. Confirm Azure Subscription Name: After successful authentication, the tool will typically display the name of the Azure subscription it has accessed. The user is prompted to confirm that this is indeed the correct subscription where the affected virtual network resides. This confirmation step prevents accidentally collecting data from the wrong subscription, which is particularly important for users managing multiple subscriptions.
3. Select Scenario: The package may offer different troubleshooting scenarios based on the type of VNet issue being experienced. While the core functionality focuses on VPN gateways, selecting a specific scenario (e.g., Site-to-Site VPN down, Slow VPN performance, VNet peering issue - though the original text focuses on VNet/Local Network issues) can help tailor the subsequent data collection steps. The user is asked to choose the scenario that best fits their situation.
4. Select Affected Azure Virtual Network: The tool will list the Azure Virtual Networks found in the selected subscription that are relevant to the chosen scenario (e.g., VNets with gateways). The user must select the specific VNet that is experiencing the issue. This selection scopes the data collection to the resources within or connected to this VNet.
5. Select Local Network: If the scenario involves a VPN connection to an on-premises site (which is the primary focus described), the tool will list the Local Network Gateway connections associated with the selected VNet Gateway. The user must select the specific local network connection that is having problems. This ensures that diagnostics and statistics are collected for the correct VPN tunnel.
6. Respond to Prompt for On-Premises Device Configuration File: The tool will prompt the user to provide the configuration file from their on-premises VPN device. The user is expected to have this file ready and provide the path or upload it as requested by the tool’s interface. This step highlights the necessity of having access to your on-premises network equipment configuration.
7. Notify Customer About Azure Gateway Diagnostics Collection: The tool informs the user that it is about to start collecting diagnostics from the Azure Gateway. This notification is important because the user will be asked to perform actions during this collection period.
8. Respond to Prompt for Storage Account Selection: Azure Gateway diagnostics are typically stored in a specified Azure Storage Account. The tool will ask the user to select an existing storage account or potentially provide details for a new one where the diagnostic logs will be saved. This requires the user to have a suitable storage account available and specified.
9. Display Diagnostics Running and Request Issue Reproduction: This is a critical phase. The tool will start the three-minute diagnostic collection period on the Azure Gateway. While the diagnostics are running, a timer is usually displayed on the screen counting down the seconds. Crucially, during this exact three-minute window, the user is instructed to actively try and reproduce the issue they are troubleshooting. For example, if the VPN is intermittently disconnecting, they should try to send traffic over it. If it’s a slowness issue, they should attempt a large file transfer. Reproducing the problem while diagnostics are active ensures that the logs capture the specific events and errors that occur during the failure state.
10. Respond to Prompt for On-Premises Device Log File: After the three-minute diagnostic collection window on the Azure side is complete, the tool will prompt the user to provide the log file from their on-premises VPN device. The user should collect the logs from their device covering the exact three-minute period when the Azure diagnostics were running and the issue was reproduced. Providing these synchronized logs from both ends is extremely valuable for pinpointing the issue. The user provides the path or uploads the log file as requested.

Once all the required data is collected, the troubleshooter package bundles it together. This bundled information, including the parsed configuration, Azure diagnostics, and on-premises files, is then typically provided to the Microsoft Support engineer working on the case. The engineer can then analyze this comprehensive dataset to diagnose the root cause of the virtual network or VPN issue.

This detailed walkthrough demonstrates how the package systematically gathers necessary information, spanning configuration details, real-time diagnostic logs, and data from both the Azure and on-premises environments. It highlights the collaborative nature of troubleshooting hybrid connectivity issues and the importance of synchronized data collection from both ends of the connection. By following these steps, users can provide Microsoft Support with the critical information needed to resolve complex Azure Virtual Network problems more efficiently.

Understanding and troubleshooting Azure Virtual Network issues, especially those involving hybrid connectivity, requires a thorough approach. Tools like this dedicated troubleshooter package, while requiring interaction with Microsoft Support, provide a structured and efficient way to collect the comprehensive data needed for effective diagnosis. By automating the collection of configuration details, Azure-side diagnostics, and guiding the user to provide corresponding on-premises data, the package significantly simplifies the initial, often complex, data-gathering phase of troubleshooting.
