Troubleshooting EFI System Partition Access Issues in Windows: A Comprehensive Guide

Table of Contents

The Extensible Firmware Interface (EFI) System Partition (ESP) is a critical component on systems using UEFI firmware. It serves as the storage location for the EFI boot loaders, necessary drivers, and other utility files that the UEFI firmware uses to initiate the boot process. Without a properly functioning ESP, a computer cannot start the operating system installed on it. Understanding how to access and manage this partition is essential for system administrators and advanced users, especially when dealing with boot issues or deploying systems.

Windows Preinstallation Environment (WinPE) is a light-weight version of Windows used for the deployment, installation, and repair of Windows operating systems. It is commonly used in recovery scenarios, system imaging, and running diagnostic tools before the full operating system loads. Working within the WinPE environment often requires access to system partitions, including the ESP, to perform tasks like repairing boot configuration data (BCD), replacing corrupted boot files, or applying system images. This environment provides a powerful command-line interface and access to various Windows utilities necessary for these operations.

However, users often encounter difficulties when attempting to access the ESP from within a WinPE environment using standard tools they might be familiar with from a full Windows installation. Specifically, the mountvol utility, commonly used to manage volume mount points and drive letters, exhibits unexpected behavior. When attempting to use the mountvol /s command to mount the system partition (which should be the ESP on UEFI systems), users in WinPE may find that the command fails to provide access.

This failure manifests as an error message indicating that the system cannot find the specified file or path. This can be confusing, as mountvol /s typically works in a full Windows installation to reveal or assign a drive letter to the system partition. The discrepancy arises due to differences in how utilities are implemented or limited within the WinPE environment compared to a standard Windows operating system. WinPE is designed for specific tasks and may not support all features of every command-line tool present in a full build.

The core reason for this behavior is that, by design, the mountvol utility is not fully supported or functional for managing the ESP within the WinPE environment. While it exists in the WinPE build, its capability to access and expose the internal system partition structure, particularly the ESP which has specific attributes, is limited. This limitation necessitates the use of alternative tools that are specifically designed or behave more predictably in the WinPE context for disk and partition management tasks.

Fortunately, Windows provides robust alternatives for managing disks and partitions, even within the constrained environment of WinPE. The Diskpart utility is the primary command-line tool for this purpose. Diskpart is a powerful, scriptable disk partitioning tool that provides fine-grained control over disks, volumes, and partitions. It is the recommended tool for creating, deleting, formatting, and assigning drive letters to partitions in both full Windows and WinPE environments, including the critical ESP.

Using Diskpart to access the EFI System Partition in WinPE is a straightforward process involving a few commands executed sequentially. This method bypasses the limitations of mountvol and provides the necessary access to the ESP content. The steps involve identifying the correct disk and partition representing the ESP and then explicitly assigning a drive letter to it using Diskpart’s capabilities. This makes the contents of the ESP browsable and modifiable using standard file system commands or other utilities.

Here is a detailed breakdown of the process using the Diskpart utility:

1. Launch Diskpart: Open a command prompt window within the WinPE environment. Type diskpart and press ENTER to start the Diskpart interpreter. You will see a DISKPART> prompt appear, indicating that the utility is ready to accept commands.
2. List Disks: To identify the physical disk containing the ESP, type list disk and press ENTER. This command displays a list of all detected physical disks, along with their size and status. You will need to determine which disk contains your Windows installation and, consequently, the ESP. Look for the disk that matches the size of your system drive.
3. Select Disk: Once you’ve identified the correct disk number (let’s say it’s disk 0), type select disk 0 (replace 0 with the actual disk number) and press ENTER. Diskpart will confirm that the disk is now selected. Subsequent commands will operate on this selected disk.
4. List Partitions: With the disk selected, you need to find the ESP. Type list partition and press ENTER. This command lists all partitions on the selected disk. Look for a partition labeled as “System” or of a size typically around 100MB to 500MB, formatted as FAT32, and possibly marked with an asterisk under the “System” column or described as an “EFI” partition depending on the Diskpart version and interface. This is usually the ESP. Note its partition number.
5. Select Partition: Assuming the ESP is partition 1, type select partition 1 (replace 1 with the actual partition number of the ESP) and press ENTER. Diskpart will confirm that this partition is now selected. All subsequent partition-specific commands will apply to this selected ESP.
6. Assign Drive Letter: To make the partition accessible via a drive letter, type assign letter=X (replace X with a drive letter that is not currently in use, for example, assign letter=V) and press ENTER. Diskpart will assign the specified drive letter to the selected ESP.
7. Exit Diskpart: You can now type exit and press ENTER to close the Diskpart utility. The ESP is now accessible using the drive letter you assigned.

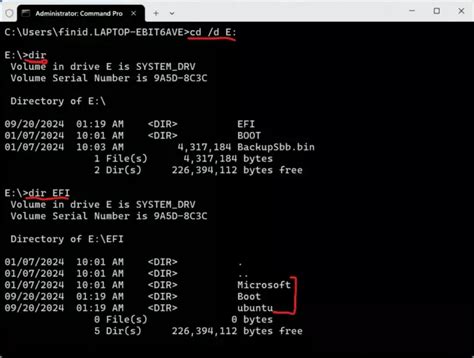

After assigning the drive letter using Diskpart, you can navigate to that drive (e.g., type V: and press ENTER if you assigned letter V) from the command prompt. You can then use standard commands like dir to list the contents, cd to change directories, copy to copy files, or del to delete files within the ESP. This is crucial for tasks such as replacing bootmgr files, repairing the BCD store located within the ESP, or modifying configuration files needed for dual-booting or specific boot requirements.

Understanding the structure of the ESP is important when accessing it. Typically, the ESP contains a directory structure like \EFI. Inside this directory, you will find subdirectories for different operating systems or boot applications (e.g., \EFI\Microsoft for Windows boot files, \EFI\Boot for fallback boot loaders, or directories for Linux bootloaders like \EFI\Ubuntu). The main Windows boot loader is usually \EFI\Microsoft\Boot\bootmgfw.efi, and the Boot Configuration Data (BCD) store is located at \EFI\Microsoft\Boot\BCD.

Common scenarios where you might need to access the ESP in WinPE include:
* Repairing Boot Issues: If Windows fails to boot, accessing the ESP allows you to use tools like bootrec (often requires access to the ESP) or manually replace damaged boot files (bootmgfw.efi, BCD).
* Modifying Boot Configuration Data (BCD): Using bcdboot or bcdedit often requires specifying or having access to the ESP to write or modify boot entries. You might need to rebuild the BCD store if it becomes corrupted.
* Dual-Boot Setup/Repair: If you are dual-booting Windows with another operating system, you might need to access the ESP to manage or repair the boot loaders for either system.
* Applying System Images: Deployment scenarios using tools like DISM might involve preparing the ESP on a target drive before applying a Windows image.

While Diskpart is powerful, it’s essential to exercise caution when working with system partitions like the ESP. Incorrectly modifying or deleting files from the ESP can render your system unbootable. Always double-check the disk and partition numbers before selecting them and assigning a letter. Be mindful of the commands you execute once inside the ESP directory. It is advisable to back up critical data before performing significant modifications.

For instance, rebuilding the BCD store is a common task. After accessing the ESP via Diskpart, you might use a command like bcdboot C:\Windows /s V: /f UEFI (assuming V: is your assigned ESP drive letter and C: is your Windows installation drive). This command recreates the boot files and BCD store on the ESP, often resolving boot problems. Manual file operations should only be attempted if you are confident about which files need replacement or modification.

Visualizing Disk Structure (Mermaid Diagram)

mermaid graph TD A[Physical Disk] --> B(Partition Table - GPT/MBR) B --> C[EFI System Partition (ESP)] B --> D[Windows Partition (OS)] B --> E[Recovery Partition] C --> C1{Boot Loaders (.efi)} C --> C2{BCD Store} C --> C3{Other EFI Files}
This diagram illustrates the typical layout of a disk using UEFI, highlighting the separate nature of the ESP from the main OS partition. Accessing C is what this guide enables via Diskpart.

In summary, while the mountvol /s command may be ineffective for accessing the EFI System Partition within a Windows Preinstallation Environment due to specific design limitations of the mountvol utility in that context, the Diskpart utility provides a reliable and supported method. By using Diskpart to explicitly select the correct disk and partition, and then assigning a drive letter, users gain the necessary access to the ESP to perform critical troubleshooting, repair, and deployment tasks. This behavior is considered by design for the WinPE environment, making Diskpart the go-to tool for such operations. Always proceed with caution when manipulating system partitions.
