Troubleshooting: Group Policy Settings Appearing as Extra Registry Entries in Windows Server

Table of Contents

Group Policy is a fundamental component of Windows Server environments, providing administrators with a powerful tool to manage user and computer settings across a network. At the heart of many configurable policy settings are Administrative Templates, comprised of ADMX and ADML files. These files serve as definitions, instructing the Group Policy Management Console (GPMC) how to present policy options to administrators and how to translate those selections into registry keys or other system configurations on the target computers.

Administrators commonly encounter a perplexing issue where certain Group Policy settings do not appear correctly within the GPMC editor. Instead of being listed under their intended categories with clear labels, descriptions, and configuration options, these settings manifest generically as “Extra Registry Settings” within the policy details. This presentation makes it difficult, if not impossible, to properly configure or even understand the purpose of these settings through the standard graphical interface. This article delves into the cause of this issue and provides a specific troubleshooting step involving a registry setting override.

Understanding Group Policy and Administrative Templates¶

To fully grasp why settings might appear incorrectly, it’s essential to understand the role of Administrative Templates. Administrative Templates (.admx files are language-neutral, and .adml files provide the language-specific text) define the structure of registry-based policy settings. They tell the GPMC editor:
* What categories and subcategories exist within the Administrative Templates node.
* The name and description of each policy setting.
* The type of input required (e.g., text box, dropdown list, checkbox).
* The registry key and value name that the policy modifies.
* The specific registry value data to write based on the user’s selection (e.g., 0 for Disabled, 1 for Enabled, or a specific string/number).
* Help text associated with the policy.

When you open a Group Policy Object (GPO) for editing using GPMC or the Group Policy Object Editor (gpedit.msc), the editor reads these ADMX/ADML files to populate the “Administrative Templates” section. Without the correct template file, the editor doesn’t know how to interpret the underlying registry settings that a policy might configure.

The Role of the Central Store¶

In a Windows domain environment, Administrative Templates are typically stored in a centralized location known as the Central Store. This store is a folder named PolicyDefinitions located within the SYSVOL share on domain controllers (\\YourDomain.com\SYSVOL\YourDomain.com\Policies\PolicyDefinitions). Using a Central Store offers several significant advantages:
1. Consistency: All administrators editing GPOs from any computer in the domain see the same set of Administrative Templates, ensuring a consistent management experience regardless of which computer they are using.
2. Centralized Management: Updating Administrative Templates involves simply replacing files in one central location (the Central Store) rather than updating them on every administrator workstation or domain controller.
3. Elimination of ADM Files: The Central Store based on ADMX/ADML files replaced the older ADM file system, which embedded policy definitions directly within the GPO, leading to SYSVOL bloat and replication issues.

When you open a GPO using GPMC or the Group Policy Object Editor on a domain-joined computer, the editor checks for the presence of a Central Store in the SYSVOL share. If a Central Store is found, the editor preferentially loads ADMX/ADML files from there. This ensures that the management interface reflects the standardized set of policies available across the domain.

The Local PolicyDefinitions Folder¶

Every Windows computer, including domain-joined machines, also maintains a local PolicyDefinitions folder at C:\Windows\PolicyDefinitions. This folder contains the default Administrative Template files that ship with the operating system version installed on that specific machine. These local files are used:
* When editing Local Group Policy using gpedit.msc on a standalone computer or a domain-joined computer that cannot access the Central Store.
* As a fallback if a Central Store is not detected or accessible.

The contents of the local PolicyDefinitions folder can vary significantly between different versions of Windows. Newer OS versions include ADMX/ADML files for features specific to that version, while older versions naturally lack these definitions.

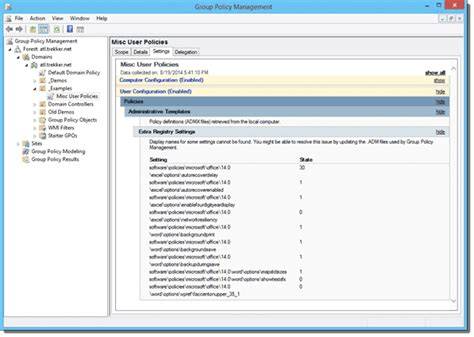

The Problem: Extra Registry Settings Appearance¶

The issue of settings appearing as “Extra Registry Settings” arises when there is a disconnect between the actual policy settings configured within a GPO and the Administrative Template definitions available to the G GPMC editor currently being used.

Specifically, this problem often occurs in scenarios where:
1. A GPO contains settings that were configured using ADMX/ADML files from a newer version of Windows or a specific application.
2. An administrator then attempts to edit or view this GPO using GPMC on a computer (either a domain controller or a workstation with RSAT) whose Administrative Template files are older or lack the definitions for those specific settings.

Because the GPMC editor, in this case, is loading older ADMX/ADML files (likely from an outdated Central Store or older local files being used as a fallback) that do not contain the necessary information (like names, descriptions, value types) for the settings present in the GPO, it cannot display them correctly. The editor recognizes that some registry value is being set by the policy but lacks the template to present it user-friendly. Consequently, it defaults to showing the raw registry path and value under a generic “Extra Registry Settings” node.

This situation is exacerbated by the fact that ADMX/ADML files for different versions of the same component (e.g., different Windows builds, different versions of Office) often share the same base filenames (e.g., WindowsUpdate.admx, Office16.admx). You cannot simply merge the contents of older and newer files because they are designed to work as complete sets for a specific version. Attempting to combine them manually is complex and unsupported, often leading to parsing errors or incorrect policy behavior. While you can have ADMX files for different products or features (like separate files for Windows, Office, Chrome, etc.) coexist in the Central Store, you typically replace the entire set of Windows or Office ADMX files with a newer version, potentially losing definitions for older settings not carried forward or gaining definitions not understood by older editors.

ADMX/ADML File Version Incompatibilities¶

Consider a mixed environment with Windows Server 2016 domain controllers, a Central Store populated with Server 2016 ADMX files, and some client machines running Windows 10 21H2 and others running Windows 11 22H2.
* If you install RSAT on a Windows 11 22H2 machine, it comes with ADMX files specific to that version.
* If you use this Windows 11 machine to edit a GPO, GPMC will attempt to use the Central Store. If the Central Store still contains older Server 2016 (or even Windows 10 1809) ADMX files, any policies specific to Windows 11 22H2 features that might be configured will not have definitions in the Central Store files.
* If these Windows 11-specific policies were somehow added to the GPO (perhaps configured from another machine with newer ADMX files), they would appear as “Extra Registry Settings” when viewed from the Windows 10 21H2 machine or a Server 2016 DC using GPMC pointing to the old Central Store.
* Conversely, if you update the Central Store with the latest Windows 11 22H2 ADMX files, policies specific to very old features or software versions that might have been removed from the latest ADMX definitions could appear as “Extra Registry Settings” when viewed from machines whose GPOs were originally configured using those older definitions, even if they are targeting older OS versions.

This versioning conflict between the ADMX files available to the editing machine and the actual settings saved in the GPO is the root cause of the “Extra Registry Settings” display issue.

The Solution: Overriding the Central Store Usage¶

Fortunately, there is a specific registry setting designed to help troubleshoot this exact scenario. This setting allows you to configure the GPMC editor on a particular machine to ignore the Central Store and instead use the local Administrative Template files located in C:\Windows\PolicyDefinitions. By forcing the editor to use the local files, you ensure that the available ADMX definitions match the operating system version of the computer you are currently using for editing, which may resolve the display issue if the local files are the ones containing the missing definitions.

To enable this override, you need to set a specific registry value under HKEY_LOCAL_MACHINE:

Value Name	Value Type	Value Data
EnableLocalStoreOverride	REG_DWORD	0 - Use the PolicyDefinitions folder in the SYSVOL folder if present (default behavior).
		1 - Always use the local PolicyDefinitions folder (C:\Windows\PolicyDefinitions), ignoring the Central Store.

When EnableLocalStoreOverride is set to 1, the GPMC editor on that computer will load its Administrative Templates solely from C:\Windows\PolicyDefinitions, regardless of whether a Central Store exists in SYSVOL or not.

Implementing the Registry Override¶

You can apply this registry setting using several methods:

Method 1: Manual Registry Editor¶

This is suitable for applying the setting on a single troubleshooting workstation.

1. Open the Run dialog box (Win + R), type regedit, and press Enter.
2. Navigate to the following registry key:
   HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft\Windows\Group Policy
3. If the Group Policy key does not exist under ...\Microsoft\Windows, you may need to create it.
4. Right-click in the right-hand pane, select New, and choose DWORD (32-bit) Value.
5. Name the new value EnableLocalStoreOverride.
6. Double-click the new EnableLocalStoreOverride value.
7. In the Value data field, enter 1.
8. Click OK.
9. Close Registry Editor.
10. Close and reopen GPMC or the Group Policy Object Editor for the change to take effect.

Method 2: Using a .REG File¶

You can create a .reg file to apply the setting by double-clicking it.

1. Open Notepad or another text editor.

2. Paste the following text:

   Windows Registry Editor Version 5.00

   [HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft\Windows\Group Policy]
   "EnableLocalStoreOverride"=dword:00000001



   3. Save the file with a .reg extension (e.g., EnableGPLocalStore.reg). Ensure the “Save as type” is set to “All Files” to prevent .txt being appended.
   4. Transfer the .reg file to the computer where you want to apply the override.
   5. Double-click the .reg file and click Yes when prompted by User Account Control and the Registry Editor import confirmation.
   6. Close and reopen GPMC or the Group Policy Object Editor.

Method 3: Using PowerShell¶

PowerShell provides a command-line way to set the registry value.

1. Open PowerShell as an administrator.

2. Run the following command:

   New-ItemProperty -Path "HKLM:\SOFTWARE\Policies\Microsoft\Windows\Group Policy" -Name "EnableLocalStoreOverride" -Value 1 -PropertyType DWord -Force



   This command will create the key and the DWORD value if they don’t exist, or update the value if it does exist.
   3. Close and reopen GPMC or the Group Policy Object Editor.

Method 4: Deploying via Group Policy (Registry Preference)¶

While this setting is typically used for troubleshooting on an administrator’s workstation, you could deploy it via GPO using Registry Preferences if you needed to apply it to multiple administrative machines temporarily.

1. Create a new GPO or edit an existing one that applies to the relevant administrator machines.
2. Navigate to Computer Configuration -> Preferences -> Windows Settings -> Registry.
3. Right-click Registry, select New -> Registry Item.
4. In the New Registry Properties dialog:
   • Action: Update
   • Hive: HKEY_LOCAL_MACHINE
   • Key Path: SOFTWARE\Policies\Microsoft\Windows\Group Policy
   • Value name: EnableLocalStoreOverride
   • Value type: REG_DWORD
   • Value data: 1
5. Click OK.
6. Ensure the GPO is linked and applied to the necessary computers (e.g., a specific OU for IT admin workstations).
7. Have users run gpupdate /force or wait for the next background policy refresh and then close/reopen GPMC.

Implications and Considerations¶

Enabling the EnableLocalStoreOverride is primarily a troubleshooting step. While it can help resolve the “Extra Registry Settings” display issue by forcing the use of local ADMX files which might be newer or otherwise contain the missing definitions, it has implications:

• Inconsistency: If different administrators use this override on machines with different local ADMX file versions, they might see different sets of policies or encounter the “Extra Registry Settings” issue inconsistently.
• Bypassing Centralization: It defeats the purpose of the Central Store, which is to provide a single, consistent source for policy definitions across the domain.
• Potential for Errors: You might inadvertently configure a policy based on a local ADMX definition that is incompatible or intended for a different OS version than the target machine.

The ideal long-term solution is to maintain an updated Central Store with the latest ADMX files relevant to all the operating systems and applications you manage in your environment. Microsoft regularly releases updated ADMX bundles (e.g., for new Windows versions, Office versions, Edge browser, etc.) that should be incorporated into your Central Store.

Best Practices for ADMX Management¶

To minimize the occurrence of “Extra Registry Settings” and leverage the full power of Group Policy:
* Keep the Central Store Updated: Periodically download the latest Administrative Template bundles from Microsoft (for Windows, Office, Edge, etc.) and relevant third-party vendors.
* Backup Before Updating: Always back up your existing PolicyDefinitions folder in SYSVOL before replacing the files with newer versions.
* Understand Compatibility: Be aware that updating ADMX files can sometimes introduce or remove policy definitions. While ADMX is generally backward compatible, it’s good practice to understand what changes are included in a new bundle.
* Test in a Lab: If possible, test major ADMX updates in a lab environment before deploying to production.

Advanced Troubleshooting and Identifying Missing Settings¶

If you encounter “Extra Registry Settings,” you can often identify the missing definition by examining the GPO report. When you generate a report for a GPO (using GPMC or gpresult), the “Extra Registry Settings” section will display the full registry path and the value being set. This information is a crucial clue.

You can then use this registry path to search online documentation (Microsoft Learn, vendor websites) or within the various ADMX files themselves (they are XML text files that can be opened with a text editor) to find which policy setting corresponds to that registry modification. This process helps you identify which specific ADMX file or which version of an ADMX file contains the definition you are missing. Once identified, you can ensure the correct version of that ADMX file is placed in your Central Store (following best practices) to resolve the display issue for all administrators.

Visualizing ADMX File Flow¶

Here’s a simplified flow of how GPMC decides where to load ADMX files from:

1. Administrator opens GPMC or Group Policy Object Editor on a computer.
2. Editor checks for HKEY_LOCAL_MACHINE\SOFTWARE\Policies\Microsoft\Windows\Group Policy\EnableLocalStoreOverride.
3. If EnableLocalStoreOverride is set to 1:
   • Editor loads ADMX/ADML files only from C:\Windows\PolicyDefinitions on the local machine.
   • Ignores the Central Store.
4. If EnableLocalStoreOverride is not set or set to 0:
   • Editor checks for the existence of the Central Store in SYSVOL (\\YourDomain.com\SYSVOL\YourDomain.com\Policies\PolicyDefinitions).
   • If Central Store exists and is accessible: Editor loads ADMX/ADML files only from the Central Store.
   • If Central Store does not exist or is inaccessible: Editor falls back and loads ADMX/ADML files from C:\Windows\PolicyDefinitions on the local machine.

Understanding this flow helps explain why the override works and when the editor uses local files by default.

Watch a Relevant Video¶

For a visual explanation of the Central Store and ADMX files, check out this video:

Note: This is an example embed; replace with a suitable video URL if available.

Summary¶

The appearance of Group Policy settings as “Extra Registry Settings” in the Group Policy editor is a common issue caused by a mismatch between the Administrative Template definitions available to the editor and the settings actually configured in the GPO. This usually stems from using ADMX/ADML files that are outdated relative to the settings being managed. The EnableLocalStoreOverride registry setting provides a valuable troubleshooting tool by forcing the editor to use local ADMX files, which might contain the necessary definitions. While useful for diagnosis and temporary workarounds, the best practice remains maintaining a current and comprehensive Central Store in your domain’s SYSVOL.
