Troubleshooting Slow MDX Queries with Calculated Measures in SQL Server

Table of Contents

Multidimensional Expressions (MDX) queries are a fundamental tool for interacting with cubes and models in SQL Server Analysis Services (SSAS). While primarily associated with Multidimensional models, MDX is also supported for querying SSAS Tabular models, offering a different perspective compared to Data Analysis Expressions (DAX), which is the native language for Tabular. Calculated measures are crucial components in both model types, allowing users to define complex business logic and aggregations that are not directly present in the source data. These measures can significantly enhance analytical capabilities, but they can also introduce performance bottlenecks if not designed and implemented efficiently.

In the context of SSAS Tabular models running on versions like 2016, 2017, and 2019, executing MDX queries that involve calculated measures can sometimes result in unexpectedly slow performance. This issue becomes particularly noticeable and problematic when these calculated measures perform division operations using the standard arithmetic operator, /. Users might observe that queries involving such measures take an excessive amount of time to return results and consume significant system resources, particularly memory, impacting the overall responsiveness and scalability of the SSAS instance.

Understanding the environment is key to troubleshooting. SSAS Tabular models utilize the VertiPaq engine, an in-memory analytical database engine optimized for fast aggregations and queries, primarily driven by DAX. While MDX is supported for backward compatibility and integration with tools that historically used MDX, the queries are often translated or processed differently compared to native DAX execution paths. This interaction between MDX and the VertiPaq engine can sometimes lead to non-optimal execution plans, especially when using operators or functions that have more optimized equivalents within the native DAX language and the VertiPaq architecture.

Symptoms of Performance Issues¶

The primary symptom indicating this specific problem is poor performance when running MDX queries against an SSAS 2016, 2017, or 2019 Tabular instance. Queries that execute quickly without the calculated measure may become significantly slower when the measure is included. Furthermore, monitoring the SSAS instance during the execution of these problematic queries often reveals high CPU utilization and, crucially, high memory consumption by the msmdsrv.exe process. This excessive memory usage is a strong indicator that the engine is struggling to efficiently process the calculation, possibly involving costly operations like materializing intermediate results or inefficiently handling division by zero scenarios that the standard / operator does not inherently manage robustly.

The slow execution time can impact end-user experience, affect report generation speed, and potentially strain the SSAS server’s capacity, leading to performance degradation for other users or applications querying the same instance. Identifying the specific queries and calculated measures causing this behavior is the first step in the troubleshooting process. This can typically be done by profiling the SSAS instance using tools like SQL Server Profiler, Extended Events, or DAX Studio, capturing query execution traces, and analyzing their duration and resource usage.

Identifying the Cause: The Division Operator¶

Upon investigation, if the problematic calculated measure involves a division operation using the / operator, this is likely the root cause, especially in Tabular models. While the / operator is a standard and seemingly straightforward way to perform division, its implementation and optimization within the SSAS Tabular engine, particularly when invoked through the MDX layer, may not be as efficient as dedicated functions designed for this purpose.

The VertiPaq engine and DAX have a specific function, DIVIDE, which is engineered to handle division operations more robustly and efficiently. The standard / operator may not have the same level of internal optimization and can sometimes lead to less efficient execution plans, especially in complex scenarios or when potential division by zero exists. This inefficiency can manifest as increased processing time and higher memory allocation as the engine attempts to handle the calculation using a less optimized path.

Think of it like using a generic tool for a specific task versus using a specialized tool. A generic tool might work, but the specialized tool is designed for maximum efficiency and often includes features that handle edge cases (like division by zero) gracefully. In the SSAS Tabular world, DIVIDE is the specialized tool for division.

The Resolution: Utilizing the DIVIDE Function¶

The resolution to this specific performance issue is straightforward and involves modifying the calculated measure definition. Instead of using the standard / operator for division within the MDX calculated measure, replace it with the DIVIDE function.

The DIVIDE function is available and recommended for division operations in both DAX and MDX within SSAS Tabular models. Its syntax is designed not only for clarity but also for performance and robust error handling, specifically concerning division by zero.

The basic syntax for the DIVIDE function is:

DIVIDE(<numerator>, <denominator>[, <alternateresult>])

• <numerator>: The expression for the numerator.
• <denominator>: The expression for the denominator.
• <alternateresult> (Optional): The value to return when the denominator is zero or BLANK. If omitted, the function returns BLANK when division by zero occurs.

Using DIVIDE offers several advantages:
1. Optimized Execution: It’s designed to integrate efficiently with the VertiPaq engine, potentially resulting in faster processing and lower memory consumption compared to the / operator, especially when accessed via MDX.
2. Robust Error Handling: It provides built-in handling for division by zero. This is critical because division by zero using the / operator can result in errors (#DIV/0!) or unexpected behavior depending on the context and tools used to query the model. DIVIDE allows you to specify a sensible default value (like 0 or BLANK) in such cases, preventing errors and ensuring more stable results.
3. Consistency: It aligns with best practices in DAX, the native language for Tabular models.

Let’s consider a simple example of a calculated measure calculating a ratio using the / operator:

CREATE MEMBER CURRENTCUBE.[Measures].[Sales Ratio - Bad]
AS
[Measures].[Total Sales] / [Measures].[Total Quantity],
VISIBLE = 1;

To improve the performance and robustness of this calculated measure, you would replace the / operator with the DIVIDE function:

CREATE MEMBER CURRENTCUBE.[Measures].[Sales Ratio - Good]
AS
DIVIDE([Measures].[Total Sales], [Measures].[Total Quantity]),
VISIBLE = 1;

Optionally, you can specify an alternate result for division by zero:

CREATE MEMBER CURRENTCUBE.[Measures].[Sales Ratio - Better]
AS
DIVIDE([Measures].[Total Sales], [Measures].[Total Quantity], 0), -- Return 0 if Total Quantity is zero
VISIBLE = 1;

Implementing this change requires modifying the measure definition within the SSAS Tabular model project (e.g., in SQL Server Data Tools - SSDT or Visual Studio), deploying the updated model, and then refreshing the cache or ensuring queries pick up the new definition.

After applying this change, execute the problematic MDX queries again and monitor the performance and resource usage. You should observe a significant improvement in query execution time and a reduction in memory consumption associated with that calculation.

Beyond the DIVIDE Function: Broader Performance Tuning¶

While switching from / to DIVIDE is a specific fix for a known issue, achieving optimal performance with MDX queries on SSAS Tabular models often requires a broader approach to performance tuning. The DIVIDE fix addresses a particular bottleneck, but other factors can contribute to slow query performance.

Here are some additional areas to consider when troubleshooting and optimizing MDX queries in SSAS Tabular:

1. Query Design and Structure¶

• Complexity: Highly complex MDX queries involving numerous nested expressions, calculated members, or intricate set operations can be slow. Simplify the query logic where possible.
• Large Result Sets: Queries returning extremely large result sets (millions of cells) will naturally take time to process and transfer. Evaluate if the application truly needs all the data at once or if aggregation/filtering can be pushed closer to the source.
• Non-Empty Scans: MDX’s NON EMPTY keyword is crucial for performance, but if applied incorrectly or on very large, sparse dimensions, it can still be costly. Understand how NON EMPTY interacts with your model structure.
• Calculated Members vs. Measures: In Tabular, calculated measures defined in DAX are generally more performant than dynamic MDX calculated members defined within the query itself, especially for complex aggregations. Define calculations in the model’s measure grid whenever possible.

2. Data Model Design¶

• Relationships: Ensure relationships between tables are correctly defined and active. Incorrect or missing relationships can lead to incorrect results and force the engine to perform costly scans.
• Cardinality: High-cardinality columns used in filters, slicers, or group-bys can impact performance. Consider optimizing these columns (e.g., breaking down date/time, avoiding unique identifiers in hierarchies).
• Column Store Optimization: VertiPaq is a column-store engine. Ensure that columns are efficiently encoded and compressed. While largely automatic, understanding the data types and distribution can help.
• Measure Definitions: Review the definitions of base measures. Ensure they are simple and efficient aggregations. Complex logic should be built upon these base measures using calculated measures.

3. SSAS Configuration and Hardware¶

• Memory: Ensure the SSAS instance has sufficient RAM. SSAS Tabular is an in-memory technology, and insufficient memory leads to paging and significant performance degradation. Monitor memory usage closely.
• CPU: Complex calculations and aggregations are CPU-intensive. Ensure adequate processing power is available.
• Storage (for persistence/processing): While querying is in-memory, model loading and processing depend on storage speed. Ensure fast storage for the data and backup files.
• Caching: Understand how SSAS caching works and how queries interact with the cache. Identical queries or queries requesting subsets of previously queried data might benefit from caching.

4. Profiling and Analysis Tools¶

• SQL Server Profiler / Extended Events: Use these tools to capture traces of queries executing against the SSAS instance. Analyze event durations, CPU time, and reads/writes to identify bottlenecks. Look for specific events related to query processing, calculation engine activity, and formula engine activity.
• DAX Studio / SQL Server Management Studio (SSMS): These tools allow executing queries and analyzing server timings and query plans (though query plans in MDX on Tabular are less detailed than in DAX). DAX Studio can be particularly helpful in understanding how the Tabular engine processes queries.
• Performance Monitor (PerfMon): Monitor system resources (CPU, Memory, Disk I/O) and SSAS-specific performance counters to get a holistic view of the server’s health and activity during peak loads.

5. Understanding MDX vs. DAX in Tabular¶

While MDX is supported, DAX is the native language for SSAS Tabular. In many cases, equivalent logic written in DAX calculated measures might perform better than the same logic attempted via complex MDX calculated members or expressions, especially if the MDX isn’t effectively translated by the engine. For new development or complex scenarios, evaluate if defining the calculation in DAX directly within the model is a better approach than relying solely on MDX query-defined calculations.

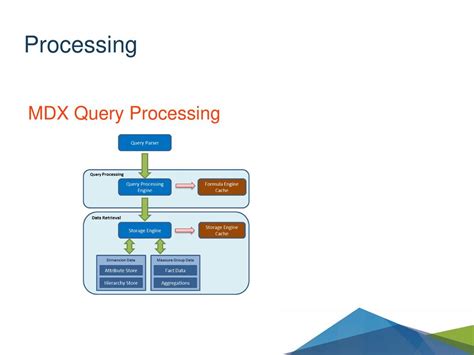

Illustrative Diagram: Basic SSAS Tabular Query Flow¶

Let’s visualize a simplified flow for an MDX query against a Tabular model:

mermaid graph LR A[User/Client Tool] --> B(MDX Query); B --> C{SSAS Tabular Instance}; C --> D[MDX Parser/Formula Engine]; D --> E[Translation/Delegation to VertiPaq]; E --> F[VertiPaq Engine]; F --> G[Columnar Data Storage]; F --> H[Results Aggregation]; H --> D; D --> I{Process Calculated Measures}; I --> F; % May require re-engaging VertiPaq I --> J[Formatted Results]; J --> A;

In this flow, the issue with the / operator often occurs within the “Process Calculated Measures” step (I), where the calculation engine interacts with the VertiPaq engine (F). The DIVIDE function ensures this interaction is more efficient than using /.

Conclusion¶

The specific issue of slow MDX queries with calculated measures using the / operator in SSAS 2016, 2017, and 2019 Tabular instances is a known problem with a clear solution: replace the / operator with the DIVIDE function. This change leverages the optimized division functionality built into the VertiPaq engine and DAX, leading to improved performance and more robust handling of division by zero scenarios.

While this fix is effective for the described symptom, remember that performance tuning in SSAS Tabular is a multifaceted discipline. Always start by identifying the specific bottleneck using profiling tools. If calculated measures are implicated and they use division, applying the DIVIDE function fix is a crucial step. However, be prepared to investigate other factors such as query complexity, data model design, and server resources if performance issues persist. By combining targeted fixes like using DIVIDE with a comprehensive approach to performance tuning, you can ensure your SSAS Tabular models deliver fast and efficient analytical capabilities to your users.

What are your experiences with optimizing calculated measures in SSAS Tabular? Have you encountered this specific issue with the division operator? Share your tips and troubleshooting methods in the comments below!
