Troubleshooting Windows Server: Resolving Feature Installation Errors & Solutions

Updated: • 0 • min read
Table of Contents

This article addresses a specific issue encountered when attempting to add roles or features to a Windows Server 2012 R2 installation running the Server Core option. Users performing installations using certain Volume Licensing media released prior to December 11, 2013, may find that feature installations fail with a distinct error message. This document outlines the symptoms of this problem and provides detailed methods to successfully install the required components. Understanding the root cause and available solutions is crucial for effective Server Core management.

Symptoms

Consider a scenario where you are working with a server configured as follows:

  • The operating system is Windows Server 2012 R2.
  • The server is running the Server Core installation option, which provides a minimal environment.
  • The installation was performed using Volume Licensing media obtained before a specific update release date (December 11, 2013).
  • The server either does not have direct internet access or connectivity to Windows Update is restricted by network policies.

In this particular configuration, when attempting to install roles or features, the process fails. The system reports an error, indicating that it cannot locate the necessary installation files required for the feature addition. The specific error code and message typically presented in this scenario are:

Error: 0x800f081f
The source files could not be found.
Use the “Source” option to specify the location of the files that are required to restore the feature. For more information on specifying a source location, see Configure a Windows Repair Source.

This error message clearly points to a problem with the source location from which the operating system expects to retrieve the files needed to enable the requested feature or role. Without a valid source, the installation cannot proceed, preventing administrators from configuring the server with the required functionalities.

Understanding the Problem

The error code 0x800f081f, often accompanied by the message “The source files could not be found,” signifies a failure to retrieve necessary files from the Windows Component Store (also known as the side-by-side store or SxS store) or a specified alternative source. Windows Server, especially Server Core, relies on this repository for installing, enabling, and disabling features and roles dynamically without requiring a full OS reinstallation. When a feature is requested, the system looks for the required component files within the local component store. If they are not present or are incomplete, it needs an external source to obtain them.

For Windows Server 2012 R2 installations, particularly Server Core using initial Volume Licensing media, there was a known issue with the completeness of the side-by-side repository included on the installation media itself. Certain components required for enabling features were either missing or not correctly linked within this repository. Consequently, if the system couldn’t find the files locally and didn’t have access to a fallback source like Windows Update, the installation would fail with the source not found error. This specific packaging problem with the initial VL media necessitated the need for an alternative source location.

Resolution

To successfully install features on a Windows Server 2012 R2 Server Core installation encountering the 0x800f081f error due to the media issue, you must provide a valid source for the installation files. There are primarily two recommended methods to achieve this, depending on the server’s network connectivity.

Method 1: Connect to the Internet

The simplest resolution, if feasible, is to allow the Server Core installation access to Windows Update. Windows Update serves as a readily available, comprehensive source for operating system components, updates, and feature files.

If the server is in an environment where internet access is normally restricted, consider temporarily allowing outbound connections specifically for Windows Update during the feature installation process. Once connectivity is established, you can attempt the feature installation again using standard methods like Server Manager (if installed), PowerShell (Install-WindowsFeature), or DISM. The system will automatically use Windows Update as the source to download the necessary files and complete the installation successfully. This method requires no manual file handling or source path specification if the default fallback mechanism is enabled.

Method 2: Using Windows Server 2012 R2 Installation Media

If connecting the server to the internet is not possible or permitted, the recommended approach is to use updated Windows Server 2012 R2 installation media as the source. Microsoft released revised Volume Licensing media on December 11, 2013, which corrected the issue with the incomplete side-by-side store.

To use the installation media as a source, you will need the DVD or ISO image of the updated media. The process involves using the PowerShell Install-WindowsFeature cmdlet and specifying the source path pointing to the install.wim file on the media. The steps are as follows:

  1. Insert the Updated Media: Place the updated Windows Server 2012 R2 DVD into the server’s DVD drive or mount the updated ISO image. Note the drive letter assigned to the media.

  2. Identify the Correct Image Index: The install.wim file on the installation media contains multiple images representing different editions (Standard, Datacenter) and installation options (Server Core, Full GUI). You need to identify the index number corresponding to the full installation of the same edition currently installed on your server. The DISM command-line tool is used for this purpose.

    Open a command prompt or PowerShell window on the server. Type the following command, replacing <drive> with the actual drive letter of your mounted media:

    Dism /get-wiminfo /wimfile:<drive>:\sources\install.wim

    This command will list the images contained within the install.wim file and their respective index numbers. Pay close attention to the ‘Name’ and ‘Description’ fields to identify the correct image.

    Example output from the DISM command:

    Index : 1
Name : Windows Server 2012 R2 SERVERSTANDARDCORE
Description : Windows Server 2012 R2 SERVERSTANDARDCORE
Size : 6,653,342,051 bytes
Index : 2
Name : Windows Server 2012 R2 SERVERSTANDARD
Description : Windows Server 2012 R2 SERVERSTANDARD
Size : 11,807,528,410 bytes
Index : 3
Name : Windows Server 2012 R2 SERVERDATACENTERCORE
Description : Windows Server 2012 R2 SERVERDATACENTERCORE
Size : 6,653,031,430 bytes
Index : 4
Name : Windows Server 2012 R2 SERVERDATACENTER
Description : Windows Server 2012 R2 SERVERDATACENTER
Size : 11,809,495,151 bytes

    Important Note: When selecting the <index> number for the source, you must use the index number corresponding to the full installation (not Server Core) of the Windows Server 2012 R2 edition you currently have installed. For instance, if your server is running Windows Server 2012 R2 Datacenter Server Core, you should use the index number for the full Datacenter installation (Index 4 in the example above). If you have Windows Server 2012 R2 Standard Server Core, use the index for the full Standard installation (Index 2 in the example).

  3. Open PowerShell: If you are not already in a PowerShell session, type Powershell.exe in the command prompt and press Enter.

  4. Install the Feature Using PowerShell: Now, use the Install-WindowsFeature cmdlet, specifying the feature name and the source location pointing to the install.wim file and the correct index. The syntax is as follows:

    Install-WindowsFeature <FeatureName> -Source wim:<drive>:\sources\install.wim:<index>

    Replace <FeatureName> with the actual name of the feature or role you want to install (e.g., Server-Gui-Mgmt-Infra, Server-Gui-Shell for GUI components, or other role names). Replace <drive> with the drive letter of your media and <index> with the index number identified in step 2.

    For example, if you are installing the GUI components (Management Infrastructure and Shell) from media on drive F: and your server is Windows Server 2012 R2 Datacenter (which corresponds to index 4 for the full edition), the command would be:

    Install-WindowsFeature Server-Gui-Mgmt-Infra,Server-Gui-Shell -Source wim:f:\sources\install.wim:4

    This command instructs the system to install the specified features, obtaining the required files directly from the specified image index within the install.wim file on the installation media. The installation should now proceed successfully.

Alternative Source Methods

While using Windows Update or the installation media are the most common methods, Windows Server also supports using a shared folder containing the Windows side-by-side files as a source.

To use a shared folder, you would typically copy the SxS folder located within the sources directory of the installation media to a network share. Then, you can use the Install-WindowsFeature or DISM /Online /Enable-Feature commands with the -Source parameter pointing to the network path of this shared folder.

For example, if you copied the SxS folder to \\ServerName\ShareName\sxs, the command might look like:

Install-WindowsFeature <FeatureName> -Source \\ServerName\ShareName\sxs

or using DISM:

DISM /Online /Enable-Feature /FeatureName:<FeatureName> /Source:\\ServerName\ShareName\sxs /LimitAccess

The /LimitAccess switch prevents DISM from attempting to use Windows Update as a fallback source, ensuring it only uses the specified shared path. This method can be useful in environments where multiple servers need to install features offline, allowing a central repository for installation files.

Deep Dive: The Side-by-Side Repository

The Windows side-by-side (SxS) repository, also known as the component store (C:\Windows\WinSxS), is a critical part of the Windows operating system. It stores multiple versions of DLLs, executables, and other component files that make up Windows and its various features. This architecture allows different applications or features to rely on specific versions of components without conflicts, preventing the notorious “DLL hell” problem.

When you install or enable a Windows feature or role, the system checks the SxS store for the necessary files. If the required files are present and in the correct version, the feature is quickly enabled. If the files are missing, corrupted, or incomplete (as was the case with the initial Windows Server 2012 R2 VL media for certain components), the system needs an external source to fetch them. This external source can be Windows Update, the original installation media, or a designated shared folder containing the SxS content. The 0x800f081f error specifically indicates that the system failed to find the needed files within the local SxS store and was either unable to reach a fallback source or no source was specified.

Understanding the SxS store helps administrators diagnose installation and update issues. Maintaining the health of the component store is vital for the stability and functionality of the operating system. Tools like DISM /Online /Cleanup-Image /RestoreHealth are designed to repair a corrupted SxS store by using a specified source or Windows Update.

Preventing the Issue

The most effective way to prevent encountering this specific 0x800f081f error related to the initial Volume Licensing media is to use the updated Windows Server 2012 R2 Volume Licensing media released on or after December 11, 2013, for all new installations. Microsoft corrected the packaging issue in this updated release, ensuring that the side-by-side repository on the media is complete and correctly referenced, allowing offline feature installations without requiring access to Windows Update.

If you are still using older media, be prepared to use Method 1 or Method 2 described above whenever you need to install features or roles on a Server Core installation. Planning for potential offline installation sources (like mounting the updated ISO or creating a network share) is a good practice for offline or restricted environments.

While this article focuses on a specific media-related issue causing 0x800f081f, other factors can also lead to feature installation failures with similar errors. If you encounter source file errors even when using updated media or having internet access, consider these possibilities:

  1. Corrupted Component Store: The local WinSxS directory might be damaged. Use DISM /Online /Cleanup-Image /ScanHealth to check its integrity and DISM /Online /Cleanup-Image /RestoreHealth /Source:<source> to repair it.
  2. Incorrect Source Path: Double-check the source path provided in the Install-WindowsFeature or DISM command. Ensure the drive letter, file path, and image index (if using WIM) are correct.
  3. Network Issues: If relying on Windows Update or a network share, verify network connectivity, firewall rules, and proxy settings that might block access to the source.
  4. Incorrect Feature Name: Ensure you are using the correct, case-sensitive name for the feature or role you are trying to install. You can list available features using Get-WindowsFeature in PowerShell or DISM /Online /Get-Features.
  5. Insufficient Permissions: Ensure the user account performing the installation has administrative privileges on the server.
  6. Antivirus or Security Software: Occasionally, security software might interfere with the installation process. Temporarily disabling it (following proper security protocols) can help diagnose if it’s the cause.

By systematically investigating these potential causes, you can effectively troubleshoot most Windows Server feature and role installation issues.

Best Practices for Server Core Management

Managing Server Core installations effectively requires adopting certain best practices, especially concerning feature installation and updates:

  • Remote Management: Server Core is best managed remotely using Server Manager, PowerShell, or other remote administration tools. This avoids direct interaction with the limited local interface.
  • Maintain Installation Sources: Keep a copy of the updated Windows Server 2012 R2 installation media (ISO or DVD) readily accessible, either physically or on a network share. This serves as a reliable offline source for feature installations and component store repairs.
  • Plan for Updates: Server Core requires regular patching just like any other Windows installation. Plan your update strategy, whether using Windows Update, WSUS, or manual methods.
  • Document Configuration: Keep detailed records of installed roles and features, configuration settings, and any customizations.

Adhering to these practices will streamline management tasks, including the addition of roles and features, and help prevent unexpected issues like source file errors.

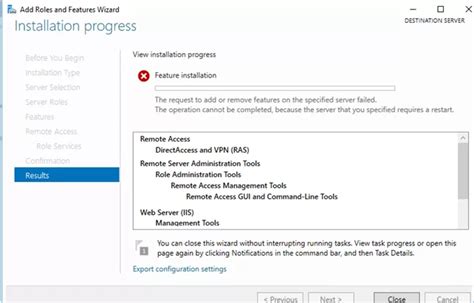

Troubleshooting Windows Server Feature Installation

Have you encountered this specific error or other feature installation challenges on Windows Server Core? Share your experiences, troubleshooting tips, or alternative solutions in the comments below! Your insights can help others facing similar issues.
