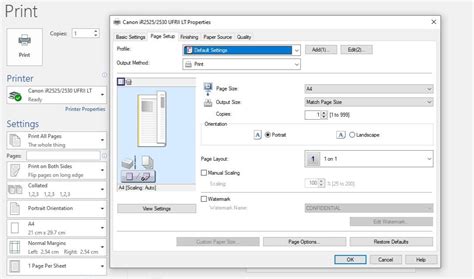

Word 2010 PNG Printing Issue: Display Scaling Problems in Windows 7

Table of Contents

Navigating document creation and printing involves intricate interactions between software applications, operating system settings, and printer drivers. Occasionally, these interactions can lead to unexpected behaviors, particularly when default configurations are altered. One such specific issue encountered by users of Microsoft Word 2010 on Windows 7 pertains to the printing of PNG images, where changes in system display scaling settings can result in unexpected cropping or distortion of the printed image output. This document delves into the specifics of this problem, its underlying cause, and a practical workaround to ensure accurate print reproduction of your portable network graphics.

Understanding the context of this issue requires looking at the environment where it manifests. The scenario is specific to Windows 7 systems running Microsoft Word 2010. This combination, while representing a particular era of computing, is still in use in various settings, making this specific problem relevant for those who maintain these systems. The key triggering event for the printing anomaly is the modification of the system’s display scaling settings, a feature designed to improve text and icon readability on higher resolution displays by enlarging interface elements.

Symptoms of the Printing Anomaly¶

The manifestation of this issue is quite distinct and readily identifiable upon examining a printed document. Consider a user working within the specified environment: they have a document authored in Microsoft Word 2010 that incorporates one or more images saved in the PNG format. The user has previously adjusted the Windows 7 display settings via the Control Panel, moving away from the standard “Smaller - 100% (default)” setting to a magnified view such as “Medium - 125%” or potentially larger percentages like “Larger - 150%”. This system-wide scaling affects how applications render their user interfaces on the screen.

When this document, containing the PNG image, is sent to an XPS-based printer driver for output, the resulting printout exhibits a noticeable defect concerning the PNG images. Instead of the entire image being printed as it appears on the screen (especially at the adjusted display scaling), the edges of the PNG image appear to be clipped or cut off. This means portions of the image content near its boundaries are simply missing from the printed page, potentially compromising the visual integrity and intended message of the document. This clipping is consistent and reproducible when the document is printed under these specific conditions.

The issue is not necessarily apparent while viewing the document on screen, even with the increased display scaling enabled. The problem typically surfaces only during the printing process, specifically when the rendering engine prepares the document for the chosen printer driver. This points towards a potential misinterpretation or miscalculation of the image’s physical dimensions or boundaries during the print rendering phase, likely exacerbated by the interaction between the application’s handling of the image and the system’s non-standard scaling factor. The use of an XPS-based driver is noted in the original context, suggesting a potential interaction point between the document content, Word’s rendering, the operating system’s scaling, and the specific print driver technology.

Root Cause of the Issue¶

Investigating the underlying reason for this specific printing problem leads to an examination of the PNG file format itself and how applications like Word interpret its data. The PNG (Portable Network Graphics) format is known for its lossless compression and support for transparency, making it a popular choice for web graphics and document illustrations. A key characteristic of the PNG format is its structure, which is composed of various “chunks” of data. Each chunk serves a specific purpose, conveying information about the image’s properties.

One such optional chunk is the pHYs chunk, which stands for “physical pixel dimensions”. When present, this chunk specifies the intended pixel density or aspect ratio of the image, typically in pixels per unit (like meters or inches). This information allows applications to determine the intended physical size of the image when rendering it, independent of the image’s pixel dimensions. For example, an image might have dimensions of 100x100 pixels, but the pHYs chunk could indicate that it should be displayed at 96 DPI (dots per inch), implying a physical size of approximately 1 inch by 1 inch.

The problem arises when a PNG image does not contain this pHYs chunk. In such cases, applications and rendering engines must rely on other information, or default assumptions, to determine the image’s physical size for display or printing. When Windows 7’s display scaling is set to a value other than the default 100%, it instructs applications to scale their rendering outputs. It appears that in Word 2010, under these specific conditions, the absence of the definitive pHYs chunk in a PNG file, combined with the system’s non-default scaling, leads to an error in calculating the final dimensions or boundaries of the image for the print output. This miscalculation results in the image being rendered slightly larger than the space allocated for it in the print stream, causing the edges to be inadvertently clipped by the defined boundaries.

Essentially, without the pHYs chunk providing a clear instruction on the image’s intended physical size, Word 2010’s print rendering engine seems to misinterpret the scaled dimensions provided by Windows 7, particularly when interacting with certain print drivers like XPS ones. The engine might allocate space for the image based on one calculation method influenced by scaling, but then render the image content using a slightly different method or reference point, leading to the misalignment and subsequent clipping of the edges during the final output generation for printing.

Workaround to Resolve the Clipping Issue¶

Fortunately, a practical workaround exists to address this specific PNG printing issue in Word 2010 on Windows 7. The core idea behind the workaround is to modify the PNG image’s properties within the Word document in a way that prompts Word to add the missing pHYs chunk to the image data embedded within the document. By explicitly adding this physical dimension information, the ambiguity that causes the miscalculation during printing is resolved, allowing Word and the printer driver to correctly determine the image’s intended size and boundaries.

The steps involve interacting with the image formatting options available in Word 2010. The process is relatively simple and does not require external image editing software or modification of the original PNG file. This is a key advantage, as it allows users to fix the issue directly within their document workflow. The workaround essentially tricks Word into regenerating or updating the image data in a way that includes the necessary chunk.

Here are the steps to apply the workaround:

1. Begin by opening the affected document in Microsoft Word 2010. Ensure that you are working with the document containing the PNG image that exhibits the printing issue.
2. Locate the PNG image within your document that is experiencing the clipping problem. Right-click on the image to bring up the context menu specific to image objects. From this menu, select the Format Picture option. This action will open a dedicated pane or dialog box (depending on your Word 2010 configuration) that provides various options for adjusting the image’s appearance, layout, and properties.
3. Within the Format Picture options, navigate to the section related to image adjustments or corrections. You are looking for settings that affect the visual properties of the image, such as sharpness, softness, brightness, or contrast. The goal here is to make a temporary change to any of the slider settings within the Sharpen and Soften or Brightness and Contrast categories. Move one of these sliders even slightly from its original position. The exact amount you move it is not critical, as the purpose is simply to signal Word that a change has been made to the image’s visual data.
4. After adjusting a slider, confirm the change by clicking the Close or OK button (or similar action to exit the Format Picture pane/dialog). This step saves the temporary modification you made to the image’s settings within the document. Although you have changed a visual setting, the primary effect we are leveraging is the internal processing Word performs when image settings are modified. This processing includes embedding or updating the image data within the document structure.
5. Now that you have made and saved a temporary change, the next step is to revert the visual appearance of the image to its original state, while preserving the underlying data structure change that Word has made. Right-click on the same PNG image again to reopen the Format Picture options.
6. Go back to the same section (Sharpen and Soften or Brightness and Contrast) where you made the previous adjustment. Carefully move the slider you previously adjusted back to its original position. Word 2010 typically shows the default value (often 0%) or allows you to reset the specific setting. The objective is to restore the image’s visual attributes to how they were before you started the workaround.
7. Once you have returned the slider to its original position, click Close or OK again to save these reverted settings. By saving the changes a second time, you ensure that Word finalizes the image data embedding process.

The crucial outcome of performing these steps is that Word’s internal image processing, triggered by modifying the visual settings and then reverting them, prompts the application to add the pHYs chunk to the PNG data embedded within the document if it was previously missing. This chunk contains the necessary physical dimension information that Word and the printer driver can now use to accurately scale and render the image for printing, regardless of the system’s display scaling setting. When you next print the document to the XPS-based driver (or likely any printer), the PNG image should now print correctly without any edges being cut off. This workaround is applied on a per-image basis within the document. If your document contains multiple affected PNG images, you will need to apply this process to each image individually.

This method effectively updates the image’s metadata within the Word document wrapper, providing the explicit physical dimension information that was missing in the original PNG file. This resolved ambiguity allows the printing subsystem to accurately determine the image’s boundaries during the rendering process, thereby preventing the clipping issue that occurred when relying on potentially conflicting scaling information from the system and the application without the clarifying pHYs chunk.

Further Considerations and Context¶

While this workaround effectively resolves the described printing issue for PNG images in Word 2010 on Windows 7 with modified display scaling, it’s helpful to understand this problem within the broader context of software compatibility and document rendering. Windows 7’s display scaling, particularly at percentages other than 100%, could sometimes lead to rendering inconsistencies in older applications not specifically designed to handle variable DPI settings gracefully. Word 2010, while a capable application, predates widespread high-DPI display adoption and the robust scaling frameworks available in later Windows versions.

The use of XPS-based printer drivers in the scenario is also noteworthy. XPS (XML Paper Specification) is a document format and a printing path introduced by Microsoft. While modern, the interaction between application rendering, operating system scaling, and the XPS spooler/driver could expose edge cases like the one described when specific data (like the PNG pHYs chunk) is absent. This issue highlights the complex pipeline involved in translating a document’s digital representation into a physical printout.

For users facing this problem, applying the workaround is the most direct solution. It is important to remember that this issue is specific to a particular combination of operating system (Windows 7 SP1), application version (Word 2010), image format (PNG lacking pHYs chunk), system setting (non-100% display scaling), and potentially printer driver type (XPS-based). Newer versions of Windows and Microsoft 365/Word might handle image scaling and printing differently, potentially mitigating this specific issue.

In addition to this workaround, general troubleshooting steps for printing issues in Word can also be useful, such as ensuring you have the latest printer drivers installed, trying a different printer or printer driver, or checking for updates to Microsoft Office (though major updates for Word 2010 are limited). However, for the specific symptom of clipped PNG images after changing display scaling, the described workaround targeting the image’s embedded data is the most effective method.

This scenario serves as a good reminder of how seemingly minor details in file formats (like the presence of optional data chunks) and system configuration settings can interact to cause noticeable problems in application behavior. Understanding the technical underpinnings, such as the purpose of the PNG pHYs chunk, helps clarify why the proposed workaround is effective. It’s not just random button clicking; it’s a deliberate action that triggers a specific data update within the document structure.

Conclusion¶

The issue of clipped PNG images when printing from Word 2010 on Windows 7 with non-default display scaling is a specific technical challenge stemming from the interaction of system settings and image format details. The absence of the pHYs chunk in certain PNG files, combined with how Word 2010 interprets scaled dimensions during the print rendering process in this particular environment, leads to edges being cut off. By applying a simple workaround involving temporary adjustments to the image’s formatting settings within Word, users can prompt the application to embed the necessary physical dimension data, thereby resolving the printing anomaly. This fix ensures that your PNG images are printed correctly, preserving the integrity of your documents.

Have you encountered this specific printing issue with PNGs in Word 2010 on Windows 7? Did the workaround described here resolve the problem for you? Share your experiences and any additional tips you might have in the comments below. Your feedback can help others facing similar challenges.
