Azure Monitor Agent Migration: A Step-by-Step Planning Guide

Table of Contents

The journey towards modernizing your monitoring infrastructure within Azure often culminates in the adoption of the Azure Monitor Agent (AMA). This powerful agent offers a more secure, cost-effective, and granular approach to data collection compared to its predecessors, the Log Analytics agent (also known as MMA and OMS). Before embarking on this critical transition, a meticulously crafted migration plan is paramount. This guide will walk you through the essential steps, from initial environment assessment to post-migration validation, ensuring a smooth and successful transition.

Introduction to Azure Monitor Agent (AMA) Migration¶

The Azure Monitor Agent represents a significant evolution in Azure’s monitoring capabilities. Unlike the legacy Log Analytics agent, which collected data based on workspace solutions, AMA utilizes Data Collection Rules (DCRs) to provide unparalleled control over the data ingested into Azure Monitor. This shift not only enhances security by allowing precise definition of data sources and destinations but also optimizes costs by enabling granular selection of performance counters, logs, and events to be collected.

Migrating to AMA is not merely an agent replacement; it’s an opportunity to re-evaluate your monitoring strategy, streamline data collection, and enhance the overall security posture of your cloud and hybrid environments. The legacy agents, while foundational for many years, are nearing their end-of-life, making this migration an imperative for sustained operational excellence and support. Understanding the benefits of AMA, such as improved performance, reduced network overhead, and centralized management of data collection via DCRs, underscores the importance of a well-executed migration.

Phase 1: Environment Assessment and Inventory¶

The cornerstone of any successful migration is a thorough understanding of your current environment. Before initiating any changes, it is crucial to establish a comprehensive inventory of your existing monitoring landscape. This initial assessment provides the necessary insights to scope the migration effort, identify potential challenges, and allocate resources effectively.

Begin by meticulously gathering information across your Azure subscriptions. Key data points include the total number of subscriptions under your management, the distribution and number of Log Analytics workspaces within each subscription, and a detailed list of legacy monitoring solutions currently enabled in these workspaces. Crucially, you must identify all instances of Log Analytics agents (MMA/OMS) running across your virtual machines and hybrid servers, as these are the primary targets for migration.

Leveraging the Azure Monitor Agent Migration Helper Workbook¶

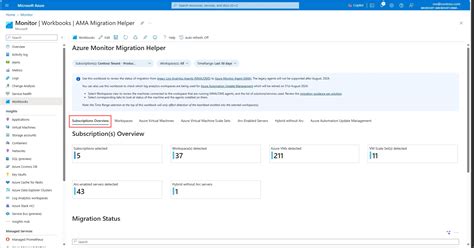

To significantly streamline the environment assessment process, Microsoft provides a powerful tool: the Azure Monitor Agent Migration Helper workbook. This workbook is an invaluable resource for gaining deep insights into your current monitoring setup and tracking your migration progress.

To access this essential workbook, follow these straightforward steps:

1. Navigate to the Azure portal. You can access it by searching for “Azure portal” in your web browser or going directly to https://portal.azure.com.
2. Once in the portal, use the global search bar at the top to find and select Monitor. This will take you to the Azure Monitor blade, which serves as your central hub for all monitoring-related activities.
3. Within the Monitor menu pane, locate and select Workbooks. This section houses a gallery of pre-built and custom workbooks designed to visualize and analyze your monitoring data.
4. In the extensive gallery of workbooks, scroll down or use the search functionality to find the Azure Monitor essentials heading. Under this section, you will prominently see and select the AMA Migration Helper workbook.

The AMA Migration Helper workbook is thoughtfully designed with several tabs, each offering distinct views to assist in identifying your environment’s characteristics and meticulously tracking migration progress.

• The Subscriptions Overview tab provides a high-level summary. Here, you can visualize all the subscriptions you have selected and possess access to, along with the cumulative count of Log Analytics workspaces spread across these subscriptions. It also quantifies the total number of virtual machines (VMs) present within those subscriptions, giving you an immediate sense of scale.
• Scrolling down on the Subscriptions Overview tab reveals the Migration Status section. This crucial segment offers a concise overview of the migration progress for each individual subscription, allowing you to quickly identify subscriptions that require attention.

The workbook further dissects your environment by resource type, providing dedicated tabs for:

• Azure Virtual Machines
• Azure Virtual Machine Scale Sets
• Arc-Enabled Servers
• Hybrid without Arc

By selecting any of these resource type tabs, you are presented with detailed columns of data that display the current status of your migration for each specific resource. For instance, the Azure Virtual Machines tab lists every Azure VM and provides comprehensive details for each, including which agents are installed as extensions and their corresponding migration status. This status is determined based on the following clear relationship table:

Agent extension type	Value of the “Migration Status” column
MMA/OMS only	Not Started
MMA/OMS and Azure Monitor Agent	In Progress
Azure Monitor Agent only	Completed

This table is critical for understanding the immediate state of your fleet. A “Not Started” status indicates that only the legacy agent is present, requiring AMA deployment. “In Progress” signifies that both agents coexist, a common state during the transition period. Finally, “Completed” confirms that the legacy agent has been successfully replaced by AMA. It’s important to note that the column values displayed on the Azure Virtual Machine Scale Sets and Arc-Enabled Servers tabs are consistent with those found on the Azure Virtual Machines tab, ensuring uniformity in reporting.

For further analysis or reporting, you can easily export the information table from any of these tabs to Microsoft Excel. Simply click the More button (…), usually found near the top-right of the table, and then select Export to Excel from the dropdown menu. This capability allows for offline analysis, custom filtering, and integration with other planning tools.

Creating a Baseline¶

Beyond merely collecting data, the assessment phase should conclude with the creation of a detailed baseline. This baseline serves as a snapshot of your environment prior to migration. It should document the current state of agent deployments, data collection configurations, and existing monitoring solutions. This baseline will be invaluable for validating the success of your migration, troubleshooting any discrepancies, and measuring the overall impact of the transition.

Phase 2: Verifying Prerequisites for a Successful Migration¶

Before initiating any agent deployments, it is imperative to verify that all necessary prerequisites are met across your environment. Neglecting this crucial step can lead to significant delays, deployment failures, and operational disruptions. This phase covers both general requirements and specific considerations for hybrid machines.

General Prerequisites¶

Several foundational elements must be in place for a smooth AMA migration:

• Network Connectivity: Ensure that your virtual machines and servers have outbound connectivity to the necessary Azure Monitor endpoints. This typically involves ports 443 (HTTPS) for communication with Azure services. Any firewalls, network security groups (NSGs), or proxy servers must be configured to allow this traffic. Blocked communication is a common cause of agent deployment failures and data ingestion issues.
• Permissions: The identity used to deploy AMA (whether a user, service principal, or Managed Identity) must have appropriate permissions. At a minimum, “Monitoring Contributor” role on the target resources (VMs, VMSS, Arc-Enabled Servers) and “Log Analytics Contributor” or “Monitoring Metrics Publisher” on the associated Log Analytics workspace and Data Collection Rules are typically required. Always adhere to the principle of least privilege.
• Azure Policy Considerations: Review any existing Azure Policies that might interfere with or dictate agent deployments. If you plan to use Azure Policy for large-scale AMA deployment, ensure your policies are correctly defined and scoped.
• Operating System Compatibility: Verify that your target virtual machines and servers are running supported operating systems for AMA. While AMA supports a wide range of Windows and Linux distributions, it’s always best to consult the official documentation for the latest compatibility matrix. Outdated or unsupported OS versions will prevent successful agent installation.

Specifics for Non-Azure Virtual Machines¶

For servers and virtual machines hosted outside of Azure, such as on-premises data centers or other cloud providers, an additional prerequisite is necessary: the installation of the Azure Arc Connected Machine agent. Azure Arc extends Azure management capabilities to hybrid and multi-cloud environments, and it is a fundamental component for managing and deploying AMA to these resources.

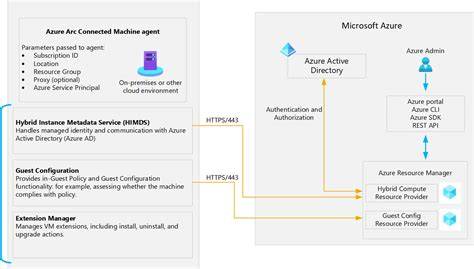

The Azure Arc Connected Machine agent acts as a bridge, allowing your non-Azure VMs to be treated as first-class citizens within Azure. This enables you to deploy Azure extensions, including the Azure Monitor Agent, and manage them using Azure constructs like Azure Policy and Azure Resource Manager (ARM) templates.

To install the Azure Arc Connected Machine agent, the general process involves:

1. Download the Installation Package: Obtain the agent installation package directly from the Azure portal.
2. Run the Installation Script: Execute the installation script on each target non-Azure VM. This script automates the agent deployment.
3. Register the VM: Register the VM with your Azure subscription. This step links the on-premises machine to a specific resource group in Azure, making it “Arc-enabled.”

For detailed guidance, refer to the official documentation on what Azure Arc-enabled servers are and the quickstart guide for connecting hybrid machines with Azure Arc-enabled servers. Leveraging Azure Arc for your hybrid estate is not just a prerequisite for AMA but also a strategic move to centralize management and governance across your entire IT infrastructure.

Data Collection Rules (DCRs): The Core of AMA¶

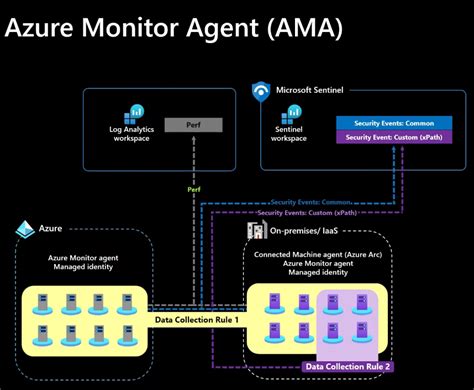

A fundamental concept to grasp when migrating to AMA is the Data Collection Rule (DCR). Unlike the legacy agent, which relied on solutions enabled within a Log Analytics workspace to define what data to collect, AMA uses DCRs. A DCR specifies:

• What data to collect: (e.g., performance counters, Windows event logs, syslog)
• How to transform the data (optional): Using KQL transformations.
• Where to send the data: (e.g., Log Analytics workspace, Azure Event Hubs, Azure Storage).

Planning your DCRs is a critical part of the prerequisite phase. You will need to map your existing data collection requirements from legacy solutions to new DCRs. This involves:

• Identifying current data sources: What performance counters, event logs, and syslog are currently collected by MMA/OMS?
• Designing new DCRs: Create DCRs that replicate or improve upon your current collection. You might find opportunities to optimize by collecting only necessary data, thus reducing ingestion costs.
• Associating DCRs: After creating DCRs, you must associate them with the Azure Monitor Agent extensions deployed on your VMs. A single DCR can be associated with multiple machines, and a single machine can have multiple DCR associations.

This structured approach to DCRs provides greater flexibility and control, allowing for a more tailored and efficient data collection strategy.

Phase 3: Strategic Planning and Pilot Deployment¶

With your environment assessed and prerequisites verified, the next critical phase involves strategic planning and the execution of a pilot deployment. This iterative approach minimizes risk and allows for fine-tuning before a large-scale rollout.

Defining Migration Scope and Phasing¶

A “big bang” migration is rarely advisable for complex IT environments. Instead, define a clear migration scope and establish a phased rollout plan.

• Start with a Small Pilot: Select a small group of non-critical virtual machines or servers to serve as your pilot group. These should ideally represent a mix of your environment (e.g., a few Windows VMs, a few Linux VMs, one Arc-enabled server).
• Staggered Rollouts: After a successful pilot, plan subsequent phases. This could be by department, application, geographical region, or even by resource group. This allows you to learn from each phase and scale effectively.
• Resource Tagging: Utilize Azure tags to categorize your resources for migration planning. For instance, tag resources as “AMA-Phase1,” “AMA-Phase2,” etc., to easily identify and target them.

Monitoring Migration Progress¶

The AMA Migration Helper workbook remains your primary tool for monitoring progress. Regularly check the “Migration Status” section and individual resource tabs. However, consider complementing this with custom Kusto Query Language (KQL) queries in Log Analytics to track agent heartbeat, data ingestion from AMA, and the eventual cessation of data from MMA/OMS. This proactive monitoring helps identify issues early.

Rollback Strategy¶

Despite meticulous planning, contingencies are essential. Define a clear rollback strategy for each phase of your migration. This includes:

• Removing AMA: Knowing how to quickly remove the Azure Monitor Agent if issues arise.
• Re-enabling MMA/OMS (if necessary): In extreme cases, you might need to temporarily revert to the legacy agent. Ensure you understand the implications of running both agents concurrently for extended periods (e.g., duplicate data ingestion).
• Data Validation: Before declaring a phase complete, validate that all critical data streams are being successfully ingested by AMA and are appearing correctly in your Log Analytics workspace.

Phase 4: Execution and Post-Migration Validation¶

With the planning complete and pilot successful, it’s time for the broader execution of the migration, followed by rigorous post-migration validation.

Agent Deployment Methods¶

Azure offers several robust methods for deploying the Azure Monitor Agent at scale:

• Azure Policy: For large-scale and consistent deployment across your Azure subscriptions, Azure Policy is the recommended method. You can create policies to automatically deploy the AMA extension and associate it with a specific DCR to newly created VMs or audit and remediate existing ones.
• Azure Automation: Use PowerShell runbooks within Azure Automation to script the deployment of AMA extensions and DCR associations across a defined set of VMs.
• ARM Templates: Incorporate AMA extension deployment into your existing Infrastructure-as-Code (IaC) templates for new VM deployments, ensuring AMA is part of your standard build.
• Azure Portal: For individual VMs or smaller deployments, the Azure portal provides a user-friendly interface to manually install the AMA extension.

Validating Data Ingestion¶

Post-deployment, the most critical step is to validate that data is flowing correctly from AMA to your Log Analytics workspace.

• Query Logs: Run KQL queries in your Log Analytics workspace to confirm that data from the new AMA source appears as expected. Compare against historical data collected by MMA/OMS to ensure consistency.
• Heartbeat Checks: Monitor the Heartbeat table in Log Analytics. AMA sends its own heartbeat; ensure you see entries for your migrated machines.
• Alerts and Dashboards: Verify that your existing alerts and dashboards continue to function correctly with the new data source. Update any queries that might implicitly rely on MMA/OMS specific tables or fields if necessary.

Decommissioning Legacy Agents¶

Once you are confident that AMA is fully operational and collecting all necessary data, you can proceed with decommissioning the legacy Log Analytics agents (MMA/OMS).

• Gradual Removal: Do not remove MMA/OMS immediately after AMA deployment. Maintain a period where both agents coexist (“In Progress” state) to ensure full data parity. This dual-homing period provides a safety net.
• Removal Process: MMA/OMS can be uninstalled via the Azure portal, PowerShell scripts, or even through management tools like SCCM for on-premises machines. The AMA Migration Helper workbook will indicate “Completed” once only AMA is detected.
• Cleanup: After uninstalling MMA/OMS, remove any associated workspace solutions or configurations that are no longer needed.

Performance Monitoring and Optimization¶

After the migration, continue to monitor the performance of your VMs and the Log Analytics workspace. AMA can be more efficient, potentially reducing CPU and memory overhead on your VMs. Monitor ingestion rates and costs in your Log Analytics workspace; the granular control offered by DCRs should lead to optimized ingestion, collecting only what’s necessary. Regularly review and refine your DCRs to ensure they align with evolving monitoring requirements and cost objectives.

Best Practices and Common Pitfalls¶

To maximize the success of your AMA migration, consider these best practices and be aware of common pitfalls:

• Centralized Management: Leverage Azure Policy for deploying and managing AMA and DCR associations at scale. This ensures consistency and simplifies ongoing management.
• Communication Plan: Keep stakeholders informed throughout the migration process, including status updates, potential impacts, and timelines.
• Thorough Testing: Do not skip the pilot phase. Test extensively in a non-production environment before moving to production.
• Address Network Limitations: Proactively identify and resolve any network connectivity issues or proxy configurations that could impede AMA deployment or data flow.
• Security Considerations: Review your DCRs carefully to ensure no sensitive data is inadvertently collected or sent to unintended destinations. Leverage Managed Identities for secure agent authentication where possible.
• Documentation: Maintain comprehensive documentation of your migration plan, DCR configurations, and any lessons learned. This will be invaluable for future audits or troubleshooting.
• Phased Approach: Break down the migration into manageable phases. This reduces risk, allows for continuous learning, and ensures business continuity.
• Monitor Costs: Keep an eye on Log Analytics ingestion costs throughout the migration. While AMA offers cost optimization, incorrect DCR configurations can lead to unexpected increases.

mermaid graph TD A[Start: Legacy Agent Environment] --> B{Phase 1: Environment Assessment}; B --> C[Utilize AMA Migration Helper Workbook]; C --> D[Create Detailed Inventory & Baseline]; D --> E{Phase 2: Verify Prerequisites}; E --> F[Ensure Network Connectivity & Permissions]; E --> G[Install Azure Arc Agent for Non-Azure VMs]; E --> H[Design & Plan Data Collection Rules (DCRs)]; H --> I{Phase 3: Strategic Planning & Pilot}; I --> J[Define Migration Scope & Phasing]; I --> K[Select Pilot Group (e.g., 5-10 VMs)]; I --> L[Implement Rollback Strategy]; L --> M{Phase 4: Execution & Validation}; M --> N[Deploy AMA via Policy, Automation, or Portal]; M --> O[Validate Data Ingestion & Alerts]; M --> P[Gradually Decommission Legacy Agents]; P --> Q[Monitor Performance & Optimize DCRs]; Q --> R[End: AMA-Only Environment];
Figure: A simplified workflow for Azure Monitor Agent migration.

Conclusion¶

Migrating to the Azure Monitor Agent is a strategic move that enhances your monitoring capabilities, improves security, and optimizes costs. By following a structured, phased approach, beginning with a comprehensive environment assessment using the AMA Migration Helper workbook, verifying all prerequisites, and meticulously planning your DCRs, you can ensure a smooth and successful transition. Continuous monitoring, validation, and adherence to best practices will cement the benefits of AMA, establishing a robust and future-proof monitoring foundation for your Azure and hybrid environments. Embrace this evolution to unlock the full potential of Azure Monitor.
