DirectAccess Troubleshooter's Guide: Fixing DC and Kerberos Issues on Windows Server

Table of Contents

DirectAccess is a sophisticated remote access solution that provides seamless, always-on connectivity for Windows clients to the corporate network without the need for a traditional VPN. Its operational integrity heavily relies on continuous and reliable access to domain controllers (DCs) for Group Policy application, authentication, and name resolution. Any disruption to this critical connection can lead to significant service degradation, often manifesting as error messages within the DirectAccess Operations Console.

The entire configuration of DirectAccess, from client settings to server policies, is meticulously managed through Group Policy. This deep integration means that a loss of communication with the domain controller can immediately impact DirectAccess functionality, preventing clients from receiving updated policies or authenticating correctly. Therefore, ensuring robust connectivity to domain controllers is paramount for maintaining a healthy DirectAccess environment.

Domain Controller Connectivity Errors¶

One of the most common and critical issues indicated in the DirectAccess console is the inability to reach domain controllers. This error directly impacts the DirectAccess server’s ability to validate client connections, apply necessary configurations, and resolve internal network resources. Timely identification and resolution of these connectivity problems are essential for maintaining seamless remote access.

Error Message Example¶

When a domain controller is unreachable, the DirectAccess Operations Console typically displays a clear warning. This message indicates that the DirectAccess server cannot establish a connection with its designated domain controller for critical operations.

The corporate domain controller for contoso.local is not available.

Common Causes of DC Connectivity Issues¶

Multiple factors can contribute to the DirectAccess server losing connectivity with its domain controllers. These often involve network infrastructure, firewall configurations, or the health of the domain controller itself. Understanding the root causes is the first step toward effective troubleshooting.

• Network Connectivity Disruption: This is a broad category encompassing various issues that prevent data flow between the DirectAccess server and its domain controllers. It could involve physical layer problems like disconnected cables or faulty network cards. More commonly, it includes logical issues such as incorrect routing table entries, subnet misconfigurations, or VLAN tagging errors that prevent traffic from reaching its destination. Network congestion or high latency could also sporadically disrupt communication, leading to intermittent failures.
• Firewall Blocking Access: Firewalls, whether they are host-based (Windows Firewall with Advanced Security) on the DirectAccess server or the domain controllers, or network-based perimeter firewalls, are frequent culprits. They might inadvertently block necessary ports and protocols required for communication between the DirectAccess server and the DCs. Key ports include LDAP (TCP 389), LDAPS (TCP 636), Kerberos (TCP/UDP 88), DNS (TCP/UDP 53), and RPC End-Point Mapper (TCP 135) with dynamic ports for RPC services. Incorrectly configured firewall rules, or even default rules that are too restrictive, can prevent critical services from communicating.

Comprehensive Resolution Steps for DC Connectivity¶

Resolving domain controller connectivity issues requires a systematic approach, starting with basic network diagnostics and progressing to more specific service and configuration checks. The goal is to ensure that the DirectAccess server can consistently and reliably communicate with all required domain controllers.

1. Verify Basic Network Reachability:

   • Ping Test: Start by using the ping command from the DirectAccess server to the IP address and hostname of your domain controllers. This verifies basic IP-level connectivity. If ping fails, investigate network routing, IP address configurations, or physical connectivity.
   • Traceroute (Tracert): Execute tracert <DomainControllerIP> to identify the path traffic takes to the DC. This can pinpoint exactly where network connectivity is breaking down, whether it’s a router, firewall, or switch. Look for timeouts or unexpected hops that might indicate a routing problem or an intermediate device blocking traffic.

2. Test Port and Protocol Availability:

   • PortQryUI or Test-NetConnection: These tools are invaluable for verifying if specific ports are open and listening on the domain controller from the perspective of the DirectAccess server.
     • For example, Test-NetConnection -ComputerName YourDCName -Port 389 will check LDAP connectivity. Repeat for Kerberos (88), LDAPS (636), and DNS (53).
     • If these tests fail, it strongly suggests a firewall issue either on the DC itself or an intervening network device.

3. Validate DNS Configuration:

   • nslookup: Ensure the DirectAccess server can correctly resolve the FQDNs of your domain controllers. Incorrect DNS settings on the DirectAccess server can prevent it from locating DCs. Run nslookup YourDCName and verify it returns the correct IP address.
   • DNS Server Health: Verify that the DNS servers configured on the DirectAccess server are healthy and can resolve internal domain names. DNS resolution is fundamental for Active Directory communication. Use dcdiag /test:dns on your domain controllers to check their DNS health.

4. Inspect Firewall Rules:

   • Windows Firewall with Advanced Security: On both the DirectAccess server and the domain controllers, open “Windows Firewall with Advanced Security” (WFAS).
     • Check Inbound Rules on the DCs and Outbound Rules on the DirectAccess server for any rules that might be blocking the necessary Active Directory ports (389, 636, 88, 135, and dynamic RPC ports).
     • Ensure that the “Domain” and “Private” profiles allow the required traffic if applicable. Sometimes, an incorrect network location profile can inadvertently apply restrictive rules.
   • Network Firewalls: If there are physical or virtual firewalls between the DirectAccess server and the DCs, collaborate with network administrators to ensure that the necessary ports are open bi-directionally. Specific NAT or Access Control List (ACL) rules might be unintentionally blocking traffic.

5. Verify IPsec Connectivity:

   • DirectAccess relies heavily on IPsec for secure communication. Although not directly a DC issue, IPsec failures can prevent the DA server from establishing secure channels to the domain.
   • Use PowerShell cmdlets like Get-NetIPsecMainModeSA and Get-NetIPsecQuickModeSA on the DirectAccess server to check the status of IPsec security associations. Ensure they are established and healthy. Problems with IPsec policies or pre-shared keys (if used) can block traffic.

6. Check Domain Controller Health:

   • Ensure the domain controllers themselves are fully operational and healthy. Check the Event Viewer on the DCs for any critical errors in the “Directory Service,” “DNS Server,” or “System” logs. Look for issues like service crashes, replication failures, or disk space warnings that could impact their responsiveness.
   • Run dcdiag /v on the domain controllers to get a comprehensive health report. Address any reported failures immediately.

7. Review DirectAccess Event Logs:

   • On the DirectAccess server, check the “Applications and Services Logs” -> “Microsoft” -> “Windows” -> “RemoteAccess” -> “Operational” log. This log provides detailed information about DirectAccess operations, including specific errors related to domain controller connectivity. Error messages here can often provide a more granular insight into the problem.

Visual Aid: DC Connectivity Troubleshooting Flow¶

Here’s a simplified troubleshooting flow that encapsulates the steps discussed for resolving domain controller connectivity issues:

mermaid graph TD A[DirectAccess DC Connectivity Error Detected] --> B{Ping Domain Controller IP & FQDN?}; B -- No --> C[Check Network Cables, IP Config, Routing Tables]; B -- Yes --> D{Test-NetConnection for LDAP, Kerberos, DNS Ports?}; D -- No --> E[Review Firewall Rules (DA Server, DC, Network)]; D -- Yes --> F{nslookup DC FQDN?}; F -- No --> G[Verify DNS Server Settings on DA Server]; F -- Yes --> H{Check DC Event Logs & dcdiag /v?}; H -- No Issues --> I[Review DirectAccess Operational Logs for Specific Errors]; H -- Issues Found --> J[Address DC Health Issues (Service, Replication, Disk)]; I --> K[Recheck IPsec Status and Policies]; K --> L[Issue Resolved?]; L -- No --> M[Contact Microsoft Support or Deep Dive Analysis]; L -- Yes --> N[Monitor System Health];

Kerberos Authentication Errors¶

While less frequently displayed directly on the console compared to fundamental DC connectivity issues, Kerberos errors are equally critical for DirectAccess functionality. Kerberos is the primary authentication protocol for Windows domains, and its proper functioning is essential for clients to access internal corporate resources securely. When Kerberos authentication fails, clients might connect to DirectAccess but be unable to reach applications, file shares, or other services within the corporate network.

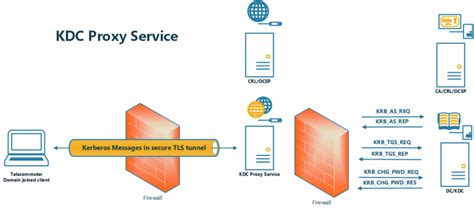

A specific and common Kerberos-related issue for DirectAccess involves the KDC Proxy service. This service plays a crucial role for clients connecting via DirectAccess, enabling them to obtain Kerberos tickets even when they are not directly connected to the corporate network. The KDC Proxy Server service runs on the DirectAccess server (often an edge server) and acts as an intermediary, proxying Kerberos protocol messages from DirectAccess clients to domain controllers located on the corporate network.

Error Message Example¶

An error indicating a problem with Kerberos often points to the KDC Proxy service not functioning correctly. This directly impacts the authentication flow for DirectAccess clients.

Kerberos: Not working properly
Error:
A network authentication service (kpssvc) is not available. This service helps in authenticating DirectAccess clients when they connect to the corporate network via DirectAccess.

Common Causes of Kerberos / KDC Proxy Issues¶

The unavailability of the KDC Proxy service is the primary reason for this specific Kerberos error. Its operational status is vital for remote client authentication.

• Service Stoppage or Crash: The kpssvc (KDC Proxy Server) service might have been manually stopped, or it could have crashed due to an underlying system issue, resource exhaustion, or a software bug. If the service is not running, it cannot fulfill its role of proxying Kerberos requests.
• Service Unresponsiveness: Even if the service appears to be running, it might be in an unresponsive state, unable to process requests. This can happen if the DirectAccess server is under heavy load, experiencing memory leaks, or if there are intermittent network issues preventing the kpssvc from reaching the domain controllers it needs to proxy for.
• Dependency Failures: The KDC Proxy service might have dependencies on other services or network components that are not functioning correctly. For instance, if the underlying network stack or DNS resolution is failing, kpssvc might not be able to operate effectively.

Comprehensive Resolution Steps for Kerberos / KDC Proxy Issues¶

Resolving Kerberos and KDC Proxy service problems typically involves verifying service status, checking underlying dependencies, and ensuring the DirectAccess server can communicate with domain controllers specifically for Kerberos traffic.

1. Check KDC Proxy Service Status:

   • Services Console (services.msc): Open the Services console on the DirectAccess server. Locate the “KDC Proxy Server” service. Verify its “Status” is Running and its “Startup type” is Automatic.
   • PowerShell/Command Prompt: Use Get-Service kpssvc or sc query kpssvc to programmatically check the service status.
   • If the service is stopped, attempt to start it. Right-click the service in services.msc and select Start, or use Start-Service kpssvc in PowerShell.

2. Examine Event Logs for KDC Proxy Errors:

   • DirectAccess Server Event Viewer: Check the “System” log and “Application” log on the DirectAccess server for any errors related to kpssvc or “KDC Proxy Server.” Look for events preceding the service stoppage or unresponsiveness, as they might indicate the root cause.
   • Also, review the “RemoteAccess” -> “Operational” log under “Applications and Services Logs” -> “Microsoft” -> “Windows” for specific Kerberos-related alerts.

3. Verify Network Connectivity to Domain Controllers (from DA server):

   • Even if general DC connectivity seems fine, ensure that the DirectAccess server can specifically communicate with domain controllers on the Kerberos port (TCP/UDP 88).
   • Use Test-NetConnection -ComputerName YourDCName -Port 88 from the DirectAccess server to each domain controller. If this fails, investigate firewalls or network routing issues specifically for port 88. This step is critical because the KDC Proxy service needs to communicate with the KDCs.

4. Check Time Synchronization:

   • Kerberos is extremely sensitive to time synchronization. If there is a significant time difference (typically more than 5 minutes) between the DirectAccess server, domain controllers, and even client machines, Kerberos authentication will fail.
   • Verify that the DirectAccess server’s time is synchronized with the domain controllers. Use w32tm /query /source to see the time source and w32tm /resync to force a resynchronization. Ensure all relevant machines are syncing from a reliable time source.

5. Review Resource Utilization on DirectAccess Server:

   • High CPU, memory, or disk I/O on the DirectAccess server can lead to services becoming unresponsive or crashing. Use Task Manager or Performance Monitor to check resource utilization. If the server is consistently overloaded, consider scaling up resources or optimizing other services running on the server.

6. Investigate Service Dependencies:

   • In the Services console, right-click “KDC Proxy Server” and go to the “Dependencies” tab. Ensure that all services it depends on are running and healthy. If a dependency is stopped or failing, that could prevent kpssvc from starting.

7. Consider IPsec Policy Health:

   • The DirectAccess server uses IPsec to secure communications, including those facilitated by the KDC Proxy. Ensure that IPsec policies are correctly applied and that security associations are successfully established between the DirectAccess server and the domain controllers. Get-NetIPsecRule can help confirm applied rules.

Visual Aid: Kerberos/KDC Proxy Troubleshooting Flow¶

mermaid graph TD A[Kerberos / KDC Proxy Service Error Detected] --> B{Is KDC Proxy Service (kpssvc) Running?}; B -- No --> C[Attempt to Start kpssvc]; C --> D{Does kpssvc Start Successfully?}; D -- No --> E[Check Event Logs for kpssvc Errors, Dependencies]; D -- Yes --> F[Monitor for Reoccurrence]; B -- Yes --> G{Is kpssvc Unresponsive?}; G -- Yes --> H[Check Server Resource Utilization (CPU, RAM, Disk)]; H --> I[Review Event Logs for Server Health/Service Failures]; G -- No --> J{Test-NetConnection to DC on Port 88 (Kerberos)?}; J -- No --> K[Check Firewall Rules (DA Server, DC, Network) for Port 88]; J -- Yes --> L{Verify Time Synchronization (DA Server & DCs)}; L -- Not Synced --> M[Resync Time, Configure NTP Source]; L -- Synced --> N[Check SPNs for Kerberos Delegation (Advanced)]; N --> O[Issue Resolved?]; O -- No --> P[Contact Microsoft Support / Deep Dive Analysis]; O -- Yes --> Q[Monitor System Health];

General DirectAccess Troubleshooting Best Practices¶

Beyond specific domain controller and Kerberos issues, maintaining a healthy DirectAccess environment involves continuous monitoring and proactive troubleshooting. Adhering to best practices can significantly reduce the occurrence of such critical errors.

1. Regularly Monitor the DirectAccess Operations Status: The built-in dashboard provides a quick overview of the server’s health, client connectivity, and component status. Make it a routine to check this console for any warnings or critical alerts. This is your first line of defense against emerging issues.

2. Maintain Active Directory Health: Since DirectAccess is so deeply integrated with Active Directory, the overall health of your domain controllers, DNS, and Group Policy infrastructure is paramount. Ensure regular DC health checks, replication monitoring, and DNS integrity. Any degradation in AD services will inevitably impact DirectAccess.

3. Keep Software Up-to-Date: Apply the latest Windows Updates, including cumulative updates and security patches, to your DirectAccess servers and domain controllers. These updates often contain bug fixes and performance improvements that can address underlying stability issues.

4. Understand IP-HTTPS and Teredo/6to4: DirectAccess clients connect using various transition technologies. IP-HTTPS is the most common fallback and essential for clients behind restrictive firewalls. Ensure your IP-HTTPS listener is healthy and accessible from the internet. Test connectivity from external networks using tools like Test-NetConnection to your IP-HTTPS URL on port 443.

5. Leverage PowerShell Cmdlets: PowerShell offers powerful tools for DirectAccess management and troubleshooting. Cmdlets like Get-DAServerConfiguration, Get-DAClientStatus, and Get-DAConnectionStatus can provide detailed insights into the DirectAccess server and client states, often revealing issues not immediately apparent in the GUI.

6. Client-Side Diagnostics: Don’t forget to troubleshoot from the client perspective. Tools like netsh advfirewall show allprofiles (to check client firewall), ipconfig /all (to verify IPv6 addresses and DNS), and the “DirectAccess Connectivity Assistant” (if deployed) can provide crucial client-side clues. Examining client-side Event Logs (especially Microsoft-Windows-DirectAccess-UX/Operational) can also be highly informative.

7. Comprehensive Logging: Configure appropriate logging levels for DirectAccess components to capture sufficient detail for troubleshooting. While not typically verbose by default, increasing logging temporarily during complex issues can provide the necessary granular information.

8. Regular Backups: Implement a robust backup strategy for your DirectAccess servers, including system state backups, to ensure you can quickly recover from catastrophic failures.

By systematically approaching troubleshooting and maintaining a proactive stance on system health, administrators can ensure DirectAccess remains a reliable and efficient remote access solution for their organization.

We hope this comprehensive guide assists you in troubleshooting DirectAccess domain controller and Kerberos issues effectively. Do you have any specific scenarios or challenges you’ve encountered that you’d like to discuss further? Please share your thoughts and experiences in the comments below!
