GAC Installation Guide: Deploying Assemblies in C# - A Developer's Handbook

Updated: 08 Jul, 2025 • 0 • min read

Table of Contents

This guide provides comprehensive information on installing .NET assemblies into the Global Assembly Cache (GAC) using Visual C#. Understanding the GAC and the process of strong naming is crucial for developing and deploying shared components within the .NET ecosystem. This handbook is designed for developers looking to manage shared assemblies effectively.

Understanding the Global Assembly Cache (GAC)¶

The Global Assembly Cache (GAC) is a machine-wide repository for .NET assemblies. It is a shared location where assemblies can be installed and made available to multiple applications running on the same system. By default, the GAC is typically located in the C:\Windows\Assembly or C:\WINNT\Assembly directory, though you should generally interact with it via dedicated tools rather than directly through File Explorer, as File Explorer provides a special GAC-specific view.

Using the GAC offers several benefits for shared assemblies. Firstly, it eliminates the need to deploy copies of the assembly with every application that uses it, potentially saving disk space and simplifying updates (though versioning needs careful management). Secondly, it enables side-by-side execution, meaning multiple versions of the same assembly can coexist in the GAC, allowing applications to use the specific version they were built against. This helps mitigate “DLL Hell” scenarios often encountered in older component models.

However, deploying to the GAC also increases the complexity of deployment compared to private assembly deployment (placing assemblies in the application’s bin folder). Assemblies in the GAC must meet specific requirements, most notably having a strong name. The GAC is an integral part of the .NET runtime environment and is automatically installed alongside it.

The Importance of Strong Names¶

To be installed in the Global Assembly Cache, an assembly must have a strong name. A strong name provides a unique identity for an assembly, ensuring that different assemblies with the same simple name (like “MyLibrary.dll”) do not conflict. It serves as a unique identifier that includes the assembly’s simple text name, version number, culture information (if provided), and a public key token.

The public key token is derived from a cryptographic key pair (a public key and a private key). When an assembly is signed with a strong name, the compiler (or signing tool) uses the private key to generate a digital signature that is stored in the assembly manifest. At runtime, the .NET loader uses the corresponding public key (which is part of the strong name) to verify the signature, ensuring the assembly has not been tampered with since it was built and signed. This process guarantees the integrity and authenticity of the assembly.

A strong name is essential for GAC deployment because it guarantees assembly uniqueness and integrity at a machine level. Applications referencing strong-named assemblies rely on the unique identity provided by the strong name to locate and load the correct version of the assembly from the GAC. Without a strong name, the .NET runtime cannot guarantee that a shared assembly is the correct, untampered version, and thus prevents its installation into the trusted GAC location.

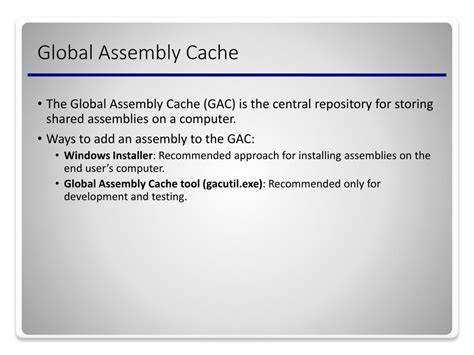

GAC Strong Name

Prerequisites¶

Before you begin deploying assemblies to the GAC, ensure you have the following:

Administrator Rights: Installing assemblies into the GAC requires administrative privileges on the target computer. This is because the GAC is a system-level directory.
Familiarity with .NET Assemblies: A basic understanding of what assemblies are in the .NET context (code units, metadata, manifests) is helpful.
Command-Line Tool Usage: The process often involves using command-line tools like Sn.exe (Strong Name tool) and Gacutil.exe (Global Assembly Cache Utility). Familiarity with navigating and executing commands in the command prompt or PowerShell is necessary.
Visual Studio: While not strictly mandatory for all steps (some can be done purely via command line), this guide uses Visual Studio for project creation and assembly signing via IDE properties, which is the most common developer workflow.

Step-by-Step Guide: Deploying to the GAC¶

This section walks through the process of creating a simple Class Library, generating a strong name key, signing the assembly, and installing it into the GAC.

Step 1: Create a Class Library Project in Visual Studio¶

Start by creating a new project in Visual Studio. Choose the “Class Library (.NET Framework)” template (or equivalent for .NET Core/5+ if applicable, though the strong naming and GAC process might differ slightly or be less common in modern .NET). Name the project GACDemo.

A Class Library project is suitable because it compiles into a .dll file containing classes that can be referenced by other applications. This is the typical scenario for a shared assembly destined for the GAC. The default project template provides a basic structure to start with.

Step 2: Generate a Strong Name Key Pair¶

Every strong-named assembly must be signed with a public/private key pair. This pair uniquely identifies the publisher. You can generate this key pair using the Strong Name tool (Sn.exe), which is part of the .NET Framework SDK (or .NET SDK).

The Sn.exe tool is usually found in the Bin directory of the SDK installation path, for example, C:\Program Files (x86)\Microsoft SDKs\Windows\<version>\bin\NETFX <version> Tools. Open a command prompt or developer command prompt and navigate to this directory, or use the Developer Command Prompt for Visual Studio which sets up the necessary environment paths automatically.

To generate a new key pair file, use the following command:

sn -k "[DriveLetter]:\[DirectoryToPlaceKey]\[KeyName].snk"

For instance, to create a key file named GACkey.snk in a directory C:\GACKey, you would run:

sn -k "C:\GACKey\GACkey.snk"

It’s recommended to create a dedicated, easily accessible directory for your key files. The -k option generates a new key pair and writes it to the specified file. Keep this .snk file secure, especially the private key part, as it identifies your publisher identity.

Step 3: Sign the Assembly with the Strong Name Key¶

Once the .snk file is generated, you need to associate it with your assembly during the build process. This signing process embeds the public key and the digital signature into the assembly’s metadata. There are two primary ways to do this in Visual Studio: using project properties or manually modifying AssemblyInfo.cs. Using project properties is generally the preferred and simpler method.

Method A: Using Visual Studio Project Properties (Recommended)¶

This method integrates strong name signing directly into the Visual Studio build process.

In Solution Explorer, right-click your GACDemo project and select Properties.
Navigate to the Signing tab.
Check the box labeled Sign the assembly.
In the Choose a strong name key file dropdown, select .
In the “Create Strong Name Key” dialog:
- Enter a name for the key file (e.g., GACkey.snk).
- Choose a location to save the file (you can browse or type a path). Saving it within your project structure or a designated keys folder is common.
- Optionally, you can password-protect the key file. For this example, you can leave Protect my key file with a password unchecked.
- Click OK.
The path to the newly created .snk file should now appear in the dropdown.
Save the project properties (Ctrl+S).
Build your project (Ctrl+Shift+B). Visual Studio will automatically use the specified key file to sign the assembly during compilation.

Using this method automatically adds the necessary assembly attribute (AssemblyKeyFile) to your project’s AssemblyInfo.cs file in the background, pointing to the .snk file specified in the project properties.

Method B: Manually Modifying AssemblyInfo.cs¶

If you already generated the key file using Sn.exe separately or prefer manual control, you can add the strong name information directly in the AssemblyInfo.cs file.

In Solution Explorer, expand the Properties node in your project and double-click AssemblyInfo.cs.
Add or modify the [assembly: AssemblyKeyFile(...)] attribute to point to your .snk file. Ensure the path is correct. If the key file is in a location like C:\GACKey, the line would look like this:
```
[assembly: AssemblyKeyFile("C:\\GACKey\\GACKey.snk")]
```
Note the double backslashes (\\) are required in C# string literals for path separators.
3. Ensure the project properties Signing tab does not have “Sign the assembly” checked, as specifying the key via both methods can cause issues.
4. Save AssemblyInfo.cs.
5. Build your project (Ctrl+Shift+B).

After successfully building the project using either Method A or B, the resulting GACDemo.dll file in your project’s bin\Debug or bin\Release folder will be strong-named.

Step 4: Install the Signed Assembly into the GAC¶

With the strong-named GACDemo.dll file ready, the next step is to install it into the Global Assembly Cache. The primary tool for this is the Global Assembly Cache Utility (Gacutil.exe). Like Sn.exe, Gacutil.exe is part of the .NET Framework SDK.

Open a Developer Command Prompt for Visual Studio (or a regular command prompt with the SDK bin directory added to the PATH) and use the following command format to install an assembly:

gacutil -I "[PathToYourSignedAssembly]\GACDemo.dll"

Replace [PathToYourSignedAssembly] with the actual path to your GACDemo.dll file (e.g., C:\YourProjectPath\GACDemo\bin\Debug).

For example:

gacutil -I "C:\Users\YourUser\source\repos\GACDemo\GACDemo\bin\Debug\GACDemo.dll"

You should see a message indicating “Assembly successfully added to the cache.” if the installation is successful.

Alternative Installation Method: Drag and Drop (Discouraged for Automation/Scripting)¶

As mentioned in older documentation and still possible in some environments, you could open two instances of Windows Explorer. Navigate one to the folder containing your signed .dll file and the other to the GAC location (C:\Windows\Assembly). You might be able to drag and drop the .dll file from your project’s output folder into the C:\Windows\Assembly folder view.

Windows Explorer provides a special shell extension for the C:\Windows\Assembly folder that understands the GAC structure. When you drag a strong-named assembly into this view, it uses the underlying GAC installation APIs to perform the installation. However, this method is not reliable for scripting or automated deployments and using Gacutil.exe is the standard and recommended approach.

Verification¶

After attempting to install the assembly, you should verify that it was successfully added to the GAC.

Open Windows Explorer.
Navigate to C:\Windows\Assembly (or C:\WINNT\Assembly on older systems).
The view in this folder is specially rendered by the GAC shell extension. You should see a list of installed assemblies. Look for GACDemo in this list. It should show details like its version, culture, and public key token, confirming it’s a strong-named assembly residing in the GAC.

Alternatively, you can use the Gacutil.exe tool to list assemblies in the GAC. Open a Developer Command Prompt and use the -l option:

gacutil -l GACDemo

This command searches the GAC for assemblies matching the simple name “GACDemo” and lists their full assembly names (including version, culture, and public key token) if found. This is often quicker than visually scanning the Explorer view, especially if you have many assemblies installed.

Managing Assemblies in the GAC¶

Deploying to the GAC is just one part of the lifecycle. You might need to update or remove assemblies.

Updating: To install a new version of an assembly, you simply run the gacutil -I command with the path to the new .dll file. If the assembly has a different version number but the same strong name (public key), Gacutil will install it side-by-side with the existing version. Applications can then be configured to bind to a specific version or the latest compatible version.
Uninstalling: To remove an assembly from the GAC, use the -u option with the full assembly name. You can get the full name (including version, culture, public key token) from the gacutil -l output or the Explorer view.
```
gacutil -u GACDemo, Version=1.0.0.0, Culture=neutral, PublicKeyToken=yourpublickeytoken
```
(Replace yourpublickeytoken with the actual public key token shown by gacutil -l or in Explorer).

Complete AssemblyInfo.cs Listing (Example)¶

For reference, here is an example of what a standard AssemblyInfo.cs file might look like, including the AssemblyKeyFile attribute if you chose the manual signing method.

using System.Reflection;
using System.Runtime.CompilerServices;
using System.Runtime.InteropServices; // Might be included depending on template

// General Information about an assembly is controlled through the following
// set of attributes. Change these attribute values to modify the information
// associated with an assembly.
[assembly: AssemblyTitle("GACDemo")] // Example: Give it a title
[assembly: AssemblyDescription("A simple demo for GAC deployment")] // Example: Add description
[assembly: AssemblyConfiguration("")]
[assembly: AssemblyCompany("Your Company")] // Example: Your company name
[assembly: AssemblyProduct("GACDemo")]
[assembly: AssemblyCopyright("Copyright © Your Company 2023")] // Example: Update copyright
[assembly: AssemblyTrademark("")]
[assembly: AssemblyCulture("")] // Typically neutral for general assemblies

// Setting ComVisible to false makes the types in this assembly not visible
// to COM components.  If you need to access a type in this assembly from
// COM, set the ComVisible attribute to true on that type.
[assembly: ComVisible(false)] // Example: Standard for most .NET assemblies

// The following GUID is for the ID of the typelib if this project is exposed to COM
[assembly: Guid("YOUR-UNIQUE-GUID")] // Example: Unique GUID generated by VS

// Version information for an assembly is made up of the following four values:
//
//      Major Version
//      Minor Version
//      Build Number
//      Revision
//
// You can specify all the values or default the Build and Revision Numbers
// by using the '*' as shown below:
// [assembly: AssemblyVersion("1.0.*")]
[assembly: AssemblyVersion("1.0.0.0")] // Example: Explicit version
[assembly: AssemblyFileVersion("1.0.0.0")] // Example: File version

// To sign your assembly you must specify a key to use. See the
// Microsoft .NET Framework documentation for more information about assembly signing.
// Use the following attributes to control that key is used for signing.
// Notes:
//     (*) If no key is specified, the assembly is not signed.
//     (*) KeyName refers to a key that has been installed in the Crypto Service
//         Provider (CSP) on your computer. KeyFile refers to a file that contains
//         a key.
//     (*) If the KeyFile and the KeyName values are both specified, the
//         following processing occurs:
//         (1) If the KeyName can be found in the CSP, that key is used.
//         (2) If the KeyName does not exist and the KeyFile does exist, the key
//             in the KeyFile is installed to the CSP and used.
//     (*) To create a KeyFile, you can use the sn.exe (Strong Name) utility.
//         When specifying the KeyFile, the location of the KeyFile must be
//         relative to the project output directory which is
//         %Project Directory%\obj\<configuration>. For example, if your KeyFile is
//         located in the project directory, you would specify the AssemblyKeyFile
//         attribute as [assembly: AssemblyKeyFile("..\\..\\mykey.snk")]
//     (*) Delay Signing is an advanced option - see the Microsoft .NET Framework
//         documentation for more information about this.
// [assembly: AssemblyDelaySign(false)] // Example: Can be used for delay signing
[assembly: AssemblyKeyFile("C:\\GACKey\\GACKey.snk")] // Example: Points to your key file
// [assembly: AssemblyKeyName("")] // Example: Can be used if key is in CSP

This listing shows the various assembly attributes, with comments explaining their purpose. The crucial part for GAC deployment is the [assembly: AssemblyKeyFile(...)] attribute or the equivalent setting in project properties.

Troubleshooting Common Issues¶

Permissions Errors: Ensure you are running the command prompt as an administrator when using Gacutil.exe.
Assembly Not Found: Double-check the path to the .dll file provided to gacutil -I. Also, ensure the assembly was successfully built after adding the strong name signing information.
Key File Not Found: Verify the path specified in the [assembly: AssemblyKeyFile(...)] attribute or project properties is correct and that the .snk file exists at that location.
Assembly Not Strong-Named: If Gacutil reports that the assembly is not strong-named, check that you correctly performed Step 3 (signing) and rebuilt the project. You can also use sn -v <assembly path> to verify an assembly’s strong name signature.

Deploying to the GAC is a standard practice for shared components in the .NET Framework. By correctly generating a strong name, signing your assembly, and using Gacutil, you can successfully install and manage your shared libraries on a system. While deployment practices have evolved with newer .NET versions (e.g., NuGet for package management), understanding the GAC remains important for working with existing .NET Framework applications and libraries.

Have you encountered specific challenges when deploying to the GAC? Share your experiences and questions in the comments below!
