Intune Win32 App Deployment Deep Dive: Understanding the Flow from Delivery to Processing

Updated: 05 Jul, 2025 • 0 • min read

Table of Contents

Deploying applications to end-user devices is a core function of modern device management, and Microsoft Intune’s capability to deploy Win32 applications offers powerful flexibility. Unlike traditional methods or even simpler deployment types within Intune (like MSI line-of-business apps), the Win32 app management process is sophisticated, involving numerous steps handled by the Intune Management Extension (IME). Understanding this detailed workflow is crucial for successful deployments and effective troubleshooting. This deep dive breaks down the end-to-end journey of a Win32 application from the Intune service to the endpoint device, highlighting each stage of the process.

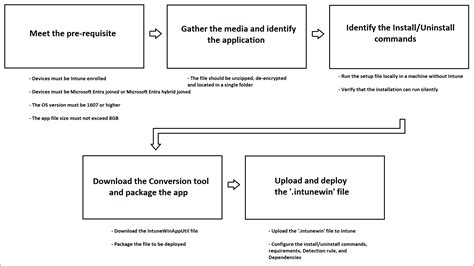

Intune Win32 App Deployment Flow

The Intune Management Extension: The Engine on the Endpoint¶

The deployment of Win32 applications via Intune relies heavily on a dedicated agent installed on the managed Windows 10/11 devices: the Intune Management Extension (IME), also known as the sidecar agent. This agent is automatically pushed to devices when they are assigned a Win32 app, PowerShell script, or Proactive Remediation. It operates outside the standard MDM channel, allowing for more complex actions required by Win32 installers and scripts.

Initialization and Agent Startup¶

The first phase of the Win32 app deployment journey begins with the core components of the Intune Management Extension establishing their operational state.

Intune Management Extension gets initialized.
The IME service starts up on the endpoint device, typically upon device boot or when policies are updated. This initialization process involves the agent checking its configuration and preparing its environment to receive commands and policies from the Intune service. It acts as the primary listener for Win32 app deployment assignments.
EMS Agent is started.
The Enterprise Mobility + Security (EMS) Agent component, integral to the IME, also begins its operation. This agent is responsible for handling communication with the Intune service, processing policy assignments, and orchestrating the various tasks required for deploying applications, scripts, and remediations. Its successful startup is foundational for the entire deployment workflow that follows.

Pre-Flight Checks and Initial Setup¶

Before engaging in policy retrieval or content download, the IME performs essential checks on the device environment to ensure compatibility and gather necessary information.

S Mode is checked.
The system verifies if the operating system is running in S Mode. Windows S Mode is a security-focused configuration that generally only allows applications from the Microsoft Store. Since Win32 applications deployed via IME are typically traditional desktop applications (.exe, .msi, etc.), this check is critical to determine if the app can actually be installed on the current OS configuration. Deployment to S Mode devices is usually not supported for standard Win32 apps unless specific conditions or exceptions are met.
Deviceid and OS version is noted.
The IME identifies and records crucial details about the endpoint device, specifically its unique Device ID and the installed Operating System version. This information is vital for reporting purposes, allowing Intune to accurately attribute deployment status to the correct device. It also plays a role in policy targeting and requirement rule evaluation later in the process, ensuring the app is only attempted on compatible OS versions.

Communication and Policy Retrieval¶

With the IME initialized and basic device information gathered, the agent establishes communication with the Intune service to pull down assigned configurations and application policies. This phase is critical for the agent to understand what needs to be deployed.

Endpoint Discovery and Network Considerations¶

Communicating with the Intune service and its associated content delivery networks (CDNs) requires the endpoint device to be able to reach specific internet endpoints.

IME discovers the endpoint of Intune (CDNs).
The Intune Management Extension determines the necessary network endpoints to communicate with the Intune service and the CDNs where the application content is stored. These endpoints are typically Azure-based URLs. It is imperative that these endpoints are accessible from the client device, meaning they must not be blocked by local firewalls, network proxies, or other security devices. Network connectivity issues to these endpoints are a common cause of failed deployments. Administrators must ensure the required URLs for Intune and associated services are allowed through their network infrastructure.

Authentication and Policy Acquisition¶

Secure communication with the Intune service relies on proper authentication, followed by the actual retrieval of assigned configurations.

Impersonation for the user occurs, and token is requested or granted.
For deployments configured to run in the user context, the IME performs impersonation of the logged-in user. This step involves requesting or verifying an authentication token that grants the IME permissions to access policies and potentially run installers on behalf of that specific user. Deployments running in the system context typically use the device’s identity for authentication. The context (system or user) is defined by the administrator when configuring the Win32 app in the Intune portal.
PUT request is sent.
The IME sends a PUT request to the Intune service endpoint. This request is essentially the device checking in and signaling its readiness to receive policy updates, including new or updated Win32 app assignments. It’s part of the regular sync cycle between the IME agent and the Intune service.
You see a **Get Policies response that contains the entire policy body (as configured by the admin in the portal).**
In response to the PUT request, the Intune service sends back the relevant policy body to the IME agent. This policy body is a comprehensive set of configurations assigned to the device, including details for all assigned Win32 apps, PowerShell scripts, and Proactive Remediations. The policy contains all the parameters defined by the administrator in the Intune portal, such as detection rules, requirements, install commands, uninstall commands, and return codes. Administrators can inspect IME log files (like AgentExecutor.log) on the client device to verify that the policy received by the agent accurately reflects the configuration set in the portal. This step confirms that the intended policy has reached the endpoint.

Policy Processing and Pre-Download Checks¶

Once the policy is received, the IME begins processing it to determine which applications are targeted for the device and whether they are applicable and meet the defined criteria before attempting any content download.

App Identification and Dependency Resolution¶

The IME agent parses the received policy to identify individual application assignments and understand their relationships.

ExecManager identifies the app name/appid/app installation intent.
The ExecManager component within the IME takes over to process the received policy, specifically identifying each assigned Win32 application. It extracts key information for each app, including its unique Application ID (appid), the application name, and the intended action (e.g., Install for Required assignments, Uninstall for uninstall assignments, or simply Evaluate for Available assignments that haven’t been triggered by the user). This step prioritizes and prepares the list of tasks the IME needs to execute.
Dependency is checked for the apps that were discovered.
For each identified application, the IME checks if any dependencies have been defined in the Intune portal configuration. If dependencies are discovered (meaning other Win32 apps must be installed before the current app), the IME changes the order of operations. It will prioritize the download and installation of the dependent applications first. The current application will only proceed once all its specified dependencies are successfully installed and detected on the device. This sequential installation ensures complex applications with prerequisites are deployed correctly.

Applicability and Detection Checks¶

Rigorous checks are performed to ensure the app is suitable for the device and hasn’t already been installed, preventing unnecessary resource usage.

Detection rules are checked for the apps.
Before attempting to download or install the application content, the IME evaluates the detection rules configured for the app. These rules are the criteria Intune uses to determine if the application is already present on the device. Common detection methods include checking for the existence of a specific file or folder, a registry key or value, or the presence of an MSI product code. A PowerShell script can also be used for more complex detection logic. If the detection rule evaluates to True at this stage (meaning the app is already detected), the IME determines that the app is already installed and compliant with the requirement. In this scenario, the download and installation steps for this specific application assignment are skipped entirely. This prevents unnecessary re-installation or execution of the installer if the app is already present.
Applicability is checked for the app (requirement and extended requirement).
The IME then evaluates the applicability rules, commonly referred to as “Requirements” in the Intune portal. These rules define the conditions the device must meet for the application to be considered applicable for installation. Built-in requirements include checks for the operating system version (minimum/maximum), OS architecture (32-bit/64-bit), minimum disk space, and minimum physical memory. Administrators can also upload custom PowerShell scripts to define more complex or granular requirement checks. If the device does not meet any of the configured requirement rules, the application is deemed “Not Applicable,” and the deployment process for this app stops here. The IME will report the status as “Not Applicable” back to Intune, and no download or installation will occur.

Content Delivery and Preparation¶

If the app passes the initial detection and requirement checks, the IME proceeds to download the application content from the Intune content delivery network and prepare it for execution.

Download Process¶

The download phase involves initiating the transfer of the .intunewin file from the CDN to the endpoint device.

Download starts by sending a toast notification.
For user-based assignments or applications deployed in the user context, the download process typically begins with a user-facing notification. The IME sends a toast notification to the Windows Action Center, providing the user with visual feedback that an application download and installation is commencing. This proactive notification enhances the user experience by keeping them informed about ongoing device management activities, although the visibility of these toasts can often be configured or suppressed by policy.
Download job is created and timer is set.
Internally, the IME creates a dedicated download job for the application content. This job manages the transfer process from the CDN. A timer is also set to monitor the download progress and enforce timeouts if the download takes excessively long, preventing the process from hanging indefinitely due to network issues or unreachable content sources.
Content is downloaded to C:\Program Files (x86)\Microsoft Intune Management Extension\Content\Incoming\59f9a567-b92d-4dc2-9c7a-fdb94e29275c_1.bin.
The .intunewin application content package is downloaded from the CDN to a temporary staging location within the IME’s directory structure. The file name typically includes the Application ID and a revision number, followed by a .bin extension. The default download path is within the Incoming folder under the Intune Management Extension installation directory. This location serves as the initial landing spot for the encrypted and compressed application package.
Download job finishes, time taken is noted, bytes download is noted, job is closed.
Upon successful completion of the content transfer, the download job is finalized. The IME logs details about the download, including the total time taken and the number of bytes transferred. This information is useful for troubleshooting network performance issues or identifying potential bottlenecks during content delivery. The download job is then closed, signaling that the next phase of processing can begin.

Content Verification and Staging¶

After the download is complete, the IME performs security checks and unpacks the application content in preparation for installation.

Verification of encrypted hash, decryption starts.
A critical security step involves verifying the integrity of the downloaded .bin file. The IME compares the hash of the downloaded content with a hash value provided by the Intune service (which was calculated when the .intunewin package was uploaded). This ensures the content has not been tampered with during transit. If the hash verification is successful, the IME then proceeds to decrypt the content, as all application packages are encrypted by Intune before being uploaded and distributed.
Unzipping starts from Content\Staging to C:\Windows\IMECache\59f9a567-b92d-4dc2-9c7a-fdb94e29275c_1.
The decrypted application content, which is essentially a compressed archive, is then unzipped or extracted. The contents are moved from a temporary staging area within the IME’s program files directory to a dedicated cache location, typically under C:\Windows\IMECache. A unique folder is created for each application version based on the Application ID and revision. This cache location is where the actual installer files (.exe, .msi, supporting files) are placed, ready for execution.
Organize staging content.
Within the IMECache folder, the IME organizes the extracted files. This might involve validating the file structure, ensuring all necessary files are present, and preparing the execution environment. This step makes the content package ready for the installer execution phase.

Installation Execution¶

With the application content downloaded, verified, and staged, the IME proceeds to execute the installer using the command line specified by the administrator.

Preparing and Running the Installer¶

This is the core phase where the application’s setup program is launched on the device.

Installer execution starts.
The IME initiates the process of launching the application’s installer. It references the install command configured in the Intune portal to determine the executable or script to run and the parameters to pass to it. The execution context (System or User) determined earlier dictates the privileges under which the installer runs. System context is common for machine-wide installations, while User context is used for applications that install to the user profile or require user interaction.
Prepare .msi cmdline for system context.
If the application uses an MSI installer and is configured to run in the system context, the IME constructs the command line using the standard msiexec.exe utility. It combines the path to the MSI file with the command-line arguments specified by the administrator. The IME ensures that common silent installation switches are included, often overriding admin input if necessary to enforce quiet installation behavior appropriate for System context deployment.
msiexec /i "7zip.msi" /q /qn ALLUSERS=1 REBOOT=ReallySuppress /norestart
Command is specified by the admin for the app in the portal.
This is an example of a typical command line prepared and executed by the IME for an MSI installation.
- msiexec /i "7zip.msi": This invokes the Windows Installer and specifies the path to the MSI file to be installed.
- /q or /qn: These are silent installation switches. /qn usually means “quiet, no UI”. This is crucial for automated deployments to prevent installer windows from appearing and interrupting the user.
- ALLUSERS=1: This MSI property ensures the application is installed for all users on the machine, which is standard practice for System context deployments.
- REBOOT=ReallySuppress / /norestart: These switches are used to prevent the installer from automatically restarting the device after installation, even if the installer requests it. Intune handles reboots based on the configured “Device restart behavior.”
  The exact command line used is directly sourced from the configuration defined by the administrator within the Intune portal for this specific Win32 application.

Monitoring and Post-Execution Handling¶

After the installer runs, the IME monitors its completion and processes the outcome.

Installation finishes, results collected.
The IME waits for the installer process to complete. Once the installer exits, the IME captures the results of the execution. The most important piece of information collected at this stage is the installer’s exit code (also known as return code). This numerical code indicates the success or failure status of the installation from the installer’s perspective.
lpExitCode 0, determines whether it’s a success.
The IME evaluates the collected exit code. By convention, an exit code of 0 typically signifies that the installation completed successfully. Administrators configure which exit codes should be interpreted as success, failure, or pending reboot within the Intune portal. While 0 is the most common success code, installers might return other specific codes (e.g., 3010 for success with a required reboot). The IME uses the administrator-defined mapping to translate the numerical exit code into a deployment status.
DeviceRestartBehavior: 2 (checks , device restart behavior) handle is closed.
The IME checks the configured “Device restart behavior” for the application policy. This setting, defined by the administrator, dictates how Intune should handle potential reboots requested by the installer or necessary after installation. Options include suppressing reboots and taking no action, initiating a “soft” reboot (allowing user deferral), initiating a “hard” reboot (forcing a restart), or determining the behavior based on standard MSI return codes (like 3010). The IME’s process for handling the deployment run is closed or completed for this cycle, taking the necessary reboot action if determined by this check and policy.

Post-Installation Checks and Reporting¶

The final phase involves verifying the application’s presence after the installation attempt and reporting the overall status back to the Intune service.

Final Detection and Status Determination¶

Ensuring the app is truly installed requires a re-evaluation of the detection rules.

The detection rule starts by SideCarFileDetectionManager.
Even if the installer reported success (based on the exit code), the IME performs a final verification step: re-evaluating the application’s detection rule. This check is typically handled by the SideCarFileDetectionManager component. This is crucial because an installer might exit with a success code even if the application failed to install correctly or if the detection method was slightly different from the installation process itself. This post-installation detection is the definitive check for whether the application is considered installed and compliant on the device from Intune’s perspective. The same detection logic used in Step 11 is applied again here.
Checked under path: C:\Temp, file Path: C:\Temp\7zip, agent was checking under expanded: C:\Temp\7zip, applicationDetected: True.
This entry illustrates a specific example of the detection rule evaluation. In this case, the detection rule was configured to check for the existence of a file or folder at the path C:\Temp\7zip. The IME agent confirms that this path exists and is accessible. Since the check returned True (meaning the file or folder was detected), the IME determines that the application (e.g., 7zip in this example) is successfully installed and present on the device. This confirms the installation attempt was successful in achieving the desired end state.
Set ComplianceStateMessage and application detected after execution.
Based on the outcome of the post-installation detection rule evaluation, the IME sets the ComplianceStateMessage for the application assignment. If the detection rule returned True, the compliance state is set to Compliant or Detected. If the detection rule returned False, the state is set to Not Detected or NonCompliant (depending on the assignment intent and the failure reason). This step finalizes the internal status of the application on the device.
EnforcementStateMessage: determines the output after the detection process, toast message of the installation status is sent again.
Following the determination of the compliance state, the IME updates the EnforcementStateMessage. This message reflects the overall outcome of the deployment process (e.g., “Installation successful,” “Installation failed,” “Not applicable”). A final user-facing toast notification is typically sent to inform the user of the installation status. This intuitive notice lets the user know whether the application they were assigned successfully installed or if there was an error, providing closure to the process from the user’s perspective.
Organize staged content. C:\Windows\IMECache\59f9a567-b92d-4dc2-9c7a-fdb94e29275c_1.
After the installation attempt and final detection check are complete, the IME manages the staged application content in the IMECache folder. Depending on available disk space and configuration, the IME may retain the content in the cache for potential future use (e.g., for uninstallation or repair) or clean it up to free space. This organization step ensures the cache is managed efficiently.
Start reporting app results.
The final step in the process is for the IME to report the complete deployment status back to the Microsoft Intune service. This report includes the determined compliance state, the enforcement state message, the installer exit code, details about the download and installation time, and any relevant error information captured during the process. This data is then available for administrators to view in the monitoring and reporting sections of the Microsoft Endpoint Manager admin center, providing visibility into the success or failure of Win32 app deployments across their managed devices.

Visualizing the Flow¶

To better illustrate the journey, here is a simplified flowchart of the Intune Win32 App deployment process orchestrated by the IME:

```mermaid
graph TD
A[IME Initialized] → B{S Mode?};
B – No → C[Get Policies];
C → D[Identify Apps/Intent];
D → E{Dependencies?};
E – Yes → F[Install Dependencies];
F → G;
E – No → G[Pre-Detect App?];
G – Yes → H[Skip Download/Install];
G – No → I{Meet Requirements?};
I – Yes → J[Download Content];
I – No → K[Report Not Applicable];
J → L[Verify/Decrypt Content];
L → M[Unzip/Stage Content];
M → N[Execute Installer];
N → O[Evaluate Exit Code];
O → P[Handle Restart Behavior];
P → Q[Post-Install Detection];
Q → R[Set Compliance State];
R → S[Send Final Toast];
S → T[Report Results to Intune];
H → T;
K → T;

%% Linking dependencies back into the flow before detection/requirements
F --> G;

```
This diagram provides a high-level overview, showing the conditional paths based on pre-checks and the sequential nature of download, installation, and verification.

Troubleshooting Common Issues¶

Understanding this detailed flow is invaluable for troubleshooting Win32 app deployment failures. Here are a few common issues mapped to the steps above:

App Stuck in “Downloading” or “Waiting for Install”: Often related to Step 5 (network connectivity to CDNs), Step 14 (download job issues), or Step 17 (hash verification/decryption problems). Check firewall/proxy logs and IME logs (AgentExecutor.log, DownloadManager.log).
App Shows as “Failed” Immediately: Could be Step 11 (detection logic incorrectly finding the app beforehand), Step 12 (requirements not met), or issues in Steps 6-8 preventing policy retrieval. Review AgentExecutor.log for early exit conditions.
App Shows as “Failed” After a Few Minutes: Likely an issue with Step 20 or Step 22 (installer execution failure). The installer exited with a non-success code. Check the installer’s own logs (if it creates any), the IME logs (AgentExecutor.log, ClientHealth.log), and verify the command line syntax and context (System/User) in Step 22. Ensure the installer runs silently with the specified command outside of Intune first to rule out installer-specific issues.
App Installs But Intune Reports “Failed” or “Error”: This points to a problem with Step 24 (exit code mapping) or, more commonly, Step 26 (post-installation detection failure). Verify that the detection rule in the Intune portal accurately reflects the state of the device after a successful manual installation. Check DetectionMethod.log.

Consulting the various log files generated by the Intune Management Extension in C:\ProgramData\Microsoft\IntuneManagementExtension\Logs is the most effective way to diagnose issues by tracing the process through these steps.

Adding Relevant Media¶

Here is a relevant YouTube video that further explains the Win32 app deployment process in Intune:

(Note: Replace example_video_id with the actual YouTube video ID).
You can search YouTube for videos like “Intune Win32 App Deployment Explained” or “Troubleshooting Intune Win32 Apps” to find suitable content.

Conclusion¶

The Intune Win32 application deployment process, facilitated by the Intune Management Extension, is a multi-stage workflow designed for robustness and flexibility. From the initial agent initialization and policy retrieval to the complex stages of content download, verification, installation execution, and crucial post-installation detection, each step plays a vital role. Understanding this intricate journey is not just academic; it’s a practical necessity for IT professionals managing endpoints with Intune. By knowing what happens at each numbered stage, administrators can more effectively configure applications, anticipate potential issues, and troubleshoot failures efficiently by examining the relevant IME logs. This deep dive provides the foundational knowledge to master Win32 app deployments in a modern management environment.

What steps in the Win32 app deployment process have you found most challenging to troubleshoot? Share your experiences and tips in the comments below!
