Mastering Windows Server Firewall: Leverage 'netsh advfirewall' for Enhanced Security

Table of Contents

Windows Server Firewall is a critical component for securing your server infrastructure, controlling inbound and outbound network traffic to protect against unauthorized access and malicious attacks. Traditionally, administrators managed this essential security feature using the netsh firewall command-line context. However, with advancements in Windows Server, a more robust and granular tool has emerged: netsh advfirewall. This modern command-line context offers superior control over firewall behavior and is highly recommended for contemporary Windows Server environments.

The netsh advfirewall context, introduced in Windows Server 2012 R2, represents a significant evolution in firewall management. It not only replicates the core functionalities provided by its predecessor, netsh firewall, but also introduces a much finer level of control over firewall rules. This enhanced granularity is particularly evident in its ability to manage settings on a per-profile basis, encompassing Domain, Private, and Public network profiles. Microsoft explicitly advises migrating to netsh advfirewall, as the older netsh firewall context is slated for deprecation in future versions of the Windows operating system, underscoring its importance for long-term security strategies.

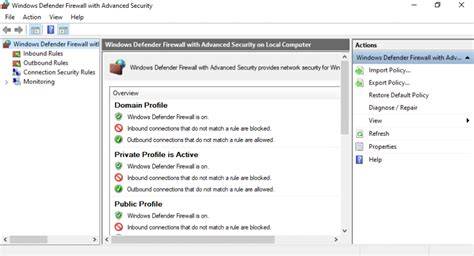

Understanding Firewall Profiles¶

A fundamental concept within Windows Firewall, and consequently netsh advfirewall, is that of network profiles. These profiles define different security settings based on the type of network connection your server is currently using, offering adaptive protection. The three primary profiles are:

• Domain Profile: Automatically applied when the server is connected to a network where it can authenticate to a domain controller. This profile typically allows for more relaxed security within a trusted enterprise network, assuming a higher degree of internal network security.
• Private Profile: Used when the server is connected to a private network, such as a home or small office network, and cannot authenticate to a domain. This profile is generally more restrictive than the Domain profile but less so than the Public profile, suitable for environments where some trust exists among connected devices.
• Public Profile: The most restrictive profile, applied when the server is connected to an untrusted network like a public Wi-Fi hotspot or the internet. This profile prioritizes security by blocking most incoming connections by default, safeguarding the server from unknown threats.

Leveraging these profiles with netsh advfirewall allows administrators to implement context-aware security policies. For instance, a rule allowing an application to communicate on the Domain network might be explicitly blocked on the Public network, providing a dynamic and resilient security posture tailored to the server’s operational environment.

Migrating from netsh firewall to netsh advfirewall¶

To facilitate the transition, we will explore several frequently used command examples, demonstrating how to achieve the same results with the more capable netsh advfirewall context. These examples highlight the syntax differences and the added flexibility offered by the new commands, making the migration process smoother for administrators accustomed to the older methods.

Command Example 1: Enable a Program¶

Enabling a program through the firewall involves creating a rule that permits its executable to communicate over the network. The netsh advfirewall approach allows for precise control over the direction of traffic, the action to be taken, and specific network conditions.

Old Command	New Command
netsh firewall add allowedprogram C:\MyApp\MyApp.exe "My Application" ENABLE	netsh advfirewall firewall add rule name="My Application" dir=in action=allow program="C:\MyApp\MyApp.exe" enable=yes
netsh firewall add allowedprogram program=C:\MyApp\MyApp.exe name="My Application" mode=ENABLE scope=CUSTOM addresses=157.60.0.1,172.16.0.0/16,LocalSubnet profile=Domain	netsh advfirewall firewall add rule name="My Application" dir=in action=allow program="C:\MyApp\MyApp.exe" enable=yes remoteip=157.60.0.1,172.16.0.0/16,LocalSubnet profile=domain
netsh firewall add allowedprogram program=C:\MyApp\MyApp.exe name="My Application" mode=ENABLE scope=CUSTOM addresses=157.60.0.1,172.16.0.0/16,LocalSubnet profile=ALL	netsh advfirewall firewall add rule name="My Application" dir=in action=allow program="C:\MyApp\MyApp.exe" enable=yes remoteip=157.60.0.1,172.16.0.0/16,LocalSubnet profile=domain netsh advfirewall firewall add rule name="My Application" dir=in action=allow program="C:\MyApp\MyApp.exe" enable=yes remoteip=157.60.0.1,172.16.0.0/16,LocalSubnet profile=private

When enabling a program, the dir parameter specifies the traffic direction (inbound or outbound), and action defines whether the traffic is allowed or blocked. The program parameter points to the executable path. The remoteip parameter provides granular control over which remote IP addresses or subnets are permitted to connect, supporting single IPs, ranges, and CIDR notation. For profile=ALL in the old syntax, the new approach requires creating separate rules for each specific profile, emphasizing the profile-centric design of advfirewall. This explicit definition ensures that security policies are consistently applied across all relevant network environments, rather than a broad, potentially less secure, “all profiles” setting.

For a comprehensive list of options and parameters for adding firewall rules, execute the following command in your terminal:

netsh advfirewall firewall add rule ?

Command Example 2: Enable a Port¶

Opening specific ports is crucial for services that listen for incoming connections, such as web servers (port 80/443) or database servers. The netsh advfirewall context offers precise control over the protocol (TCP/UDP), local port, and direction, allowing for highly specific port-opening rules.

Old Command	New Command
netsh firewall add portopening TCP 80 "Open Port 80"	netsh advfirewall firewall add rule name="Open Port 80" dir=in action=allow protocol=TCP localport=80

This command creates an inbound rule (dir=in) that allows traffic (action=allow) using the TCP protocol (protocol=TCP) on local port 80 (localport=80). Assigning a meaningful name to the rule is vital for future identification and management. Unlike the old syntax, the new command integrates all necessary parameters into a single, more descriptive rule definition, making it easier to understand and audit.

To explore all possible parameters for adding firewall rules, refer to the detailed inline help by running:

netsh advfirewall firewall add rule ?

Command Example 3: Delete Enabled Programs or Ports¶

Effective firewall management includes the ability to easily remove rules that are no longer necessary or have been incorrectly configured. Deleting rules helps maintain a clean and secure firewall policy, reducing the attack surface.

Old Command	New Command
netsh firewall delete allowedprogram C:\MyApp\MyApp.exe	netsh advfirewall firewall delete rule name="rule name" program="C:\MyApp\MyApp.exe"
delete portopening protocol=UDP port=500	netsh advfirewall firewall delete rule name="rule name" protocol=udp localport=500

When deleting rules with netsh advfirewall, it’s crucial to identify the rule by its name or specific properties like program, protocol, or localport. While the name is the most common and robust way to identify a rule for deletion, specifying other parameters can help narrow down the target if the name is unknown or if you wish to delete rules based on specific criteria. This approach ensures precision when modifying firewall policies, preventing unintended deletions.

For more information on how to delete firewall rules and the various criteria you can use, execute the following command:

netsh advfirewall firewall delete rule ?

Command Example 4: Configure ICMP Settings¶

Internet Control Message Protocol (ICMP) is used by network devices to send error messages and operational information, such as whether a requested service is available or if a host or router can be reached. While useful for diagnostics (like ping), ICMP traffic can also be exploited. Therefore, configuring ICMP settings precisely is essential for security.

Old Command	New Command
netsh firewall set icmpsetting 8	netsh advfirewall firewall add rule name="ICMP Allow incoming V4 echo request" protocol=icmpv4:8,any dir=in action=allow
netsh firewall set icmpsetting type=ALL mode=enable	netsh advfirewall firewall add rule name="All ICMP V4" protocol=icmpv4:any,any dir=in action=allow
netsh firewall set icmpsetting 13 disable all	netsh advfirewall firewall add rule name="Block Type 13 ICMP V4" protocol=icmpv4:13,any dir=in action=block

With netsh advfirewall, ICMP settings are managed by creating specific rules, offering far greater control than the older netsh firewall context. Instead of broad set icmpsetting commands, you define rules with protocol=icmpv4 or icmpv6, specifying the ICMP type and code (e.g., 8,any for echo requests). This allows you to selectively permit or block specific types of ICMP messages, such as inbound echo requests (ping) while blocking others that might be used for reconnaissance or denial-of-service attacks. The flexibility to define action (allow/block) and direction (in/out) within an ICMP rule enhances security significantly.

To understand the full range of options for configuring ICMP rules, run the following command for detailed help:

netsh advfirewall firewall add rule ?

Command Example 5: Set Logging¶

Firewall logging is an indispensable tool for security auditing, troubleshooting network connectivity issues, and detecting potential intrusions. By logging dropped connections and allowed connections, administrators gain valuable insights into network activity and firewall behavior.

Old Command	New Command
netsh firewall set logging %systemroot%\system32\LogFiles\Firewall\pfirewall.log 4096 ENABLE ENABLE	netsh advfirewall set currentprofile logging filename %systemroot%\system32\LogFiles\Firewall\pfirewall.log netsh advfirewall set currentprofile logging maxfilesize 4096 netsh advfirewall set currentprofile logging droppedconnections enable netsh advfirewall set currentprofile logging allowedconnections enable

The netsh advfirewall context provides separate commands for each logging parameter, allowing for more granular configuration. You can specify the log file path (filename), its maximum size in kilobytes (maxfilesize), and whether to log dropped connections (droppedconnections) or allowed connections (allowedconnections). These settings can be applied to the currentprofile or explicitly to Domainprofile, Privateprofile, or Publicprofile, providing profile-specific logging. This level of detail in logging helps administrators fine-tune their audit trails, capturing only the most relevant information for security analysis and compliance.

For more details on configuring logging settings for different profiles, consult the help by running:

netsh advfirewall set currentprofile ?

If you need to configure logging for a specific network profile instead of the currently active one, you can substitute currentprofile with one of the following options: Domainprofile, Privateprofile, or Publicprofile. This allows for distinct logging policies based on the network environment.

Command Example 6: Enable Windows Firewall¶

Enabling or disabling the Windows Firewall is a fundamental administrative task, often required during initial setup, maintenance, or troubleshooting. The netsh advfirewall context offers clear and direct commands to manage the firewall state for individual profiles or globally.

Old Command	New Command
netsh firewall set opmode ENABLE	netsh advfirewall set currentprofile state on
netsh firewall set opmode mode=ENABLE exceptions=enable	Netsh advfirewall set currentprofile state on netsh advfirewall set currentprofile firewallpolicy blockinboundalways,allowoutbound
netsh firewall set opmode mode=enable exceptions=disable profile=domain	Netsh advfirewall set domainprofile state on netsh advfirewall set domainprofile firewallpolicy blockinbound,allowoutbound
netsh firewall set opmode mode=enable profile=ALL	netsh advfirewall set domainprofile state on netsh advfirewall set privateprofile state on

Enabling the firewall state (state on) is the primary step to activate its protection. The firewallpolicy parameter allows you to define the default behavior for inbound and outbound traffic when no specific rules apply. Common policies include blockinboundalways,allowoutbound (most restrictive) or blockinbound,allowoutbound (allowing exceptions). By explicitly setting the firewall state and policy per profile, administrators can ensure that the server’s security posture adapts correctly to different network environments, providing robust defense without impeding legitimate traffic.

To get more information on setting the firewall state and policies for different profiles, use the following help command:

netsh advfirewall set currentprofile ?

As with logging settings, when configuring the firewall state for a particular profile, replace currentprofile with the desired option: Domainprofile, Privateprofile, or Publicprofile. This ensures that your configuration applies to the correct network environment.

Command Example 7: Restore Policy Defaults¶

Occasionally, it may be necessary to reset the Windows Firewall policy to its default configuration. This action can be useful for troubleshooting complex firewall issues, undoing unintended configurations, or starting fresh with a known baseline.

Old Command	New Command
netsh firewall reset	netsh advfirewall reset

The netsh advfirewall reset command effectively restores all firewall and IPsec settings to their factory defaults. This action removes all custom rules, connection security rules, and profile settings, effectively returning the firewall to its out-of-the-box state. While powerful, this command should be used with caution, as it will clear all existing custom configurations, potentially impacting server connectivity if not followed by immediate re-configuration of necessary rules. It’s an invaluable tool for quickly reverting to a clean slate, particularly in testing or recovery scenarios.

For further details on the implications and usage of the reset command, run:

netsh advfirewall reset ?

Command Example 8: Enable Specific Services¶

While the original content did not provide examples for enabling specific services directly, it’s important to note that netsh advfirewall typically manages services by allowing their associated executable programs or required ports, as demonstrated in the “Enable a Program” and “Enable a Port” examples. Modern best practices often involve creating rules based on service SIDs or application groups for more robust management, which netsh advfirewall fully supports.

For instance, to allow a service like “Remote Desktop” (which uses TCP port 3389 by default), you would typically create a port-based rule or a program-based rule targeting the svchost.exe process with the specific service ID. The netsh advfirewall context allows rules to be defined that permit traffic for specific services by name or service short name, offering highly granular control over network access for system components. This method is generally preferred over broad port openings, as it binds the rule directly to the service, enhancing security.

Advanced Considerations and Best Practices¶

The netsh advfirewall command provides a robust framework for managing Windows Server Firewall. Beyond the basic examples, it supports advanced features like connection security rules (IPsec), rule grouping, and integration with Group Policy for enterprise-wide deployments. When managing firewall rules, consider the following best practices:

• Principle of Least Privilege: Only open ports and allow programs that are absolutely necessary for server functionality. Restrict access to specific IP addresses or subnets whenever possible using the remoteip parameter.
• Rule Naming Convention: Use descriptive names for your firewall rules. This makes it easier to identify, audit, and troubleshoot policies later.
• Profile-Specific Rules: Always consider which network profile a rule should apply to. Avoid using broad profile=any unless explicitly required and thoroughly vetted for security implications.
• Regular Audits: Periodically review your firewall rules to ensure they are still relevant and necessary. Remove old or unused rules to reduce complexity and potential attack surface.
• Automation: netsh advfirewall commands are ideal for scripting. Incorporate firewall configuration into your server provisioning and configuration management scripts (e.g., PowerShell, Desired State Configuration) for consistency and efficiency across your environment.
• Backup Configuration: Before making significant changes, consider backing up your current firewall configuration using netsh advfirewall export. This allows for quick restoration if issues arise.

By mastering netsh advfirewall, administrators can significantly enhance the security posture of their Windows Server environments. Its detailed control, coupled with the ability to define rules based on network profiles, offers a flexible and powerful solution for protecting critical server infrastructure against evolving cyber threats. The deprecation of the older netsh firewall context further solidifies the importance of transitioning to this advanced tool for modern network security management.

Do you have specific firewall configuration challenges or scenarios you’d like to explore further with netsh advfirewall? Share your thoughts and questions in the comments below!
