SDN Troubleshooting on Windows Server: Expert Tips & Solutions

Table of Contents

Software-Defined Networking (SDN) on Windows Server revolutionizes network management by abstracting network configurations from the underlying hardware, offering unparalleled flexibility and scalability. However, the complexity inherent in such a sophisticated system means that troubleshooting is an inevitable part of its lifecycle. Understanding the common pitfalls and equipped with expert strategies, administrators can efficiently diagnose and resolve issues, ensuring the stability and performance of their SDN infrastructure. This guide provides a comprehensive overview of expert tips and solutions for tackling SDN challenges on Windows Server environments.

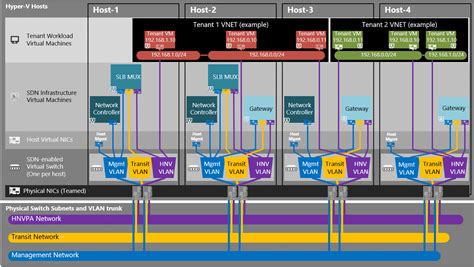

Understanding the SDN Architecture on Windows Server¶

Before diving into troubleshooting, it’s crucial to grasp the core components of SDN on Windows Server. The architecture typically comprises the Network Controller (NC), Software Load Balancer (SLB), RAS Gateway, and Hyper-V Network Virtualization (HNV), all interacting with the physical network infrastructure. Each component plays a vital role in delivering the promised agility and control of SDN. A malfunction in any one of these layers can propagate, causing widespread service disruptions.

The Network Controller acts as the central brain, managing and automating network configurations, policies, and health monitoring. It communicates with network devices and virtual network elements to apply desired states. The SLB distributes incoming network traffic across multiple servers or virtual machines, enhancing application availability and scalability. RAS Gateway enables site-to-site and point-to-site VPN connectivity, allowing tenants to connect to their virtual networks. Lastly, HNV provides the essential overlay networking capabilities, abstracting the physical network and enabling multi-tenancy.

General Troubleshooting Principles for SDN¶

Effective troubleshooting in an SDN environment requires a methodical and systematic approach. Jumping to conclusions or attempting quick fixes without proper diagnosis can often worsen the problem or mask its true cause. Adhering to established principles ensures a more efficient and less frustrating troubleshooting experience, ultimately minimizing downtime.

Firstly, document everything. Maintain detailed records of your SDN deployment, including IP addresses, network configurations, policies, and any changes made. This documentation serves as a critical reference point when diagnosing deviations from the expected state. Secondly, establish a baseline of normal operation. Knowing what “good” looks like—typical resource utilization, latency, and service states—allows for quicker identification of anomalies. Thirdly, employ isolation techniques. When an issue arises, try to narrow down the scope by isolating components or tenants. This helps pinpoint whether the problem is localized to a single VM, a specific tenant network, or a broader infrastructure issue. Lastly, verify assumptions. Do not assume a component is working correctly; instead, use diagnostic tools and commands to confirm its status and configuration.

Troubleshooting Specific SDN Components¶

Each SDN component on Windows Server has its unique set of potential issues and diagnostic approaches. Understanding these specifics is key to targeted and effective troubleshooting.

Network Controller (NC) Troubleshooting¶

The Network Controller is the cornerstone of your SDN deployment. Issues with the NC can disrupt the entire virtual network. Start by verifying its health and connectivity.

Common NC problems include connectivity failures to managed devices, service instability, and configuration errors. Check RPC and REST API connectivity between the NC and its clients (e.g., SLB MUXes, Hyper-V hosts) using Test-NetConnection. Ensure all NC services are running correctly via Get-Service -Name *NetworkController*. Review the Event Viewer logs on NC nodes for critical errors or warnings related to clustering, database issues, or communication failures. Configuration integrity can be verified by retrieving the cluster status using Get-NetworkControllerCluster and checking for any unassigned or unhealthy nodes. Database corruption or synchronization issues within the NC cluster can also manifest as inconsistent policies or connectivity problems for tenant workloads.

Software Load Balancer (SLB) Troubleshooting¶

The SLB ensures high availability and scalability for tenant applications. Problems here typically manifest as application unreachability or poor performance.

Diagnose SLB issues by first checking the health of the SLB MUX (Multiplexer) and DIP (Direct IP) virtual machines. Verify that the SLB MUX VMs have proper network connectivity and are registering correctly with the Network Controller. Health probe failures are a common cause of issues; ensure that the application endpoints are responding as expected to the configured health probes. Review SLB logs for details on failed probes or traffic forwarding issues. Port exhaustion on SLB MUXes or backend servers can also prevent new connections; monitor network statistics for signs of this. Utilize tools like Get-NetNat to inspect NAT entries if SLB is configured for outbound NAT, ensuring correct translation.

RAS Gateway Troubleshooting¶

RAS Gateway provides essential connectivity for tenants, enabling secure access to their virtual networks from external locations.

Troubleshooting RAS Gateway often involves verifying VPN tunnel status (Site-to-Site, Point-to-Site) and routing configurations. For Site-to-Site VPNs, check the status of the IPSec or GRE tunnels. Ensure that BGP (Border Gateway Protocol) peerings are established and routes are being advertised correctly between the gateway and external networks. Firewall rules, both on the gateway VM and any intermediate physical firewalls, can block VPN traffic; confirm that necessary ports are open. Performance bottlenecks can arise if the gateway VM is undersized or if there’s excessive traffic traversing it. Event Viewer logs on the RAS Gateway VMs are crucial for identifying connection failures, authentication issues, or routing problems. Use Get-NetIPSecMainModeSA and Get-NetIPSecQuickModeSA for IPSec tunnel status.

Hyper-V Network Virtualization (HNV) Troubleshooting¶

HNV is the core technology enabling network virtualization on Hyper-V hosts, abstracting tenant networks from the physical infrastructure.

Connectivity issues for tenant VMs are the most common HNV problem. Verify the configuration of the virtual switch on the Hyper-V host, ensuring it’s correctly linked to the physical network adapter and that the HNV-specific extensions are enabled. Check the virtual network adapters of the tenant VMs for correct IP configuration and MAC addresses. Encapsulation (VXLAN or NVGRE) and decapsulation failures can lead to isolated VMs; ensure that the virtual filtering platform (VFP) on the Hyper-V host is functioning properly. Tools like Get-VMNetworkAdapter and Get-VMSwitch are essential for inspecting host and VM network configurations. Inconsistent HNV policies across hosts or issues with the Network Controller pushing policies can also lead to communication breakdowns.

Physical Network Infrastructure¶

While SDN abstracts the network, the underlying physical infrastructure remains critical. Issues here can impact the entire virtualized environment.

Always consider the physical network when troubleshooting SDN. This includes verifying basic network connectivity, checking physical switch and router configurations (VLANs, port modes, routing tables), and ensuring there are no MTU (Maximum Transmission Unit) mismatches that could lead to packet fragmentation and loss. Physical firewall rules blocking essential SDN control plane or data plane traffic are also common culprits. High latency or packet loss on the physical network will directly impact the performance and stability of your virtual networks. Tools like ping, tracert, and pathping can help diagnose basic connectivity and latency issues.

Essential Tools and Commands¶

A robust set of diagnostic tools and PowerShell cmdlets is indispensable for SDN troubleshooting on Windows Server.

• PowerShell Cmdlets:
  • Get-NetAdapter, Get-VMNetworkAdapter, Get-VMSwitch: For inspecting physical and virtual network adapters and switches.
  • Test-NetConnection: To test network connectivity and port reachability.
  • Get-Service: To check the status of relevant SDN services.
  • SDN-specific cmdlets (e.g., Get-NetworkController, Get-SlbMux, Get-VirtualNetwork, Get-LogicalNetwork): For querying the state and configuration of SDN components.
  • Get-NetIPConfiguration: To verify IP settings on any network interface.
  • Get-NetRoute, Get-NetNeighbor: For routing table and ARP cache inspection.
• Event Viewer: Provides detailed logs for system, application, and service-specific events. Crucial for identifying errors from Network Controller, SLB, and RAS Gateway.
• Performance Monitor (Perfmon): Helps identify resource bottlenecks (CPU, memory, disk, network I/O) on hosts and VMs that might be impacting SDN services.
• Network Monitor / Wireshark: For deep packet inspection. Essential for analyzing traffic flow, identifying dropped packets, and verifying encapsulation (VXLAN/NVGRE).
• ping, tracert, ipconfig: Basic but effective tools for verifying connectivity and IP configurations.
• Log Files: Many SDN components generate their own diagnostic logs in addition to Event Viewer entries. Consult documentation for specific log file locations.

Advanced Troubleshooting Scenarios¶

Beyond basic connectivity and service health, SDN environments can present more complex challenges.

• Policy Application Failures: If Network Controller policies (e.g., Access Control Lists, Quality of Service) are not being applied correctly to tenant VMs, investigate communication between the NC and the Hyper-V hosts. Check for policy conflicts or errors in the policy definition.
• Tenant Isolation Breaches: In multi-tenant environments, ensuring strict isolation is paramount. If tenants can communicate unexpectedly, review virtual network configurations, security group rules, and HNV policies to identify potential misconfigurations or logical flaws.
• Interoperability Challenges: Integrating SDN with existing physical network devices or third-party solutions can lead to compatibility issues. Ensure that all components adhere to relevant standards (e.g., BGP, OSPF) and that any vendor-specific configurations are correctly applied.
• Scalability and Performance Tuning: As your SDN deployment grows, performance can degrade. This might require optimizing Network Controller resource allocation, scaling out SLB MUXes, or optimizing physical network bandwidth and latency. Tools like Perfmon and network monitoring are vital here.

Best Practices for Preventing SDN Issues¶

Proactive measures are always more effective than reactive troubleshooting. Implementing best practices can significantly reduce the frequency and severity of SDN problems.

• Regular Monitoring: Implement comprehensive monitoring for all SDN components, including Network Controller cluster health, SLB MUX performance, RAS Gateway tunnel status, and Hyper-V host network utilization. Automated alerts for critical events are essential.
• Proper Planning and Design: Thoroughly design your SDN infrastructure, considering factors like IP addressing, network segmentation, redundancy, and scalability from the outset. A well-planned deployment is less prone to unforeseen issues.
• Consistent Patching and Updates: Keep your Windows Server operating systems, Hyper-V roles, and SDN components regularly updated with the latest patches and hotfixes. Microsoft frequently releases fixes for known SDN issues.
• Disaster Recovery and Backup Strategies: Implement robust backup procedures for your Network Controller database and configuration. Develop a disaster recovery plan to ensure business continuity in case of major failures.
• Training and Expertise: Invest in training for your IT staff on SDN concepts, deployment, and troubleshooting. A knowledgeable team is your best defense against complex network problems.
• Automated Deployment and Configuration: Utilize PowerShell Desired State Configuration (DSC) or other automation tools to ensure consistent and error-free deployment and configuration of SDN components across your environment. This reduces manual errors and facilitates quick recovery.

Example Troubleshooting Workflow¶

Understanding the theory is one thing; applying it systematically is another. Here’s a simplified troubleshooting workflow that can be adapted for most SDN issues:

mermaid graph TD A[Issue Detected/Reported] --> B{Is it a tenant VM connectivity issue?}; B -- Yes --> C[Check Tenant VM IP Config & Host Network Adapter]; C --> D{Is the VM on a virtual network?}; D -- Yes --> E[Verify Hyper-V Virtual Switch & HNV Config]; E --> F{Is the NC managing this host?}; F -- Yes --> G[Check Network Controller Health & Logs]; G --> H{Are policies applied correctly?}; H -- Yes --> I[Check RAS Gateway/SLB for external/load-balanced access]; I --> J{Is Physical Network Healthy?}; J -- Yes --> K[Issue likely higher-level application/tenant config]; J -- No --> L[Troubleshoot Physical Network Infrastructure]; H -- No --> G; F -- No --> G; D -- No --> E; B -- No --> M[Is it an infrastructure component issue?]; M -- Yes --> N{Which component (NC, SLB, Gateway)?}; N -- NC --> G; N -- SLB --> I_SLB[Check SLB MUX/DIP, Health Probes]; N -- Gateway --> I_RAS[Check VPN Tunnels, BGP, Firewall]; I_SLB --> J; I_RAS --> J; M -- No --> K;

This workflow emphasizes starting broadly and then narrowing down the scope based on the symptoms, systematically eliminating potential causes until the root problem is identified.

Conclusion¶

Troubleshooting SDN on Windows Server, while challenging, is a manageable task with the right approach and tools. By understanding the core architecture, employing systematic troubleshooting principles, and leveraging powerful diagnostic utilities, administrators can effectively diagnose and resolve a wide array of network issues. Proactive monitoring, robust design, and continuous learning are your best allies in maintaining a healthy and high-performing software-defined network. The journey to a resilient SDN infrastructure is ongoing, requiring vigilance and a commitment to best practices.

Have you encountered particularly tricky SDN issues on Windows Server? Share your experiences and solutions in the comments below! Your insights could help fellow administrators navigate the complexities of software-defined networking.
