Secure Remote Management: Configuring WINRM over HTTPS on Windows Client

Table of Contents

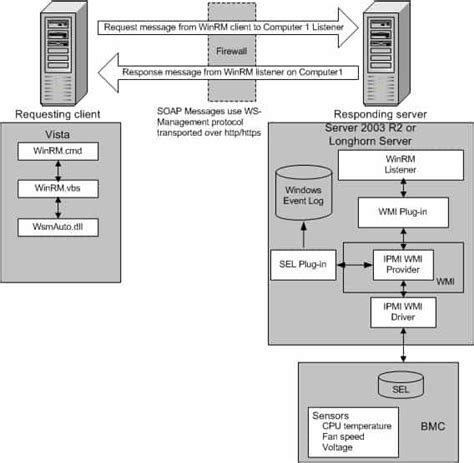

Windows Remote Management (WinRM) is the Microsoft implementation of the WS-Management protocol, a standard Simple Object Access Protocol (SOAP)-based web service protocol. It allows hardware and operating system information from Windows-based computers to be accessed remotely. By default, WinRM uses Kerberos authentication for domain-joined machines and NTLM for workgroup scenarios. This default configuration ensures that passwords are not sent across the network in clear text during the initial authentication handshake.

To examine the current authentication settings and other configurations for WinRM on your system, you can execute a specific command in the command prompt or PowerShell. Understanding these settings is crucial before making changes, especially when transitioning to a more secure transport layer. The command winrm get winrm/config provides a comprehensive list of listener, service, and client configurations.

While default authentication methods provide a level of security by not transmitting passwords in the clear during the initial phase, the data transferred after authentication is not encrypted by default when using the standard HTTP transport. Configuring WinRM to use HTTPS encrypts the entire communication channel between the client and the WinRM endpoint. This ensures the confidentiality and integrity of the data exchanged during remote management sessions, which is particularly important in environments where sensitive information might be accessed or transmitted.

Implementing WinRM over HTTPS requires a proper digital certificate installed on the local computer acting as the WinRM endpoint. This certificate serves two primary purposes: first, it enables the Secure Sockets Layer/Transport Layer Security (SSL/TLS) handshake necessary for establishing an encrypted connection; second, it allows the connecting client to verify the identity of the WinRM server, preventing man-in-the-middle attacks. The certificate must meet several specific criteria to be deemed suitable for this purpose.

A key requirement for the certificate is that it must be a Server Authentication certificate. This is indicated by the presence of the “Server Authentication” Enhanced Key Usage (EKU) within the certificate’s properties. Furthermore, the certificate’s Common Name (CN), found in the “Issued To” field, or one of its Subject Alternative Names (SANs) must exactly match the hostname of the computer where WinRM is being configured. The certificate must also be valid (not expired), not revoked by the issuing Certificate Authority (CA), and importantly, it must not be a self-signed certificate for production environments, as self-signed certificates cannot be validated by clients against a trusted root authority.

To manage certificates installed on the local computer, you can use the Certificates Microsoft Management Console (MMC) snap-in. This utility provides a graphical interface to view, import, export, and manage certificates stored in the various certificate stores on the system. Accessing this tool is straightforward and is the standard method for certificate management on Windows platforms.

Here’s how to access the Certificates MMC snap-in:
1. Begin by opening the Run dialog box. You can do this by clicking the Start button and selecting Run, or more efficiently, by pressing the Windows key + R simultaneously on your keyboard.
2. In the Run dialog box, type MMC and press Enter or click OK. This will open an empty Microsoft Management Console window.
3. In the MMC window, navigate to the menu bar at the top. Click on File, and from the dropdown menu, select Add or Remove Snap-ins.
4. A new window titled “Add or Remove Snap-ins” will appear. In the list of available snap-ins on the left, find and select Certificates. Click the Add > button in the middle.
5. A dialog box will ask which certificates you want to manage. Select Computer account because the WinRM service runs under the computer’s context and the required certificate is installed in the local computer’s certificate store. Click Next.
6. You will be asked to select the computer you want to manage certificates for. Choose Local computer (the computer this console is running on). Click Finish.
7. Back in the “Add or Remove Snap-ins” window, you should now see “Certificates (Computer)” listed in the “Selected snap-ins” list on the right. Click OK.
8. In the main MMC window, you can now browse the certificate stores for the local computer. Navigate through the console tree on the left: expand Certificates (Local computer), then Personal, and select Certificates. This is the standard location where Server Authentication certificates are typically installed.

Within the Personal\Certificates store, you can view the certificates currently installed on the computer. Double-clicking a certificate opens its properties window, allowing you to inspect details such as its validity period, who it was issued to and by, its public key, and critically, its intended purposes (Enhanced Key Usage) and the certification path. Verifying these details is essential to confirm that you have a certificate suitable for WinRM over HTTPS.

If you determine that you do not have an appropriate Server Authentication certificate installed, you will need to obtain one. The process for obtaining a certificate depends on your organization’s infrastructure. If your organization has an internal Microsoft Certificate Authority (CA), you can typically request a certificate using the web enrollment interface, often accessible at an address like HTTPS://<MyDomainCertificateServer>/certsrv, replacing <MyDomainCertificateServer> with the actual hostname of your CA server. You would typically request a “Computer” or “Web Server” template certificate, ensuring it includes Server Authentication EKU. Alternatively, you might need to request a certificate through your IT department or a security administrator. For external-facing services or specific requirements, you might obtain a certificate from a commercial public CA.

Once you have successfully installed a valid Server Authentication certificate that meets the requirements (CN/SAN matching hostname, Server Authentication EKU, valid date, not revoked, not self-signed), you can proceed to configure WinRM to listen for connections over HTTPS. This is accomplished using the winrm quickconfig command with the -transport:https parameter.

Execute the following command in an elevated command prompt or PowerShell window:

winrm quickconfig -transport:https

This command performs several actions: it starts the WinRM service if it’s not already running, sets the service to start automatically, creates a listener on the default HTTPS port (5986 on modern Windows versions), and attempts to associate a suitable installed certificate with this listener. The command will search the Personal store of the local computer account for a certificate that matches the machine’s hostname and has the Server Authentication EKU. If it finds such a certificate, it configures the HTTPS listener using that certificate.

It’s important to note the consequences of running winrm quickconfig. By default, it enables WinRM for remote management by configuring necessary firewall rules and starting the service. Adding -transport:https specifically instructs it to create an HTTPS listener. If the command succeeds, it will report the actions taken. If it fails, it will provide an error message, most commonly related to the absence or inadequacy of a required certificate.

If you run winrm quickconfig without the -transport:https parameter, WinRM will be configured to use the default HTTP transport (port 5985 on modern Windows). While this configuration still utilizes Kerberos or NTLM for authentication, the session data after authentication is not encrypted. You can use this command to set up basic WinRM connectivity if encryption is not immediately required or if you are troubleshooting certificate issues, but it does not provide the same level of security as HTTPS.

winrm quickconfig

This command is useful for initial setup or verifying basic WinRM functionality over HTTP.

More Information¶

Understanding the ports used by WinRM is fundamental for configuration and firewall management. By default, on Windows 7, Windows Server 2008 R2, and all later versions (including Windows 10 and Windows 11, and corresponding server versions), WinRM communicates over HTTP using port 5985 and over HTTPS using port 5986. This standardization simplifies firewall configurations in modern Windows environments. In contrast, older versions of Windows (Windows Vista and Windows Server 2008) defaulted to using port 80 for HTTP and port 443 for HTTPS, aligning with standard web traffic ports at the time. When configuring firewalls, ensure that the relevant port (5986 for HTTPS) is open for incoming connections to the WinRM endpoint machine.

After running winrm quickconfig -transport:https, you should verify that the HTTPS listener has been successfully created and is active. This can be done using a WinRM command that enumerates the configured listeners.

Use the following command in an elevated command prompt or PowerShell:

winrm enumerate winrm/config/listener

This command will list all configured WinRM listeners, showing their transport type (HTTP or HTTPS), address (* or a specific IP), port, and associated certificate thumbprint (for HTTPS listeners). You should see an entry with Transport = HTTPS and Port = 5986 (or 443 on older systems) listed in the output, along with a CertificateThumbprint value.

To further confirm the overall WinRM configuration, including which certificate thumbprint is associated with the HTTPS listener, you can query the main configuration settings.

Run this command:

Winrm get http://schemas.microsoft.com/wbem/wsman/1/config

This command provides a comprehensive overview of the WinRM service configuration, including listener details. Look for the <Listener> section within the output. For the listener configured on HTTPS, you should see the CertificateThumbprint attribute populated with the thumbprint of the certificate that WinRM is using for SSL/TLS encryption.

Troubleshooting Certificate Issues¶

A common error encountered when configuring WinRM over HTTPS is related to the certificate requirements not being met. If you attempt to run winrm quickconfig -transport:https without a suitable certificate, you will likely receive an error message similar to this:

Error number: -2144108267 0x80338115
ProviderFault
WSManFault
Message = Cannot create a WinRM listener on HTTPS because this machine does not have an appropriate certificate.

This error message clearly indicates that the WinRM service could not find or use a certificate that satisfies its requirements for establishing an HTTPS listener. The message also helpfully lists the key requirements for a certificate to be used for SSL with WinRM: it must have a CN matching the hostname, be appropriate for Server Authentication, and not be expired, revoked, or self-signed.

When you encounter this error, the primary troubleshooting step is to carefully examine the certificates installed in the Personal store of the local computer account using the Certificates MMC snap-in, as described earlier. For any certificate that you intend to use for WinRM HTTPS, verify the following critical attributes by double-clicking the certificate and inspecting its tabs:

• General Tab: Check the Valid from: and To: dates. Ensure the current system date falls strictly within this validity period. An expired certificate cannot be used.
• General Tab / Details Tab: Check the Issued to: field on the General tab or the Subject / Subject Alternative Name fields on the Details tab. The hostname of the computer where you are configuring WinRM must exactly match the CN (Issued To) or be listed as a Subject Alternative Name. For example, if your computer’s full name is server1.mydomain.com, the certificate must be issued to server1.mydomain.com or have server1.mydomain.com as a SAN. Using IP addresses in SANs is also possible but requires careful management.
• Details Tab: Examine the Enhanced Key Usage field. This field lists the purposes for which the certificate is valid. It must explicitly include Server Authentication. If this usage is missing, the certificate is not suitable for securing server-side communications like WinRM HTTPS.
• Certification Path Tab: Look at the Current Status field. This should state This certificate is OK. If the status indicates issues such as the certificate being revoked, the revocation server being offline, or the root CA not being trusted, the certificate cannot be used securely. Ensure that the entire certification path, from the end-entity certificate up to the trusted root CA, is valid and trusted by the local computer. If the issuing CA is not trusted, you may need to install the CA’s root or intermediate certificates into the appropriate Trusted Root Certification Authorities or Intermediate Certification Authorities stores.

By meticulously checking these certificate properties, you can pinpoint why WinRM is unable to use the certificate. Once the certificate issue is resolved (either by obtaining a correct certificate, fixing trust issues, or selecting the right one if multiple exist), running winrm quickconfig -transport:https should succeed.

Ensuring secure remote management is a critical aspect of system administration. Configuring WinRM over HTTPS provides a robust method to encrypt management traffic, protecting sensitive data from eavesdropping. While the process involves obtaining and configuring a suitable certificate, the steps are standard Windows administration tasks. Verifying the certificate details and the WinRM listener configuration after setup confirms that remote management connections are being secured as intended. Always remember to configure relevant firewall rules to allow traffic on port 5986 to the WinRM endpoint.

We hope this detailed guide assists you in successfully configuring WinRM over HTTPS on your Windows clients.
