SQL Server Driver Installation: Ensure a Seamless Database Connection

Updated: • 0 • min read
Table of Contents

Drivers are indispensable components in modern computing, serving as the critical bridge that enables hardware and software to communicate effectively. Within the realm of data management, a database driver is specifically designed to facilitate seamless interaction between a client database application and a database server, whether that server resides locally or across a sprawling network. Navigating database driver installation issues can be a significant hurdle, necessitating a structured approach to identification and resolution. While primary responsibility often lies with the driver vendor, users can proactively employ various troubleshooting steps on Windows systems to address common installation challenges.

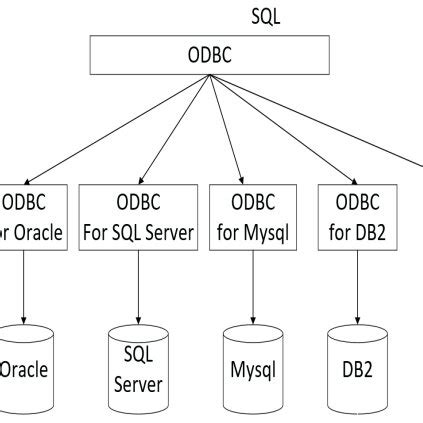

Database driver communication

Understanding Driver Installation Verification

At their core, database drivers on Windows systems are physically represented as Dynamic Link Libraries (DLLs). These essential files contain the code that applications use to interact with the database. For an application to successfully utilize a driver, it must know how to locate the appropriate DLL and load it into its operational memory space, a process crucial for establishing and maintaining a database connection. Different data access technologies employ distinct mechanisms for driver discovery and loading, each leveraging specific components of the Windows operating system.

Both ODBC (Open Database Connectivity) and OLE DB (Object Linking and Embedding, Database) rely heavily on the Windows registry to pinpoint the correct driver or provider DLL for loading into memory. This centralized repository stores configuration information, including paths and registration details, enabling applications to find the necessary components dynamically. The precise method of loading drivers into memory varies, contingent upon the driver type and the underlying operating system architecture.

How Drivers Load into Memory

The process of loading drivers is a foundational aspect of database connectivity. Understanding these mechanisms is key to troubleshooting.

  • ODBC Driver Loading: In Windows environments, ODBC drivers are typically loaded into memory via the LoadLibrary Win32 API function. This function allows an application to load a specified module (like a DLL) into its address space. Once the driver is loaded, the ODBC Driver Manager, a central component of the ODBC architecture, acts as a sophisticated proxy. It mediates all calls between the client application and the actual driver, providing a standardized interface and enabling functionalities such as connection pooling and tracing. While tracing can be invaluable for debugging, its performance overhead usually makes it unsuitable for production environments.

  • OLE DB Provider Loading: OLE DB providers, designed as a COM-based alternative to ODBC, leverage Component Object Model (COM) APIs for loading. Functions such as CoCreateInstance (for C++ applications) or CreateObject (commonly used in VBA/VBScript) are employed to instantiate COM objects, which in this context are the OLE DB providers. This COM-centric approach allows for a richer set of data access functionalities and broader integration within the Windows ecosystem.

  • .NET Data Provider Loading: For .NET data providers, the loading mechanism differs significantly from native DLLs. These providers, often implemented as managed assemblies, are typically loaded either from the Global Assembly Cache (GAC) or from the application’s local directory, adhering to specific .NET assembly search rules. The GAC is a shared location for strong-named assemblies, designed for versioning and side-by-side execution. Unlike ODBC and OLE DB, the Windows Registry is generally not directly utilized for locating or loading these .NET assemblies.

  • Hybrid .NET Providers: It’s also common to encounter .NET providers that act as wrappers for native ODBC drivers or OLE DB providers. In such scenarios, once the initial .NET provider DLLs are loaded (following .NET search rules), they then delegate to the underlying native ODBC or OLE DB components, adhering to their respective loading rules. This layered approach allows .NET applications to leverage existing native drivers while maintaining a managed code interface.

Diagnosing Driver Issues with Process Monitor

A powerful utility for diagnosing driver installation and loading issues is Process Monitor (Procmon) from Sysinternals. This advanced monitoring tool captures real-time file system, Registry, and process/thread activity. By filtering its output, you can trace the exact sequence of operations an application performs when attempting to load a driver. This can reveal crucial information, such as whether specific DLLs are being searched for in incorrect locations, if necessary registry keys are missing, or if there are permissions issues preventing access to required files or registry entries.

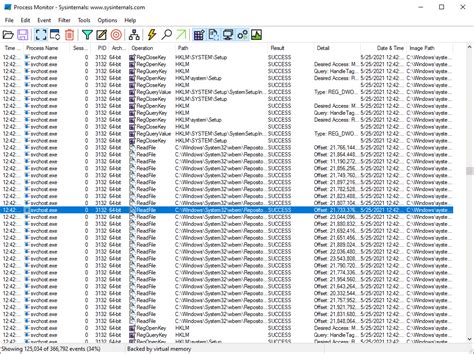

Process Monitor in action

When using Procmon, it’s important to be aware of Windows’ internal redirection mechanisms. For instance, when tracing a 32-bit application on a 64-bit Windows system, references to c:\windows\system32 are automatically redirected to c:\windows\syswow64. A similar redirection applies to registry access, where 32-bit applications accessing HKLM\Software are often redirected to HKLM\Software\Wow6432Node. Understanding these redirections is vital for correctly interpreting Procmon logs.

A practical first step in troubleshooting any database driver issue is to test connectivity using a client application provided by the driver manufacturer. For example, if you are working with an Oracle database, attempting to connect via SQL*Plus can quickly confirm whether the core driver functionality is operational. If the vendor’s own client application fails to connect, it strongly indicates a fundamental driver installation problem. In such cases, a complete reinstallation of the driver, potentially after a thorough cleanup, is often warranted, and engaging the software vendor’s support team becomes the next logical step. It is a general principle that in most complex scenarios, the responsibility for resolving driver installation issues ultimately rests with the vendor who developed and distributed the driver.

The Importance of Verification

Ensuring the proper installation and configuration of database drivers is paramount for achieving seamless connectivity, robust data access, and optimal application functionality. The trio of ODBC, OLE DB, and .NET data providers form the foundational backbone for data access and interaction across a vast array of diverse applications and platforms. Rigorously verifying the installation status of these critical drivers is not merely a formality; it is a vital step that guarantees resilient connectivity, minimizes downtime, and enables efficient, smooth data operations, thereby enhancing overall system performance and application reliability. Let’s delve into specific methodologies to efficiently check the installation status of these widely used drivers, ensuring their readiness for secure data handling and exchange.

Specific Driver Installation Checks

To provide practical guidance, here are detailed steps for verifying the installation of each driver type.

ODBC Driver Installation Check

Verifying an ODBC driver’s installation involves checking its presence in the ODBC Data Source Administrator and testing its ability to connect.

  1. Access ODBC Data Source Administrator:
    • On Windows, search for “ODBC Data Sources” (or odbcad32.exe). You’ll typically find both 32-bit and 64-bit versions. Ensure you open the version corresponding to your application’s bitness.
  2. Check the Drivers Tab: Navigate to the “Drivers” tab. This tab lists all installed ODBC drivers, showing their name, version, company, and the DLL file path. Confirm that the SQL Server driver (e.g., SQL Server, SQL Server Native Client, ODBC Driver for SQL Server) you intend to use is listed here.
  3. Create a System DSN (Data Source Name):
    • Go to the “System DSN” tab (or “User DSN” if applicable).
    • Click “Add…” and select the SQL Server driver you identified in the Drivers tab.
    • Follow the wizard to configure a test DSN, providing details like the server name, authentication method, and database.
  4. Test Connectivity: In the DSN configuration wizard, there will usually be a “Test” or “Test Data Source” button. Click this to attempt a connection to the SQL Server. A successful test confirms the driver is installed, configured correctly, and can reach the database server.
  5. Check Registry (Advanced): For ODBC drivers, entries can be found under HKEY_LOCAL_MACHINE\SOFTWARE\ODBC\ODBCINST.INI and HKEY_LOCAL_MACHINE\SOFTWARE\ODBC\ODBC.INI (for DSNs). The “Drivers” subkey under ODBCINST.INI will list the registered drivers and their associated DLLs.

OLE DB Driver Installation Check

Verifying OLE DB providers can be done through Universal Data Link (UDL) files, which offer a straightforward method to test connectivity without writing code.

  1. Create a UDL File:
    • Open Notepad or any text editor.
    • Save an empty file with a .udl extension (e.g., testconnection.udl). Ensure “Save as type” is set to “All Files” to prevent .txt being appended.
  2. Configure and Test UDL:
    • Double-click the saved .udl file. This will open the “Data Link Properties” dialog box.
    • Go to the “Provider” tab. This tab lists all registered OLE DB providers. Locate and select the SQL Server OLE DB Provider (e.g., SQL Native Client, Microsoft OLE DB Driver for SQL Server, Microsoft OLE DB Provider for SQL Server).
    • Go to the “Connection” tab and enter the server name, authentication details, and database.
    • Click “Test Connection.” A success message confirms the provider is correctly installed and functional.
  3. Check Registry (Advanced): OLE DB providers are registered as COM objects. Their registration information can be found under HKEY_CLASSES_ROOT\CLSID and HKEY_CLASSES_ROOT\PROGID. Specifically, look for entries related to SQLNCLI (SQL Server Native Client OLE DB Provider) or MSOLEDBSQL (Microsoft OLE DB Driver for SQL Server).

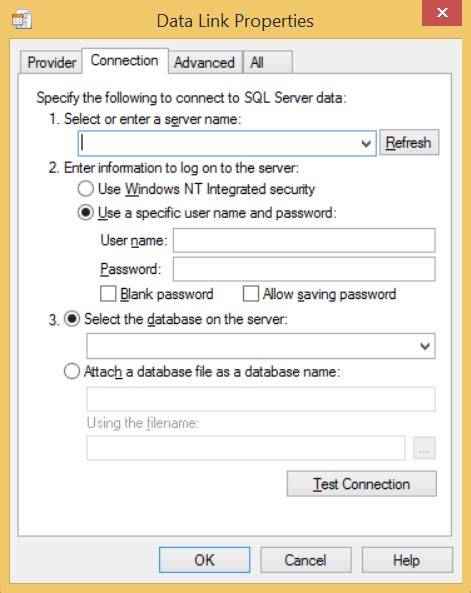

Data Link Properties UDL

.NET Data Provider Installation Check

Verifying .NET data providers involves checking their presence in the Global Assembly Cache (GAC) or the application’s local bin directory.

  1. Check Global Assembly Cache (GAC):
    • Navigate to C:\Windows\Microsoft.NET\assembly (for .NET Framework) or C:\Program Files\dotnet\shared (for .NET Core/5+).
    • Within these directories, look for folders corresponding to the provider’s assembly name (e.g., System.Data.SqlClient for older SQL Client, Microsoft.Data.SqlClient for the newer one).
    • The presence of the assembly’s folder and its DLL indicates it’s installed in the GAC.
  2. Check Application’s Bin Directory: If the provider is not in the GAC, it should be present in the bin directory of your application. This is common for applications that self-contain their dependencies.

  3. Simple Code Test: A definitive way to test a .NET provider is to write a minimal C# or VB.NET console application that attempts to establish a connection using the desired provider.

    using System;
using System.Data.SqlClient; // For older .NET Framework SQL Client
// using Microsoft.Data.SqlClient; // For newer SQL Client (recommended)

class Program
{
    static void Main(string[] args)
    {
        // Replace with your actual connection string
        string connectionString = "Data Source=YourServerName;Initial Catalog=YourDatabaseName;Integrated Security=True;";
        // Or "User ID=YourUser;Password=YourPassword;"

        try
        {
            using (SqlConnection connection = new SqlConnection(connectionString))
            {
                connection.Open();
                Console.WriteLine("Connection to SQL Server successful!");
                // You can execute a simple query here to further verify
                // using (SqlCommand command = new SqlCommand("SELECT GETDATE()", connection))
                // {
                //     Console.WriteLine($"Current date from server: {command.ExecuteScalar()}");
                // }
            }
        }
        catch (Exception ex)
        {
            Console.WriteLine($"Connection failed: {ex.Message}");
            Console.WriteLine(ex.ToString()); // For detailed error
        }

        Console.WriteLine("Press any key to exit.");
        Console.ReadKey();
    }
}

    A successful connection indicates the provider is correctly installed and accessible to your .NET application.

Installation Support for Various Database Drivers and Providers

Navigating the vast and often complex landscape of database drivers and providers requires a clear understanding of their respective support structures. Knowing where to turn for assistance is crucial for efficient operations and effective troubleshooting. The responsibility for support varies significantly depending on the origin and nature of the driver or provider.

Understanding Support Channels

  • Non-Microsoft Drivers and Providers: For any drivers or data providers developed by companies other than Microsoft (e.g., Oracle, MySQL, PostgreSQL, IBM DB2 drivers), the ultimate source of support and troubleshooting assistance resides solely with the specific software vendor who developed and distributed them. Microsoft cannot provide direct support for third-party products.
  • Drivers Preinstalled with Windows: Certain drivers and providers come bundled and preinstalled with the Windows operating system itself. This category typically includes older Microsoft-branded drivers such as the original SQL Server ODBC driver, Microsoft ODBC for Oracle, and various Access and IISAM (Indexed Sequential Access Method) drivers (for Text, Paradox, dBase, Excel, etc.). If issues arise with these deeply integrated components, the common recommendation is to perform a repair or full reinstallation of the Windows operating system. It is important to note that these older, preinstalled drivers are generally not recommended for new application development due to newer, more robust alternatives being available.
  • ACE Provider and Derived ODBC Drivers: The Access Database Engine (ACE) provider and its derived ODBC drivers, such as the Excel ODBC driver, fall under the purview of the Microsoft Access or Office team. These teams possess the specialized expertise to assist with installation, configuration, and runtime issues related to these components, given their integral role within the Microsoft Office ecosystem.
  • Microsoft DB/2 Drivers and Providers: For organizations integrating with IBM DB2 databases, Microsoft offers specific drivers and providers. Support for these components is provided by the Host Integration Services (HIS) team. HIS is dedicated to facilitating connectivity between Microsoft platforms and mainframe or mid-range systems, making them the authoritative source for DB2 driver support.
  • Active Directory Provider: The Active Directory provider enables applications to interact with Microsoft’s directory service. Any support inquiries or issues pertaining to this provider should be directed to the Active Directory team. Their expertise covers all aspects of Active Directory, including its programmatic access.
  • Exchange Provider: Similarly, for applications that leverage the Exchange provider to interact with Microsoft Exchange Server, the dedicated Exchange team is the appropriate contact for support. They possess in-depth knowledge of the Exchange platform and its various access mechanisms.
  • Installable Microsoft SQL Server Drivers and Providers: For the modern, separately installable Microsoft SQL Server drivers and providers (such as the ODBC Driver for SQL Server, Microsoft OLE DB Driver for SQL Server, and Microsoft.Data.SqlClient .NET provider), support is provided by the SQL Networking team. This specialized team focuses on connectivity, performance, and reliability aspects of SQL Server client-server communications, making them the go-to resource for these crucial components.

For developers and administrators seeking quick reference for connection strings across a multitude of databases and drivers, external resources like The Connection Strings Reference (connectionstrings.com) can be exceptionally valuable. While this is a non-Microsoft site, it serves as a widely recognized and helpful repository of example connection strings, which can be instrumental in verifying driver functionality and building robust connection logic.

Should you require further assistance or encounter issues that cannot be resolved through standard troubleshooting steps, you can always reach out to Microsoft Support directly via their “Contact us” portal. This ensures you get official guidance and resolution for Microsoft-specific products.

Conclusion and Further Resources

Proper driver installation is the cornerstone of reliable database connectivity. By understanding the underlying mechanisms of driver loading, utilizing diagnostic tools like Process Monitor, and meticulously verifying installations using the methods outlined for ODBC, OLE DB, and .NET providers, users can significantly enhance their ability to troubleshoot and maintain seamless database connections. Recognizing the appropriate support channels for various driver types further streamlines the problem-solving process, ensuring that expert assistance is just a step away.

More Information

For a quick reference to the specific verification steps:

  • ODBC driver installation check
  • OLE DB driver installation check
  • .NET data provider installation check




Third-Party Information Disclaimer:

Please note that this article may discuss or refer to third-party products and websites. These products are manufactured by companies independent of Microsoft. Microsoft makes no warranty, implied or otherwise, about the performance or reliability of these products or the accuracy of information provided by third-party websites. Users should exercise their own judgment and discretion when interacting with third-party content.
