SQL Server: Dynamically Generate Email Subject Lines in Send Mail Task

Updated: • 0 • min read
Table of Contents

Dynamically Generate Email Subject Lines in SSIS

SQL Server Integration Services (SSIS) provides a robust framework for building high-performance data integration solutions. A key strength of SSIS lies in its ability to dynamically adapt to various scenarios through the use of expressions. These powerful constructs allow developers to update or populate SSIS object properties at runtime, providing immense flexibility and automation capabilities within your data workflows. This article explores how to leverage property expressions specifically to dynamically generate email subject lines and message content for the Send Mail Task, significantly enhancing the utility of your SSIS packages.

Understanding SSIS Expressions

Expressions in SSIS are combinations of symbols, identifiers, and values that evaluate to a single result. They are fundamental to making SSIS packages dynamic and responsive. Property expressions, in particular, enable the modification of task, container, and package properties during execution, based on variables, system data, or complex logical conditions. This capability ensures that your data processes can adapt to changing environments, data volumes, or operational requirements without needing manual intervention.

SSIS expressions are built using a specific syntax, often resembling a simplified version of C# or Visual Basic. They support various data types, operators, and functions that allow for sophisticated data manipulation and string concatenation. The core concept revolves around referencing variables (both system and user-defined) and applying transformations or concatenations to construct the desired output for a property. Understanding how to effectively use these expressions is crucial for building resilient and intelligent SSIS solutions.

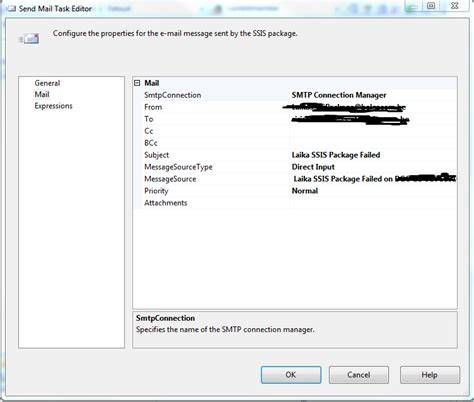

The Send Mail Task in SSIS

The Send Mail Task is a vital component within SSIS control flows, designed to send email messages. It is commonly used for notifications, alerts, or status updates regarding package execution. Before you can configure the Send Mail Task, you typically need an SMTP Connection Manager, which defines the server and authentication details for sending emails. This connection manager acts as the gateway for your SSIS package to interact with an email server.

Key properties of the Send Mail Task include To, From, Subject, MessageSource, and Priority. While To and From define the sender and recipient addresses, Subject dictates the email’s subject line, and MessageSource contains the body of the email. Historically, these properties might have been hard-coded, leading to static and less informative emails. However, by applying expressions to these properties, particularly Subject and MessageSource, we can transform static notifications into dynamic, context-aware communications.

Dynamic Subject Lines with System Variables

One of the most immediate benefits of using expressions with the Send Mail Task is the ability to create dynamic subject lines. This allows emails to contain real-time information about the package execution, making it easier to track and understand alerts. SSIS provides a rich set of system variables that capture various aspects of the package’s execution environment and status. These variables are readily accessible within expressions.

Consider a scenario where you want an email subject to include the package name, the time it started, the user who executed it, and the machine on which it ran. Instead of hardcoding this information, which would quickly become outdated or misleading, you can use system variables. The following sample property expression demonstrates how to achieve this:

"Package>>> " + @[System::PackageName] + " was executed at>>> " + (DT_WSTR, 40) @[System::StartTime] + " by user>>> " + @[System::UserName] + " on Machine>>> " + @[System::MachineName]

Let’s break down this expression. It starts with a static string "Package>>> ", which provides context. This is concatenated using the + operator with @[] references to system variables. @[] is the syntax for accessing variables in SSIS expressions. System::PackageName retrieves the name of the currently executing package, offering immediate identification.

The System::StartTime variable provides the exact timestamp when the package began execution. Note the (DT_WSTR, 40) cast applied to System::StartTime. System variables have specific data types; StartTime is a DT_DBTIMESTAMP. To concatenate it with strings, it must first be converted to a string data type, such as DT_WSTR (Unicode string). The 40 indicates the maximum length of the string, ensuring enough space for the timestamp. Finally, System::UserName and System::MachineName provide crucial auditing information, identifying who ran the package and where it was executed. An email generated with this subject expression might look something like: “Package>>> MyDataLoadPackage was executed at>>> 2023-10-27 10:30:00.123 by user>>> DOMAIN\UserX on Machine>>> SQLSERVER01”.

Setting Up the Dynamic Subject in SQL Server Data Tools (SSDT)

Configuring this dynamic subject line involves a few simple steps within SQL Server Data Tools (SSDT), the development environment for SSIS.

  1. Open your SSIS Package: Navigate to the Control Flow of your package where the Send Mail Task is located.
  2. Select the Send Mail Task: Click on the Send Mail Task to select it.
  3. Access Properties Window: In the Properties window (usually on the right side), locate the Expressions property. If you don’t see it, right-click on the task and select “Properties.”
  4. Open Expression Builder: Click on the ellipsis (…) button next to the Expressions property. This will open the “Property Expressions Editor” dialog box.
  5. Add Subject Property: In this editor, click “Add…” to select a property. From the “Property” dropdown list, choose Subject.
  6. Enter the Expression: In the “Expression” column, click the ellipsis (…) button to open the “Expression Builder.” Paste or type the expression provided above into the expression box. You can also drag and drop variables from the “Variables” pane and use functions from the “Functions and Operators” pane to construct your expression.
  7. Evaluate and Confirm: Click “Evaluate Expression” to test the syntax and see a preview of the output. If there are no errors, click “OK” on the Expression Builder, then “OK” on the Property Expressions Editor, and finally “OK” on the Send Mail Task editor.

This process ensures that every time your SSIS package executes, the subject of the email sent by the Send Mail Task will contain up-to-date and relevant information, greatly improving the clarity and utility of your notifications. This dynamic approach minimizes manual updates and enhances the package’s reusability across different environments.

Including User-Defined Variables in Dynamic Messages

Beyond system variables, SSIS allows you to define your own user variables, which can store data generated during package execution. These user-defined variables are incredibly useful for capturing specific business logic outcomes, such as row counts, error messages, or custom status indicators. Integrating these variables into your dynamic email messages provides even richer context.

Consider a common scenario: a Data Flow task processes a large dataset, and you want to be notified via email only if the number of processed rows falls below a certain threshold. To achieve this, you can use a Row Count transformation within your Data Flow to populate a user-defined variable. Let’s call this variable @myrowcount. This variable will store the total number of rows that passed through a specific point in your data flow.

Step-by-Step Implementation with Row Count and Precedence Constraints

  1. Create a User-Defined Variable: In SSDT, open your SSIS package. In the “Variables” window (if not visible, go to SSIS -> Variables), click the “Add Variable” button. Name it myrowcount, set its Scope to your package or a relevant container, and set its Data Type to Int32.
  2. Configure Data Flow Task: Within a Data Flow Task, add a Row Count transformation. Connect the output of a data source or another transformation to the Row Count transformation.
  3. Map Row Count to Variable: Double-click the Row Count transformation. In the editor, select @User::myrowcount from the “Variable” dropdown list. This configures the transformation to store the row count in your myrowcount variable.
  4. Set Precedence Constraint: Return to the Control Flow. Connect the Data Flow Task to the Send Mail Task using a precedence constraint. Right-click on the Data Flow Task, drag the green connector to the Send Mail Task, and then double-click the newly created precedence constraint.
  5. Define Conditional Execution: In the “Precedence Constraint Editor” dialog box:
    • Set the Evaluation operation to “Expression and Constraint.” This means the Send Mail Task will execute only if both the Data Flow Task succeeds and the specified expression evaluates to True.
    • In the Expression box, type: @myrowcount < 2. This expression checks if the value of the @myrowcount variable is less than 2.
    • Click “OK.” The precedence constraint line will now be dashed, indicating a conditional execution path.

Now, the Send Mail task will only execute if fewer than two rows were processed in the data flow, triggering a specific alert. Additionally, you can include @myrowcount directly in your email message using the MessageSource property expression. For example, to include the row count in the email body:

"The data load completed. Total rows processed: " + (DT_WSTR, 50) @[User::myrowcount] + ". This message was sent because the row count was below the expected threshold."

This expression constructs the email body by concatenating a static string with the integer value of myrowcount (after casting it to a string type, DT_WSTR). This powerful combination of user-defined variables and precedence constraints allows for highly granular control over your package’s execution flow and notification strategy.

Visualizing the Conditional Flow with Mermaid

mermaid graph TD A[Start] --> B(Data Flow Task); B --> C{Row Count Transformation}; C --> D[Set @myrowcount variable]; D -- Success --> E{Precedence Constraint: @myrowcount < 2}; E -- If True --> F(Send Mail Task); E -- If False --> G(Log: Email Not Sent); F --> H[End]; G --> H;
This diagram visually represents how the Data Flow Task’s success is followed by a conditional check on @myrowcount. If the condition is met, the Send Mail Task executes; otherwise, a different path (e.g., logging) is taken.

Error Handling with Send Mail Task and Event Handlers

Robust error handling is paramount in any production SSIS environment. When a package fails, immediate notification is often required to administrators or support teams. The Send Mail Task is ideally suited for this purpose when integrated into SSIS event handlers. Event handlers are special workflows within SSIS that execute in response to specific events, such as a task failing (OnError), a task starting (OnPreExecute), or a task completing (OnPostExecute).

To send an email notification upon a package or task failure, you would configure an OnError event handler. This allows you to capture crucial error details and include them in the email subject or body. SSIS provides a set of system variables specifically relevant to error events, such as ErrorCode, ErrorDescription, SourceName (the task that failed), and SourceID (the unique ID of the failed task).

Building an Error Email Expression

Let’s imagine you want to send an email with the subject line indicating which task failed, its ID, and when the container it belongs to started. You can achieve this by creating an OnError event handler for your package and adding a Send Mail Task within it.

  1. Create an OnError Event Handler: In SSDT, navigate to the “Event Handlers” tab of your SSIS package. From the “Executable” dropdown, select the package itself (or a specific container/task if you want more granular error handling). From the “Event Handler” dropdown, select OnError.
  2. Add Send Mail Task: Drag a Send Mail Task into the OnError event handler design surface.

  3. Configure Dynamic Subject: For the Send Mail Task’s Subject property, create an expression similar to this:

    "Error in the task: " + @[System::SourceName] + " with the ID: " + @[System::SourceID] + " has failed at: " + (DT_WSTR, 20) @[System::ContainerStartTime] + "."

    This expression dynamically constructs an error message subject. System::SourceName will tell you the name of the component that triggered the error (e.g., “Data Flow Task,” “Execute SQL Task”). System::SourceID provides its unique identifier, which can be useful for pinpointing the exact component in larger packages. System::ContainerStartTime provides the start time of the container (or package) where the error occurred, providing a time reference for the failure. The (DT_WSTR, 20) cast ensures the timestamp is correctly integrated into the string.

Enhancing Error Notifications with Full Error Details

For even more comprehensive error reporting, you can include System::ErrorDescription and System::ErrorCode in the email body (via MessageSource expression). ErrorDescription provides a textual description of the error, while ErrorCode gives the numerical error code.

Example for MessageSource in an OnError handler:

"An error occurred during package execution. " +
"Task: " + @[System::SourceName] + "\n" +
"ID: " + @[System::SourceID] + "\n" +
"Error Code: " + (DT_WSTR, 20) @[System::ErrorCode] + "\n" +
"Description: " + @[System::ErrorDescription] + "\n" +
"Package started at: " + (DT_WSTR, 40) @[System::PackageStartTime] + "\n" +
"Error occurred at (Container Start Time): " + (DT_WSTR, 40) @[System::ContainerStartTime] + "\n" +
"Executed by user: " + @[System::UserName] + " on machine: " + @[System::MachineName] + "."

The \n character in the expression is used to insert newlines, formatting the email body for better readability. This comprehensive approach to error handling ensures that critical information is immediately available to the relevant teams when a package encounters an issue.

Visualizing Error Event Handling with Mermaid

mermaid graph TD A[Package Start] --> B(Task A); B --> C(Task B); C --> D(Task C); subgraph OnError Event Handler (Package Level) E[Error Triggered] --> F(Send Error Email Task); end B -- On Error --> E; C -- On Error --> E; D -- On Error --> E;
This diagram illustrates how an OnError event handler, defined at the package level, catches errors from any task within that package and then executes the Send Error Email Task. This centralized error handling simplifies maintenance and ensures consistent error notification.

Best Practices and Considerations

While dynamic email generation in SSIS is powerful, there are several best practices to consider for robust and maintainable solutions:

  • Clarity in Expressions: Keep expressions as clear and concise as possible. Complex logic should sometimes be handled by a Script Task or a pre-defined variable if it makes the expression unwieldy.
  • Data Type Conversion: Always be mindful of data type conversions when concatenating different types of variables (e.g., DT_INT, DT_DBTIMESTAMP) with strings. Explicitly cast them using (DT_WSTR, length) to avoid runtime errors.
  • Testing: Thoroughly test your expressions, especially when they involve complex logic or multiple variables. The “Evaluate Expression” button in the Expression Builder is invaluable for this.
  • Logging: While emails are great for immediate alerts, ensure that critical execution details and error messages are also logged to a persistent store (e.g., SQL Server database, log files). This provides an audit trail and allows for historical analysis.
  • SMTP Configuration: Ensure your SMTP Connection Manager is correctly configured and has the necessary permissions to send emails from the SSIS server. Network firewalls or mail server restrictions can prevent emails from being sent.
  • Recipient Management: For large-scale deployments, consider storing email recipient lists in a configuration file or database table. This makes it easier to manage recipients without modifying the SSIS package itself. You could then use an Execute SQL Task to query these recipients into a variable and use that variable in the To property’s expression.
  • Security: Be cautious about including sensitive information directly in email subjects or bodies. While this article focuses on operational data, ensure compliance with data privacy policies for any production system.
  • Alternative Notification Methods: For critical alerts, consider supplementing email notifications with other methods like SMS alerts, dashboard updates, or integration with monitoring tools.

For those who prefer a visual walkthrough, there are numerous online tutorials demonstrating the setup of dynamic SSIS expressions. While I cannot link directly, searching for “SSIS Send Mail Task dynamic subject” on video platforms will likely yield detailed guides that walk you through each click and configuration step in SQL Server Data Tools. These resources can provide valuable context and reinforce the concepts discussed here, showing the practical application of property expressions in a live development environment.

Conclusion

The ability to dynamically generate email subject lines and message content within SQL Server Integration Services is a fundamental capability that enhances the intelligence and responsiveness of your data integration workflows. By leveraging SSIS expressions, system variables, and user-defined variables, developers can create highly informative and context-aware notifications for package execution status, data processing results, and critical error events. This dynamic approach not only streamlines operational monitoring but also significantly improves the overall reliability and maintainability of your SSIS solutions. Embrace expressions in your SSIS development to unlock a new level of automation and control over your data processes.

What dynamic email notification strategies have you implemented in your SSIS packages? Share your experiences and any advanced techniques you’ve discovered in the comments below!
