SQL Server MDS Staging Failure: Entity-Based Approach Issues and Solutions

Table of Contents

Understanding SQL Server Master Data Services (MDS) Staging¶

Master Data Services (MDS) in SQL Server is a platform designed for master data management. It helps organizations manage a trusted version of their data. A crucial aspect of MDS is the ability to import data in bulk from various source systems, as well as update existing data. This process is handled through the MDS staging mechanism.

The entity-based staging approach is the primary method for bulk data operations. It involves preparing data in designated staging tables within the MDS database. These tables mirror the structure required by MDS for loading information into specific entities. Using staging tables allows for efficient processing of large volumes of data.

The staging process provides a structured way to validate data before it’s committed to the MDS repositories. It includes mechanisms for logging errors and tracking the status of data batches. This makes it an essential component for integrating MDS with other enterprise systems.

The MDS Staging Process Explained¶

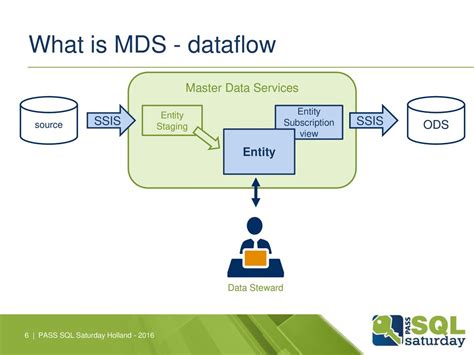

The journey of data into MDS via staging begins outside the MDS system itself. Source data is extracted, transformed if necessary, and then loaded into specific staging tables located within the MDS database schema, typically named stg. Each entity in MDS will have associated staging tables, such as stg.Leaf for leaf members, stg.Consolidated for consolidated members, and stg.Relationship for hierarchies.

Key columns in these staging tables are vital for the process. The BatchTag column is used to group a set of records that should be processed together as a single unit or batch. Other important columns include importstatus_ID, which indicates the current state of a record (e.g., 0 for pending, 1 for successful, 2 for failed), and columns like ErrorCode and ErrorCodeDescription which provide feedback on processing outcomes.

Once the staging tables are populated with the data intended for import or update, the staging process is initiated. This is typically done by executing one of the MDS-provided stored procedures. The procedure chosen depends on the type of data being staged: stg.udp_name_Leaf for leaf members, stg.udp_name_Consolidated for consolidated members, or stg.udp_name_Relationship for hierarchy relationships, where <name> is the name configured for the staging table when the entity was created.

Alternatively, batches can be initiated and monitored through the Integration Management functional area on the MDS website. Regardless of the initiation method, MDS picks up the batch identified by its BatchTag and begins processing the records. The system validates the data, applies business rules, and loads valid records into the respective MDS entities, updating the status and error columns in the staging table as it progresses.

The Critical Role of the Batch Tag¶

The BatchTag is a fundamental identifier within the MDS staging framework. Its primary purpose is to group a logical collection of records that are intended to be processed together. For example, a daily sales data import might be assigned a batch tag like “SalesData_20231027”. This allows administrators to track the progress and outcome of that specific data load operation.

MDS uses the BatchTag internally to manage the staging queue and track the status of ongoing and completed processes. When a stored procedure is called or a batch is initiated via the UI, MDS registers this BatchTag and sets its status (e.g., to “Running”). As records are processed, MDS updates their individual status within the staging table based on the overall batch status.

The intended scope of a BatchTag seems intuitively linked to the entity or model being processed. One might assume that using the same tag for staging data into EntityA would be separate from using it for EntityB. However, as we will see, the MDS engine’s tracking of the BatchTag has a broader scope than might be initially expected, leading to potential conflicts if uniqueness is not maintained across the entire MDS instance for concurrently running or recent batches.

Symptoms: When Staging Fails Due to Duplicate Batch Tags¶

Consider a scenario where an organization is importing data into multiple entities within their MDS system. They might have automated processes or scripts populating the staging tables for different entities. If, by oversight or design, these different processes happen to use the exact same BatchTag value for different sets of data intended for different entities, a conflict can arise.

For instance, one process might be loading data into an ‘Customers’ entity using the BatchTag ‘DailyImport’, and another independent process might be loading data into a ‘Products’ entity using the same BatchTag, ‘DailyImport’. When the stored procedures are executed to initiate these two staging batches, the first one to start might proceed, but the second one, attempting to use the identical BatchTag, will encounter an issue.

The primary symptom of this conflict is the failure of the second staging process to start correctly. Instead, the process returns a specific error message: MDSERR310029 - The status of the specified batch is not valid. This error indicates that MDS has detected a problem with the BatchTag being used.

Furthermore, when checking the status of batches within the MDS Integration Management area or by querying the MDS database tables like mdm.tblStagingBatch, the batch associated with the problematic BatchTag will often be stuck. Its status might show indefinitely as ‘Running’, even though no actual processing is occurring or has completed successfully for the second attempt using that tag. This stuck state prevents further attempts to process batches with that specific tag until the underlying issue is resolved.

The Underlying Cause: Global Batch Tag Tracking¶

The root cause of the MDSERR310029 error and the stuck batch status lies in how SQL Server MDS tracks the state of staging batches. MDS maintains a list of active and recently processed batches, identified solely by their BatchTag. This tracking mechanism operates at the level of the entire MDS instance, not scoped down to individual models or entities.

When a staging stored procedure is called with a specific BatchTag, MDS checks its internal batch status table. If it finds an entry for that BatchTag that is currently marked as ‘Running’ (or potentially other transitional states), it interprets this as an attempt to process a batch with the same tag while a previous instance is still active. Even if the new request is for a different entity or a different model entirely, MDS sees the duplicate ‘Running’ tag and flags it as an invalid status for initiation, leading to the error.

Essentially, MDS expects each BatchTag value to represent a single, unique staging operation instance at any given time. Reusing a tag that MDS still considers active, regardless of the target entity or model, violates this expectation. This global tracking prevents potential conflicts or confusion within the MDS processing engine regarding which batch is which, but requires careful management of tags by the user or calling process.

Diagnosing and Resolving the Stuck Batch Issue¶

When faced with the MDSERR310029 error and a batch stuck in the ‘Running’ status, several steps are necessary to diagnose and resolve the problem.

Step 1: Verify Batch Status
The first step is to confirm the status of the batch using the BatchTag in question. You can do this through the MDS website under Integration Management, which lists recent batches and their status. Alternatively, and often more reliably for troubleshooting stuck states, you can query the mdm.tblStagingBatch table directly in the MDS database. Execute a query like SELECT * FROM mdm.tblStagingBatch WHERE BatchTag = 'YourProblemBatchTag'; to see the exact status recorded by the system. Look for entries where Status_ID corresponds to ‘Running’.

Step 2: Stop the Stuck Batch
The original article suggests running the stored procedure Exec [mdm].[udpStagingBatchQueueActivate] to stop the batch process. While this procedure’s primary function is to activate the staging queue processing, executing it can sometimes help reset the state of the queue or allow the MDS system to recognize the need to clear the stuck batch. This is not a direct “cancel batch” command but is the provided mechanism to interact with the staging queue’s state. After execution, re-check the batch status in mdm.tblStagingBatch or the MDS UI; the batch might transition to a cancelled or failed state, or the queue might simply be re-evaluated.

Step 3: Modify the Staging Data
Crucially, the underlying issue of the duplicate BatchTag must be addressed in the source staging tables. Connect to your SQL Server instance hosting the MDS database. Locate the staging table (stg.<entity_name>) that contains the records you were attempting to load or update when the failure occurred. Execute an UPDATE statement on this table to change the BatchTag value for the records you wish to process. It is essential to choose a new BatchTag that has not been used recently and is guaranteed to be unique within the MDS instance, especially among any concurrently running or recently processed batches. A common strategy is to append a timestamp or GUID to the original tag.

Step 4: Reset Import Status
For the records in the staging table whose BatchTag you just updated, you must also reset their importstatus_ID. If the records had a status other than 0 (Pending) due to the failed staging attempt, set their importstatus_ID back to 0. This tells MDS that these records are ready to be processed again. Use an UPDATE statement filtered by the new BatchTag to ensure you only affect the relevant records. For example: UPDATE stg.<entity_name> SET importstatus_ID = 0 WHERE BatchTag = 'YourNewUniqueBatchTag';.

Step 5: Re-initiate Staging
With the BatchTag updated to a unique value and the importstatus_ID reset to 0 for the target records in the staging table, you can now safely re-initiate the staging process. Call the appropriate staging stored procedure (stg.udp_name_Leaf, stg.udp_name_Consolidated, or stg.udp_name_Relationship), passing the new BatchTag as a parameter. MDS should now recognize this as a unique batch and begin processing the data contained within it without encountering the MDSERR310029 error related to the batch status. Monitor the batch status through the MDS UI or SQL queries to confirm successful completion.

Preventing Future Staging Failures: Best Practices¶

Avoiding the duplicate BatchTag issue is straightforward once the cause is understood. Implementing consistent practices for generating and managing batch tags is the most effective preventative measure.

Always strive to use unique BatchTag values for every distinct staging operation you initiate. If you have multiple automated processes loading data into different entities or even the same entity at different times, ensure each execution of these processes generates a new, unique tag. This eliminates the possibility of one process attempting to start a batch with a tag that another process is already using or that MDS still considers active.

Strategies for generating unique tags include appending a timestamp with high granularity (e.g., YYYYMMDDHHMMSSFFF - Year, Month, Day, Hour, Minute, Second, Millisecond) or a Globally Unique Identifier (GUID) to a base tag name. For example, instead of just ‘DailyImport’, use ‘DailyImport_20231027143512987’ or ‘DailyImport_A1B2C3D4…’. Incorporating the entity or model name into the tag (e.g., ‘Customers_DailyImport_…’) can also improve clarity and aid in debugging, though uniqueness still depends on the timestamp/GUID component if multiple processes load the same entity.

Implementing robust error handling and monitoring within your data loading processes is also crucial. Your scripts or ETL packages should be designed to check the results of the staging stored procedure execution and ideally monitor the batch status until completion. If a failure or stuck status is detected, the process should log the error and potentially alert an administrator.

Regularly monitoring the MDS staging logs and batch status directly in the MDS database or via the MDS website provides visibility into the health of your staging operations. The mdm.tblStagingBatch table contains valuable information about every batch initiated, including its status, start and end times, and the number of records processed and failed. The mdm.tblStagingBatchErrorDetail table provides granular error information for failed records. Proactive monitoring can help identify issues before they significantly impact downstream processes.

Considering using ETL tools like SQL Server Integration Services (SSIS) for managing your MDS staging loads can centralize control and simplify the implementation of best practices. SSIS packages can be configured to dynamically generate unique batch tags, handle errors gracefully, and automate the execution and monitoring of the staging process.

Visualizing the Staging Process (Mermaid Diagram)¶

The MDS staging process involves several steps, from preparing the data to monitoring its load. A simplified flow can be visualized as follows:

mermaid graph TD A[Source System] --> B{ETL Process}; B --> C[Populate stg.<entity_name> Tables]; C --> D[Set BatchTag and importstatus_ID = 0]; D --> E[Execute stg.udp_name_X Stored Procedure]; E --> F{MDS Staging Engine}; F -- Checks BatchTag Uniqueness --> G{Batch Status OK?}; G -- Yes --> H[Process Records]; H --> I[Load into MDS Entities]; I --> J[Update Staging Table Status]; J --> K[Log Batch Status (mdm.tblStagingBatch)]; G -- No (Duplicate Running Tag) --> L[MDSERR310029 Error]; L --> M[Batch Stuck in Running Status]; M --> N[Administrator Intervention (Resolve Tag/Status)]; N --> C; % Loop back after correction
This diagram illustrates the path data takes, highlighting where the BatchTag is set, where the stored procedure is called, and where the MDS engine checks the tag, leading to success or failure depending on uniqueness.

Further Learning: Exploring MDS Staging¶

Understanding the intricacies of MDS staging beyond just this specific error can significantly improve your data management processes. Many resources are available online that delve deeper into MDS architecture, staging table structures, and advanced techniques for handling complex data loads and transformations.

A relevant video might provide a step-by-step demonstration of preparing data, populating staging tables, executing the stored procedures, and monitoring the results using both SQL queries and the MDS website. Such tutorials often cover common pitfalls and provide practical examples that reinforce the concepts discussed here, such as the importance of data cleansing and error handling within the staging process.

While I cannot directly embed a specific video from the original source or perform a live search, searching for terms like “SQL Server MDS staging tutorial”, “MDS bulk import SSIS”, or “Troubleshooting MDS staging errors” on video platforms will yield valuable educational content that complements this article. Look for videos from official Microsoft channels, reputable database professionals, or training providers.

Conclusion¶

The SQL Server MDS staging process is a powerful tool for managing bulk data operations, but it requires careful attention to detail, particularly concerning the BatchTag. The error MDSERR310029 and the issue of batches getting stuck in a ‘Running’ state are common problems that arise when the BatchTag is not unique across concurrent or recently active staging operations within the MDS instance.

By understanding that MDS tracks batch tags globally, not just per entity or model, administrators can prevent this issue by implementing strategies for generating guaranteed unique tags for every staging run. Should a batch become stuck, the steps outlined – verifying status, using [mdm].[udpStagingBatchQueueActivate] to influence the queue state, correcting the BatchTag and importstatus_ID in the staging table, and re-initiating the process with the unique tag – provide a clear path to resolution. Adopting best practices for tag generation and process monitoring will ensure smoother and more reliable MDS staging operations in the future.
