Troubleshoot Active Directory Replication: Use TSS to Gather Key Information on Windows

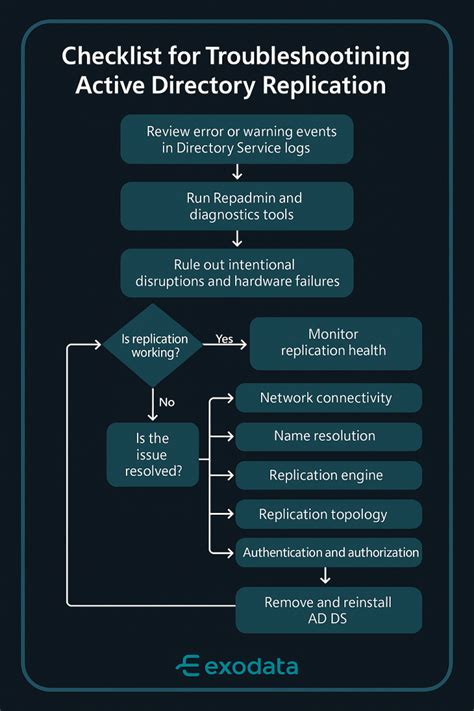

Troubleshooting Active Directory replication issues can be a complex task, often requiring the collection and analysis of various logs, configuration details, and diagnostic tool outputs from multiple Domain Controllers. The TroubleShootingScript (TSS) toolset provides a structured and automated approach to gather this essential information, significantly streamlining the initial data collection phase. By using TSS, administrators can efficiently collect relevant data points before deeper analysis or engaging with support resources. This proactive step ensures that necessary diagnostic data is readily available, facilitating a quicker resolution process for replication problems within the Active Directory environment.
Before contacting external support, leveraging tools like TSS allows IT professionals to perform preliminary investigations and gather a comprehensive dataset pertaining to the specific issue at hand. This self-service approach not only potentially resolves the problem internally but also equips support personnel with a detailed snapshot of the system’s state at the time the issue occurred. The data collected includes details about the operating system, network configuration, Active Directory health, and relevant event logs, all crucial for diagnosing replication failures. Efficient information gathering is the cornerstone of effective troubleshooting, and TSS is designed to centralize this process for common Windows components, including Active Directory.
Prerequisites for Using TSS¶
To ensure the TroubleShootingScript (TSS) toolset runs correctly and gathers the necessary information without encountering obstacles, several prerequisites must be met on the system where it is executed. These requirements are fundamental to the tool’s operation and its ability to interact with system components and Active Directory services effectively. Ignoring these prerequisites can lead to incomplete data collection or the tool failing to run altogether, hindering the troubleshooting process. It is crucial to verify each of these points before initiating TSS execution to guarantee optimal results.
The operating system must be a supported version of Windows Server or a compatible Windows client operating system from which administrative tasks on Domain Controllers are typically performed. Specifically, TSS is generally compatible with modern Windows Server versions like 2012 R2, 2016, 2019, and 2022, and potentially corresponding client versions used for remote management. Administrative privileges are absolutely essential; the account running TSS must have sufficient permissions to query system information, read event logs from various sources (especially the Directory Services log), access registry keys, and execute diagnostic tools like repadmin and dcdiag with elevated rights. These permissions are necessary because the tool delves deep into the system’s configuration and operational status to pull the required data.
Network connectivity to the Domain Controllers involved in the replication issue is another critical prerequisite. TSS will likely need to communicate with other DCs to perform tests or gather information about replication partners, requiring network paths to be open and firewalls configured appropriately. Depending on the specific modules TSS utilizes for Active Directory, certain Windows features or components might need to be installed or enabled. While TSS aims to be self-contained or use built-in tools, ensuring .NET Framework or specific PowerShell module versions are available can sometimes be necessary, depending on the tool’s implementation details. Always consult the specific documentation for the version of the TSS toolset you are using to confirm any version-specific dependencies or requirements beyond the general administrative and network access needs.
Introduction to the TSS Toolset¶
The TroubleShootingScript (TSS) toolset is a collection of PowerShell scripts designed by Microsoft support teams to simplify and standardize the process of gathering diagnostic data for various Windows technologies. It acts as a wrapper around numerous built-in command-line tools and information sources, automating their execution and consolidating their output into a structured format. This automation saves considerable time and effort compared to manually running each command and collecting individual log files, especially in complex environments with multiple servers. The primary goal of TSS is to provide a comprehensive snapshot of the system’s state relevant to a specific problem area, such as Active Directory replication, networking, or performance issues.
When troubleshooting an issue, support professionals often require a consistent set of data points to begin their analysis. Manual collection is prone to errors, missed steps, or variations in output formatting, which can delay the diagnostic process. TSS addresses this by providing predefined scenarios or modules tailored to gather information for particular types of problems. Users select the relevant scenario, and TSS automatically executes the necessary commands, reads logs, and gathers configuration data. The collected data is typically organized into folders and files, making it easier to navigate and analyze the extensive information compiled. This standardized output is invaluable for both internal IT teams and external support personnel, ensuring that all necessary initial data is captured efficiently and accurately.
For Active Directory replication issues, the TSS toolset is specifically designed to run relevant diagnostic commands and collect logs that highlight potential causes of replication failures. This includes information about the replication topology, schedules, status of replication partners, domain controller health, DNS configuration, and security settings. By automating the execution of tools like repadmin, dcdiag, nslookup, and by collecting relevant event log entries, TSS provides a holistic view of the replication health of a Domain Controller. It significantly reduces the manual effort involved in gathering this crucial data, allowing administrators to focus on analyzing the results and implementing corrective actions.
How TSS Gathers Information for AD Replication¶
When invoked for Active Directory replication troubleshooting, the TSS toolset executes a predefined sequence of commands and data collection tasks specifically relevant to the Directory Services role. This automated process ensures that critical information points, which are manually checked during traditional troubleshooting, are systematically captured. The tool typically starts by identifying the local Domain Controller and its replication partners to understand the scope of the environment being examined. It then proceeds to run a series of diagnostic checks that are fundamental to AD replication health.
A key part of the data collection involves running the repadmin command-line tool with various parameters. TSS will likely execute commands such as repadmin /showrepl to display replication connections and their status, repadmin /replsummary for a summary of replication health across multiple DCs, and repadmin /kcc to verify the Knowledge Consistency Checker’s operation. These commands are vital for identifying immediate replication failures, latent replication issues, and problems with the replication topology. Additionally, repadmin /showrepl * /errorsonly can filter output to show only problematic connections, which TSS might incorporate to highlight specific issues within its collected data.
Another crucial diagnostic utility utilized by TSS is dcdiag. This comprehensive tool performs numerous tests to verify the health and operational readiness of a Domain Controller. When run by TSS, it will check for issues ranging from DNS registration and connectivity to security settings and replication consistency. The dcdiag /q parameter, or similar filtering within TSS, can help quickly identify failing tests. TSS will capture the full output of dcdiag tests, providing detailed information about potential misconfigurations or errors affecting replication and other AD services. Furthermore, TSS collects relevant Event Log entries, particularly from the Directory Service log, System log, and DNS Server log. These logs contain valuable error and warning messages related to replication failures, RPC errors, security principal issues, and network problems that can impede replication. By consolidating these diverse data sources, TSS provides a centralized repository of information necessary for a thorough diagnosis.
Step-by-Step Guide to Running TSS for AD Replication¶
Running the TroubleShootingScript (TSS) toolset for Active Directory replication data collection involves a few straightforward steps, assuming the prerequisites are met. The process typically starts with obtaining the TSS script files, which are usually provided by Microsoft support or found in specific Microsoft documentation repositories. Ensure you have downloaded the correct version or bundle for the troubleshooting scenario you are addressing, in this case, Active Directory replication. Once downloaded, the files often come in a compressed archive, which needs to be extracted to a local folder on the Domain Controller you are troubleshooting. It is recommended to extract the files to a simple path, such as C:\TSS, to make navigating to the directory easier in the command prompt.
The TSS toolset is typically run from an elevated command prompt or PowerShell session. This is because the diagnostic commands and system queries it performs require administrative privileges to access necessary system information and logs. Navigate to the directory where you extracted the TSS files using the cd command. For example, if you extracted it to C:\TSS, type cd C:\TSS and press Enter. Once in the correct directory, you will execute the main TSS script, often a PowerShell script (.ps1) or a batch file (.cmd or .bat). The exact command varies depending on the specific TSS package, but it commonly involves running a script that takes parameters to specify the scenario. For AD replication, there is usually a dedicated scenario flag or option.
To initiate the data collection for Active Directory replication, you would typically execute a command similar to .\TSS.ps1 -Scenario AD_Replication or .\run.cmd AD_Replication. The specific scenario name (AD_Replication in this example) is crucial as it tells TSS which set of diagnostic tests and data collection routines to perform. Upon execution, TSS will begin running the various diagnostic tools and collecting logs. It might prompt you for confirmation or additional details, such as whether to collect data for a specific replication partner or a particular time frame, although many scenarios run with default settings. The script will display progress as it executes different commands and collects data. Allow the script to complete its run without interruption. Depending on the environment’s size and complexity, and the number of logs to process, this process can take several minutes. Once finished, TSS will typically output the location where the collected data has been saved, usually within a subfolder in the TSS directory, often timestamped for easy identification.
Interpreting TSS Output for AD Replication Issues¶
After the TroubleShootingScript (TSS) toolset completes its data collection phase for Active Directory replication, the result is a collection of files containing the output from various diagnostic commands and extracted log entries. Analyzing this output is the next critical step in identifying the root cause of replication problems. The files are typically organized into folders based on the type of data or the tool that generated it, making navigation and review more structured. Understanding what to look for within these files is key to a successful diagnosis.
One of the first files to examine should be the output from dcdiag. This file will contain the results of numerous tests performed on the Domain Controller. Look for any tests marked as “Failed” or displaying error messages. Common failures in dcdiag related to replication include issues with DNS registration (Ncsi), connectivity (Connectivity), replication topology (Topology), and replication itself (Replications). Detailed error descriptions accompanying the failed tests often provide direct clues about the nature of the problem, such as RPC server unavailable errors, access denied messages, or problems locating replication partners via DNS. Reviewing the entire dcdiag output provides a comprehensive health check of the Domain Controller and highlights core infrastructure issues impacting AD.
Simultaneously, reviewing the output from repadmin commands is essential. The repadmin /showrepl output, for instance, lists all replication connections for the DC and shows the status of the last replication attempt for each partition with each partner. Look for entries where the “Last successful sync time” is long ago, or where the “Last failure time” indicates recent or persistent errors. Specific error codes listed in the repadmin output (like 1722, 1753, 5, 8418, etc.) are particularly important. Consulting Microsoft documentation for these error codes provides detailed explanations and troubleshooting steps for those specific issues. The repadmin /replsummary output gives a high-level overview, quickly showing which DCs or naming contexts have the highest failure counts or largest deltas in replication latency, helping prioritize investigation efforts.
Analyzing the collected Event Logs is also crucial. Focus on the Directory Service log for errors and warnings related to replication events (Event IDs 1xxx, 2xxx, etc.), KCC operations, and database issues. The System log can reveal underlying infrastructure problems like network card failures, disk issues, or service startup failures that indirectly impact AD. The DNS Server log is vital if DNS issues are suspected, showing errors related to zone transfers, record registration, or query failures. By correlating timestamps and error messages across these different log sources and diagnostic outputs, administrators can build a clearer picture of the problem’s timeline and potential dependencies, leading towards identifying the root cause.
Common AD Replication Issues and TSS Data¶
Active Directory replication issues manifest in various ways and stem from numerous underlying causes. The data collected by TSS is specifically designed to capture information relevant to diagnosing the most common of these problems. Understanding how different data points within the TSS output correlate to typical AD replication errors is crucial for effective analysis. These issues often fall into categories such as DNS problems, network connectivity, security permissions, time synchronization, or issues with the Active Directory database itself.
DNS (Domain Name System) is perhaps the most frequent culprit behind Active Directory replication failures. DCs rely heavily on DNS to locate their replication partners using SRV records. If DNS is misconfigured, contains stale records, or if DNS servers are unreachable, replication will fail. The TSS output related to dcdiag /Dns tests, nslookup queries for relevant SRV records (like _ldap._tcp.dc._msdcs.<domain>, _gc._tcp.dc._msdcs.<domain>, etc.), and DNS Server event logs are critical here. Errors indicating inability to resolve partner DC names, incorrect IP addresses returned by DNS, or DNS registration failures in the dcdiag output strongly point towards a DNS-related cause.
Network connectivity issues, including firewall blocks, incorrect routing, or physical network problems, can also prevent replication. Active Directory replication primarily uses RPC (Remote Procedure Calls) over specific ports. If firewalls between DCs block the necessary RPC dynamic port range or the static port 135 (for the RPC endpoint mapper), replication will fail, often with RPC Server Unavailable errors (e.g., repadmin error 1722) or Access Denied errors (e.g., repadmin error 5). The TSS output might include netstat information showing active connections, firewall configurations (if captured), and network-related errors in system event logs, helping to diagnose connectivity blocks. Time synchronization problems (replication error 1705 or 1398 among others) are also surprisingly common, as Kerberos authentication used in replication is highly sensitive to time differences between DCs. The w32tm /query /status output or related system logs captured by TSS can quickly reveal if a DC is not synchronized correctly with its time source.
Security-related issues, such as incorrect permissions, Kerberos authentication failures, or trust relationship problems, can manifest as Access Denied errors (repadmin error 5). TSS might capture security event logs, Kerberos ticket information (if the scenario includes it), or output from diagnostic tests checking service principal names (SPNs) or permissions that could indicate a security cause. Finally, issues with the Active Directory database (NTDS.DIT) itself, such as corruption or excessive database size leading to performance problems, can also impact replication (e.g., repadmin error 8486 or 8418). While TSS might not directly diagnose database corruption, it collects dcdiag output which performs some database integrity checks and gathers system logs that might show related errors, guiding further investigation into the health of the NTDS.DIT file.
Here is a table summarizing some common AD replication errors and their potential primary causes, which can be inferred from the TSS output:
repadmin Error Code |
Description | Potential Primary Cause(s) | Relevant TSS Output to Check |
|---|---|---|---|
| 5 | Access is denied. | Permissions issues, Kerberos authentication failures, Trust issues | dcdiag (Security tests), Security Event Logs, SPN checks |
| 1722 | The RPC server is unavailable. | Network connectivity blocked (firewall), RPC service issues, DNS resolution failures | dcdiag (Connectivity, RPC tests), netstat, System Event Logs, DNS checks |
| 1753 | The RPC server is too busy to complete this operation. | Network connectivity (ports blocked), DNS issues, SPN registration | dcdiag (Connectivity, RPC tests), nslookup, DNS checks |
| 8418 | The replication operation failed because of a schema mismatch between the servers involved. | Schema version discrepancy between DCs | dcdiag (Schema test), Directory Service Event Logs (Schema update events) |
| 8451 | The replication operation encountered a database error. | Active Directory database (NTDS.DIT) issues, disk problems | dcdiag (Database tests), Directory Service Event Logs, System Event Logs |
| 8453 | The replication operation failed because of a DSA problem. | Generic DC issue, underlying OS or AD service problem | dcdiag, Directory Service Event Logs, System Event Logs |
| 8614 | The Directory Service cannot replicate with this server because the time since the last replication with this server has exceeded the tombstone lifetime. | Lingering objects, Time synchronization issues, Long-term replication failure | dcdiag (Replications test), Directory Service Event Logs, Time sync status |
By cross-referencing these common errors with the specific diagnostic information captured by TSS, administrators can significantly narrow down the potential causes and focus their troubleshooting efforts on the most probable areas.
Advanced Usage and Tips¶
While the basic use of TSS for Active Directory replication involves running a single command with the appropriate scenario, there are advanced usages and tips that can enhance the troubleshooting process. Depending on the specific TSS package, you might have options to customize the data collection, run specific sub-scenarios, or integrate it with other tools. Always explore the documentation or help options provided with the TSS script itself (e.g., Get-Help .\TSS.ps1 -Full in PowerShell) to discover available parameters and advanced features. These options can allow you to target data collection more precisely, reducing the amount of irrelevant data gathered and speeding up the analysis process.
One useful tip is to run TSS concurrently on both involved Domain Controllers when troubleshooting a replication issue between two specific partners. Collecting data from both sides of the replication link provides a more complete picture, allowing you to compare configurations, network status, and error messages from both perspectives. This dual-sided data collection is often crucial in diagnosing issues related to connectivity, authentication, or inconsistencies between DCs. Ensure you run the same TSS scenario on both DCs and note the timestamps or machine names in the collected data folders to keep track of which data belongs to which server.
Another consideration for advanced usage is the possibility of modifying the TSS scripts themselves, although this should be done with caution and a clear understanding of PowerShell scripting. In some cases, you might need to add specific custom diagnostic commands, collect data from non-standard locations, or modify parameters for existing tools like repadmin or dcdiag to suit a unique environment or problem. However, be aware that modifying the scripts might impact their compatibility or supportability. Always back up the original scripts before making any changes and test thoroughly in a non-production environment if possible. Finally, for persistent or intermittent issues, consider running TSS during the time the problem is actively occurring to capture a snapshot of the system state when the error is most likely to appear in logs or diagnostic outputs.
Summary and Conclusion¶
Troubleshooting Active Directory replication is a fundamental skill for Windows administrators, and efficient data collection is the starting point. The TroubleShootingScript (TSS) toolset significantly simplifies this process by automating the execution of numerous diagnostic commands and the collection of relevant logs into a structured output. By providing a standardized method for gathering comprehensive data, TSS helps administrators and support professionals quickly obtain the necessary information to diagnose a wide range of replication issues, from DNS and network problems to security and database-related failures. Utilizing TSS effectively involves understanding its prerequisites, knowing how to run it for the AD replication scenario, and, most importantly, being able to interpret the collected output from tools like dcdiag and repadmin, as well as system and Directory Service event logs.
By leveraging TSS, administrators can reduce the time spent on manual data collection, improve the accuracy of the gathered information, and accelerate the overall troubleshooting timeline. The tool provides a valuable snapshot of the Domain Controller’s health and replication status, enabling more informed decision-making and targeted corrective actions. Incorporating TSS into your standard Active Directory troubleshooting workflow is a recommended practice that enhances efficiency and effectiveness in maintaining a healthy replication topology. While TSS is a powerful data gathering tool, successful resolution still depends on the administrator’s ability to analyze the output and apply their knowledge of Active Directory and underlying infrastructure components.
We hope this guide provides a clear understanding of how to utilize the TSS toolset for troubleshooting Active Directory replication issues. Have you used TSS or similar tools in your environment? What are the most common AD replication errors you encounter, and how do you typically approach diagnosing them? Share your experiences and tips in the comments below!
