Troubleshooting Azure App Service Virtual Network Integration: A Practical Guide

Table of Contents

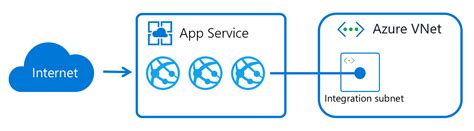

This article delves into the practical methods and tools available for diagnosing and resolving connection issues that may arise when your Azure App Service is integrated with a virtual network. Virtual network integration allows your web app to securely access resources within the virtual network. Understanding the correct configuration and available troubleshooting utilities is key to maintaining reliable connectivity.

It’s important to note that virtual network integration currently does not support Docker Compose scenarios within App Service. Additionally, if a private endpoint is present on the App Service, access restriction policies will be bypassed. This distinction is crucial when designing your network security posture for App Service.

Verify Virtual Network Integration Status¶

Before attempting to troubleshoot connectivity problems, the first step is to confirm that virtual network integration has been successfully configured and that a private IP address has been assigned to all instances hosting your App Service Plan. A misconfiguration at this initial stage is a common source of errors. Verifying this assignment ensures that the App Service instances are indeed part of the integrated network and capable of initiating communication within it.

To perform this verification, you can leverage specific tools available within the App Service environment. These tools allow you to inspect the configuration from the perspective of your running application instances. Two primary methods exist for checking the private IP assignment, catering to different operating systems.

Check the Private IP in the Kudu Debug Console¶

The Kudu Debug Console provides a powerful interface for interacting directly with your App Service instance’s environment. Accessing Kudu allows you to run commands and inspect environment variables. This direct access is invaluable for low-level troubleshooting without impacting the live application traffic significantly.

To access the Kudu console, navigate to your App Service resource in the Azure portal. Within the left-hand navigation pane, locate the “Development Tools” section, select “Advanced Tools,” and then click “Go.” Alternatively, you can access the Kudu console directly by browsing to the URL [sitename].scm.azurewebsites.net/DebugConsole, replacing [sitename] with the name of your App Service.

Once you are in the Kudu Debug Console, select the “CMD” option to open a command-line interface. From here, you can execute specific commands depending on whether your App Service is based on Windows or Linux. These commands are designed to display environment variables, including the one that holds the private IP address assigned through VNet integration.

For applications running on a Windows OS base, execute the following command:

SET WEBSITE_PRIVATE_IP

If the virtual network integration is functioning correctly and a private IP has been assigned to the specific instance you are connected to via Kudu, you should receive output similar to this, where <IP address> represents the assigned private IP:

WEBSITE_PRIVATE_IP=<IP address>

For applications running on a Linux OS base, the command syntax is slightly different, utilizing standard Linux command-line utilities. Use the following command in the Debug Console:

set| egrep --color 'WEBSITE_PRIVATE_IP'

This command lists all environment variables and filters the output to show only the line containing WEBSITE_PRIVATE_IP. A successful configuration will display the variable and its assigned private IP value, similar to the Windows output.

Check the Private IP in the Kudu Environment Variables Page¶

Another user-friendly method to check the assigned private IP is through the Kudu Environment page. This page presents all environment variables in a web-based, searchable format, making it easy to locate specific configuration settings. It provides a snapshot of the environment under which your application is running on that particular instance.

To access this page, go to the URL [sitename].scm.azurewebsites.net/Env. On this page, you can use your browser’s search function (Ctrl+F or Cmd+F) to search for WEBSITE_PRIVATE_IP. If the integration is successful, you will find the WEBSITE_PRIVATE_IP variable listed with its assigned value. This graphical interface can be quicker for a simple variable check compared to using the command line.

Once these checks confirm that virtual network integration is correctly configured and private IPs are assigned across all instances of your App Service Plan, you have established a solid foundation. With the integration verified, you can confidently proceed to diagnose potential connectivity issues by testing outbound connections to resources within your virtual network or connected networks.

Troubleshoot Outbound Connectivity on Windows Apps¶

Troubleshooting outbound connectivity from Windows-based App Service instances requires understanding the available tools. Due to security sandboxing, standard command-line tools like ping, nslookup, and tracert do not function directly within the native Windows App Service console environment. However, they do work in custom Windows Containers, a key distinction for containerized deployments.

To perform network diagnostics for native Windows App Service instances, you must again rely on the Kudu Debug Console, accessible at [sitename].scm.azurewebsites.net/DebugConsole. Kudu provides specialized tools designed for the App Service sandbox environment. These tools offer comparable functionality to standard network utilities but are adapted for the specific platform constraints.

For testing DNS resolution, the nameresolver.exe tool is available. This utility allows you to query DNS servers to resolve hostnames to IP addresses, much like nslookup. It’s essential for diagnosing issues where your application cannot reach a resource because it cannot resolve its hostname.

The basic syntax for nameresolver.exe is:

nameresolver.exe hostname [optional:DNS Server]

Using nameresolver, you can test the resolution of hostnames for dependencies your application relies on. This helps determine if misconfigurations exist in your DNS settings within the virtual network, or if the App Service cannot access the designated DNS servers. You can identify the DNS servers your app is configured to use by checking the WEBSITE_DNS_SERVER and WEBSITE_DNS_ALT_SERVER environment variables in the Kudu environment page or debug console.

It’s worth noting that nameresolver.exe is currently not supported for use within custom Windows containers. For containerized Windows apps, standard tools like nslookup should function as expected directly within the container’s command line.

To test TCP connectivity to a specific host and port combination, the tcpping.exe utility is available. Unlike ping which uses ICMP and is often blocked by firewalls, tcpping attempts to establish a TCP connection to the target port. This is a more reliable test for determining if an application service is reachable at a specific network endpoint.

The syntax for tcpping.exe is:

tcpping.exe hostname [optional: port]

The tcpping utility will indicate success only if a TCP connection can be successfully established. This means not only must network routing and firewalls permit access, but there must also be an application actively listening on the specified port at the target host. A failure suggests a problem somewhere along the path: routing, Network Security Group (NSG) rules, firewall on the target machine, or the target application not running or listening correctly.

Troubleshoot Outbound Connectivity on Linux Apps¶

Troubleshooting outbound connectivity from Linux-based App Service instances is often more familiar to users accustomed to Linux environments. Unlike the native Windows App Service sandbox, Linux App Service environments (excluding custom containers in some cases) often allow the use of more standard Linux networking tools directly within the Kudu Debug Console.

To access the debug console for a Linux app, navigate to [sitename].scm.azurewebsites.net, go to “Tools” > “Debug Console” > “CMD”. This provides a shell interface to the environment running your application.

For DNS resolution testing, the standard nslookup command is typically available and functional. This tool allows you to query DNS servers for domain name resolution.

The syntax for nslookup is:

nslookup hostname [optional:DNS Server]

Using nslookup from the Linux Kudu console lets you verify if your App Service can correctly resolve hostnames within your virtual network or connected networks. If nslookup fails to resolve a name that should be resolvable via your VNet’s DNS configuration, it indicates an issue with DNS access or configuration, potentially involving firewalls or NSGs blocking UDP/TCP port 53 traffic to your DNS servers.

Note that the nameresolver.exe tool mentioned for Windows apps is not available for Linux apps.

To test general network connectivity and retrieve data from a URL or endpoint, the versatile curl command is a standard tool in Linux environments. curl supports various protocols, including HTTP, HTTPS, and allows specifying ports. It’s excellent for testing reachability and whether a web service or API endpoint is responding.

Common syntax examples using curl include:

curl -v https://hostname
curl hostname:[port]

The -v flag provides verbose output, showing the connection process, including attempts to resolve the hostname, establish a connection, and details about the data transfer (or lack thereof). This can be very helpful in pinpointing exactly where a connection attempt is failing. Testing specific ports with curl hostname:[port] can help confirm if a service is listening and reachable on that port, similar to tcpping.

These standard Linux tools provide robust capabilities for diagnosing network issues directly from your App Service instance, allowing you to verify DNS, TCP connectivity, and even application-level responses.

Debug Access to Virtual Network-Hosted Resources¶

Connectivity issues between your App Service and resources within your virtual network can stem from numerous sources. Pinpointing the exact cause often involves systematically checking common failure points. The most frequent culprits typically involve network security controls or DNS resolution problems.

A common barrier is a firewall, either on the target resource (like a VM or database) or a network-level firewall appliance. If a firewall is blocking the connection, you will typically observe a TCP timeout when using tools like tcpping. In the context of App Service VNet integration, TCP timeouts can be lengthy, often around 21 seconds. While many things can cause TCP timeouts, starting your investigation with potential firewall rules (including NSGs) is a good practice.

Another significant source of problems is inaccessible or misconfigured DNS. DNS resolution timeouts can occur if the App Service cannot reach the configured DNS servers (either Azure default or custom ones specified in the VNet). Each DNS server configured for the VNet has a timeout, typically three seconds. If you have multiple servers, the cumulative timeout can be longer. Use nameresolver (on Windows) or nslookup (on Linux) to check DNS functionality from the App Service instance. If these tools fail, investigate NSGs or firewalls blocking UDP/TCP port 53 traffic to your DNS servers, or verify that the DNS servers themselves are operational and reachable. Complex custom DNS architectures, such as those involving forwarders or conditional forwarders, can sometimes introduce intermittent timeouts. The WEBSITE_DNS_ATTEMPTS environment variable can potentially be adjusted to mitigate transient DNS issues, allowing for more retries. For deeper understanding of how DNS works with App Service VNet integration, refer to the Azure documentation on Name Resolution (DNS) in App Service.

If firewalls and DNS seem correctly configured, consider these points specific to Regional Virtual Network Integration:

• Non-RFC1918 addresses and Route All: If your App Service needs to access public endpoints or endpoints in peered VNets that are not within the standard private IP ranges (RFC1918: 10.0.0.0/8, 172.16.0.0/12, 192.168.0.0/16), ensure the “Route All” setting is enabled on your VNet integration. This forces all outbound traffic, including internet-bound traffic, through the virtual network’s routing table and potentially a Network Virtual Appliance (NVA) or VPN/ExpressRoute gateway, allowing it to reach non-RFC1918 destinations via the VNet.
• NSG blocking egress: Verify that there are no Network Security Groups (NSGs) applied to your integration subnet or the target subnet/resource that are blocking outbound traffic from the App Service instances on the required port and protocol. NSG rules are stateful for TCP, meaning a return path is automatically allowed if the outbound was allowed. However, explicit outbound rules are necessary.
• On-premises routing: If you are attempting to reach resources on-premises via ExpressRoute or Site-to-Site VPN, ensure your on-premises gateway and routing configuration are set up to route traffic back to the Azure App Service integration subnet. Traffic originating from the App Service will use an IP from the integration subnet, and your on-premises network needs to know how to send responses back to that subnet range.
• Subnet Delegation Permissions: During regional VNet integration setup, the integration subnet must be delegated to Microsoft.Web/serverFarms. The Azure portal UI usually handles this automatically if your account has sufficient permissions. If not, someone with appropriate network permissions will need to manually delegate the subnet via the Azure Virtual Network subnet settings. Without correct delegation, the integration cannot be fully established.

Debugging network connectivity issues can be challenging because the specific point of failure isn’t always immediately obvious. Unlike standard VM troubleshooting where you might have more direct access to network interfaces, App Service’s abstracted nature requires using the provided tools.

Other potential causes for connectivity failure include:

• Target Host Firewall: The firewall on the destination machine is blocking the incoming connection on the application port from the IP range used by your App Service integration subnet.
• Target Host or Application Down: The resource you are trying to reach is offline or the application listening on the target port is not running.
• Incorrect IP/Hostname: A simple typo in the target IP address or hostname.
• Incorrect Port: The application on the target is listening on a different port than the one your App Service is trying to connect to. You can often verify the listening port on the target host using tools like netstat -aon (on Windows) to see which process ID is bound to which port.
• NSG Misconfiguration: As mentioned, NSGs applied to the source or destination subnets are too restrictive, preventing traffic flow. Remember that the App Service instance can use any IP within the integration subnet range, so NSG rules must allow traffic from the entire subnet range to the target.

To further debug, consider these steps:

• Test from within the VNet: Deploy a simple Virtual Machine (VM) into the same virtual network (or a peered VNet) and attempt to reach the target resource (host:port) from that VM. This helps isolate whether the issue is specific to the App Service integration or a broader network problem within the VNet. On a Windows VM, you can use the PowerShell command Test-NetConnection to test TCP connectivity. The syntax is:

  Test-NetConnection hostname [optional: -Port]



  * Test Connectivity to a Simple Endpoint in VNet: Deploy a simple application (e.g., a web server or a simple TCP listener) on a VM within your virtual network. From your App Service Kudu console, use tcpping (Windows) or curl (Linux) to attempt to connect to this simple endpoint. If this test succeeds, it suggests the VNet integration and basic connectivity are working, and the issue might lie specifically with the original target resource.

These methodical steps, combined with the tools available in the Kudu console, provide a comprehensive approach to diagnosing connectivity problems.

Network Troubleshooter¶

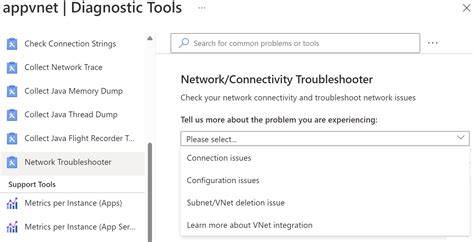

Azure App Service provides a built-in diagnostic tool called the Network Troubleshooter, which can automate checks for common virtual network integration issues. This tool offers a guided experience to help identify potential configuration problems without needing to manually run commands. It’s accessible directly within the Azure portal for your App Service resource.

To utilize the Network Troubleshooter, navigate to your App Service in the Azure portal. In the left-hand menu, select “Diagnose and solve problems.” In the search bar provided on the diagnostics page, type “Network troubleshooter” and select the corresponding result to launch the tool.

The Network Troubleshooter categorizes potential issues into several areas:

• Connection issues: This section performs automated checks related to the core VNet integration setup. It verifies if the virtual network integration is active, confirms that a private IP address has been successfully assigned to all instances of the App Service Plan, and checks the configured DNS settings. If no custom DNS is configured in the VNet settings, the troubleshooter will confirm that the default Azure DNS is being used. Crucially, this section also allows you to run connectivity tests against a specific endpoint (hostname or IP address and port) that you are experiencing problems reaching. The troubleshooter will perform checks like DNS resolution and TCP reachability to that target.
• Configuration issues: This part of the troubleshooter focuses on validating the setup of the integration subnet itself. It checks if the selected subnet meets the requirements for virtual network integration, such as being within a supported size range and not already in use by other conflicting services. It can identify issues like the subnet being too small or having incorrect properties.
• Subnet/VNet deletion issue: Sometimes, deleting a virtual network or a subnet that was previously used for App Service integration can be blocked. This troubleshooter section helps diagnose why deletion might fail. It checks for potential locks placed on the subnet or VNet resource. It also checks for any lingering, unused Service Association Links that might be preventing the resource from being deleted.

Using the Network Troubleshooter is a valuable first step in many cases, as it can quickly identify common misconfigurations or connectivity problems and provide actionable insights.

Collect Network Traces¶

In complex troubleshooting scenarios, collecting network traces can provide deep visibility into the network traffic flow from your App Service instance. Network traces capture packet-level information, allowing for detailed analysis of connection attempts, responses, and potential errors at the transport and network layers. Analyzing these traces can help pinpoint issues that aren’t obvious from simpler connectivity tests.

It is important to note that virtual network traffic originating from the VNet integration is not captured in the network traces collected using the built-in App Service methods. These traces primarily capture traffic from the application process before it is routed into the virtual network integration layer. Therefore, while useful for diagnosing issues related to the application’s network calls or connectivity within the host environment (e.g., to localhost services or potentially outbound internet before VNet routing), they are less effective for diagnosing issues specifically occurring after the traffic enters the VNet integration path. For VNet traffic issues, combining insights from Kudu tools, Network Troubleshooter, and potentially VNet-level diagnostics (like Network Watcher) is necessary.

To obtain the most relevant information from a network trace, it’s best practice to start the trace collection, immediately attempt to reproduce the connection issue you are troubleshooting, and then stop the collection shortly after. This ensures that the trace captures the specific failure event.

Windows App Services¶

For Windows-based App Services, collecting network traces can be initiated directly from the Azure portal diagnostics blade. This provides a convenient way to capture network activity from the perspective of your application process.

Follow these steps to collect network traces:

1. Navigate to your App Service resource in the Azure portal.
2. In the left-hand navigation pane, select Diagnose and Solve Problems.
3. In the search box within the diagnostics page, type “Collect Network Trace” and select the suggested option to start the network trace collection process. The portal interface will guide you through starting and stopping the trace.

Once the trace collection is complete, you need to download the trace file for analysis. The trace files are stored within the App Service’s file system, specifically in a logs directory. You can access these files via the Kudu console or other file access methods like FTP or Kudu API. To get the trace file for each instance serving your Web App, go to the Kudu console for your Web App (accessible at https://<sitename>.scm.azurewebsites.net). The trace files are typically located in the C:\home\LogFiles\networktrace or D:\home\LogFiles\networktrace folder. Download the .etl or .pcap (depending on format) file from this location. These files can then be analyzed using network protocol analyzers like Wireshark.

Linux App Services¶

For Linux-based App Services that are not using a custom container (e.g., built-in runtimes), you can often use standard Linux tools like tcpdump to capture network traffic. For custom containers, you would typically install and use tcpdump within the container itself. This approach requires more manual steps via SSH or the Kudu console but offers flexibility in capturing traffic.

To collect network traces for non-custom container Linux App Services using tcpdump:

1. First, ensure the tcpdump command-line utility is installed in your App Service environment. You can do this by accessing the Kudu console or SSH and running package manager commands. For Debian-based systems like the App Service runtime, use:

   apt-get update
   apt install tcpdump



   2. Connect to the container instance via the Secure Shell Protocol (SSH). This gives you command-line access to the environment. You can access SSH via the Azure portal or Kudu.
   3. Identify the active network interface. The container environment will have one or more network interfaces. You need to capture traffic on the interface that handles outbound connections. You can list interfaces using tcpdump -D:

   root@<hostname>:/home# tcpdump -D

   1.eth0 [Up, Running, Connected]
   2.any (Pseudo-device that captures on all interfaces) [Up, Running]
   3.lo [Up, Running, Loopback]
   ...



   Look for the primary interface, often named eth0, which shows “Up, Running, Connected”.
   4. Start the network trace collection using tcpdump, specifying the interface and an output file. Reproduce the issue immediately after starting the command.

   root@<hostname>:/home# tcpdump -i eth0 -w networktrace.pcap



   Replace eth0 with the actual name of the interface identified in the previous step. The -w networktrace.pcap flag saves the captured packets to a file named networktrace.pcap in the current directory (likely /home or /). Press Ctrl+C to stop the capture once you have reproduced the issue.

To download the generated networktrace.pcap file, you can use various methods like Kudu’s file explorer ([sitename].scm.azurewebsites.net/newui/fileManager), FTP, or a Kudu API request. For example, using the Kudu API, you could construct a URL like https://<sitename>.scm.azurewebsites.net/api/vfs/<path to the trace file in the /home directory>/networktrace.pcap to trigger a download (you might need to navigate the file system via the file manager first to get the exact path). The downloaded .pcap file can then be opened and analyzed using network analysis software like Wireshark.

While network traces are powerful, remember their limitation in not capturing traffic after it enters the VNet integration layer. They are most useful for understanding what happens before or at the point the application attempts to send traffic out.

Important Note: This article discusses third-party tools and products like Wireshark. Microsoft makes no warranty, implied or otherwise, about the performance or reliability of these third-party products.

Troubleshooting network issues with App Service VNet integration involves a combination of verifying configuration, using built-in tools, running manual connectivity tests from the application environment, leveraging diagnostic blades, and, in advanced cases, analyzing network traces. By systematically applying these techniques, you can effectively diagnose and resolve most connectivity problems.
