Troubleshooting Azure VM RDP Issues: "DRIVER_IRQL_NOT_LESS_OR_EQUAL" Error

Table of Contents

Remote Desktop Protocol (RDP) connectivity is crucial for managing Azure Virtual Machines (VMs). However, users sometimes encounter Blue Screen of Death (BSOD) errors, such as “DRIVER_IRQL_NOT_LESS_OR_EQUAL,” which prevent RDP access and can indicate underlying system instability. This error typically points to a problematic device driver attempting to access memory at an improper Interrupt Request Level (IRQL), leading to a system crash. Resolving this issue promptly is essential to restore operational functionality to your Azure VM.

Understanding the “DRIVER_IRQL_NOT_LESS_OR_EQUAL” Error¶

The “DRIVER_IRQL_NOT_LESS_OR_EQUAL” stop code (0x000000D1) is a common Windows kernel error. It occurs when a kernel-mode driver attempts to access pageable memory at a process IRQL that is too high. In simpler terms, a driver is trying to do something it shouldn’t be doing with memory, often due to a bug in the driver itself, corrupted system files, or conflicts with other software. This error often manifests after new software installations, driver updates, or Windows system updates.

For Azure VMs, this error can be particularly disruptive as it directly impacts remote manageability. While the underlying cause is often a software issue, its manifestation in a virtualized environment requires specific troubleshooting approaches, leveraging Azure’s recovery capabilities. Understanding the root cause is the first step toward an effective resolution strategy.

Identifying Causes and Initial Diagnosis¶

When an Azure VM experiences a “DRIVER_IRQL_NOT_LESS_OR_EQUAL” error, particularly one preventing successful boot-up or RDP access, the primary suspects are usually recently installed updates or corrupted system components. A systematic diagnostic approach helps pinpoint the exact problem. The most common scenario leading to this specific BSOD in Azure VMs involves problematic Windows Knowledge Base (KB) updates.

Impact of Recent Windows Updates¶

A known issue, particularly with certain July 2018 Knowledge Base updates, could cause this crash due to a race condition. This means that if any of the identified KBs were recently installed on your VM, they could be the direct cause of the RDP failure and subsequent system instability. It is critical to identify if one of these updates is present on your system.

The following table lists the problematic KBs and their respective fixes for various Windows SKUs. This information is crucial for determining if your VM is affected and for planning the appropriate resolution.

SKU	Known Issue KB	Resolved in KB
Windows 10 RS5	-	-
Windows 10 RS4	KB4338819	KB4345421
Windows 10 RS3	KB4338825	KB4345419
Windows 10 RS2	KB4338825	KB4345419
Windows 10 RS1	KB4338814	KB44345418
WS 12 R2 (Security Only)	KB4338824	KB4345424
WS 12 R2 (Monthly Roll-up Only)	KB4338830	KB4338816
Windows Server 2012 (Security Only)	KB4338820	KB4345425
Windows Server 2012 (Monthly Roll-up Only)	KB44338830	KB4338816
Win7 / W2K8 R2 (Security Only)	KB4338823	KB4345459
Win7 / W2K8 R2 (Monthly roll-up)	KB4338818	KB4338821
Windows Server 2008	-	KB4345397

Other Potential Causes¶

If the issue is not directly attributable to one of the listed KBs, the problem might stem from other sources. These can include:

• Corrupt Drivers: Even legitimate drivers can become corrupted, leading to system instability. Network drivers, storage drivers, or even display drivers can cause this error.
• System File Corruption: Essential Windows system files might be damaged, affecting the operating system’s stability and driver interaction.
• Malware or Viruses: Malicious software can interfere with system processes and drivers, leading to crashes.
• Hardware Issues: While less common in a virtualized environment like Azure, underlying platform issues, or perceived “hardware” faults by the guest OS, could theoretically contribute. This often manifests as problems with virtual hardware drivers.

A thorough diagnosis is critical. If the VM is completely unresponsive, an offline repair strategy becomes necessary to analyze and rectify the issue without direct access to the running operating system.

Troubleshooting Steps: VM is Booting¶

If your Azure VM is still capable of booting, even if RDP is intermittent or fails occasionally, you have the advantage of performing in-guest operations. This scenario simplifies the troubleshooting process as you can directly interact with the operating system to apply fixes or roll back problematic updates.

1. Identifying Recently Installed KBs¶

The first step is to confirm if any of the problematic KBs listed above were recently installed. You can do this through the Windows Update history.

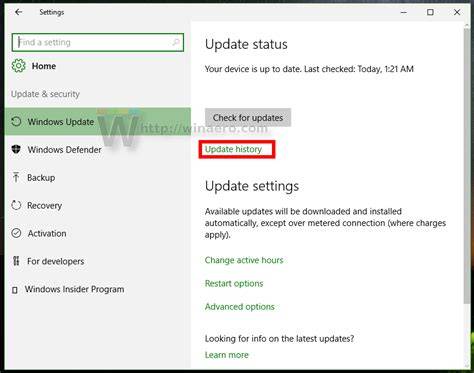

• Via Settings (Windows 10/Server 2016+): Go to Settings > Update & Security > Windows Update > View update history. Sort by installation date.
• Via Control Panel (All Windows versions): Open Control Panel > Programs > Programs and Features > View installed updates. Sort by installation date to quickly find recent KBs.

Look for the “Known Issue KB” numbers from the table. If you find one, proceed to the next step to install the corresponding corrective update.

2. Installing Corrective KBs¶

If a problematic KB is identified and your VM is booting, the simplest solution is to install the corresponding “Resolved in KB” update.

• Windows Update: The easiest way is often to let Windows Update find and install the fix automatically. Go to Settings > Update & Security > Windows Update and click Check for updates.
• Microsoft Update Catalog: If Windows Update doesn’t find it, or if you prefer a direct download, you can manually download the specific “Resolved in KB” from the Microsoft Update Catalog website. Search for the KB number (e.g., KB4345421), download the appropriate version for your system architecture (x64, x86), and install it.

After installing the corrective KB, a restart of the VM will likely be required. Monitor the VM during and after the restart to ensure the error does not recur and RDP connectivity is stable.

3. Verifying RDP Connectivity and System Stability¶

Once the corrective update is installed and the VM has restarted, immediately attempt to connect via RDP.

• Test RDP: Ensure you can establish a stable RDP connection.
• Monitor System: For a period after the fix, monitor the VM for any signs of instability, such as sudden reboots, application crashes, or slow performance. Check the System event logs (Event Viewer > Windows Logs > System) for any new errors or warnings, particularly those related to drivers or system crashes. This proactive monitoring helps confirm the permanent resolution of the issue.

Troubleshooting Steps: VM is Not Booting (Offline Repair)¶

When the “DRIVER_IRQL_NOT_LESS_OR_EQUAL” error prevents your Azure VM from booting entirely, direct access to the operating system is impossible. In this scenario, an offline repair strategy is essential. This involves detaching the OS disk from the problematic VM, attaching it to a healthy “recovery” VM, and then performing repairs on the detached disk.

1. Utilizing the Azure Serial Console for Initial Diagnosis¶

Before resorting to offline repair, always check the Azure Serial Console. It provides low-level access to the VM’s console, even if the OS isn’t fully booted. You might see the BSOD error code displayed here, confirming the issue. In some cases, you might be able to access the Advanced Boot Options (e.g., Safe Mode) through the console, which could allow you to bypass the crash.

• Navigate to your VM in the Azure portal.
• Under Support + troubleshooting, select Serial console.
• Observe the boot process. If you see the BSOD, note down the error code.
• You might be able to send an NMI (Non-Maskable Interrupt) or force a reboot from here.

If the VM remains unbootable or inaccessible, proceed with the disk swapping method.

2. Disk Swapping Method: Attaching the OS Disk to a Recovery VM¶

This is the standard procedure for offline repairs in Azure.

1. Stop the Problematic VM: In the Azure portal, navigate to your problematic VM and click “Stop”. Ensure it’s deallocated.
2. Detach the OS Disk: Go to the VM’s “Disks” blade, click on the OS disk, then click “Detach”. Confirm the detachment.
3. Create a Recovery VM (if you don’t have one): Provision a new, temporary Azure VM (same OS version as the problematic VM if possible). This VM will serve as your repair environment.
4. Attach the Problematic OS Disk: Go to the “Disks” blade of your recovery VM. Click “Add data disk” and select the OS disk you just detached from the problematic VM. Choose a LUN (Logical Unit Number) and save the changes.
5. Access the Disk: Once attached, log into your recovery VM via RDP. The detached OS disk will appear as a new data disk (e.g., drive F: or G:).
6. Navigate to the Windows Folder: Open File Explorer and navigate to the Windows folder on the attached OS disk. For example, if the assigned drive letter is F:, go to F:\Windows.

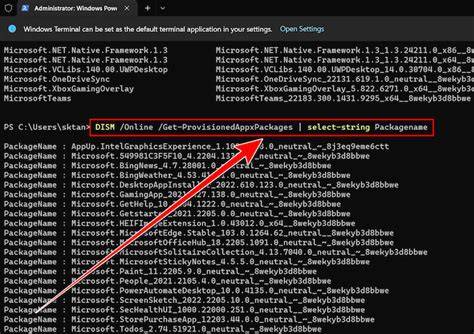

3. Rolling Back KBs Using DISM (Deployment Image Servicing and Management)¶

With the problematic OS disk mounted as a data disk on the recovery VM, you can use DISM to manage the installed packages offline. This is the primary method to roll back the problematic KBs.

1. Open Command Prompt as Administrator: On the recovery VM, open a command prompt with administrative privileges.

2. Identify Installed Packages: To list all installed KBs on the attached OS disk, run the following command. Replace F: with the correct drive letter of your attached OS disk.

   dism /image:F:\ /get-packages



   This command will list all installed packages with their names and installation status. Look for the “Known Issue KB” numbers from the table (e.g., Package Identity: Package_for_RollupFix~31bf3856ad364e35~amd64~~7601.24213.1.2). Note the full package identity of the problematic KB.

3. Remove the Problematic KB: Once you’ve identified the specific package identity of the KB you want to remove, use the remove-package command.

   dism /image:F:\ /remove-package /packagename:Package_for_RollupFix~31bf3856ad364e35~amd64~~7601.24213.1.2



   Replace Package_for_RollupFix~... with the actual package identity you noted down. Repeat this for all problematic KBs if multiple were installed. This process effectively uninstalls the update from the offline OS image.

4. Running System File Checker (SFC) and Check Disk (Chkdsk)¶

After removing problematic KBs, it’s good practice to run SFC and Chkdsk to repair any corrupted system files or file system errors.

• SFC Scan: This tool scans for and restores corrupted Windows system files.

  sfc /scannow /offbootdir=F:\ /offwindir=F:\windows



  Again, replace F: with the drive letter of your attached OS disk.

• Chkdsk: This utility checks the file system for errors.

  chkdsk F: /f /r /x



  This command will fix errors (/f), locate bad sectors and recover readable information (/r), and dismount the volume first if necessary (/x).

5. Driver Rollback/Update (Offline)¶

If the issue isn’t a KB, it might be a specific driver. While more complex, you can potentially roll back or replace drivers offline.

• Locate Driver Files: On the attached disk (F:), navigate to F:\Windows\System32\drivers or F:\Windows\System32\DriverStore\FileRepository.
• Identify Problematic Driver: This requires knowledge of which driver caused the crash, often gleaned from a memory dump.
• Replace/Rename: If you have a known good version of a driver, you could replace the faulty one. Alternatively, renaming a problematic driver file (e.g., driver.sys to driver.sys.old) can prevent it from loading, allowing the VM to boot. Use extreme caution with this step, as incorrect changes can prevent the VM from booting at all.

6. Reattaching the OS Disk and Testing RDP¶

Once all offline repairs are complete:

1. Detach the OS Disk: From the recovery VM’s “Disks” blade, detach the OS disk.
2. Attach to Original VM: Go back to your problematic VM in the Azure portal. Go to its “Disks” blade, select “Swap OS disk,” and choose the repaired OS disk.
3. Start the Original VM: Once the disk swap is complete, start the original problematic VM.
4. Test RDP: Attempt to connect via RDP. Monitor the VM’s boot process using the Serial Console to ensure it boots cleanly and the “DRIVER_IRQL_NOT_LESS_OR_EQUAL” error no longer appears.

Here is a mermaid diagram illustrating the offline repair workflow:

```mermaid
graph TD
A[VM Encounters BSOD] → B{Is VM Booting?}
B – Yes → C[VM is Booting]
B – No → D[VM is Not Booting]

C --> C1[Identify Recent KBs via Windows Update History]
C1 --> C2{Problematic KB Found?}
C2 -- Yes --> C3[Install Corrective KB]
C3 -- No --> C4[Analyze Memory Dump / Other Troubleshooting]
C3 --> C5[Restart VM and Verify RDP]

D --> D1[Stop Problematic VM]
D1 --> D2[Detach OS Disk from Problematic VM]
D2 --> D3[Attach OS Disk to Recovery VM]
D3 --> D4[Log into Recovery VM & Access Disk]
D4 --> D5[Use DISM to List/Remove Problematic KBs]
D5 --> D6[Run SFC / Chkdsk on Offline Disk]
D6 --> D7[Detach OS Disk from Recovery VM]
D7 --> D8[Swap OS Disk Back to Original VM]
D8 --> D9[Start Original VM and Verify RDP]

C5 --> E[RDP Restored, Issue Resolved]
D9 --> E
C4 --> F[Engage Microsoft Support for Advanced Analysis]

```

Proactive Measures and Best Practices¶

Preventing future occurrences of the “DRIVER_IRQL_NOT_LESS_OR_EQUAL” error and other VM issues is just as important as fixing them. Implementing robust operational practices can significantly enhance the stability and resilience of your Azure VMs.

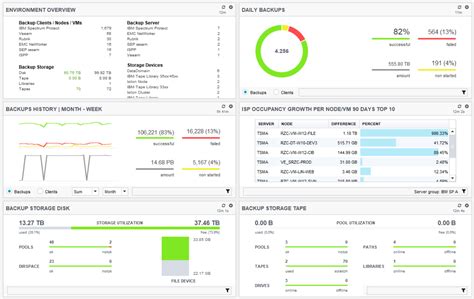

• Regular Backups: Implement Azure Backup for your VMs. Regular backups allow for quick restoration to a known good state, minimizing downtime in case of critical failures. Consider daily or even more frequent backups for critical production systems.
• VM Snapshots: Before applying any major changes, such as Windows Updates or driver installations, create a VM snapshot. This provides a rapid rollback point if the changes introduce instability. Snapshots are ideal for short-term recovery.
• Staged Deployments for Updates: Avoid deploying all Windows Updates to all production VMs simultaneously. Instead, use a phased approach:
  1. Test updates in a non-production (dev/test) environment first.
  2. Deploy to a small group of non-critical production VMs.
  3. Gradually roll out to the rest of your production fleet. This allows you to catch problematic updates before they impact your entire infrastructure.
• Azure Monitor and Azure VM Insights: Leverage Azure Monitor to collect performance metrics and diagnostic logs from your VMs. Azure VM Insights, specifically, offers a comprehensive view of VM performance, dependencies, and health. Proactive monitoring can help detect anomalies that might precede a crash, such as unusual CPU spikes, memory leaks, or disk I/O issues.
• Driver Management: Keep drivers updated, especially virtual hardware drivers provided by Azure (e.g., Azure VM Agent). However, always ensure driver updates are sourced from trusted vendors (Microsoft, device manufacturers) and are compatible with your specific Windows version and Azure environment. Avoid installing unverified drivers.
• System Hardening: Ensure your VMs adhere to security best practices, including regular antivirus scans, firewall configurations, and least privilege access. Malware can often corrupt system files or interfere with drivers, leading to BSODs.

Advanced Troubleshooting and Support¶

If the steps outlined above do not resolve the “DRIVER_IRQL_NOT_LESS_OR_EQUAL” error, or if the cause is not identified as a known KB issue, more advanced diagnostic techniques might be necessary. This typically involves analyzing memory dump files generated during the crash.

Memory Dump Analysis¶

When a BSOD occurs, Windows typically creates a memory dump file (e.g., MEMORY.DMP or a minidump) that captures the state of the system at the time of the crash. Analyzing this file can reveal the specific driver or kernel component that caused the error.

• Collecting the Memory Dump: In an Azure VM, if the VM is configured to generate memory dumps, you can obtain them by attaching the OS disk to a recovery VM (as described in the offline repair section) and copying the dump file from F:\Windows\MEMORY.DMP (or F:\Windows\Minidump).
• Tools for Analysis: Tools like Windows Debugger (WinDbg), part of the Windows Software Development Kit (SDK), are used to analyze these dump files. WinDbg can pinpoint the faulty module and provide a stack trace, offering crucial insights into the crash. This process requires specialized knowledge of kernel debugging.

Engaging Microsoft Support¶

If you’re unable to diagnose or resolve the issue yourself, or if you suspect an underlying Azure platform problem, engaging Microsoft Support is the next logical step. Provide them with all the troubleshooting steps you’ve already taken, any error codes, and details about recent changes to the VM. They have access to advanced diagnostic tools and internal knowledge bases to help resolve complex Azure VM issues.

Learn More: Azure VM Troubleshooting¶

For a visual guide on general Azure VM troubleshooting, including common issues like RDP connectivity and boot diagnostics, consider watching a helpful tutorial. While the specific KB issue might not be covered, the techniques for accessing serial console, using boot diagnostics, and preparing for disk swap are broadly applicable.

(Note: This is an example placeholder. A real search for “Azure VM RDP troubleshooting” on YouTube would yield relevant results.)

The video above provides a good starting point for understanding how to approach boot issues in Azure, which often go hand-in-hand with RDP problems. Mastering these basic techniques can significantly reduce recovery time for your virtual machines.

Conclusion¶

The “DRIVER_IRQL_NOT_LESS_OR_EQUAL” error can be a frustrating obstacle when managing Azure VMs, often signaling deeper driver or system integrity issues. By systematically diagnosing the problem, starting with recent Windows updates and then moving to offline repair techniques like DISM and disk swapping, you can effectively resolve most occurrences. Proactive measures such as regular backups, phased update deployments, and robust monitoring are critical to minimize the impact of such errors and maintain the health of your Azure infrastructure.

If you’ve encountered this error, what steps did you take, and what was your experience? Share your insights and questions in the comments below. Your experiences can help other users facing similar challenges!
