Troubleshooting Language Pack Configuration on Windows Server 2019 Desktop Experience

Table of Contents

Windows Server 2019 with the Desktop Experience offers a familiar graphical user interface, making it an excellent choice for various server roles that benefit from a visual management environment. A crucial aspect of deploying servers in diverse or international environments is the ability to configure language packs effectively. These packs allow users to interact with the operating system, applications, and display elements in their preferred language, enhancing usability and reducing potential language barriers for administrators and end-users alike. However, some administrators may encounter difficulties when attempting to install or configure language packs on Windows Server 2019 Desktop Experience, specifically through the standard Settings application.

This article addresses a common issue where the language pack configuration process does not function as expected. This problem typically prevents users from adding new display languages via the intuitive graphical interface, impacting the server’s linguistic adaptability. The guidance provided herein applies directly to Windows Server 2019 environments and outlines comprehensive solutions to overcome this challenge, ensuring your server can support the required linguistic diversity.

Symptoms¶

When operating Windows Server 2019 with the Desktop Experience, a distinct symptom of this issue is the inability to install new language packs via the graphical user interface. Specifically, administrators attempting to manage languages through the Language page within the Settings application will find that the expected functionality for adding or downloading language packs is either unresponsive or does not successfully complete the installation process. This often manifests as the desired language failing to appear in the list of available display languages, or an error message indicating that the language pack could not be installed. Despite following the typical user interface prompts, the system does not integrate the new language, thereby limiting the server’s multilingual capabilities.

Users might click the “Add a language” button, select their desired language from the list, and proceed, but the installation progress might halt, or the language might not appear as an option for the Windows display language. This can lead to significant operational inefficiencies in multinational organizations or environments where administrators from different linguistic backgrounds need to manage the server effectively. The core problem lies in the system’s inability to process language pack installations initiated through the modern settings interface, necessitating alternative methods or prerequisite updates.

Resolution¶

Resolving the language pack configuration issue on Windows Server 2019 Desktop Experience can be achieved through two primary methods. Each method addresses the underlying problem that prevents the seamless installation of language packs via the Settings app. Administrators should choose the method that best suits their environment and available resources. Following the successful application of either resolution, it is crucial to proceed with configuring the display language to finalize the process.

Before proceeding with either method, it is always a good practice to ensure that your server has a stable internet connection if you plan to download updates or language pack files. Additionally, verify that you possess administrative privileges on the server, as these operations require elevated permissions. Insufficient disk space could also hinder language pack installation, so a quick check of available storage is advisable.

Method 1: Install KB4476976¶

The most straightforward and recommended approach to resolve this issue is to install a specific cumulative update for Windows Server 2019. This update, identified as KB4476976, was released on January 22, 2019, and includes crucial fixes that address the language pack installation problem. Cumulative updates are designed to improve the reliability and performance of Windows operating systems by bundling together various security and non-security fixes, including those that resolve specific functional issues like the one discussed.

To implement this solution, you will need to acquire and install the KB4476976 update. While the original article refers to a specific KB number, it’s generally best practice to ensure your server is up-to-date with the latest cumulative updates available via Windows Update or the Microsoft Update Catalog. This specific update is titled “January 22, 2019—KB4476976 (OS Build 17763.292).”

Steps to Install KB4476976:

1. Access the Microsoft Update Catalog: Open a web browser on your server or a management workstation and navigate to the Microsoft Update Catalog website. This is the primary repository for downloading individual Windows updates.
2. Search for the Update: In the search bar, type “KB4476976” and press Enter. This will display the relevant update packages.
3. Download the Correct Version: Identify the package suitable for Windows Server 2019. Look for entries that explicitly mention “Windows Server 2019” and your system architecture (e.g., x64). Click the “Download” button next to the appropriate update. A pop-up window will appear with a direct download link.
4. Run the Installer: Once the download is complete, locate the .msu file (Microsoft Update Standalone Package) that you downloaded. Double-click the file to launch the Windows Update Standalone Installer.
5. Follow On-Screen Prompts: The installer will check for existing updates and dependencies. Confirm that you wish to install the update when prompted. The installation process may take some time.
6. Reboot the Server: After the installation is finished, the system will prompt you to restart the server to apply the changes. It is essential to perform this reboot for the update to take full effect and resolve the language pack issue. Plan this reboot during a maintenance window to avoid service disruption.

Once KB4476976 is successfully installed and the server has restarted, the issue preventing language pack installation via the Settings app should be resolved. You can then proceed to configure your desired display language as detailed in the “Configure the display language” section below. Regularly applying cumulative updates is a critical component of maintaining a secure and functional Windows Server environment.

Method 2: Use LPKSetup¶

If installing KB4476976 is not immediately feasible, or if you prefer an alternative manual method, you can use the LPKSetup.exe utility. This tool provides a command-line and graphical wizard interface for installing and uninstalling language packs, bypassing the Settings app entirely. This method requires access to the language pack .cab files, which are typically found on a language pack ISO image. LPKSetup is a robust tool that has been part of Windows for several versions, offering granular control over language installations.

Understanding LPKSetup:

LPKSetup.exe (Language Pack Setup) is a native Windows utility designed for managing language packs. It allows for the installation of language interface packs (LIPs) and full language packs (LPs) directly from their source .cab files. This is particularly useful in environments where offline installation is required or when automated deployment scripts are used. The utility can be run with a graphical wizard or entirely from the command line for silent installations.

Steps to Use LPKSetup.exe:

1. Obtain the Language Pack ISO Image: The first step is to acquire an ISO image containing the desired language packs. These images are typically available from official Microsoft channels for volume licensing customers (e.g., Volume Licensing Service Center), MSDN subscriptions, or specific server media.
   • Finding the ISO: Search for “Windows Server 2019 Language Pack ISO” on Microsoft’s official download pages. These ISOs contain numerous .cab files, each corresponding to a different language.
2. Mount the ISO Image: Once you have the ISO file, you need to mount it to make its contents accessible.
   • Via File Explorer: In Windows Server 2019, you can simply right-click the .iso file and select “Mount.” This will create a virtual DVD drive, making the ISO’s contents appear as a new drive letter.
   • Via PowerShell: Open an elevated PowerShell prompt and use the command: Mount-DiskImage -ImagePath "C:\Path\To\Your\LanguagePack.iso". Replace "C:\Path\To\Your\LanguagePack.iso" with the actual path to your downloaded ISO file.
3. Launch LPKSetup.exe:
   • Graphical Interface: Press the Windows logo key + R to open the Run dialog box. Type lpksetup.exe and then select OK. This will launch the Language Pack Installer Wizard.
   • Command Line (Elevated Prompt): For more advanced users or scripting, open an elevated Command Prompt or PowerShell window.

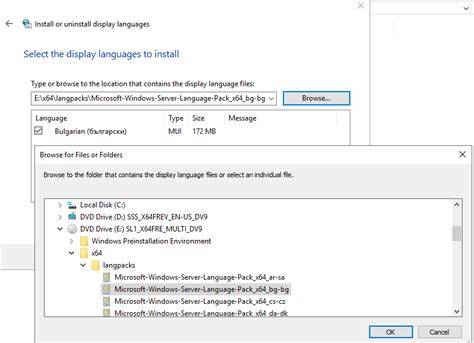

4. Install the Language Pack via Wizard:
   • In the Language Pack Installer wizard, select “Install display languages.”
   • Click “Browse” and navigate to the mounted ISO image. Inside the mounted drive, you will find a folder (often named x64 or amd64) containing the language pack .cab files. Select the appropriate folder.
   • The wizard will list the available language packs. Select the checkbox next to the language(s) you wish to install.
   • Click “Next” to begin the installation. The wizard will show a progress bar.
   • Once the installation is complete, click “Next” and then “Close” to exit the wizard.

5. Using Lpksetup Command-Line Options: For automated deployments or installing multiple language packs, using lpksetup from an elevated command prompt provides greater flexibility.

   Command Option	Description	Example Usage
   /i	Install a language pack. Requires the path to the language pack files.	lpksetup.exe /i C:\MountedISO\x64\langpacks (This installs all language packs found in the specified directory)
   /u	Uninstall a language pack. Requires the language tag (e.g., en-US, fr-FR).	lpksetup.exe /u fr-FR (Uninstalls the French (France) language pack)
   /s	Perform a silent installation or uninstallation. No user interaction. Useful for scripting.	lpksetup.exe /i C:\MountedISO\x64\langpacks /s (Silent installation)
   /r	Automatically reboot the system if required after installation/uninstallation. Use with caution in production environments.	lpksetup.exe /i C:\MountedISO\x64\langpacks /s /r
   /p <path>	Specifies the path to the language pack files. Used with /i.	lpksetup.exe /i /p C:\MountedISO\x64\langpacks
   /f <filename.xml>	Specifies an XML file for more complex or multiple language pack installations. This is used for unattended installations and allows for defining multiple languages and other settings. (Advanced scenario, usually involves creating an answer file for Windows Deployment Services or MDT/SCCM)	lpksetup.exe /f C:\Unattend\LPSetup.xml
   /l	List all installed language packs on the system.	lpksetup.exe /l
   /a	Specifies adding a language pack to an offline Windows image (WinPE, WIM file). (Advanced scenario for image management)	lpksetup.exe /a /p C:\MountedISO\x64\langpacks /target C:\MountedOSImage (Adds language packs to an offline Windows image mounted at C:\MountedOSImage)

   For example, to silently install all language packs from the mounted ISO located at drive D:, you would open an elevated command prompt and type: D:\sources\sxs\lpksetup.exe /i D:\langpacks /s (Note: the exact path to langpacks might vary slightly depending on the ISO structure, commonly found under x64 or amd64 directory after mounting).

After successfully installing the language pack using LPKSetup.exe, whether through the wizard or command line, you must still configure the display language in the Settings application.

Configure the Display Language¶

Once a language pack has been installed on Windows Server 2019 using either Method 1 (KB4476976) or Method 2 (LPKSetup), the final step is to activate it as the primary display language for the Windows operating system. Installing the language pack makes the necessary language resources available, but it does not automatically switch the user interface. This configuration is performed through the Settings application, which should now function correctly for language selection.

Steps to Configure a New Windows Display Language:

1. Open the Settings Application: Click the Start button (Windows logo) and then select the Settings icon (gear icon). Alternatively, you can press Windows logo key + I to directly open the Settings app.
2. Navigate to Language Settings: In the Settings window, click on the Time & Language category. From the left-hand navigation pane, select Language. This page displays your current preferred languages and options for adding new ones.
3. Add the Desired Language (if not already listed): On the Language page, locate the “Preferred languages” heading. Click the Add a language button.
   • In the Choose a language to install dialog box that appears, search for or select the language that corresponds to the language pack you just installed. For instance, if you installed the French (France) language pack, select “Français (France).”
   • Click Next.
4. Install Language Features (Verification Step): In the Install language features dialog box, you will see options for language pack, basic typing, speech, and handwriting. The “Language pack” option should now be checked, indicating that the system recognizes the newly installed language resources.
   • Ensure that “Set as my Windows display language” is also checked if you want to make this your default language immediately.
   • Click Install. The system will briefly process the selection.
5. Select the New Display Language: After the installation process completes (which should be very quick if the language pack is already installed), return to the Language page. Under the Windows display language dropdown menu, you should now see the newly added language listed alongside your previous one(s).
   • Click the dropdown menu and select the desired new language from the list.
6. Sign Out and Sign Back In: For the changes to take full effect across the entire operating system, including the login screen, desktop, and most applications, you must sign out of your current Windows session and then sign back in.
   • Click Start, then your user account icon, and select Sign out.
   • Once the login screen appears, sign back in with your credentials.

Upon logging back in, you will observe that the Windows user interface, including system menus, dialog boxes, and many pre-installed applications, is now displayed in the newly configured language. This finalizes the language pack installation and configuration process, providing a localized experience for the user.

Status¶

Microsoft has officially acknowledged this issue, confirming it as a known problem within the Microsoft products listed in the “Applies to” section of their original documentation. This confirmation underscores the legitimacy of the symptoms experienced by administrators attempting to configure language packs on Windows Server 2019 Desktop Experience. The provided resolutions, particularly the installation of KB4476976 or the utilization of LPKSetup.exe, are the official and verified methods for overcoming this specific configuration challenge. This acknowledgment ensures that users encountering this problem can confidently apply the recommended solutions to achieve proper language pack functionality on their server deployments.

Common Issues and Further Troubleshooting¶

Even after attempting the recommended solutions, some administrators might encounter persistent issues or unexpected behavior during language pack installation. Understanding common pitfalls and additional troubleshooting steps can help resolve these scenarios.

• Corrupted Language Pack Files: If you are using Method 2 (LPKSetup) and the installation fails, the downloaded ISO image or the .cab files within it might be corrupted. Try re-downloading the ISO image from a reliable source. Verify the integrity of the download using checksums if available.
• Insufficient Permissions: Ensure you are logged in with an account that has full administrative privileges. Running LPKSetup.exe or installing updates requires elevated permissions. Always open Command Prompt or PowerShell “as administrator.”
• Disk Space Issues: Language packs can consume several gigabytes of disk space. If your system drive (C: drive) is critically low on space, the installation may fail. Free up disk space by deleting unnecessary files or moving data to another drive.
• Group Policy Restrictions: In managed environments, Group Policies might restrict the installation of software or specific Windows components. Consult with your IT department or check local Group Policy settings using gpedit.msc (for local policies) or rsop.msc (for resultant set of policies) to ensure no policies are preventing language pack installations. Look for policies under “Computer Configuration” > “Administrative Templates” > “Control Panel” > “Regional and Language Options.”
• Windows Update Service Issues: If Method 1 (installing KB4476976) fails, there might be underlying issues with the Windows Update service. Try running the Windows Update troubleshooter, or manually reset Windows Update components. This involves stopping related services (BITS, Windows Update, Cryptographic Services), deleting temporary update files, and then restarting the services.
• Antivirus/Security Software Interference: Occasionally, aggressive antivirus or security software can interfere with system file modifications during update or language pack installations. Temporarily disabling such software during the installation process, or ensuring exceptions are in place, might help. Remember to re-enable them immediately afterward.
• Mismatch between OS and Language Pack Version: Ensure that the language pack you are trying to install is specifically for Windows Server 2019 and matches the build number if specified. Using language packs from different Windows versions or builds can lead to compatibility issues.
• Removing a Language Pack: If you need to remove a language pack, you can do so via the LPKSetup.exe wizard by selecting “Uninstall display languages,” or via command line using lpksetup.exe /u <language_tag>. Alternatively, in the Settings app, on the Language page, click on the language you wish to remove, and then click Remove.

By methodically addressing these potential issues, administrators can effectively troubleshoot and resolve most language pack configuration problems on Windows Server 2019 Desktop Experience, ensuring a fully localized and functional server environment.

---

We hope this comprehensive guide has provided clear and effective solutions for troubleshooting language pack configuration on your Windows Server 2019 Desktop Experience. Your feedback is invaluable to us. If you have successfully resolved this issue using these methods, or if you encountered any unique challenges, please share your experiences. Your insights can help others in the community navigate similar technical hurdles. Feel free to comment below with any questions, tips, or observations!
