Troubleshooting LDAP: Enable Debug Logging for Wldap32.dll on Windows Server

Table of Contents

Troubleshooting issues with Lightweight Directory Access Protocol (LDAP) communications can be complex, especially when applications interact with directory services like Active Directory. On Windows Server, the primary client-side library responsible for handling LDAP operations is wldap32.dll. To gain deep insight into the interactions between an application and an LDAP server, enabling debug logging for this library is an essential step. This logging mechanism leverages Event Tracing for Windows (ETW) to capture detailed information about LDAP calls, connections, binds, searches, and potential errors directly from the client’s perspective.

Understanding the flow of LDAP operations from the client application through wldap32.dll and across the network is critical for diagnosing problems. Issues such as authentication failures, slow query performance, connection timeouts, or secure communication (TLS/SSL) problems can be difficult to pinpoint with standard event logs or network captures alone. Wldap32.dll debug logging provides a granular view of function calls, return codes, network addresses, and the parameters involved in each LDAP request and response. By capturing this low-level activity, administrators and developers can identify exactly where a failure or delay is occurring within the client-side LDAP processing.

Before initiating the tracing process, specific registry configuration is required to instruct the Microsoft-Windows-LDAP-Client ETW provider which processes should have their wldap32.dll activity logged. This allows for targeted tracing, preventing excessive logging on systems running numerous applications that might use LDAP. Creating a registry subkey for the specific application or service experiencing issues ensures that only relevant events are captured, making the resulting trace file smaller and easier to analyze. Without this configuration, the ETW provider will not know which processes to monitor for LDAP client activity, resulting in an empty trace file despite the trace session being active.

Configuring the Registry for Wldap32.dll Tracing¶

The initial step to enable debug logging for wldap32.dll involves modifying the system registry to specify the target processes for tracing. This configuration acts as a filter for the ETW provider, ensuring that tracing is only performed for the desired applications or services. Without defining at least one process in the registry, the Microsoft-Windows-LDAP-Client provider will not capture any events, regardless of whether an ETW trace session is running.

Creating the Process Subkey¶

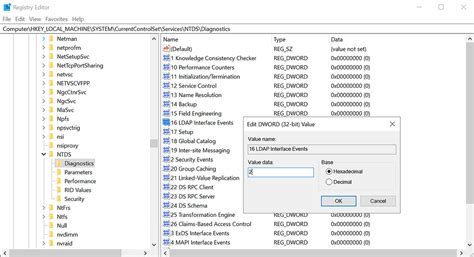

To specify a process for wldap32.dll tracing, you must create a specific registry subkey under the LDAP service’s tracing configuration. Navigate to the following path in the Registry Editor (regedit.exe):

HKEY_LOCAL_MACHINE\System\CurrentControlSet\Services\ldap\Tracing

Under this Tracing key, you need to create a new subkey named after the exact executable name of the process you wish to trace, including its file extension. For example, if you want to trace the activity of Ldp.exe, you would create a subkey named Ldp.exe. If the process is a service hosted in svchost.exe, you might need to identify the specific svchost instance or trace all svchost instances, although the latter can generate a large amount of data. Common processes might include application executables, service hosts, or diagnostic tools.

HKEY_LOCAL_MACHINE\System\CurrentControlSet\Services\ldap\Tracing\<ProcessName.exe>

Replace <ProcessName.exe> with the full name of the process you are troubleshooting. This tells the LDAP client tracing provider to hook into the wldap32.dll usage by that specific executable. Creating multiple subkeys allows you to trace multiple processes simultaneously if necessary.

Filtering by Process ID (Optional)¶

In scenarios where multiple instances of the same process are running, and you only need to trace a specific instance, you can add an optional value within the process subkey created in the previous step. Inside the <ProcessName.exe> subkey, create a new DWORD (32-bit) Value named PID.

Set the value of this PID entry to the decimal Process ID (PID) of the specific instance you want to trace. You can find the PID of a running process using Task Manager (details view) or the tasklist command in the command prompt. When this PID value is present and set, the tracing will be limited exclusively to the process instance matching that specific ID, providing even more targeted data collection. If the PID value is not present or is set to 0, all running instances of the specified <ProcessName.exe> will be traced.

It is absolutely crucial to remember that tracing will not occur if you do not create at least one process subkey under HKEY_LOCAL_MACHINE\System\CurrentControlSet\Services\ldap\Tracing. This registry configuration is the fundamental prerequisite for capturing any wldap32.dll trace data using ETW.

Initiating and Managing the Trace Session¶

Once the registry is configured to specify the processes to be traced, the next step is to start the actual tracing session using the logman command-line utility. Logman is a powerful tool for managing performance counter logs and event trace sessions, interacting directly with the ETW infrastructure. The command used to start the LDAP client trace session defines parameters such as the output file, the tracing provider, logging modes, and the level of detail to capture.

Starting the Trace Session with logman¶

Open a command prompt or PowerShell window with administrative privileges. Execute the following command to create and start the LDAP client trace session:

logman create trace "ds_ds" -ow -o c:\ds_ds.etl -p "Microsoft-Windows-LDAP-Client" 0x1a59afa3 0xff -nb 16 16 -bs 1024 -mode Circular -f bincirc -max 4096 -ets

Let’s break down the components of this command:

• logman create trace "ds_ds": This initiates the creation of a new event trace session named "ds_ds". You can choose a different name, but “ds_ds” is commonly used for directory service related tracing.
• -ow: Specifies that if a file with the same name (c:\ds_ds.etl) already exists, it should be overwritten. Alternatively, you could use -append to add new data to an existing file.
• -o c:\ds_ds.etl: Defines the output file path and name for the trace data. The .etl extension signifies an Event Trace Log file, the standard format for ETW output. You can specify any valid path where the user running the command has write permissions.
• -p "Microsoft-Windows-LDAP-Client": This is one of the most critical parameters, specifying the ETW provider to enable. "Microsoft-Windows-LDAP-Client" is the specific provider responsible for capturing wldap32.dll activity. Providers are uniquely identified by a GUID, but many common providers also have user-friendly names like this one.
• 0x1a59afa3: This hexadecimal value represents the trace flags. Trace flags are bitmasks that control the specific categories of events captured by the provider. Different flag combinations enable different levels of detail or focus on particular aspects of the LDAP process (e.g., connection, bind, search, errors). The value 0x1a59afa3 is a common flag combination recommended for general troubleshooting, designed to capture sufficient detail for most issues without being excessively verbose.
• 0xff: This value sets the Level of events to capture. Levels typically correspond to standard event severity like Information, Warning, Error, Critical, Verbose. 0xff is a bitmask that generally means capture events at all levels defined by the provider for the specified flags.
• -nb 16 16: Configures the number of buffers used by the tracing session. The first number (16) is the minimum number of buffers, and the second (16) is the maximum. Buffers hold events in memory before they are written to disk. This setting influences performance; higher numbers can reduce potential data loss under heavy load but use more memory.
• -bs 1024: Sets the size of each buffer in kilobytes (KB). Here, buffers are 1024 KB (1 MB). Buffer size also impacts performance and efficiency of disk writes.
• -mode Circular: Specifies the logging mode. In circular mode, once the maximum file size (-max) is reached, the session continues logging by overwriting the oldest events in the file. This is useful for capturing transient issues or monitoring over a long period without filling the disk.
• -f bincirc: Specifies the output file format and logging mode combination as binary circular.
• -max 4096: Sets the maximum file size in megabytes (MB). For a circular log (-mode Circular), this is the total size of the file. For sequential logs (not used here), this would be the maximum size before the session stops or rolls over to a new file. Here, the maximum size is 4096 MB (4 GB). Choose a size appropriate for the expected duration and verbosity of the trace.
• -ets: Stands for “Event Tracing Session”. This flag tells logman to start the trace session immediately after creating it. Without this flag, the session would be created but remain stopped until a logman start command is issued.

Understanding Trace Flags¶

Trace flags are central to controlling the verbosity and focus of the LDAP client logging. They are hexadecimal values representing a combination of bit flags defined by the Microsoft-Windows-LDAP-Client provider. Each bit or set of bits corresponds to a specific category of events or level of detail within wldap32.dll’s operations.

The command uses 0x1a59afa3, which is a common combination for broad troubleshooting. Other flag combinations might be more specific:

• 0x1A59AFA3: A comprehensive set of flags often sufficient for general LDAP client troubleshooting, covering various aspects of the operation flow.
• 0x18180380: More focused on connection establishment problems. Useful for diagnosing issues related to connecting to the LDAP server, including DNS resolution, network connectivity, and initial session setup.
• 0x1bddbf73: Provides very verbose session information. This combination captures a much higher volume of detailed events, potentially including more data exchanged or finer-grained state transitions. Use this only when the general flag combination doesn’t provide enough detail, as it can generate very large trace files quickly.

Choosing the appropriate flags depends on the nature of the problem you are investigating. Starting with a general flag set like 0x1A59AFA3 is recommended. If the necessary details are still missing, you might escalate to a more verbose set like 0x1bddbf73 or a focused set like 0x18180380 for connection issues.

Capturing LDAP client activity provides deep insights into communication flows.

Stopping the Trace Session¶

After you have reproduced the issue you are troubleshooting or have captured data for a sufficient period, it is crucial to stop the trace session. Running tracing sessions consume system resources (CPU, memory, disk I/O) and can potentially impact performance, especially with verbose logging enabled.

To stop the session named "ds_ds", run the following command in an administrative command prompt:

logman stop "ds_ds" -ets

The -ets flag here tells logman to send the stop command to the running session. Once stopped, the trace data is finalized and written to the .etl file specified during the create command (c:\ds_ds.etl in the example). The session will no longer capture new events.

Querying and Deleting Trace Sessions¶

You can view active or defined trace sessions using the logman query command:

logman query

This command lists all configured data collector sets, including trace sessions. To query a specific session:

logman query "ds_ds"

If you need to remove a defined trace session configuration (after stopping it), you can use the logman delete command:

logman delete "ds_ds"

This removes the session configuration from logman but does not delete the .etl output file.

Logman Command	Description	Example Usage
logman create trace	Defines and starts an ETW trace session	logman create trace "MyTrace" ...
logman start	Starts a defined but stopped trace session	logman start "MyTrace" -ets
logman stop	Stops a running trace session	logman stop "MyTrace" -ets
logman query	Lists or shows details of sessions	logman query or logman query "MyTrace"
logman delete	Deletes a trace session configuration	logman delete "MyTrace"
tracerpt	Processes ETL files for viewing or conversion	tracerpt trace.etl -o report.csv

Analyzing the Trace Data¶

The output of the logman trace session is an .etl file. This file is a binary format optimized for efficient writing of events. It cannot be directly read with a text editor. To analyze the data, you need to process the .etl file using tools capable of parsing the ETW format and the specific events from the Microsoft-Windows-LDAP-Client provider.

One common method is to use the tracerpt command-line tool to convert the .etl file into a more human-readable format, such as CSV or XML. For example, to convert the ds_ds.etl file to a CSV file named ds_ds.csv:

tracerpt c:\ds_ds.etl -of CSV -o ds_ds.csv

The -of CSV flag specifies the output format as Comma Separated Values, and -o ds_ds.csv specifies the output filename. The resulting CSV file can be opened and analyzed using spreadsheet software like Microsoft Excel or a text editor. The columns in the CSV typically include timestamp, event provider, event ID, task name, and detailed event data.

Alternatively, you can view .etl files using built-in Windows tools like Event Viewer or Performance Monitor (PerfMon).

• Event Viewer: Open Event Viewer, right-click on “Event Logs (Local)”, and select “Open Saved Log…”. Browse to your .etl file. The events will be displayed similarly to standard Windows event logs, with details available for each event. Event Viewer provides a hierarchical view and filtering capabilities, which can be helpful when dealing with a large number of events.
• Performance Monitor: Open Performance Monitor, expand “Data Collector Sets”, right-click “Event Trace Sessions”, and select “New” -> “Data Collector Set”. Choose “Create manually”, select “Event trace data”, and then add the “Microsoft-Windows-LDAP-Client” provider. Once the set is created, you can configure it to log to a specific file, or you can use the “View Report” feature on an existing .etl file by right-clicking “Event Trace Sessions” and selecting “Properties” -> “Log Files” -> “Add” your file, then navigating to the report view. PerfMon can be more complex for simple event viewing but is powerful for correlating ETW events with performance counter data if you also capture those simultaneously.

When analyzing the parsed trace data (e.g., in a CSV file or Event Viewer), look for key events related to:

• Connection Attempts: Events showing attempts to connect to LDAP servers, including the server address and port. Look for successful connections or errors like connection refused or timeouts.
• Bind Operations: Events detailing authentication attempts (binds), including the user principal name (UPN) or distinguished name (DN) used, the authentication method (simple, Kerberos, NTLM, negotiate), and the result code (success, invalid credentials, server unavailable).
• Search Operations: Events related to querying the directory, including the base DN, filter, scope, and attributes requested. Look for search results, errors during search, or performance metrics like the duration of the search operation.
• Errors: Specific error events reported by wldap32.dll with associated Windows error codes or LDAP result codes. These are critical for diagnosing the root cause of failures.
• TLS/SSL Negotiations: Events related to establishing secure connections (LDAPS). Look for handshake successes or failures.
• Referrals: Events indicating that the client was referred to another LDAP server.

Analyzing the timestamps associated with these events allows you to reconstruct the sequence of operations performed by the client process and correlate them with the timing of the issue you are observing.

Common Troubleshooting Scenarios¶

Wldap32.dll debug logging is invaluable in several common Active Directory and LDAP troubleshooting scenarios:

• Authentication Issues: When users or applications fail to authenticate. Tracing shows the bind attempt, the credentials used, the authentication method, and the exact error returned by the server or encountered by the client library (e.g., invalid credentials, account locked out, server not available).
• Application Connectivity Problems: If an application cannot connect to the domain controllers or LDAP servers. Tracing shows the attempted connection addresses, ports, and network errors encountered at the socket level by wldap32.dll.
• Slow Application Performance: If an application using LDAP is slow. Tracing can reveal slow search queries by showing the duration of search operations or delays in receiving responses from the server. It can also highlight inefficient queries or issues like referral chasing overhead.
• Secure LDAP (LDAPS) Failures: When LDAPS connections fail. Tracing can provide details about TLS/SSL handshake errors, certificate validation problems, or issues with the secure channel negotiation.
• LDAP Query Issues: If an application performs incorrect queries (wrong base DN, filter syntax errors, wrong scope) or doesn’t receive expected results. Tracing shows the exact parameters used in search requests and the initial responses.

By carefully examining the trace data in the context of the observed problem, administrators and developers can often pinpoint the exact LDAP operation that failed or was delayed and identify the associated error or performance bottleneck within the client’s interaction with the directory service.

Prerequisites and Considerations¶

Before enabling wldap32.dll debug logging, ensure you have the necessary permissions. Running logman commands and modifying registry keys typically requires administrative privileges on the Windows Server.

Consider the potential impact of enabling tracing on system performance and disk space, especially with verbose trace flags (0x1bddbf73) and large maximum file sizes. On busy systems with high LDAP activity, tracing can generate a significant volume of data quickly. It is advisable to trace only for the duration necessary to reproduce the issue and then stop the session promptly. Choose a location for the .etl file with sufficient free disk space.

Remember that the registry configuration for tracing persists until it is removed. However, the trace session itself must be explicitly started and stopped using logman. It does not automatically start after a system reboot unless configured as a persistent Data Collector Set, which is typically not necessary for ad-hoc troubleshooting.

Troubleshooting LDAP using wldap32.dll debug logging provides unparalleled visibility into the client-side perspective of LDAP communications. By configuring the registry, using logman to manage the trace session, and analyzing the resulting .etl file, you gain the detailed information needed to diagnose a wide range of LDAP-related issues effectively.
