Troubleshooting Oracle Connection Manager Errors in SQL Server: A Practical Guide

Table of Contents

Integrating different database systems is a common task in data warehousing and business intelligence scenarios. SQL Server Integration Services (SSIS) is a powerful platform designed to facilitate such integration tasks. When working with heterogeneous data sources like Oracle, configuring connections correctly within SSIS is crucial for the successful execution of data flows and control tasks. However, users may encounter specific errors, particularly when employing advanced features like package configuration files to manage connection properties dynamically.

One such challenge arises when connecting SSIS packages to Oracle databases using OLEDB providers and utilizing package configuration files. This scenario involves defining the Oracle connection details outside the package design environment, allowing for flexibility when deploying the package across different environments (development, testing, production). While configuration files offer significant advantages, they can also be a source of errors if the defined properties do not align with the expectations of the specific database provider being used.

Understanding the Problem Scenario¶

Consider a typical SSIS development workflow where you design a package using a tool like Business Intelligence Development Studio (BIDS), which was the integrated development environment for SQL Server versions like 2005 and 2008, or its successor, SQL Server Data Tools (SSDT) integrated into Visual Studio for later versions. Within this package, you establish a connection to an Oracle database server. This connection is typically managed through a Connection Manager configured to use an OLEDB provider for Oracle. Common OLEDB providers include the Microsoft OLEDB provider for Oracle (MSDAORA) or Oracle’s own OLEDB provider. The issue discussed here is primarily observed with MSDAORA.

Furthermore, you implement package configurations, often using an XML configuration file, to externalize connection properties such as the server name, user ID, and password. This setup is standard practice for promoting packages between environments without manual modification of the package itself. At runtime, the SSIS execution engine reads the configuration file and applies the defined values to the corresponding package elements, including connection managers.

The Error Manifestation¶

When this package, configured as described, is executed – particularly from within the development environment (BIDS/SSDT) – it attempts to acquire the connection to the Oracle database based on the properties loaded from the configuration file. If the configuration file contains a property that is valid for other database types (like SQL Server) but is not recognized or expected by the Oracle OLEDB provider being used, the connection attempt will fail. This failure cascades through the package execution, leading to a series of error messages reported in the SSIS execution output.

The symptoms are typically characterized by error messages indicating a failure to acquire the connection from the connection manager. This primary error is often preceded or accompanied by more specific OLE DB errors that point to the underlying issue with the connection string or properties. Understanding these error codes and descriptions is key to diagnosing the problem accurately.

Decoding the Error Messages¶

The specific error messages encountered in this scenario provide vital clues about the root cause. The output from the SSIS execution log might look similar to the following sequence:

Error: 0xC0202009 at Package, Connection manager "OLEDB Provider": SSIS Error Code DTS_E_OLEDBERROR. An OLE DB error has occurred. Error code: 0x80040E21.

This initial error, 0xC0202009 (DTS_E_OLEDBERROR), indicates a general failure occurred within the OLE DB layer while SSIS was interacting with the connection manager. The accompanying OLE DB error code, 0x80040E21, often translates to DB_E_MULTIPLESTEPS, signifying that a multi-step OLE DB operation generated errors. This suggests that the attempt to initialize or open the connection involved several steps, and one or more of them failed.

The detailed description associated with 0x80040E21 further clarifies:

An OLE DB record is available. Source: "Microsoft OLE DB Service Components" Hresult: 0x80040E21 Description: "Multiple-step OLE DB operation generated errors. Check each OLE DB status value, if available. No work was done."

This confirms that the OLE DB provider (or a component interacting with it) reported multiple errors during the connection process. Although the specific erroneous property isn’t explicitly named here, this error pattern is highly indicative of an invalid parameter in the connection string or connection properties being passed to the OLE DB provider.

Following the connection manager failure, tasks within the package that rely on this connection will also fail. A common error in a Data Flow Task that uses the faulty connection manager is:

Error: 0xC020801C at Data Flow Task, Oracle OLEDB Source [1]: SSIS Error Code DTS_E_CANNOTACQUIRECONNECTIONFROMCONNECTIONMANAGER. The AcquireConnection method call to the connection manager "OLEDB Provider" failed with error code 0xC0202009. There may be error messages posted before this with more information on why the AcquireConnection method call failed.

This error, 0xC020801C (DTS_E_CANNOTACQUIRECONNECTIONFROMCONNECTIONMANAGER), explicitly states that a component (in this case, an “Oracle OLEDB Source”) was unable to obtain a valid connection from its configured connection manager. It references the earlier 0xC0202009 error, establishing the dependency of the data flow component on the failing connection manager.

Finally, the Data Flow Task itself will likely report a validation failure:

Error: 0xC0047017 at Data Flow Task, DTS.Pipeline: component "Oracle OLEDB Source" (1) failed validation and returned error code 0xC020801C.

This error, 0xC0047017, signifies that the data flow pipeline could not validate the component (the “Oracle OLEDB Source”) because that component failed its own validation step (returning 0xC020801C), which in turn was due to the inability to acquire a connection. This sequence clearly traces the failure back to the connection manager.

The Root Cause: The Initial Catalog Property¶

The specific cause for this sequence of errors when using an XML package configuration file with the Microsoft OLEDB provider for Oracle (MSDAORA) is the inclusion of the Initial Catalog property in the connection string defined within the configuration file.

Let’s examine a typical SSIS XML configuration file generated when setting up a connection manager and enabling its configuration:

<?xml version="1.0"?>
<DTSConfiguration>
  <DTSConfigurationHeading>
    <DTSConfigurationFileInfo GeneratedBy="MyUserName" GeneratedFromPackageName="MyPackage" GeneratedFromPackageID="{<guid>}" GeneratedDate="2/22/2010 9:00:00 PM"/>
  </DTSConfigurationHeading>
  <Configuration ConfiguredType="Property" Path="\Package.Connections[MyConnectionManager].Properties[ConnectionString]" ValueType="String">
    <ConfiguredValue>Data Source=MyServerName;User ID=MyAccount;Password=MyPassword; **Initial Catalog=**; Provider=MSDAORA.1;Persist Security Info=True;</ConfiguredValue>
  </Configuration>
</DTSConfiguration>

In this XML snippet, the ConfiguredValue element contains the connection string. Notice the presence of ; Initial Catalog=;. The Initial Catalog property is standard in SQL Server connection strings, where it specifies the default database to connect to on the server. However, this property is not recognized or supported by the Microsoft OLEDB provider for Oracle (MSDAORA). Oracle connections typically use Data Source to specify the TNS alias or EZCONNECT string, and do not require or understand an “Initial Catalog” parameter in the same way.

When SSIS loads this configuration, it attempts to set the ConnectionString property of the Oracle OLEDB connection manager using this string. The MSDAORA provider receives this string and fails during its parsing or initialization phase because of the unexpected and invalid Initial Catalog parameter, leading to the Multiple-step OLE DB operation generated errors (0x80040E21) and the subsequent connection acquisition failure (0xC0202009).

The reason why ; Initial Catalog=; might appear in an XML configuration file for an Oracle connection is often related to how SSIS generates configuration files or how the connection string might have been initially defined or copied. If the connection manager was perhaps initially configured for SQL Server and then modified for Oracle, or if a template was used, this parameter might inadvertently be included. SSIS’s configuration mechanism saves the current state of properties, and if Initial Catalog was somehow present or added (even if blank) during design time configuration setup, it gets written to the XML file.

The Resolution¶

The solution to this specific problem is straightforward: remove the unsupported Initial Catalog property from the connection string defined in the package configuration file. Since the Microsoft OLEDB provider for Oracle does not use or understand this parameter, its removal does not affect the valid parts of the Oracle connection string and resolves the parsing error.

There are two primary ways to achieve this:

1. Editing the XML Configuration File Directly:
   Locate the XML configuration file that your SSIS package is using. Open it in a text editor (like Notepad, Visual Studio Code, or Notepad++). Find the <ConfiguredValue> element that contains the connection string for your Oracle connection manager. Carefully edit the connection string within this tag to remove the ; Initial Catalog=; part. Ensure you do not accidentally remove other valid parts of the connection string, such as Data Source, User ID, Password, or Provider.

   Using the example XML from the previous section, the corrected <ConfiguredValue> would look like this:

   <ConfiguredValue>Data Source=MyServerName;User ID=MyAccount;Password=MyPassword;Provider=MSDAORA.1;Persist Security Info=True;</ConfiguredValue>


   Save the modified XML file. When the SSIS package is executed using this corrected configuration file, the connection string passed to the MSDAORA provider will be valid, and the connection should be acquired successfully (assuming other parameters like Data Source, User ID, and Password are correct and the Oracle client is properly configured).

2. Using the SSIS Package Configuration Organizer (in BIDS/SSDT):
   This method involves modifying how the configuration file is generated or updated via the SSIS designer interface.

   • Open your SSIS package in BIDS or SSDT.
   • Go to the SSIS menu and select “Package Configurations…”.
   • In the “Package Configurations Organizer” dialog, select the XML configuration file you are using and click “Edit…”.
   • This will open the “Package Configuration Wizard”. Navigate through the wizard steps until you reach the “Select Properties to Save” page.
   • In the tree view on this page, expand “Package”, then “Connections”, then your specific Oracle Connection Manager.
   • Under the connection manager’s properties, locate the “Properties” folder and then find the ConnectionString property.
   • When you select ConnectionString, the wizard typically allows you to check or uncheck specific parameters within the connection string to include in the configuration. Crucially, you need to ensure that Initial Catalog is unchecked. If it’s checked, uncheck it. If it’s not even listed, that’s good – it means it’s not being explicitly included.
   • Complete the wizard steps to update and save the configuration file. This process should regenerate or modify the XML file, ideally removing the Initial Catalog entry if it was previously selected for configuration.

   Note: The exact options in the “Select Properties to Save” step can sometimes be granular, allowing selection of individual connection string properties. Ensure that only necessary properties like Data Source, User ID, Password, and Provider (if configured externally) are selected, and Initial Catalog is specifically excluded.

Implementing either of these resolutions effectively removes the invalid parameter from the connection string used at runtime, allowing the Microsoft OLEDB provider for Oracle to initialize the connection successfully.

Why Does This Happen, and How to Prevent It?¶

Understanding why this specific issue occurs can help prevent it in the future. The core reason is the difference in connection string syntax and required parameters between different database systems, particularly SQL Server and Oracle, when accessed via OLEDB. The Microsoft OLEDB Provider for SQL Server (SQLOLEDB or MSOLEDBSQL) expects Initial Catalog, while MSDAORA does not.

When using the SSIS Package Configuration Wizard, especially in older versions of BIDS, the process of selecting properties to configure might sometimes default to including common properties found in OLEDB connection strings, potentially including Initial Catalog, even if the target provider (MSDAORA) doesn’t use it. If the connection string in the connection manager designer happened to have ; Initial Catalog=; present initially (perhaps from a previous misconfiguration or copy-paste), the wizard might simply capture and externalize that literal string part when you choose to configure the ConnectionString property.

To prevent this error:
1. Carefully review connection strings: When setting up Oracle connections in SSIS, whether directly in the Connection Manager or in a configuration file, ensure the connection string adheres to the syntax required by the specific Oracle provider (e.g., MSDAORA or Oracle’s own OLEDB/ODP.NET). Be mindful of properties that are specific to other database systems.
2. Validate configuration output: After creating or modifying an XML configuration file for an Oracle connection, open it and visually inspect the ConnectionString in the <ConfiguredValue> element to ensure no extraneous or incorrect parameters like Initial Catalog are present.
3. Use the SSIS Configuration Organizer deliberately: When using the wizard, pay close attention to the properties you select to externalize. Only select the properties relevant to the Oracle connection (Data Source, User ID, Password, maybe Provider) and ensure Initial Catalog is explicitly not selected if it appears as an option.
4. Test configurations thoroughly: Always test your SSIS packages with their configuration files in a development or testing environment that mimics production as closely as possible before deployment.

Beyond the Fix: General SSIS-Oracle Connection Troubleshooting¶

While the Initial Catalog issue is a specific cause of OLE DB errors with MSDAORA and XML configurations, other problems can prevent a successful connection to Oracle from SSIS. If removing Initial Catalog does not resolve your connection issues, consider these general troubleshooting steps:

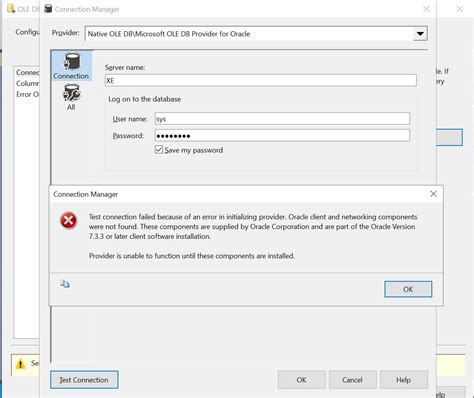

• Verify Oracle Client Installation and Configuration: SSIS, when using OLEDB providers like MSDAORA or Oracle’s OLEDB, relies on a locally installed Oracle client. Ensure the correct version (32-bit or 64-bit, matching your SSIS execution environment) is installed and properly configured.
• Check TNSNames.ora or EZCONNECT: The Data Source parameter in your connection string often refers to an alias defined in the tnsnames.ora file or uses an EZCONNECT string (like hostname:port/service_name). Verify that the Data Source value in your SSIS connection manager/configuration file matches a valid entry in tnsnames.ora (located in ORACLE_HOME\network\admin or specified by the TNS_ADMIN environment variable) or is a correctly formatted EZCONNECT string. Use Oracle’s tnsping utility to test connectivity to the Data Source from the server running SSIS.
• Test Connection Outside SSIS: Create a Universal Data Link (UDL) file on the server running SSIS. Select the OLE DB provider you are using (e.g., “Microsoft OLE DB Provider for Oracle”). Enter the connection details (Data Source, User Name, Password) and click “Test Connection”. This tests the provider’s ability to connect independently of SSIS, helping isolate whether the issue is with the Oracle client/network setup or specific to SSIS configuration.
• Check User Permissions: Ensure the Oracle user account specified in the connection string has the necessary database permissions to perform the operations required by your SSIS package (e.g., selecting from tables, inserting data).
• Verify Provider Bitness: If you are running SSIS packages in a 64-bit environment (e.g., SQL Server Agent on a 64-bit server), ensure you have the 64-bit Oracle client and OLEDB provider installed and configured correctly. For 32-bit SSIS execution (like running from BIDS/SSDT on a development machine), the 32-bit client and provider are needed. Mismatched bitness is a very common issue.
• Alternative Oracle Providers: Consider using Oracle’s own OLE DB provider or the Oracle Data Provider for .NET (ODP.NET), especially if you encounter persistent issues with MSDAORA or need features not supported by MSDAORA. Note that connection string syntax can differ between providers. Attunity also provides SSIS components and connectors for Oracle, which are highly optimized and often recommended.
• Secure Sensitive Information: While externalizing connection strings is useful, storing passwords directly in XML files is insecure. Consider using SSIS package protection levels (EncryptSensitiveWithPassword, EncryptSensitiveWithUserKey) or, preferably, more modern approaches like SSIS project parameters combined with Environment variables or Sensitive Parameter settings in the SSIS Catalog (if deploying to SQL Server 2012 or later) to manage sensitive connection information securely.

By systematically checking these areas, you can diagnose most SSIS connectivity issues with Oracle databases.

Conclusion¶

The error encountered when an SSIS package using an XML configuration file and the Microsoft OLE DB provider for Oracle fails with “Multiple-step OLE DB operation generated errors” (0x80040E21) is typically caused by the presence of the Initial Catalog property in the connection string defined in the configuration file. This property is not valid for the MSDAORA provider and leads to a connection acquisition failure (0xC0202009).

Resolving this issue involves removing the Initial Catalog parameter from the Oracle connection string within the XML configuration file, either by editing the file directly or by updating the configuration using the SSIS Package Configuration Organizer, ensuring this specific property is not selected for configuration.

Implementing this fix and adopting best practices for configuring database connections and managing sensitive information in SSIS packages will contribute to building more robust and reliable data integration solutions. Always remember to test your configurations thoroughly in relevant environments.
