Troubleshooting Windows Firewall: A Practical Guide for Windows Server Security

Table of Contents

Windows Firewall with Advanced Security (WFAS) is a critical component of any Windows Server security strategy. It acts as a host-based firewall, filtering incoming and outgoing network traffic based on predefined rules. While incredibly powerful, WFAS can also be a source of frustration when misconfigured or when unexpected network behavior occurs. This guide is designed to provide professional insights and practical steps to effectively troubleshoot issues related to Windows Firewall, ensuring your server remains secure and functional.

Understanding Windows Firewall with Advanced Security¶

Windows Firewall with Advanced Security is more than just a simple packet filter; it’s an integral part of the Windows security architecture, deeply integrated with the operating system’s networking stack and Internet Protocol Security (IPsec). WFAS enables administrators to define highly granular rules for network communication, specifying allowed or blocked traffic based on applications, ports, protocols, IP addresses, and even user or computer accounts. Understanding its sophisticated capabilities is the first step in effective troubleshooting.

Its dual role in both firewalling and IPsec enforcement means that issues with network connectivity can often stem from either aspect. For Windows Server environments, a properly configured WFAS is essential for isolating services, securing remote access, and preventing unauthorized communication, making its reliable operation paramount for overall system integrity and data protection.

Core Troubleshooting Principles¶

Effective troubleshooting of Windows Firewall requires a systematic and logical approach. Before diving into specific tools and configurations, it’s crucial to establish a baseline and eliminate common external factors. Always start by verifying basic network connectivity (e.g., using ping to test reachability, or confirming network adapter status) and ensuring that there are no other third-party security solutions actively interfering with the firewall’s operation. Many issues can be resolved by carefully reviewing the system’s current state and understanding the expected network flow.

A structured methodology helps in quickly isolating the root cause, whether it’s a misconfigured rule, a disabled service, or an environmental factor. Documenting each step of your troubleshooting process can also save valuable time, especially in complex environments or when collaborating with support teams.

Firewall Rule Precedence and Behavior¶

One of the most frequently misunderstood aspects of WFAS is how it processes multiple rules that might apply to the same network packet. When a network packet arrives, WFAS evaluates it against all applicable rules to determine its fate. The crucial point is that only one rule ultimately dictates whether the packet is allowed or dropped, and this decision is made based on a specific order of precedence.

Understanding this hierarchy is vital for debugging unexpected traffic behavior. A seemingly contradictory rule might be in effect due to its higher precedence. This order ensures that critical security policies, such as explicit blocks or mandatory secure connections, are always honored over more general allowance rules.

The hierarchy is as follows:

Precedence Order	Action	Description
1 (Highest)	Allow if Secure & Block Override	Rules specifying both “Allow if Secure” and “Block Override” will always permit traffic, even if there are explicit “Block” rules. This is typically used for highly trusted, authenticated, and encrypted connections that must always succeed.
2	Block	Explicit “Block” rules take precedence over general “Allow” rules. If any rule explicitly blocks a packet, that packet will be dropped, regardless of any “Allow” rules that might also match.
3 (Lowest)	Allow	“Allow” rules permit traffic but can be overridden by explicit “Block” rules or by “Allow if Secure and Block Override” rules. If no “Block” rule matches and at least one “Allow” rule matches, the traffic is permitted.

Rules Not Displayed in Monitoring Node:
It’s important to note that the “Monitoring” node within the Windows Firewall with Advanced Security console only displays currently active rules. This can sometimes lead to confusion if you expect to see a rule but it’s not listed. There are primary reasons why a rule might not appear:

1. The Rule is Disabled: If a firewall rule has been explicitly disabled, it will not be active and thus will not appear in the “Monitoring” section. To view disabled rules, you must navigate to the “Inbound Rules” or “Outbound Rules” sections and sort or filter by the “Enabled” column.
2. Default Inbound/Outbound Behavior: If the default behavior for inbound or outbound connections is set to “Allow” (meaning traffic not explicitly blocked is allowed), then individual “Allow” rules for that direction might not be displayed in the monitoring view, as they are implicitly covered by the default behavior. However, they are still present and would apply if the default behavior were changed to “Block.”

By default, several firewall rule groups are enabled to ensure basic network functionality. Additional rules are automatically enabled when specific Windows features or applications are installed. The core default groups typically include:

• Core Networking: These rules are essential for fundamental network operations and are enabled for all network profiles (Domain, Private, and Public). They ensure basic connectivity services like DNS, DHCP, and ICMP can function.
• Remote Assistance: Rules for Remote Assistance are often enabled for the domain profile for DCOM and RA Server TCP, with other rules applying to both domain and private profiles. This facilitates remote support connections under secure conditions.
• Network Discovery: These rules are typically enabled only for the private network profile. They allow a computer to discover other devices on the local network and to be discovered by them, essential for file sharing and network browsing in a trusted environment.

Understanding these default rules helps in identifying whether a custom rule is truly needed or if a default rule is already governing the traffic in question.

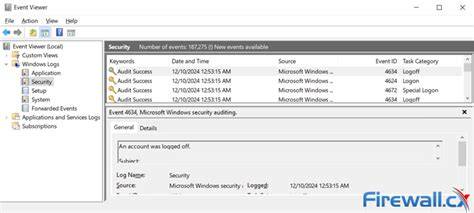

Leveraging Audit Events for Deeper Insight¶

When troubleshooting complex firewall issues, simply knowing that traffic is blocked isn’t enough; you often need to understand why it’s blocked. Enabling audit events for Windows Firewall provides invaluable diagnostic information, allowing you to see which specific rules are being applied and what action is being taken (e.g., allow, block, drop). The auditpol.exe command-line tool is your primary utility for modifying the local computer’s audit policies.

By enabling relevant audit subcategories, you can direct the system to log specific firewall-related events to the Security log in Event Viewer. This detailed logging can reveal the exact rule that dropped a packet, the source and destination IP addresses, ports, and even the application involved, providing crucial clues for effective troubleshooting.

To effectively use auditpol.exe:

1. List All Event Categories: To get a comprehensive list of all recognized event categories by the auditpol tool, open an elevated Command Prompt and run the following command:


   auditpol.exe /list /category



   This output helps you identify the broad areas where auditing can be enabled.
2. List Subcategories within a Category: Once you’ve identified a relevant category, you can list its subcategories to pinpoint more specific events. For instance, to see subcategories related to “Policy Change” (useful for tracking firewall rule modifications), use:


   auditpol.exe /list /category:"Policy Change"



   For firewall-specific events, the “Object Access” category is often the most relevant, particularly subcategories like “Filtering Platform Connection” and “Filtering Platform Packet Drop.”
3. Enable a Specific Category and Subcategory: To enable auditing for a chosen subcategory, you use the /set command. For example, to enable auditing for “Filtering Platform Packet Drop” under the “Object Access” category, which logs events when the firewall drops a packet:


   auditpol.exe /set /category:"Object Access" /SubCategory:"Filtering Platform Packet Drop" /success:enable /failure:enable



   The /success:enable and /failure:enable parameters ensure that both successful (allowed) and failed (dropped) firewall actions are logged, providing a complete picture of traffic flow. After enabling, you can view these detailed events in the Event Viewer under “Windows Logs” -> “Security.” Look for Event IDs related to firewall activity (e.g., 5152 for a dropped packet by the Filtering Platform).


Configuring and Analyzing Firewall Log Files¶

Beyond audit events, Windows Firewall maintains its own dedicated log files that record connections and packet drops. These logs offer another critical layer of detail for troubleshooting, often containing information about the source and destination of traffic, the specific port and protocol, and the action taken by the firewall. Configuring these logs properly is paramount for capturing the necessary information to diagnose connectivity problems.

The log file can be configured for each network profile (Domain, Private, Public) independently, allowing for tailored logging based on the network environment.

To configure the firewall log file for a specific profile:

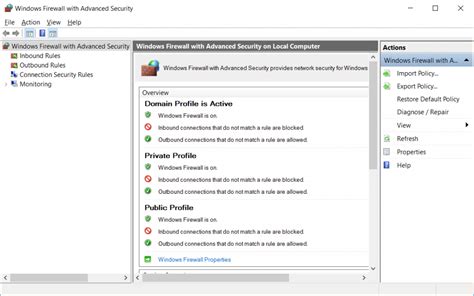

1. Access WFAS Properties: In the console tree of the Windows Firewall with Advanced Security snap-in (accessible via wf.msc), select Windows Firewall with Advanced Security in the left pane. Then, in the Actions pane on the right, select Properties.
2. Select Profile Tab: A dialog box will appear with tabs for Domain Profile, Private Profile, and Public Profile. Choose the tab corresponding to the network profile you wish to configure logging for. It’s often beneficial to configure logging for the profile that is currently active.
3. Customize Logging Settings: Under the “Logging” section for the selected profile, select the Customize button. This will open the “Customize Logging Settings” dialog.
4. Specify Log File Details:
   • Name and Location: In the “Name” field, specify the path and filename for the log file. The default path is %SystemRoot%\System32\LogFiles\Firewall\pfirewall.log. You can change this if you prefer a different location, but ensure the firewall service has write permissions to the chosen directory.
   • Size Limit: Set the “Size limit (KB)” for the log file. This value can be between 1 KB and 32767 KB (32 MB). A larger limit allows for more historical data, but also consumes more disk space. Consider your server’s disk capacity and the volume of traffic.
5. Enable Logging for Dropped Packets: Select Yes for Log dropped packets. This is arguably the most important setting for troubleshooting as it records every instance where the firewall prevented communication, including the source, destination, port, and reason for the drop.
6. Enable Logging for Successful Connections: Select Yes for Log successful connections. While dropped packets are crucial, logging successful connections helps confirm that allowed traffic is indeed passing through the firewall as expected. This can be especially useful for auditing and verifying that specific applications are communicating correctly.
7. Apply Settings: Select OK on all dialog boxes to apply the changes. The firewall will immediately begin logging according to your specified settings.

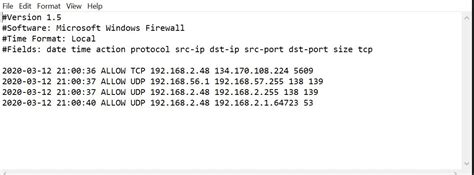

After configuring, you can open the generated log file (e.g., pfirewall.log) using a text editor. The log entries are space-delimited, and each field provides specific information about the network event. Analyzing these logs manually can be tedious for high-volume traffic, so tools like Log Parser Studio or PowerShell scripts can be used to query and filter the data more efficiently, helping you quickly identify patterns or specific blocked connections.

Gathering Network and Process Data¶

To fully understand a network connectivity issue, it’s often necessary to correlate active network connections with the processes that initiated or are listening for them. The netstat and tasklist command-line utilities are invaluable for this purpose, allowing you to capture a snapshot of the server’s network state and running processes. By combining their outputs, you can determine which application is using a specific port and if it’s attempting or receiving traffic as expected.

Here’s how to gather and correlate this vital information:

1. Generate Network Statistics File: Open an elevated Command Prompt. To capture a list of all active TCP connections, listening ports, their associated Process IDs (PIDs), and routing information, type the following command and press Enter:


   netstat -ano > netstat.txt



   The -a switch displays all connections and listening ports. The -n switch displays addresses and port numbers in numerical form, preventing DNS lookups which can speed up the command. The -o switch displays the owning process ID associated with each connection. The > netstat.txt redirects the output to a text file named netstat.txt in your current directory.
2. Generate Task List File: In the same elevated Command Prompt, to get a list of all running processes and their PIDs, type the following command and press Enter:


   tasklist > tasklist.txt



   This will create a tasklist.txt file. If you need to specifically identify services running under a particular PID, you can use the /svc switch:


   tasklist /svc > tasklist_services.txt


3. Analyze and Correlate Data: Open both tasklist.txt (and tasklist_services.txt if created) and netstat.txt using a text editor (like Notepad++ which handles large files well).
   • In tasklist.txt: Locate the name of the process you suspect is involved in the connectivity issue. Note its corresponding Process Identifier (PID). For example, if you’re troubleshooting a web server issue, you’d look for the PID of httpd.exe or w3wp.exe.
   • In netstat.txt: Search for the PID you noted from tasklist.txt. This will show you all network connections and listening ports associated with that specific process. Pay close attention to the Local Address (your server’s IP and port), Foreign Address (the remote IP and port), State (e.g., LISTENING, ESTABLISHED, TIME_WAIT), and Protocol (TCP or UDP).
   • Correlate Information: By matching the PIDs, you can determine if your application is listening on the correct port, if it’s attempting to establish connections, or if it’s waiting for incoming connections. If the application is listening but no connections are established, or if connections are in a “SYN_SENT” state indefinitely, it points towards a firewall or network path issue. The protocol information from netstat.txt is crucial when reviewing firewall log files, as firewall rules are often protocol-specific.

This correlation step is powerful because it allows you to confirm that the application itself is operating as expected from a networking perspective, thereby narrowing down the problem space to the firewall or external network.

Verifying Essential Firewall and IPsec Services¶

For Windows Firewall with Advanced Security to function correctly and enforce its rules, a set of underlying services must be running and healthy. If any of these essential services are stopped, disabled, or encountering issues, the firewall may not operate as expected, leading to unexpected connectivity problems or a complete failure to enforce security policies. It’s a critical first step in many troubleshooting scenarios to ensure all necessary services are in a “Running” state and configured for automatic startup.

The following services are integral to the proper operation of WFAS and IPsec:

• Base Filtering Engine (BFE): This is the core service that manages firewall policies and IPsec. It provides the filtering platform for network packet processing. If BFE is not running, Windows Firewall cannot enforce any rules.
• Group Policy Client: This service is responsible for applying Group Policy settings, including those related to Windows Firewall rules, to the local computer. If this service is stopped, firewall rules might not be updated or applied correctly from Active Directory.
• IKE and AuthIP IPsec Keying Modules: These modules handle the Internet Key Exchange (IKE) and Authenticated Internet Protocol (AuthIP) protocols, which are crucial for negotiating and managing security associations for IPsec connections. If you’re relying on IPsec rules within WFAS, this service is vital.
• IP Helper: Provides IPv6 transition technologies (like Teredo, ISATAP, and Port Proxy) and IP Helper application programming interface (API). While not directly responsible for firewall rules, its proper functioning can impact network connectivity that the firewall interacts with.
• IPsec Policy Agent: This service manages the Internet Protocol security (IPsec) policies configured on the system. It works in conjunction with the IKE and AuthIP modules to enforce network protection rules defined via IPsec.
• Network Location Awareness (NLA): This service identifies the network profile (Domain, Private, or Public) to which the computer is connected. WFAS uses this information to apply the correct set of firewall rules for that profile. If NLA is not functioning, the firewall might apply the wrong set of rules, or default to the Public profile, leading to unexpected blocks.
• Network List Service: Provides network connectivity information to applications and services. It helps NLA in determining the network profile.
• Windows Firewall: This is the primary service for Windows Firewall with Advanced Security. It enforces the configured firewall rules and monitors network traffic. If this service is stopped, the firewall is effectively disabled, leaving the system vulnerable.

How to check service status:
You can check the status of these services using the Services management console (services.msc) or via PowerShell. For example, in PowerShell, you can run:

Get-Service BFE, gpsvc, ikeext, iphlpsvc, PolicyAgent, NlaSvc, netprofm, MpsSvc | Select-Object Name, Status

Ensure all these services are listed with a Status of “Running” and their “Startup type” is typically “Automatic” or “Automatic (Delayed Start).” If a service is not running, attempt to start it. If it fails to start, investigate the System Event Log for errors related to that service, which might indicate corrupted files, dependency issues, or other underlying system problems.

Addressing Common Windows Firewall Challenges¶

Many issues encountered with Windows Firewall fall into common categories. Understanding these typical scenarios and their solutions can significantly expedite troubleshooting. Instead of seeing firewall issues as isolated incidents, recognizing patterns allows for a more efficient diagnostic process.

Here are some frequently encountered problems and general approaches to their resolution:

• Windows Firewall Is Blocking a Program: This is perhaps the most common issue. When an application fails to communicate over the network, the firewall is a prime suspect. To resolve this, you typically need to create an “Allow” rule for the specific program or for the port(s) it uses. You can specify the executable path for the program rule or define the local/remote ports and protocols (TCP/UDP) for port rules. Ensure the rule’s scope (local/remote IP addresses) and profile (Domain, Private, Public) match your requirements.
• Windows Firewall Is Turned Off Every Time I Start My Computer: If the firewall consistently disables itself after a reboot, it often indicates interference from third-party security software (like antivirus suites with their own firewall components), Group Policy settings overwriting local configurations, or a corrupted firewall service/configuration. Begin by checking the status of the “Windows Firewall” service and examining Group Policy Objects (GPOs) applied to the server, especially if it’s part of an Active Directory domain.
• Need to Disable Windows Firewall: While it might seem like a quick fix to disable the firewall entirely for troubleshooting, it’s a significant security risk. Instead, focus on creating specific, granular “Allow” rules for the traffic you need. If disabling the firewall temporarily resolves the issue, it confirms the firewall is indeed the culprit, allowing you to re-enable it and then meticulously create the necessary exceptions.
• Cannot Configure Windows Firewall with Advanced Security: Issues accessing or modifying WFAS settings can stem from insufficient administrative privileges, corrupted system files, or problems with the underlying services (like the Base Filtering Engine or Group Policy Client). Ensure you’re logged in with administrative rights, run sfc /scannow to check for system file corruption, and verify the status of the essential services listed previously.
• Nobody Can Ping My Computer: By default, Windows Firewall blocks incoming ICMP (Internet Control Message Protocol) Echo Request messages, which are used by the ping command. To allow ping responses, you need to enable the “File and Printer Sharing (Echo Request - ICMPv4-In)” rule in the Inbound Rules section of WFAS. Remember to specify the correct network profile (e.g., Domain or Private) if you don’t want it open on public networks.
• Nobody Can Access My Local File and Printer Shares: File and printer sharing relies on specific ports and protocols (primarily SMB, typically TCP ports 445 and 139, along with NetBIOS over TCP/IP). Windows Firewall blocks these by default on certain profiles. To enable sharing, activate the relevant “File and Printer Sharing” rules within the Inbound Rules, ensuring they are configured for the appropriate network profile and scope.
• Cannot Remotely Administer Windows Firewall: Remote administration of WFAS requires specific firewall rules to be enabled on the target server. Common rules include those for Remote Desktop Protocol (RDP), Windows Remote Management (WinRM) for PowerShell Remoting, and rules for the Microsoft Management Console (MMC) snap-ins. Verify that these inbound rules are enabled on the target server, allowing administrative connections from trusted source IP addresses.
• Troubleshooting Windows Firewall settings after a Windows upgrade: Major Windows upgrades or feature updates can sometimes reset or modify firewall settings. This can lead to custom rules being lost or default behaviors being re-enabled, causing previous connectivity to break. After an upgrade, it’s a best practice to review your custom firewall rules and verify that critical services and applications can still communicate. You may need to re-import custom rules or re-configure exceptions.

mermaid graph TD A[Problem: Connection Blocked] --> B{Is Windows Firewall Enabled?}; B -- Yes --> C{Check Firewall Logs for Drops}; B -- No --> D[Investigate Other Network Issues (e.g., Routing, Network Adapter)]; C -- Drops found --> E{Identify Source/Destination, Port, Protocol}; C -- No drops --> D; E --> F{Is the application listening on the expected port?}; F -- Yes --> G{Review Firewall Rules (Precedence, Scope, Profile)}; F -- No --> H[Troubleshoot Application Configuration/Service Status]; G --> I{Create/Modify Allow Rule (Application, Port, or Service)}; I --> J[Test Connection Again]; J -- Success --> K[Issue Resolved]; J -- Failure --> C; H --> J;

This diagram illustrates a systematic approach to diagnosing a blocked connection, starting from the symptom and guiding you through log analysis, process verification, and rule adjustments.

Advanced Data Collection with TSS¶

When standard troubleshooting steps don’t yield a solution, especially for complex or intermittent issues, Microsoft Support may request advanced diagnostic data. The Troubleshooting Script (TSS) is a powerful, unified tool designed to collect comprehensive logs and traces from a system, which can be invaluable for deeper analysis by support engineers. Using TSS correctly ensures that all necessary information is captured efficiently, reducing the back-and-forth typical of complex support cases.

Before running TSS, ensure the following prerequisites are met:

1. Administrative Privileges: TSS must be executed by an account with local administrator privileges on the system where data is being collected. This is necessary for the script to access system-level information and run diagnostic commands.
2. EULA Acceptance: The End User License Agreement (EULA) for TSS must be accepted the first time you run the tool on a particular machine. Once accepted, you won’t be prompted again on that system.
3. PowerShell Execution Policy: It is recommended that the local machine’s PowerShell execution policy is set to RemoteSigned or less restrictive. You can check this with Get-ExecutionPolicy and set it with Set-ExecutionPolicy RemoteSigned -Scope LocalMachine if needed.

Steps for using TSS for Network Filtering Platform (WFP) issues:

1. Download and Unzip TSS: Download the TSS tool (typically provided by Microsoft Support or found via aka.ms/getTSS) to all relevant nodes (e.g., client and server if the issue spans both). Unzip the contents into a designated folder, such as C:\tss.
2. Open Elevated PowerShell: Navigate to the C:\tss folder from an elevated PowerShell command prompt. This ensures the script has the necessary permissions.
3. Start Traces for NET_WFP Scenario: To initiate the data collection specifically for network filtering platform issues (which includes Windows Firewall and IPsec), run the following cmdlet:


   TSS.ps1 -Scenario NET_WFP



   The -Scenario NET_WFP parameter tells TSS to collect specific data related to network components, including firewall activity, WFP events, and relevant network configurations.
4. Accept EULA (First Run): If this is the first time TSS is being run on the computer, you will be prompted to accept the EULA. Type Y and press Enter to proceed.
5. Allow Recording (Optional): TSS may ask if you want to allow recording of screen activity (PSR or video). This can be helpful for capturing visual steps of reproducing the issue, but it’s optional. Respond Y or N as desired.
6. Reproduce the Issue: TSS will enter a state of active data collection. At this point, you must reproduce the network or firewall issue you are troubleshooting. This is crucial because the traces will capture the system’s state during the actual problem.
   • Note: If collecting logs on both client and server, ensure both nodes are actively tracing before you reproduce the issue. Wait for the confirmation message on both sides that tracing has begun.
7. Finish Log Collection: Once you have successfully reproduced the issue (or after a sufficient period for intermittent issues), return to the PowerShell prompt where TSS is running. Type Y and press Enter to stop the log collection.

The collected traces and logs will be compiled into a compressed .zip file, typically stored in the C:\MS_DATA folder. This zip file contains all the diagnostic information (event logs, network captures, system configurations, and specific WFP traces) that can then be uploaded to a Microsoft Support workspace for analysis, significantly aiding in problem diagnosis.

Further Resources and Continuous Learning¶

Mastering Windows Firewall with Advanced Security is an ongoing process, given the dynamic nature of network security and Windows Server environments. While this guide provides a practical foundation for troubleshooting, continuous learning and engagement with broader resources are crucial for staying ahead of potential issues and optimizing your server’s security posture.

For deeper dives into specific aspects of WFAS, including advanced rule creation, IPsec configuration, and Group Policy management, consult official Microsoft documentation. Community forums and specialized IT professional blogs also offer valuable insights and shared experiences from other administrators facing similar challenges. Regularly reviewing security best practices for Windows Server and staying updated on new features or changes to the network stack will enhance your ability to proactively manage and troubleshoot your firewall.

We hope this comprehensive guide has provided you with the necessary tools and understanding to tackle your Windows Firewall challenges effectively. Have you encountered particularly challenging firewall issues? What troubleshooting techniques have you found most effective in your own environments? Share your experiences and questions in the comments below!
