Troubleshooting: Windows VM Fails to Boot? Fix Windows Boot Manager Errors

Table of Contents

A Windows Virtual Machine (VM) failing to boot is a critical issue that can disrupt operations and productivity. Often, these failures stem from problems within the Windows Boot Manager, a crucial component responsible for loading the operating system. When a VM encounters such a problem, it can get stuck in a boot loop, display a black screen, or present specific error messages related to the boot configuration data (BCD). Diagnosing and resolving these issues requires a systematic approach, often leveraging the VM’s serial console to execute specialized commands that repair or reconfigure the boot environment.

These troubleshooting steps are designed to address common Boot Manager errors, enabling you to regain control over your VM and restore its operational state. Before proceeding with any modifications, it is highly recommended to have a snapshot or backup of your VM, if possible, to ensure data integrity in case of unforeseen complications. The methods outlined here will guide you through optimizing boot times, ensuring access to critical recovery menus, and reconfiguring memory dump settings to facilitate future diagnostics.

Prerequisites for Effective Troubleshooting¶

Before diving into the specific commands, understanding the essential preparatory steps is crucial. Most of these troubleshooting procedures require direct interaction with the VM’s command line environment, which is typically accessed through a serial console. This console provides a text-based interface, allowing you to send commands directly to the VM’s operating system, even if the graphical user interface is inaccessible.

Furthermore, Windows VMs come in two generations: Generation 1 (Gen1) and Generation 2 (Gen2). Gen1 VMs use a BIOS-based firmware interface and a Master Boot Record (MBR) partitioning scheme, while Gen2 VMs leverage a UEFI firmware interface and GUID Partition Table (GPT) partitioning. The commands for modifying the Boot Configuration Data (BCD) can differ slightly between these generations, specifically concerning the path to the BCD store. Identifying your VM’s generation and the correct volume letter for its OS disk or EFI system partition is a vital first step to ensure commands are applied accurately. You may need to use tools like diskpart within a recovery environment to ascertain these volume letters.

Solution 1: Optimizing Boot Manager Waiting Time for Rapid Recovery¶

One common scenario during VM boot failures or configuration changes is the default 30-second waiting period imposed by the Windows Boot Manager. This timeout determines how long the boot manager waits for user input before automatically selecting the default operating system. While useful in multi-boot scenarios, this delay can significantly prolong troubleshooting cycles when a VM is stuck in a boot loop or requires frequent reboots to test fixes.

Reducing this waiting time is a simple yet effective way to accelerate the diagnostic process. By setting a shorter timeout, such as 5 seconds, you minimize the delay between reboots, allowing you to iterate through troubleshooting steps more quickly. This optimization is particularly beneficial in environments where VM uptime is critical and every second counts during a recovery operation. It ensures that the VM progresses past the boot manager prompt without unnecessary delays, even when no user interaction is provided.

The Default Boot Experience and Its Impact¶

By default, the Windows Boot Manager is configured to pause for 30 seconds at startup, presenting the user with options to select an operating system or access advanced boot utilities. This waiting period is intended to provide ample opportunity for user intervention, which can be beneficial in certain circumstances. However, during active troubleshooting of a non-booting VM, this delay can become counterproductive. Each reboot, whether intentional or part of a boot loop, adds an extra half-minute, collectively extending the downtime.

Reducing this timeout directly contributes to a more efficient and less frustrating troubleshooting experience. It allows for quicker iterations of applying a fix and then attempting a reboot to verify its effectiveness. This minor adjustment can save significant time, especially when dealing with complex or persistent boot issues that require multiple reboots.

Implementing the Timeout Reduction¶

To adjust the default boot manager timeout, you will use the bcdedit command. This powerful command-line tool is used for managing Boot Configuration Data, which is crucial for controlling how Windows starts. The specific command to reduce the waiting time is straightforward and targets the general boot manager settings.

Execute the following command in your VM’s serial console:

bcdedit /set {bootmgr} timeout 5

This command directly instructs the Boot Manager to wait for only 5 seconds before proceeding with the default boot entry. The {bootmgr} identifier refers to the Boot Manager object within the BCD store, and timeout is the parameter you are modifying. The value 5 specifies the new timeout in seconds. After executing this command, subsequent reboots of the VM should reflect the reduced waiting period, allowing for faster system restarts and quicker troubleshooting cycles.

Verification Steps¶

After applying the timeout reduction, you can verify that the change has taken effect by rebooting the VM and observing the boot sequence. The initial boot screen, where the operating system selection or boot options are presented, should now appear for a significantly shorter duration, approximately 5 seconds, before automatically proceeding.

Alternatively, you can verify the setting directly from the serial console by running bcdedit without any parameters, or specifically bcdedit /enum all. This will display all boot configuration entries, including the Boot Manager settings, where you can confirm that the timeout value has been updated to 5. This verification ensures that the command was successfully processed and the intended change is active.

Solution 2: Activating the Boot Menu for Advanced Options¶

When a Windows VM fails to boot normally, accessing advanced boot options is often a crucial step in diagnosing and resolving the underlying issue. The DisplayBootMenu setting controls whether the Windows Boot Manager presents a menu of advanced boot options (such as Safe Mode, Last Known Good Configuration, or the Recovery Environment) during startup. By default, this menu might not be visible, preventing direct access to these vital diagnostic tools.

Enabling DisplayBootMenu forces the boot manager to show this menu every time the VM starts. This provides immediate access to various recovery options without needing to repeatedly press a specific key during the boot sequence, which can be challenging or impossible in a VM environment. This capability is instrumental for troubleshooting scenarios that require booting into a specific mode or leveraging built-in repair utilities.

Unlocking Critical Repair Tools with DisplayBootMenu¶

The Windows Advanced Boot Options menu provides a gateway to several powerful diagnostic and repair tools. These include, but are not limited to, Safe Mode (which loads Windows with only essential services and drivers), Startup Repair (which automatically fixes common boot problems), Command Prompt access for advanced users, and System Restore. When your VM fails to boot, gaining access to this menu is often the first step towards self-recovery.

However, if the DisplayBootMenu setting is disabled or not explicitly enabled, the system might attempt to boot directly into the problematic state, bypassing these critical options. Explicitly enabling this feature ensures that you always have an opportunity to select a different boot mode or enter the recovery environment, significantly enhancing your troubleshooting capabilities and expediting the resolution of complex boot failures.

Enabling for Generation 1 VMs¶

For Generation 1 VMs, which rely on BIOS firmware, the BCD store is typically located in the boot directory on the system partition. To enable the display boot menu for these VMs, you must specify the exact path to this BCD store using the /store parameter with the bcdedit command. This ensures that the command targets the correct boot configuration data.

Use the following command in the serial console for Generation 1 VMs:

bcdedit /store <VOLUME LETTER WHERE THE BCD FOLDER IS>:\boot\bcd /set {bootmgr} displaybootmenu yes

Replace <VOLUME LETTER WHERE THE BCD FOLDER IS> with the actual drive letter of the partition containing the boot folder. This is commonly the system drive, often C:, but it could also be a separate recovery partition. You might need to use diskpart within a Windows Recovery Environment (WinRE) session to identify the correct volume letter if you are unsure. The {bootmgr} identifier refers to the Boot Manager object, and displaybootmenu yes enables the option to show the menu.

Enabling for Generation 2 VMs¶

Generation 2 VMs use UEFI firmware and a GUID Partition Table (GPT) for disk partitioning. Their BCD store is located within the EFI System Partition (ESP), typically in the EFI\Microsoft\boot directory. Similar to Gen1 VMs, specifying the correct path to this BCD store using the /store parameter is essential for the command to execute successfully.

Use the following command in the serial console for Generation 2 VMs:

bcdedit /store <VOLUME LETTER OF EFI SYSTEM PARTITION>:EFI\Microsoft\boot\bcd /set {bootmgr} displaybootmenu yes

Here, <VOLUME LETTER OF EFI SYSTEM PARTITION> should be replaced with the drive letter assigned to your EFI System Partition. This partition is usually a small, FAT32 formatted partition. Identifying this letter often requires using diskpart in WinRE to list partitions and their assigned drive letters. Once the command is successfully executed, your Gen2 VM will display the advanced boot options menu on subsequent startups, providing you with critical access for troubleshooting.

Understanding BCD Store Paths¶

The /store parameter in the bcdedit command is crucial when you need to modify a BCD store that is not currently the system store. In troubleshooting scenarios, especially when dealing with a non-booting VM, you are often working with a mounted OS disk from a different environment (like WinRE), or the serial console might be interacting with a specific instance of the Boot Manager that requires explicit pathing.

The BCD store is a database that contains boot configuration parameters and controls how the operating system starts. For Gen1 VMs, this database is part of the traditional BIOS boot process, typically found alongside the operating system’s boot files. For Gen2 VMs, it is integral to the UEFI boot process and resides within the dedicated EFI System Partition. Specifying the correct path ensures that your changes are applied to the active or target BCD store, enabling the displaybootmenu and other settings to take effect as intended.

Solution 3: Ensuring Consistent Boot Timeout Across VM Generations¶

While Solution 1 provides a general method to reduce the boot manager timeout, it’s beneficial to explicitly apply this timeout setting directly to the specific BCD stores of Generation 1 and Generation 2 VMs. This ensures consistency and guarantees that the desired 5-second timeout is enforced regardless of how the VM’s boot process interacts with its respective BCD store. This step reiterates the importance of a rapid boot cycle during troubleshooting and applies the setting in a more targeted manner, mirroring the approach used for enabling the DisplayBootMenu.

By specifically targeting the BCD stores for each VM generation, you eliminate any ambiguity regarding which BCD store the timeout setting applies to. This method is particularly useful in environments where VMs might have complex boot configurations or when you need to be absolutely certain that the shortest possible timeout is active for diagnostic purposes. It reinforces the goal of achieving faster reboots to accelerate problem resolution.

Reinforcing Timeout Settings for Specific BCD Stores¶

The aim of this step is to ensure that the 5-second boot manager timeout is consistently applied to the authoritative BCD store for both Generation 1 and Generation 2 VMs. While the general bcdedit /set {bootmgr} timeout 5 command affects the active boot configuration, explicitly targeting the BCD store path with the /store parameter solidifies this setting. This is a best practice, particularly when dealing with VMs that may have been migrated or have had their boot configurations modified, ensuring the desired behavior is locked in.

This targeted approach guarantees that the reduced timeout is persistently configured within the specific BCD database that your VM uses for its boot process. It’s about precision and redundancy, confirming that your efforts to speed up the boot cycle are fully implemented and effective across different VM architectural setups.

Applying Timeout for Generation 1 VMs¶

For Generation 1 VMs, which rely on the legacy BIOS-based boot process, the BCD store is typically found in the boot directory on the system volume. To ensure the 5-second timeout is explicitly set for this BCD store, you will use a command similar to the one for enabling DisplayBootMenu, but targeting the timeout parameter instead.

Execute the following command in the serial console for Generation 1 VMs:

bcdedit /store <VOLUME LETTER WHERE THE BCD FOLDER IS>:\boot\bcd /set {bootmgr} timeout 5

Remember to replace <VOLUME LETTER WHERE THE BCD FOLDER IS> with the correct drive letter of the partition that contains your VM’s Windows installation and its boot directory. This command explicitly modifies the timeout value within that specific BCD store, ensuring the setting is robustly applied for Gen1 VM boot sequences.

Applying Timeout for Generation 2 VMs¶

For Generation 2 VMs, which utilize UEFI firmware, the BCD store is located within the EFI System Partition (ESP). To apply the 5-second timeout to this specific BCD store, you must provide the precise path to the EFI directory within the ESP.

Execute the following command in the serial console for Generation 2 VMs:

bcdedit /store <VOLUME LETTER OF EFI SYSTEM PARTITION>:EFI\Microsoft\boot\bcd /set {bootmgr} timeout 5

Ensure that you substitute <VOLUME LETTER OF EFI SYSTEM PARTITION> with the actual drive letter assigned to your VM’s EFI System Partition. This command directly updates the boot manager timeout setting within the UEFI-specific BCD store, guaranteeing a consistent 5-second waiting period for Gen2 VM startups.

BCD Command Summary by VM Generation¶

To provide a clear overview of the bcdedit commands for different VM generations, the following table summarizes the primary commands discussed:

Command Type	Generation 1 VMs (Example C: for BCD folder)	Generation 2 VMs (Example F: for EFI partition)
Enable DisplayBootMenu	bcdedit /store C:\boot\bcd /set {bootmgr} displaybootmenu yes	bcdedit /store F:EFI\Microsoft\boot\bcd /set {bootmgr} displaybootmenu yes
Set Timeout (5s)	bcdedit /store C:\boot\bcd /set {bootmgr} timeout 5	bcdedit /store F:EFI\Microsoft\boot\bcd /set {bootmgr} timeout 5
General Timeout	bcdedit /set {bootmgr} timeout 5	bcdedit /set {bootmgr} timeout 5

This table serves as a quick reference, highlighting the slight but crucial differences in syntax related to the BCD store paths for each VM generation. Always remember to replace the placeholder volume letters with the actual drive letters specific to your VM’s configuration.

Solution 4: Safeguarding Diagnostics: OS Disk Space and Memory Dump Configuration¶

A critical, yet often overlooked, aspect of VM boot failures is the available free space on the operating system (OS) disk. If the OS disk’s free space falls below the VM’s configured memory (RAM) size, Windows might struggle to create a paging file or generate a memory dump (crash dump) during a system crash. The inability to write a memory dump can severely hinder post-mortem analysis and prevent administrators from understanding the root cause of a boot failure or system crash.

Ensuring adequate OS disk space, or at least configuring the memory dump location to a data disk with sufficient free space, is vital for reliable diagnostics. This proactive step ensures that even if the OS disk is critically low on space, valuable crash information can still be captured and later analyzed. This solution outlines how to verify disk space and, if necessary, modify the registry to redirect memory dump files to an alternative, spacious data disk.

The Dire Consequences of Insufficient OS Disk Space¶

Windows relies heavily on free disk space for various operations, including creating a paging file (virtual memory), temporary files, and system logs. If the OS disk’s free space is less than the VM’s assigned RAM, it can lead to severe performance degradation, application instability, and, crucially, prevent the system from booting entirely. In scenarios of boot failure, a full OS disk can block the creation of critical diagnostic files, such as memory dumps, which are essential for understanding why the VM crashed.

A system attempting to write a memory dump to a full or near-full OS disk will fail, leaving no trace of the crash’s specifics. This absence of diagnostic data makes root cause analysis extremely difficult, prolonging the troubleshooting process and increasing downtime. Therefore, verifying and managing OS disk space is a fundamental step in maintaining VM health and ensuring effective crash diagnostics.

Redirecting Memory Dumps for Effective Post-Mortem Analysis¶

Memory dumps are snapshot files of a computer’s memory at the time of a system crash (e.g., a Blue Screen of Death). These files are invaluable for engineers and administrators to analyze the state of the system, identify problematic drivers, software, or hardware issues that led to the crash. By default, Windows attempts to save these memory dumps to the %SystemRoot% directory (typically C:\Windows).

If the C: drive is full, the memory dump cannot be written, effectively blinding you to the cause of the VM’s instability or boot failure. To circumvent this, you can change the default location for memory dumps to a data disk attached to the VM that has ample free space (e.g., F:). This ensures that even when the OS drive is struggling with space, crucial diagnostic information is still captured, enabling proper analysis and resolution. This registry modification is a key step in proactive troubleshooting preparation.

Step-by-Step Registry Modification for Dump Configuration¶

Modifying the registry to change the memory dump location involves loading the registry hive of the broken OS disk, making the necessary changes, and then unloading it. This process is performed using the reg command-line utility, typically from a recovery environment or by attaching the OS disk to another functional VM. The changes target specific registry keys under Control\CrashControl within both ControlSet001 (the current control set) and ControlSet002 (the last known good control set) to ensure consistency.

The key parameters being modified are:
* CrashDumpEnabled: Set to 1 to enable memory dumps.
* DumpFile: Specifies the path where the memory dump file (MEMORY.DMP) will be saved. Here, %SystemRoot% will be replaced with the drive letter of a data disk (e.g., F:).
* NMICrashDump: Set to 1 to enable NMI (Non-Maskable Interrupt) initiated crash dumps, which can be useful for manual crash initiation for diagnostic purposes.

Load the Registry Hive from the Broken OS Disk¶

The first step is to load the SYSTEM registry hive from the non-booting VM’s OS disk. This makes its registry accessible for modification from your current serial console session or recovery environment. You will load it as a temporary hive under HKLM.

reg load HKLM\<broken-system> <volume-letter-of-broken-os-disk>:\windows\system32\config\SYSTEM

Replace <broken-system> with a temporary name for the loaded hive (e.g., OfflineTofflineSystem) and <volume-letter-of-broken-os-disk> with the actual drive letter of your problematic OS disk (e.g., E: if C: is already in use by the recovery environment). This command mounts the OS disk’s SYSTEM registry hive, allowing you to edit it as if it were the active system.

Configure Crash Control for ControlSet001¶

After loading the registry hive, you will add or modify the crash control settings for ControlSet001. This represents the current configuration set that Windows attempts to use for booting.

reg add "HKLM\<broken-system>\ControlSet001\Control\CrashControl" /v CrashDumpEnabled /t REG_DWORD /d 1 /f
reg add "HKLM\<broken-system>\ControlSet001\Control\CrashControl" /v DumpFile /t REG_EXPAND_SZ /d "F:\MEMORY.DMP" /f
reg add "HKLM\<broken-system>\ControlSet001\Control\CrashControl" /v NMICrashDump /t REG_DWORD /d 1 /f

In the DumpFile command, F:\MEMORY.DMP is an example. You should replace F: with the actual drive letter of an attached data disk that has sufficient free space. The /f flag forces the overwrite of existing values, ensuring your changes are applied. These commands enable crash dumps, set their output file path, and enable NMI-triggered dumps within the current control set.

Configure Crash Control for ControlSet002¶

It’s also a best practice to apply these same crash control settings to ControlSet002. This control set represents the “Last Known Good Configuration” and ensuring its crash dump settings are correct can be crucial if the system reverts to it during boot attempts.

reg add "HKLM\<broken-system>\ControlSet002\Control\CrashControl" /v CrashDumpEnabled /t REG_DWORD /d 1 /f
reg add "HKLM\<broken-system>\ControlSet002\Control\CrashControl" /v DumpFile /t REG_EXPAND_SZ /d "F:\MEMORY.DMP" /f
reg add "HKLM\<broken-system>\ControlSet002\Control\CrashControl" /v NMICrashDump /t REG_DWORD /d 1 /f

Again, ensure F:\MEMORY.DMP is adjusted to your chosen data disk. Applying these settings to both control sets maximizes the chances that a memory dump will be successfully generated, regardless of which control set the operating system attempts to load during subsequent boot attempts.

Unload the Broken OS Disk’s Registry Hive¶

Once all modifications are complete, it is essential to unload the registry hive that you previously loaded. This releases the mounted hive and finalizes the changes, ensuring they are saved back to the original OS disk.

reg unload HKLM\<broken-system>

Replace <broken-system> with the temporary name you used when loading the hive. Unloading the hive is a critical step; failure to do so can prevent the VM from booting or lead to other system inconsistencies. After unloading, the OS disk is ready for an attempt to reboot the VM and verify if the boot issue has been resolved.

Troubleshooting Flowchart¶

This flowchart illustrates the logical progression through the outlined troubleshooting steps:

mermaid graph TD A[VM Fails to Boot] --> B{Connect via Serial Console}; B --> C{Identify VM Generation & Volume Letters}; C --> D{Attempt to Reduce Boot Timeout (bcdedit)}; D --> E{Enable Display Boot Menu (bcdedit /store)}; E --> F{Verify OS Disk Space vs. RAM}; F -- Insufficient Space --> G{Configure Memory Dump Location (reg)}; F -- Sufficient Space --> H[Attempt VM Reboot]; G --> H; H --> I{Issue Resolved?}; I -- Yes --> J[Monitor VM Health]; I -- No --> K[Further Diagnostics & Support];

Visual Guide and Further Assistance¶

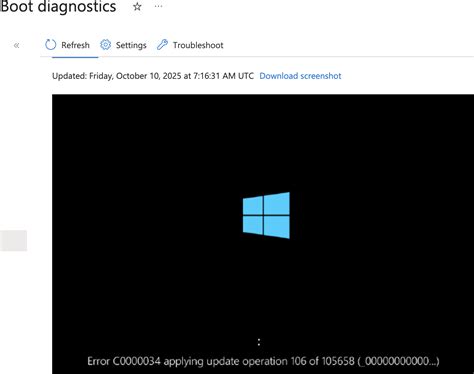

For those who prefer a visual step-by-step walkthrough or need to see these commands executed in a live environment, watching a detailed video tutorial can be highly beneficial. Visual aids can clarify the process of connecting to the serial console, identifying correct volume letters, and observing the expected output of each command.

For a comprehensive visual guide on these advanced troubleshooting steps, watch this detailed walkthrough:

Video Title: Advanced Windows VM Boot Repair: Resolving Boot Manager and Memory Dump Issues
Description: This tutorial covers practical steps to fix Windows Virtual Machine boot failures, focusing on BCD errors and memory dump configurations. Learn how to use bcdedit and reg commands via the serial console to diagnose and repair your non-booting Windows VM.
https://www.youtube.com/watch?v=placeholder_id

(Please note: The YouTube video link and image are illustrative placeholders for demonstration purposes.)

Conclusion and Next Steps¶

Troubleshooting a non-booting Windows VM can be a complex endeavor, but by systematically applying the solutions outlined above, you significantly increase your chances of successful recovery. Optimizing the boot manager timeout, enabling the advanced boot menu, and correctly configuring memory dump locations are fundamental steps that empower you to diagnose and resolve various boot-related issues. These techniques provide crucial access to your VM’s core configuration, allowing for precise adjustments even when the graphical interface is unavailable.

Remember to always exercise caution when modifying critical system configurations like the BCD store or the Windows Registry. Always ensure you have identified the correct VM generation and volume letters before executing commands. If these steps do not resolve your VM’s boot issues, further diagnostics may be required, potentially involving the analysis of collected memory dumps or seeking assistance from your cloud provider’s support team.

We hope this guide has provided you with the necessary tools and knowledge to tackle Windows VM boot failures confidently. Have you encountered similar issues with your virtual machines? Share your experiences and any additional tips in the comments below! Your insights could help fellow professionals navigate these challenging situations.
