Troubleshooting Windows VMs: Expert Guide to Repairing Boot Configuration Data

Table of Contents

Boot configuration issues are a common cause of Windows Virtual Machines failing to start correctly. The Boot Configuration Data (BCD) stores critical information required by the Windows Boot Manager to load the operating system. When this data becomes corrupted or misconfigured, the VM may enter a boot loop, display blue screen errors, or fail to start the operating system entirely. This guide provides a detailed, step-by-step process to repair the BCD on an unbootable Windows VM by attaching its operating system disk to a separate, healthy troubleshooting VM.

Understanding the Boot Configuration Data (BCD) is crucial for effective troubleshooting. BCD acts as a firmware-independent database for boot configuration, replacing the older boot.ini file used in Windows XP and earlier. It contains various boot parameters, including the location of the Windows operating system loader and details about recovery options. Damage to this data, often caused by unexpected shutdowns, disk errors, or system file corruption, can render a Windows system unbootable.

To begin the repair process, we must first isolate the problematic OS disk from its current, non-functional VM environment. This allows us to access the disk’s file system and BCD store from a working system. The initial step involves removing the VM object itself, but critically, retaining the underlying OS disk resource.

Preparing the Environment for BCD Repair¶

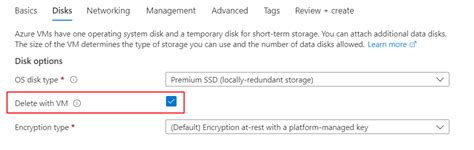

The first essential action is to delete the problematic virtual machine. However, you must perform this step carefully to avoid losing your operating system disk and its valuable data. When prompted to confirm the deletion of the VM, ensure you clear the option that would also delete the associated OS disk resource. This ensures that the virtual hard drive file (VHD or VHDX) containing your Windows installation remains available for reattachment.

Keeping the OS disk is paramount, as it contains all the data and the Windows installation we intend to repair. Deleting the VM object simply removes the configuration layer that defines the VM instance itself, freeing up the disk to be attached elsewhere. Take extra caution during this step to verify the disk deletion option is unchecked.

Once the problematic VM object is deleted, the OS disk becomes a standalone resource in your cloud environment. The next step involves attaching this disk to a separate, healthy Windows VM. This second VM, often referred to as a troubleshooting or rescue VM, will serve as a temporary host to access and modify the files on the unbootable disk. Select a troubleshooting VM running a compatible Windows version, ideally the same or newer than the OS on the disk you are repairing.

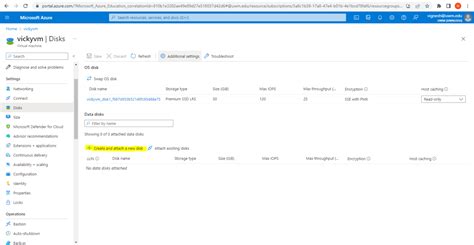

Attaching the disk is typically done through the management portal or command-line interface of your cloud provider. The process involves selecting the troubleshooting VM and adding the detached OS disk as a data disk. Once attached, the troubleshooting VM will recognize the new disk, allowing you to access its partitions and file system like any other attached drive. This setup provides the necessary access to perform the BCD repair operations.

Accessing the Disk and Identifying Partitions¶

After successfully attaching the problematic OS disk to the troubleshooting VM, the next logical step is to establish a connection to the troubleshooting VM itself. This is usually done via Remote Desktop Protocol (RDP) for Windows VMs. Ensure you can log in with administrative privileges, as modifying boot configuration data requires elevated permissions.

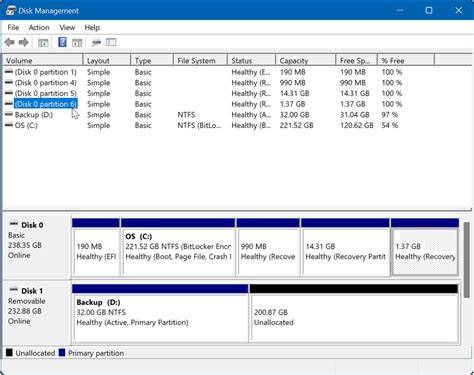

Once connected to the troubleshooting VM, you need to verify that the attached disk is recognized and accessible. Open the Disk Management utility. You can find this by searching for “Computer management” in the Start menu and then navigating to Storage > Disk Management in the console tree. In Disk Management, locate the newly attached disk. It should appear alongside the troubleshooting VM’s own disks. Verify that the disk status is “Online” and that its partitions have been assigned drive letters. If partitions don’t have letters, right-click on each partition and select “Change Drive Letter and Paths” to assign one manually.

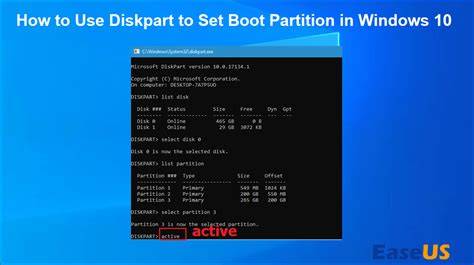

Identifying the correct partitions on the attached disk is crucial for the repair process. You need to distinguish between the Boot partition (sometimes called the System Reserved partition or EFI System Partition on UEFI systems) and the Windows partition (where the operating system files reside).

The Windows partition is typically the largest partition on the disk and contains the \Windows folder. Navigating through the drive letters assigned in Disk Management and looking for the Windows folder is the easiest way to identify this partition.

The Boot partition contains the boot manager files and the BCD store itself. This partition is usually much smaller than the Windows partition, often ranging from 300 MB to 500 MB. It contains a hidden system folder named \boot. To see this folder in File Explorer, you might need to adjust folder options: open Folder Options, go to the View tab, select “Show hidden files, folders, and drives,” and uncheck “Hide protected operating system files (Recommended).” Once these options are adjusted, browse the smaller partitions until you find the one containing the \boot folder. This is your Boot partition.

In some cases, particularly with older systems or specific configurations, the Boot and Windows partitions might be the same single partition. If there is only one partition on the attached OS disk, that partition serves both roles. However, in modern Windows installations, they are typically separate. Correctly identifying these partitions and their assigned drive letters (let’s assume <boot-partition>: for the Boot partition and <windows-partition>: for the Windows partition for the following steps) is vital for running the repair commands accurately.

Repairing the Boot Configuration Data using BCDEdit¶

With the partitions identified and assigned drive letters, we can now proceed with repairing the Boot Configuration Data using the bcdedit command-line tool. bcdedit is a powerful tool for managing BCD stores and requires an elevated command prompt. Right-click the Command Prompt shortcut in the Start menu and select “Run as administrator.”

The first step in using bcdedit for repair is to inspect the current BCD store on the attached disk. You need to run the bcdedit /enum command, specifying the path to the BCD store file on the Boot partition of the attached disk. The command syntax is as follows:

bcdedit /store <boot-partition>:\\boot\\bcd /enum /v

Replace <boot-partition> with the actual drive letter assigned to the Boot partition you identified earlier (e.g., D: or E:). The /store parameter tells bcdedit to operate on a specific BCD file rather than the default one used by the troubleshooting VM. The /enum parameter lists the entries in the BCD store, and /v provides verbose output, showing full identifiers necessary for the next steps.

Executing this command will display the BCD entries stored on the attached disk. Look for the entry labeled “Windows Boot Loader.” This entry represents the configuration for loading your Windows operating system. Note down the identifier value associated with this entry. The identifier will be in the format of a Globally Unique Identifier (GUID), a long string of hexadecimal characters enclosed in curly braces (e.g., {xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx}). This GUID uniquely identifies the Windows Boot Loader entry you need to modify. Do not confuse this with the “Windows Boot Manager” identifier, which is also listed but typically has a fixed identifier like {bootmgr} or {fwbootmgr}.

It is important to note that the bcdedit /store <boot-partition>:\\boot\\bcd /enum /v command requires the BCD file to exist at the specified path (<boot-partition>:\boot\bcd). If the \boot folder or the bcd file within it is missing or severely corrupt, the command may fail. In such cases, you might need to restore the BCD file. A common approach involves obtaining a healthy bcd file from a working Windows installation of the same version (if available) and copying it to the <boot-partition>:\boot\ directory on the attached disk using File Explorer or Command Prompt on the troubleshooting VM. Ensure you replace the placeholder path with your actual drive letter.

Once you have the Windows Boot Loader identifier (GUID), you can proceed to repair the BCD entries that point the boot loader to the correct operating system location. You will use the bcdedit /set command to modify specific parameters within the identified Windows Boot Loader entry. The parameters we need to correct are OSDEVICE and potentially SYSTEMROOT (though OSDEVICE is often sufficient in this scenario).

The OSDEVICE parameter specifies the partition that contains the system root directory (the \Windows folder). It can be set in a couple of ways, and for clarity and thoroughness when pointing to a partition on a different disk, we often set it twice. The commands you will run are:

bcdedit /store <boot-partition>:\\boot\\bcd /set {<identifier>} OSDEVICE BOOT

bcdedit /store <boot-partition>:\\boot\\bcd /set {<identifier>} OSDEVICE partition=<windows-partition>:

In these commands:
* <boot-partition> is the drive letter of the Boot partition on the attached disk (e.g., D:).
* <identifier> is the GUID you obtained in the previous step for the Windows Boot Loader entry (e.g., {a1b2c3d4-e5f6-7890-1234-567890abcdef}).
* <windows-partition> is the drive letter of the Windows partition on the attached disk (e.g., E:).

The first command OSDEVICE BOOT tells the boot loader to look for the operating system files relative to the Boot partition. The second command OSDEVICE partition=<windows-partition>: explicitly specifies the partition containing the OS files using its drive letter. While seemingly redundant, using both forms in sequence can sometimes resolve specific boot path issues. Execute these commands one after the other in the elevated command prompt on the troubleshooting VM. If successful, the commands will report that the operation completed successfully. This indicates that the BCD store on the attached disk has been updated to correctly point to the location of the Windows operating system files on that same disk.

Completing the Repair and Recreating the VM¶

After successfully running the bcdedit /set commands to repair the Boot Configuration Data, the OS disk should now be correctly configured to boot Windows. However, the disk is still attached as a data disk to your troubleshooting VM. To test the repair and bring your VM back online, you need to detach the disk from the troubleshooting VM and then create a new VM using this repaired OS disk.

First, return to your cloud provider’s management portal or command-line interface. Locate the troubleshooting VM and detach the repaired OS disk. This makes the disk available to be used as the primary operating system disk for a new VM instance. Ensure the detach operation completes successfully.

Next, create a new virtual machine. Instead of creating a VM with a fresh OS disk, select the option to create a VM from an existing disk. You will be prompted to select the OS disk you just detached from the troubleshooting VM. Configure the new VM with the desired size, network settings, and other parameters, similar to how the original VM was configured.

Creating a new VM from the repaired disk effectively gives your operating system a new VM container to run within. This new VM instance will attempt to boot using the BCD stored on the attached OS disk, which you have just repaired.

Once the new VM is provisioned and started, attempt to connect to it, typically via RDP. If the BCD repair was successful, the VM should boot into the Windows operating system. Verify that the system starts correctly, that you can log in, and that your applications and data are accessible. This confirms that the boot configuration issue has been resolved.

This process of deleting the old VM (keeping the disk), attaching the disk to a rescue VM for repair, and then creating a new VM from the repaired disk is a standard and effective method for recovering Windows VMs suffering from BCD corruption or other boot-related problems that prevent accessing the OS directly. While this guide focuses on BCD, the same attachment method can be used to troubleshoot other OS-level issues by providing file system access.
