UEFI Windows RE Tools: Understanding Disk Partition Requirements for Optimal Recovery

Table of Contents

This article explores the critical disk partition requirements necessary for the effective utilization of Windows Recovery Environment (Windows RE) tools on computers employing a Unified Extensible Firmware Interface (UEFI). Proper partition configuration is fundamental to ensuring that Windows RE can function correctly, providing essential troubleshooting and recovery options when Windows fails to start or encounters significant issues. Understanding these requirements is key for system administrators and advanced users alike to maintain system stability and facilitate recovery operations.

Understanding Windows Recovery Environment (Windows RE)¶

Windows Recovery Environment is a recovery platform designed to help users troubleshoot common causes of unbootable operating systems and restore Windows. It is based on the Windows Preinstallation Environment (WinPE) and can be customized with additional drivers, languages, and recovery tools. Windows RE provides access to startup repair, system restore, system image recovery, command prompt, and other diagnostic utilities.

When a Windows installation encounters a critical error that prevents it from booting normally, the system can automatically transition into the Windows RE environment. This allows users to attempt repairs or restore their system using the tools provided. Having a properly configured and accessible Windows RE partition is therefore a crucial element of a reliable Windows installation, especially on modern UEFI-based systems.

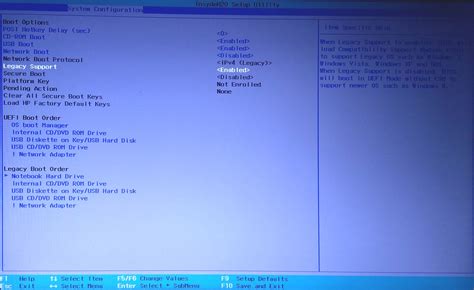

The Role of UEFI in Modern Boot Processes¶

Unified Extensible Firmware Interface (UEFI) is a standard firmware interface for computers, designed to replace the legacy Basic Input/Output System (BIOS). UEFI offers several advantages, including faster boot times, improved security features like Secure Boot, and support for larger hard drives (>2 TB) using the GUID Partition Table (GPT) partitioning scheme. Modern Windows installations, particularly Windows 8 and later, are typically installed on UEFI systems using GPT disks.

This shift from BIOS/MBR to UEFI/GPT significantly changes how partitions are structured on a hard drive. Instead of a single boot sector and primary/extended partitions, UEFI systems require a dedicated EFI System Partition (ESP) to store boot loaders and other necessary files. The presence and location of the Windows RE partition are also handled differently compared to older BIOS systems, integrating more tightly with the overall UEFI boot process.

Partition Size Requirements for Windows RE Tools¶

For Windows RE tools to be functional on a UEFI system, the dedicated disk partition must meet specific size requirements. The minimum size stipulated for this partition is 300 megabytes (MB). This minimum ensures that the core Windows RE image file, Winre.wim, can be stored on the partition.

However, simply meeting the minimum might not be sufficient for optimal functionality and future updates. The typical size allocated for the Windows RE tools image, Winre.wim, along with necessary supporting files, usually falls within the range of 500-700 MB. This size varies depending on factors such as the base language of the Windows installation and any additional customizations or optional components included in the Winre.wim image by the system manufacturer or during deployment. A larger allocation accommodates a more complex Winre.wim file.

Space for Backup Utilities¶

A critical, yet often overlooked, requirement for the Windows RE partition is the inclusion of sufficient free space for backup utilities. While the primary purpose of the partition is to store the Winre.wim image, many backup and recovery software solutions interact with this partition. This interaction often requires temporary space to capture an image of the partition itself or to perform operations related to system recovery.

Therefore, merely allocating enough space for the Winre.wim file is not always adequate. System administrators and users should ensure that the partition has some buffer space beyond the size of the Winre.wim file. Although the exact amount can vary depending on the specific backup software used, providing an additional 50-100 MB of free space within the recovery partition is a prudent measure to avoid potential issues during backup or recovery processes initiated from outside the main Windows partition.

Typical UEFI Partition Layout and the Recovery Partition¶

On a standard UEFI-based system running Windows, the disk is typically partitioned using the GPT scheme and follows a common layout. Understanding this layout helps contextualize the placement and role of the Windows RE partition. A typical layout includes several partitions in a specific order:

1. EFI System Partition (ESP): A small partition (typically 100-300 MB, formatted as FAT32) that contains the boot loaders for all installed operating systems and necessary boot files. This partition is essential for the UEFI firmware to start the operating system.
2. Microsoft Reserved Partition (MSR): A mandatory partition on every GPT disk used by Windows. It doesn’t have a drive letter and typically has a size of 16 MB for disks smaller than 16 GB or 128 MB for larger disks. Its purpose is to reserve space for subsequent use by operating system software, though it does not contain any user data.
3. Windows Partition: The main partition where the Windows operating system, applications, and user data are installed. This partition takes up the majority of the disk space.
4. Recovery Partition (Windows RE): The partition containing the Winre.wim image and supporting files for Windows RE. In modern Windows deployments (Windows 8 and later), this partition is often placed after the main Windows partition. This placement is strategic, making it easier for Windows Setup or Windows Update to resize the partition if the Winre.wim image grows due to updates or customizations, without needing to shrink the main Windows partition.

Here is a simplified representation of a typical UEFI GPT disk layout:

Partition Name	File System	Typical Size	Purpose
EFI System Partition	FAT32	100-300 MB	UEFI boot files
Microsoft Reserved	N/A	16-128 MB	Required for GPT disks, reserved space
Windows Partition	NTFS	Remaining Space	Operating system, applications, user data
Windows RE Partition	NTFS	500-700 MB+	Windows Recovery Environment files (Winre.wim)

Note that the size of the Windows RE partition is shown as 500-700 MB+ to reflect the typical requirement and the need for additional buffer space.

Creating or Managing the Windows RE Partition¶

While Windows Setup automatically creates the necessary partitions during installation, situations may arise where the Windows RE partition needs to be manually managed. This could happen after migrating a system, manually deploying an image, or troubleshooting issues. The diskpart utility and the reagentc command-line tool are the primary tools for this.

Using diskpart, administrators can create, format, and assign types to partitions. For the Windows RE partition, it must be formatted as NTFS. It also requires a specific GPT attribute flag set using diskpart to identify it as a recovery partition, preventing it from being assigned a drive letter during normal Windows operation.

The reagentc tool is used to configure the Windows RE environment. It can enable or disable Windows RE, set the location of the Winre.wim image, and check the current status of Windows RE. For instance, reagentc /info shows whether Windows RE is enabled and where the recovery image is located. If Windows RE is disabled or its partition is misconfigured, reagentc /enable can attempt to reconfigure it, often requiring a valid recovery partition to be present.

Example using diskpart (Illustrative - requires careful execution):¶

diskpart

# Assuming you have unallocated space or a partition to convert
list disk
select disk <your_disk_number>
list partition # Identify the partition or free space

# If creating from free space
create partition primary size=700 # Create a partition of 700MB
format quick fs=ntfs label="Recovery" # Format it

# Set the necessary GPT attribute for a recovery partition
gpt attributes=0x8000000000000001

# If using an existing partition, select it first
# select partition <your_partition_number>
# format quick fs=ntfs label="Recovery"
# gpt attributes=0x8000000000000001

exit

After creating the partition, you would typically use reagentc /setreimage /path R:\Recovery\WindowsRE (assuming the recovery image is copied to R:\Recovery\WindowsRE and R: is a temporary drive letter assigned to the new partition) followed by reagentc /enable. Note that setting GPT attributes correctly is crucial for Windows to recognize it as the recovery partition.

Common Issues and Troubleshooting¶

Issues with the Windows RE partition can lead to failed system repairs, inability to perform system restore, or even prevent Windows updates from installing correctly (especially feature updates that might need to update the Winre.wim image). Common problems include:

• Insufficient Space: The most frequent issue. If the partition is too small (less than 300 MB, or even 500-700 MB if the image has grown), reagentc /enable might fail, or Windows updates requiring a larger Winre.wim might fail.
• Partition Missing or Corrupted: The recovery partition may be accidentally deleted or become corrupted.
• reagentc /info shows disabled: Windows RE might be disabled, or it cannot find the Winre.wim image at the expected location.
• Incorrect Partition Type/Attributes: The partition is present but not correctly identified by Windows as the recovery partition (e.g., missing the correct GPT attribute).

Troubleshooting often involves using diskpart to verify partition sizes and attributes, using reagentc /info to check the RE status, and potentially using reagentc /disable followed by manual partition recreation or resizing, copying the Winre.wim file (usually from C:\Windows\System32\Recovery\Winre.wim), and finally using reagentc /setreimage and reagentc /enable. Resizing requires careful use of disk management tools, potentially including third-party software if shrinking the main Windows partition is necessary to create space for a new recovery partition at the end of the disk.

Importance of Proper Partition Management¶

Maintaining the integrity and adequate size of the Windows RE partition is not just a matter of meeting minimum technical specifications; it’s a fundamental aspect of system resilience. A functional recovery environment provides a lifeline when faced with critical system failures. On UEFI systems, the reliance on a specific partition layout and correct attributes makes careful management even more important.

Ensuring the partition is correctly sized (at least 500-700 MB, plus buffer) and located appropriately (ideally at the end of the disk for ease of resizing) helps prevent issues with Windows updates and ensures that integrated recovery features work as intended. Regular checks using reagentc /info can help confirm that Windows RE is enabled and correctly configured.

Visualizing the Partition Layout with Mermaid¶

To further illustrate the typical UEFI GPT partition layout on a disk, a Mermaid diagram can be useful. This diagram shows the relative order and typical sizes of the key partitions.

mermaid pie title Typical UEFI GPT Disk Layout "EFI System Partition (ESP)" : 200 "Microsoft Reserved (MSR)" : 128 "Windows Partition" : 800000 "Windows RE Partition" : 700

This diagram provides a simplified view; the actual sizes scale with the total disk size, but the relative proportion of the main Windows partition is significantly larger than the others. The key takeaway is the presence and typical order of these distinct partitions on a modern UEFI system.

Conclusion¶

The disk partition requirements for using Windows RE tools on a UEFI computer are specific and essential for reliable system recovery. A minimum of 300 MB is required, but allocating between 500-700 MB is typically necessary to accommodate the Winre.wim image and its variations. Furthermore, providing additional free space within this partition is crucial for backup utilities to function correctly. Proper configuration involves understanding the standard UEFI GPT partition layout and using tools like diskpart and reagentc to ensure the recovery partition is correctly sized, formatted, and attributed. Adhering to these guidelines helps ensure that the Windows Recovery Environment is always available and capable of assisting in troubleshooting and restoring your system when needed, significantly enhancing the overall stability and recoverability of your Windows installation.

Do you have experience with managing Windows RE partitions on UEFI systems? Have you encountered issues related to partition size or configuration? Share your thoughts and questions in the comments below!
