Windows Boot Failure: Multiple EFI System Partitions Detected - Key Considerations

Table of Contents

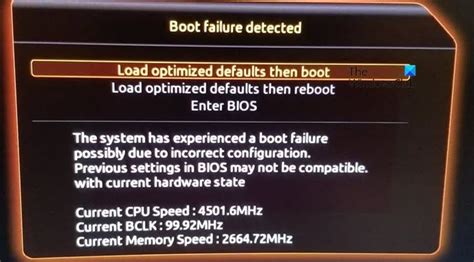

Encountering boot failures in Windows can be a perplexing and frustrating experience, especially when the cause points to an unexpected configuration related to disk partitioning. One such intricate scenario arises when Windows, operating in Unified Extensible Firmware Interface (uEFI) mode, encounters multiple EFI System Partitions (ESPs) across different physical hard drives. This situation often leads to an inability to boot the original Windows installation on the primary disk, with the system defaulting exclusively to a newer installation on a secondary drive.

This article delves into the complexities of this boot issue, examining its symptoms, underlying causes, and providing Microsoft-supported workarounds to ensure proper system functionality. Understanding the nuances of uEFI boot processes and EFI System Partitions is crucial for managing multi-disk Windows environments effectively.

Understanding EFI System Partitions (ESPs)¶

Before diving into the problem, it’s essential to grasp the role of the EFI System Partition. The ESP is a critical component in systems that boot using uEFI firmware. It’s a small, FAT32-formatted partition on a GUID Partition Table (GPT) disk that stores EFI boot applications, boot loaders, and driver files used by the firmware to start the operating system. Without a properly configured ESP, a uEFI-based system cannot initiate the boot process for Windows.

The uEFI firmware relies on these files within the ESP to locate and load the Windows Boot Manager, which then takes over the process of loading the operating system. Each uEFI bootable operating system typically has its boot files residing within an ESP. When multiple operating systems are intended to be bootable, their boot files are ideally managed within a single, unified ESP for seamless interaction and proper boot menu presentation.

Symptoms of Multiple ESPs¶

Consider a common scenario where this boot failure manifests. You possess a personal computer already running a uEFI-bootable Windows installation on its primary hard disk. Subsequently, you decide to add a second hard disk to the system. During the process of installing a second instance of Windows onto this newly added drive, utilizing uEFI bootable media, a critical event occurs: a new EFI System Partition is inadvertently created on the second disk. This new ESP exists in addition to the already established ESP on your primary hard disk.

Upon the completion of this second Windows setup, you may discover that your system no longer offers the option to boot into the original Windows installation located on the primary hard disk. Instead, the boot menu, if accessible, or the system’s default boot behavior will exclusively present and load the newly installed Windows instance on the second hard disk. This behavior indicates a conflict arising from the presence of two separate EFI System Partitions, each attempting to manage the boot process independently, confusing the uEFI firmware. The absence of the original OS from the boot options is the primary and most frustrating symptom.

The Underlying Cause: uEFI Boot Process and Firmware Nuances¶

The root cause of this particular boot conundrum lies deep within the mechanics of the uEFI boot process and how Windows interacts with the system’s firmware. The uEFI boot sequence is heavily reliant on a list of boot entries maintained by the uEFI firmware itself. These entries dictate which operating systems or boot loaders the system can recognize and present during startup.

When a new installation of Windows is performed on a uEFI system, the Windows installation process diligently appends information about this latest installation to the uEFI firmware’s internal list of available operating systems. Crucially, it then sets this most recent installation as the default boot option. This default selection often occurs without presenting an explicit boot menu to the user, particularly during normal startup.

The core issue stems from inherent variances across different versions and implementations of uEFI firmware. Because of these inconsistencies, Windows does not currently possess robust provisions for gracefully managing or recognizing previously installed operating systems that reside on separate EFI System Partitions. Consequently, Windows does not officially support booting to multiple discrete ESPs in the manner described, where each resides on a different physical disk. This limitation means the firmware gets confused when faced with multiple independent boot sources, often prioritizing the last successfully registered boot entry, which belongs to the newest installation.

Furthermore, the Boot Configuration Data (BCD) store, which Windows uses to manage its boot options, is typically confined to a single ESP. When a new ESP is created, a new BCD store is also generated, isolated from any previous ones. This isolation prevents the new Windows installation from properly registering or “seeing” the boot entries of older installations residing on different ESPs, leading to the observed boot option loss.

Visualizing the Problem¶

Consider this simplified Mermaid diagram illustrating the problematic setup:

mermaid graph TD A[Physical Disk 1] --> B(ESP 1); B --> C(Windows OS 1); D[Physical Disk 2] --> E(ESP 2); E --> F(Windows OS 2); G[UEFI Firmware] -- Registers last installed OS --> E; G -- Cannot easily see --> B;
This diagram highlights how the UEFI firmware often gets “stuck” on the last registered ESP (ESP 2), making it difficult to access ESP 1 and its associated Windows OS 1.

Microsoft Supported Workaround: The Unified Dual-Boot Configuration¶

The only Microsoft-supported and recommended workaround for successfully booting multiple installations of Windows in a uEFI environment involves adopting a dual-boot configuration that utilizes a single EFI System Partition (ESP). This approach ensures that all boot entries for different Windows installations are managed centrally within one ESP, allowing the user to select which operating system to boot from, regardless of which physical disk the installation resides on. This setup not only simplifies the boot process but also avoids the conflicts arising from multiple independent ESPs.

In a correctly configured dual-boot scenario:
1. A single ESP is present, typically on the primary boot drive.
2. All Windows installations (e.g., Windows 10 on Disk 1, Windows 11 on Disk 2) register their boot entries within this one shared ESP.
3. The uEFI firmware then sees a single, unified BCD store that contains all boot options, presenting a clear menu during startup.

This unified approach ensures that the firmware doesn’t get confused by disparate boot partitions. The Windows Boot Manager, which resides within that single ESP, handles the presentation of all available operating systems, providing a seamless user experience. It’s crucial during installation to guide the Windows installer to use the existing ESP rather than creating a new one. This often involves careful partitioning or ensuring only one disk is connected during the initial setup of the first OS, then managing the second OS installation to recognize and utilize the existing ESP.

Implementing a Single ESP Dual-Boot Setup¶

To achieve this ideal configuration, careful planning during the Windows installation process is paramount. When installing the second operating system:

• Ensure Proper Disk Preparation: Before starting the second Windows installation, ensure that the target hard drive (the second physical disk) is unallocated space or formatted such that it doesn’t contain any existing EFI System Partitions. If it does, consider deleting all partitions on that disk using Disk Management or diskpart utility before proceeding.
• Guide the Installer: During the custom installation process, when prompted to choose where to install Windows, select the unallocated space on your second physical drive. The Windows installer should then automatically create the necessary Windows partitions (OS partition, Recovery partition, MSR) on this disk, but crucially, it will update the existing ESP on your primary disk with the new OS’s boot entries, rather than creating a new ESP on the second drive.
• Verify Boot Order: After installation, verify your system’s BIOS/UEFI boot order to ensure the primary hard disk (containing the shared ESP) is prioritized. The Windows Boot Manager will then appear, allowing you to choose between your installed operating systems.

It is important to reiterate that the EFI firmware will always prioritize and use the boot entries from the last Windows installation that was performed using setup.exe as the primary boot operating system. However, in a single-ESP configuration, this merely means that the newly installed OS will be the default selection in the boot menu, not that older OSes become unbootable. All options remain accessible through the boot menu presented by the Windows Boot Manager.

More Information and Advanced Considerations¶

This issue can also arise if you add a second hard drive that already contains a pre-existing EFI partition and a bootable operating system. In such cases, the system effectively encounters two fully functional and independent boot environments. Due to the inherent differences in hardware and firmware boot options across various PC manufacturers, it becomes unpredictable which Windows operating system the system will designate or prioritize as the primary boot disk. The uEFI firmware’s internal logic for scanning and prioritizing boot entries can vary widely, leading to inconsistent behavior.

The Role of Microsoft Reserved Partition (MSR)¶

The article also briefly mentions the Microsoft Reserved (MSR) partition. While not directly related to the boot failure caused by multiple ESPs, the MSR is a standard partition type on GPT disks that reserves space for potential future use by Windows components, like converting a basic disk to a dynamic disk. It’s usually created automatically during Windows installation on a GPT disk, typically after the ESP but before the main Windows OS partition. It’s an essential part of a healthy GPT disk layout but doesn’t store boot files itself.

Preventing Future Conflicts: Best Practices¶

To proactively prevent issues related to multiple EFI System Partitions and ensure a smooth multi-boot experience, consider these best practices:

• Install Sequentially: If setting up a multi-boot system, install Windows operating systems one after another. Allow the first Windows installation to create its ESP. For subsequent Windows installations on different drives, ensure the installer is directed to use the existing ESP.
• Disconnect Unnecessary Drives: For absolute certainty, disconnect any secondary hard drives during the initial Windows installation on your primary disk. Once the first OS is fully installed, reconnect the second drive, ensure it is unpartitioned or its existing partitions are deleted (especially any old ESPs), and then proceed with the second Windows installation. This minimizes the chance of a new ESP being created accidentally.
• Utilize Disk Management Tools: Become familiar with Windows’ Disk Management utility or the command-line diskpart tool. These tools allow you to inspect disk partitions, delete unwanted ESPs (with caution, as this can render an OS unbootable if done incorrectly), and prepare disks before installation.
• Understand Your UEFI Firmware: While not always user-friendly, familiarizing yourself with your computer’s UEFI firmware settings can be beneficial. Some firmware allows manual manipulation of boot entries, though this is an advanced step and often not necessary if the installation is performed correctly.

Conceptualizing Boot Flow with Single ESP¶

Here’s how a proper dual-boot setup with a single ESP typically functions:

mermaid graph TD A[Power On] --> B(UEFI Firmware Initialization); B --> C(Reads Boot Order & Entries from NVRAM); C --> D(Locates and Loads Windows Boot Manager from Single ESP); D --> E(Reads Boot Configuration Data - BCD); E --> F{Boot Menu Presented:}; F --> G(Option 1: Windows OS 1 on Disk 1); F --> H(Option 2: Windows OS 2 on Disk 2); G --> I(Loads Windows OS 1); H --> J(Loads Windows OS 2);
This diagram illustrates the streamlined process where the UEFI firmware points directly to a single Windows Boot Manager, which then presents all available OS choices, regardless of their physical disk location.

Further Learning Resources¶

For a deeper understanding of UEFI, GPT, and Windows boot processes, consider exploring resources from Microsoft’s official documentation or reputable technology channels. Visual guides and tutorials can be immensely helpful in grasping these complex concepts.

It’s crucial to approach disk partitioning and OS installation with care. Mismanagement of partitions, especially the EFI System Partition, can lead to unbootable systems. Always back up important data before performing major changes to your disk layout or operating system installations.

Conclusion¶

The issue of Windows boot failure due to multiple EFI System Partitions is a specific challenge encountered in uEFI environments with multiple physical hard drives. It arises from the uEFI firmware’s reliance on singular, authoritative boot entries and Windows’ design to primarily support boot management through a single, unified EFI System Partition. While frustrating, the problem has a clear, supported workaround: meticulously configuring a dual-boot setup that leverages only one ESP across all installed Windows versions.

By understanding the critical role of the EFI System Partition, the behavior of the uEFI boot process, and adhering to best practices during multi-OS installations, users can effectively prevent and manage this particular boot anomaly. Careful planning, proper disk preparation, and a methodical approach to installation are key to maintaining a stable and flexible multi-boot Windows environment.
