Content Distribution in Configuration Manager: An Overview & Configuration Guide

Table of Contents

This comprehensive guide is designed to empower administrators with a deep understanding of the content distribution process within Configuration Manager. By dissecting the underlying mechanisms and essential components, this resource aims to establish a robust foundation for effectively diagnosing and resolving a wide array of content distribution-related challenges that may arise in an enterprise environment. Mastering these concepts is crucial for maintaining efficient software deployment and updates.

Overview and Purpose¶

Content distribution is a core capability of Configuration Manager, enabling the efficient delivery of applications, software updates, operating system images, and other content to client devices across the network. This process ensures that clients have timely access to the resources they need for their operations. A well-configured and understood content distribution system is vital for the smooth operation of any Configuration Manager hierarchy, directly impacting deployment success rates and network utilization.

This guide primarily focuses on the principles applicable to Configuration Manager current branch, as well as its predecessors, Microsoft System Center 2012 Configuration Manager and Microsoft System Center 2012 R2 Configuration Manager. The foundational concepts and troubleshooting methodologies remain largely consistent across these versions, providing a timeless reference for administrators. The original knowledge base article related to this content is 4482728, providing a historical context for the information presented.

Core Components and Threads for Content Distribution¶

Understanding the individual components and their interactions is fundamental to grasping the content distribution process. Each element plays a distinct role in ensuring content is packaged, transferred, and made available to clients.

Site Server¶

The site server acts as the orchestrator of content distribution. When an administrator creates or modifies a package, application, or software update and targets it for distribution to a distribution point (DP), the site server initiates the process. It’s where the administrative console runs, and where the content management tasks are defined.

Distribution Manager (DistMgr)¶

The Distribution Manager, or DistMgr, is a critical component running on the site server. Its primary responsibility is to manage the distribution of content to distribution points. When a new package is created or an existing one is updated, DistMgr receives the instruction and begins processing. It ensures that the content is prepared, compressed, and made ready for transfer. DistMgr works closely with the Configuration Manager database to track the status of content distribution.

DistMgr utilizes multiple threads for its operations. Key threads include:
* Package Processing Threads: These threads handle the initial preparation of content, including calculating hash values and updating package status in the database.
* DP Thread Pool: These threads are responsible for communicating with individual distribution points to initiate the content transfer. Each DP typically has a dedicated thread for ongoing operations.
The distmgr.log file on the site server is the primary log to monitor DistMgr’s activities, providing detailed insights into package processing and DP communication.

Package Transfer Manager (PkgXferMgr)¶

Once DistMgr has processed the content and determined which DPs need it, the Package Transfer Manager (PkgXferMgr) takes over the actual transfer of the content files. PkgXferMgr is responsible for the byte-level transfer of content from the site server’s content library to the remote distribution points. It handles network protocols, compression, and error recovery during the transfer.

PkgXferMgr also uses multiple threads for concurrent transfers to different DPs. It supports various transfer mechanisms, including Server Message Block (SMB) and Background Intelligent Transfer Service (BITS) depending on the configuration and network conditions. The pkgxfermgr.log file on the site server provides extensive details on the content transfer operations, including connection attempts, transfer progress, and any encountered errors.

Distribution Points (DPs)¶

Distribution points are the primary repositories for content in Configuration Manager. They are servers where clients download applications, packages, and operating system images. DPs can be located strategically across a network to provide local content access, minimizing wide area network (WAN) traffic and improving download speeds for clients. Each DP maintains its own copy of the content library.

Client Agent and Content Access¶

When a client needs content (e.g., to install an application), its Configuration Manager client agent communicates with the management point to determine which DP hosts the required content. The client then contacts the assigned DP and uses BITS or SMB to download the content locally. The client agent also maintains a local cache where downloaded content is stored temporarily. The ContentTransferManager.log, DataTransferService.log, and CAS.log files on the client provide insight into the content download process.

Configuration Manager Database (SQL Server)¶

The SQL Server database is the central repository for all Configuration Manager data, including metadata about packages, applications, and their distribution status. DistMgr, PkgXferMgr, and DPs constantly update the database with their progress and status. This central data store allows administrators to monitor the distribution process from the console and facilitates reporting.

Distribution Points: Installation, Upgrade, and Configuration¶

Distribution points are critical infrastructure components, and their proper installation, upgrade, and configuration are paramount for effective content delivery.

Installation Process¶

Adding a distribution point role to a server is typically done via the Configuration Manager console. The process involves selecting a server, specifying drive locations for the content library, and configuring various settings. Prerequisites for a DP include Internet Information Services (IIS), Background Intelligent Transfer Service (BITS), and Remote Differential Compression (RDC), which are automatically installed or configured during the DP setup. During installation, Configuration Manager creates the SMS_DP$ share and the SCCMContentLib folder on the designated drives.

Configuration Options¶

Distribution points offer several configuration options to optimize content delivery:
* Content Validation: DPs can be scheduled to periodically validate the integrity of their content library. This ensures that content files have not been corrupted or tampered with.
* Bandwidth Throttling and Scheduling: Administrators can configure bandwidth limits and schedules for content transfers to DPs. This helps prevent content distribution from saturating network links, especially during peak hours or over WAN connections.
* PXE Support: DPs can be configured for Preboot Execution Environment (PXE) support, allowing clients to boot from the network and deploy operating systems. This requires the Windows Deployment Services (WDS) role.
* Multicast: For large-scale operating system deployments, DPs can support multicast, enabling multiple clients to download the same OS image simultaneously using a single network stream, significantly reducing network load.
* Pre-staged Content: For DPs in locations with very low bandwidth, content can be pre-staged. This involves manually copying the content files to the DP’s SCCMContentLib before the DP role is fully configured, reducing network transfers.
* DP Groups: DPs can be logically grouped for easier content management. When content is distributed to a DP group, it’s automatically sent to all DPs within that group. This simplifies content assignments for administrators.

Upgrade Considerations¶

When a Configuration Manager site is upgraded to a newer version, all associated distribution points are also upgraded automatically. This process ensures compatibility and leverages new features. The upgrade process involves pushing updated binaries and configurations to the DPs, often without requiring manual intervention, though monitoring is always recommended.

Cloud Distribution Points¶

Modern Configuration Manager environments can leverage cloud-based distribution points, such as those hosted on Azure. Cloud DPs provide scalable and highly available content hosting, beneficial for internet-based clients or organizations with extensive cloud infrastructure. They can significantly reduce the on-premises infrastructure footprint.

The Content Library in Configuration Manager¶

The content library is a fundamental and often misunderstood component of Configuration Manager. It’s the central repository on site servers and distribution points where all content files are stored.

Purpose and Structure¶

The primary purpose of the content library is to provide a single-instance store for all content. This means that even if the same file is part of multiple applications or packages, it is only stored once in the content library. This deduplication significantly saves disk space on the DPs and site servers.

The content library is located in the SCCMContentLib folder on the designated drive (or drives) of the server. It comprises three main components:
* Data Library: Contains the actual content files, stored as a collection of unique files. Each file is given a unique hash and stored in a compressed, chunked format.
* File Library: Consists of .INI files that describe the content of each package or application. These files contain metadata and pointers to the actual data blocks in the data library.
* Package Library: Contains .DAT files that map specific package IDs to the files in the data library. This allows Configuration Manager to quickly identify which files belong to which package.

Advantages of the Content Library¶

• Disk Space Optimization: The single-instance store prevents redundant copies of the same file, even if it’s used in multiple packages.
• Content Integrity: The content library uses cryptographic hashes to ensure the integrity of the stored content. Any corruption or unauthorized modification will be detected during validation.
• Efficient Replication: When content is updated, only the changed blocks are transferred to DPs, leveraging RDC for efficiency.

Troubleshooting Content Library Issues¶

Common issues with the content library include corruption, insufficient disk space, or inconsistencies between the library and the database. Tools like the Content Library Explorer can be invaluable for diagnosing these problems, allowing administrators to inspect the library’s contents and verify file integrity.

Package Actions in Content Distribution¶

Configuration Manager provides several actions for managing content distribution, each serving a specific purpose in the content lifecycle.

Package Creation and Initial Distribution¶

The process begins with creating a package or application in the Configuration Manager console. This involves specifying the source files, program details, and detection methods. Once created, the administrator explicitly distributes the content to selected distribution points or DP groups. This initial action triggers DistMgr and PkgXferMgr to copy the content to the designated DPs.

Content Distribution Actions¶

• Distribute Content: This action sends content to a new distribution point or group for the first time.
• Update Content: When changes are made to the source files of an existing package or application, selecting “Update Content” on the package instructs Configuration Manager to re-evaluate the content. Only the delta (changed blocks) is transferred to the DPs that already have the content, minimizing network traffic.
• Redistribute Content: This action forces a complete re-transfer of all content files for a package to a specific distribution point, regardless of whether the content is already present or deemed up-to-date. This is often used for troubleshooting when a DP’s content library is suspected to be corrupt or incomplete.
• Validate Content: This action initiates a hash check of the content on a distribution point against the hash stored in the database. If any discrepancies are found, the content is marked as invalid, indicating a potential corruption. This can be scheduled periodically for proactive monitoring.
• Remove Content: This action removes a specific package or application from a selected distribution point. The content files are then removed from the DP’s content library, freeing up disk space.

Content Validation and Integrity¶

Content validation is a crucial background process that ensures the integrity of content stored on DPs. Configuration Manager calculates a hash for each content file during the packaging process. When content is distributed, this hash is used to verify that the files transferred correctly. Scheduled content validation periodically re-verifies these hashes against the content on the DPs. If a hash mismatch is found, it indicates content corruption, and the content is typically marked as invalid, prompting a redistribution.

Delta Replication¶

To optimize network bandwidth, Configuration Manager uses Remote Differential Compression (RDC) for content updates. Instead of transferring the entire package again when a small change occurs, RDC identifies only the changed blocks within a file and transfers only those differences. This significantly reduces the amount of data sent over the network during content updates, especially for large files with minor modifications.

Troubleshooting Content Distribution¶

Content distribution issues can manifest in various ways, from content being stuck in a “pending” state to clients failing to download applications. Effective troubleshooting relies on understanding the process and knowing which logs to examine.

Common Issues¶

• Content Stuck in Pending/In Progress: This is a frequent issue, often indicating a problem with DistMgr or PkgXferMgr, or connectivity to the DP.
• Content Not Appearing on DP: The content might not have been transferred successfully, or the DP might have issues processing it.
• Client Download Failures: Clients might be unable to connect to the DP, or the content on the DP might be corrupted.
• Insufficient Disk Space: The DP might not have enough free space to store the incoming content.
• Network Connectivity Issues: Firewalls, routing problems, or low bandwidth can impede content transfers.

Essential Log Files for Troubleshooting¶

Understanding which log files to check is critical for effective troubleshooting.
* Site Server Logs:
* distmgr.log: The primary log for Distribution Manager, showing package processing, DP assignments, and overall distribution status.
* pkgxfermgr.log: Details the actual content transfer process from the site server to the DPs, including connection attempts, transfer progress, and BITS/SMB errors.
* smsdpprov.log: Logs activities related to the SMS Provider’s interaction with the DP.
* smsdpmon.log: Provides monitoring information for the DP, including disk space and content validation status.
* Distribution Point Logs (if the DP is not the site server):
* smsdpsvc.log: Logs activities of the SMS Distribution Point service.
* smsdpmon.log: (Same as above) Provides DP monitoring details.
* msi.log (if role installation fails): For issues with DP role installation or uninstallation.
* Client Logs (for download issues):
* ContentTransferManager.log: Records content download jobs created by the client.
* DataTransferService.log: Logs the actual content download process from the DP, including BITS transfer status.
* CAS.log (Content Access Service): Manages the client’s local content cache and content access.

Troubleshooting Workflow¶

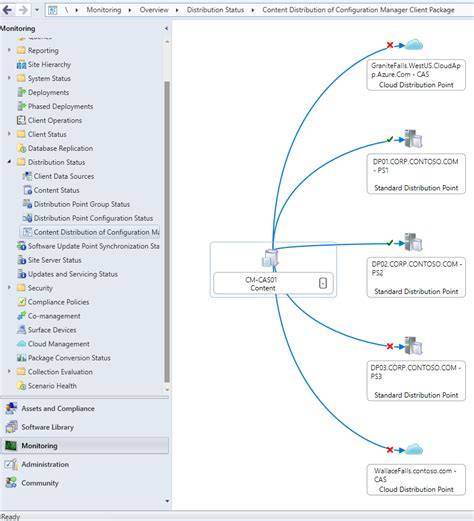

1. Check Console Status: Begin by checking the content status in the Configuration Manager console. Navigate to the “Monitoring” workspace, then “Distribution Status” > “Content Status.” This provides a high-level overview.
2. Examine Site Server Logs: If content is stuck, investigate distmgr.log and pkgxfermgr.log on the primary site server (or central administration site if content is distributed from there). Look for errors related to the specific package and DP.
3. Check DP Logs: If site server logs indicate successful transfer but the DP doesn’t show the content, check smsdpsvc.log and smsdpmon.log on the distribution point itself.
4. Verify Network Connectivity: Use standard network tools (ping, tracert, telnet on port 445/80/443) to confirm connectivity between the site server and the DP, or the client and the DP.
5. Utilize Tools:
   • CMTrace: An excellent log viewer for Configuration Manager logs, with highlighting and filtering capabilities.
   • Content Library Explorer: A community tool (part of ConfigMgr Tools) that allows you to browse the contents of the SCCMContentLib folder and verify its integrity.
   • DP Job Manager: Another community tool that can help manage and troubleshoot ongoing content distribution jobs.

Advanced Troubleshooting Tips for Content Distribution¶

For complex or persistent issues, a deeper dive into Configuration Manager’s inner workings might be necessary.

SQL Queries for Content Status¶

The Configuration Manager database holds all the information about content distribution. Directly querying the database can provide granular status information that might not be immediately visible in the console. Useful views and tables include:
* v_DistributionContent
* v_PackageStatusDistPoints
* v_ContentDistribution

Example Query (illustrative, actual queries may vary by version):

SELECT
    dp.Name AS DistributionPointName,
    pkg.Name AS PackageName,
    cds.Status AS ContentStatus,
    cds.FailureCode,
    cds.LastStatusTime
FROM
    v_DistributionPoints dp
JOIN
    v_ContentDistributionStatus cds ON dp.DPID = cds.DPID
JOIN
    v_Package pkg ON cds.PkgID = pkg.PkgID
WHERE
    cds.Status <> 1 -- Not Success
ORDER BY
    dp.Name, pkg.Name;

This query would list packages that are not successfully distributed to DPs, along with failure codes and last status times.

WMI Exploration¶

Windows Management Instrumentation (WMI) is extensively used by Configuration Manager. Many content distribution states and configurations are exposed via WMI classes. Tools like WMI Explorer (part of System Center 2012 Configuration Manager Toolkit or third-party tools) can be used to query these classes directly on the site server or DPs. For instance, you can investigate classes under the ROOT\SMS\Site_<SiteCode> namespace.

Network Monitoring¶

Packet sniffers like Wireshark can be invaluable for diagnosing network-related content transfer issues. By capturing traffic between the site server and the DP (or client and DP), you can identify blocked ports, DNS resolution failures, or other network layer problems preventing content transfer.

Performance Monitoring¶

Server performance can directly impact content distribution. Use Windows Performance Monitor (perfmon) to monitor disk I/O, CPU utilization, and network utilization on the site server and DPs. High resource utilization can indicate bottlenecks affecting content transfer speeds or processing.

Content Validation Schedules¶

Proactively schedule content validation on DPs, especially for critical content. Regular validation helps identify content corruption before it impacts client operations, allowing for timely redistribution and preventing widespread issues.

Fundamental Concepts for Content Management¶

At its core, content management in Configuration Manager is about ensuring content is available, secure, and delivered efficiently.
* Content Integrity: Ensuring the files are not tampered with.
* Availability: Making sure DPs have the content.
* Efficiency: Using RDC and bandwidth controls.
* Scalability: Supporting a large number of clients and DPs.

Content Flow Diagram¶

mermaid graph TD A[Administrator Creates/Updates Content] --> B{Site Server: DistMgr}; B --> C[SQL Database: Update Content Status]; C --> D[Site Server: PkgXferMgr initiates Transfer]; D -- SMB/BITS --> E[Distribution Point]; E --> F[DP: Receives Content]; F --> G[DP: Stores Content in Content Library]; G --> H[SQL Database: Update DP Content Status]; H --> I[Client Requests Content]; I --> J[Management Point: Locates DP]; J --> K[Client: Downloads from DP]; K --> L[Client: Stores in Cache];
This diagram illustrates the typical flow of content from creation to client access.

Configuration Manager Tools¶

Beyond the standard console and log files, several tools can aid in managing and troubleshooting content distribution:
* CMTrace: Essential for viewing Configuration Manager log files.
* Content Library Explorer: Helps visualize and troubleshoot the content library.
* DP Job Manager: Manages content distribution jobs on DPs.
* SMS Provider WMI Explorer: For advanced WMI investigations.

Understanding and leveraging these components and tools will significantly enhance an administrator’s ability to manage and troubleshoot content distribution effectively in Configuration Manager. The proactive monitoring and scheduled validation of content are as important as understanding the reactive troubleshooting steps.
