Domain Controllers & Failover Clusters: Why They Don't Mix in Windows Server

Table of Contents

Windows Server environments are the backbone of many enterprise infrastructures, providing essential services like Active Directory Domain Services (AD DS) for user and resource management, and Failover Clustering for high availability of applications and services. Both technologies are critical, designed to ensure resilience and continuous operation. However, a common misconception, particularly for those migrating from older server versions, revolves around the architectural decision of combining these two fundamental roles on a single server node. This article clarifies why, starting with Windows Server 2012, Microsoft no longer supports or recommends adding a server with the AD DS role as a node in a failover cluster environment.

The Foundation: Understanding Each Role¶

Before delving into the reasons for their separation, it’s essential to understand the individual significance and operational characteristics of Domain Controllers and Failover Clusters. Each serves a unique, yet equally vital, purpose within an IT ecosystem. Their distinct design principles contribute to the rationale behind not co-locating them on the same physical or virtual server.

Active Directory Domain Services (AD DS)¶

Active Directory Domain Services (AD DS) is Microsoft’s directory service, providing centralized authentication, authorization, and directory services for Windows domain networks. It is the core identity management solution, storing information about users, computers, and other network resources. Domain Controllers (DCs) are servers that run AD DS, replicating directory data across the network to ensure redundancy and accessibility. A robust AD infrastructure is paramount for security, manageability, and the smooth operation of virtually every service within a Windows-based network.

DCs are designed for high availability through replication and distribution, rather than through traditional hardware clustering. Multiple DCs in a domain automatically synchronize changes, meaning the failure of one DC typically does not bring down the entire directory service. This inherent distributed redundancy is a key characteristic that differentiates its high-availability model from that of failover clusters. AD DS relies heavily on precise time synchronization and DNS for its operation, making stability and dedicated resources crucial.

Windows Server Failover Clustering (WSFC)¶

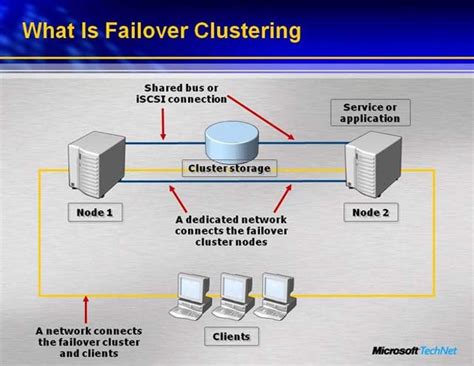

Windows Server Failover Clustering (WSFC) provides high availability and disaster recovery for server applications and services. A failover cluster is a group of independent computers that work together to increase the availability and scalability of clustered roles (formerly called clustered applications or services). If one of the cluster nodes fails, another node immediately takes over the workload, a process known as failover. This ensures that users experience minimal disruption to services.

WSFC requires shared storage, a dedicated cluster network, and a quorum mechanism to maintain cluster integrity and prevent split-brain scenarios. It manages dependencies, resource ownership, and network names for clustered applications. While WSFC enhances application uptime significantly, it introduces its own set of complexities related to shared resources, network configuration, and quorum management. Its primary goal is to provide continuous access to specific applications or services, like SQL Server, Exchange, or File Services, by making them highly available.

The Incompatibility: Why They Don’t Mix¶

The core issue stems from a fundamental design philosophy shift and practical operational challenges. Beginning with Windows Server 2012, Microsoft explicitly does not support combining the AD DS role and the Failover Cluster feature on the same server. This behavior is by design and applies to all subsequent Windows Server versions. This policy is a crucial best practice for maintaining stability, security, and performance across both critical services.

Historical Context and Evolution¶

In Windows Server versions prior to Windows Server 2012, it was technically possible, though strongly discouraged, to configure a domain controller as a cluster node. This configuration was often problematic, leading to complex recovery scenarios and potential service disruptions. Microsoft’s stance has evolved based on real-world operational challenges, aiming to enforce configurations that lead to more stable, secure, and manageable IT environments. The explicit change in Windows Server 2012 reflected a commitment to clearer architectural guidelines for mission-critical infrastructure.

Reason 1: Complexity and Management Overhead¶

Combining a Domain Controller with a Failover Cluster node creates an intricate web of dependencies and management challenges that often outweigh any perceived benefits. Each role has its own set of requirements for patching, maintenance, and troubleshooting.

• Patching and Reboot Cycles: DCs often require specific patching cycles and reboots, which can conflict with the maintenance windows or failover requirements of a cluster. A rebooted DC might take time to fully initialize AD DS and its dependencies, potentially impacting cluster services that rely on AD for authentication or name resolution during a critical cluster operation.
• Startup Order and Dependencies: The proper functioning of a cluster heavily relies on Active Directory for various operations, including Kerberos authentication, DNS resolution for cluster resources, and the management of Cluster Name Objects (CNOs) and Virtual Computer Objects (VCOs). If a DC is also a cluster node, a circular dependency can arise: the cluster needs AD to start properly, but the AD (on that node) also relies on the cluster infrastructure being stable. This can lead to race conditions or failures during boot-up or failover scenarios.
• Troubleshooting Complexity: Diagnosing issues becomes significantly more challenging when two critical, interdependent, yet distinct roles are co-located. Is the problem related to AD replication, DNS, cluster quorum, shared storage, or a combination? Pinpointing the root cause can be prolonged and require expertise in both domains, increasing Mean Time To Recovery (MTTR).

Reason 2: Security Implications and Attack Surface¶

Security is paramount in any enterprise environment, and consolidating roles significantly broadens the attack surface. A server acting as both a Domain Controller and a cluster node becomes a single, highly attractive target for malicious actors.

• Elevated Privileges: Domain Controllers hold the most sensitive data in an organization – user credentials, group memberships, and security policies. Any compromise of a DC can lead to a full domain compromise.
• Expanded Attack Surface: Failover clusters introduce additional network interfaces, shared storage connections, and cluster services, each representing a potential vector for attack. Combining these with a DC means that a vulnerability in the cluster service could potentially be exploited to gain access to Active Directory, or vice-versa.
• Least Privilege Principle Violation: Best security practices dictate isolating critical services and adhering to the principle of least privilege. Combining roles contradicts this, as it grants high privileges to a broader set of services and components, increasing risk. Separating roles into distinct servers ensures that a compromise of one service does not automatically grant access to another critical service.

Reason 3: Performance Degradation and Resource Contention¶

Both Domain Controllers and Failover Cluster nodes are resource-intensive. DCs require significant CPU for authentication and replication, memory for the AD database, and fast I/O for transaction logs. Cluster nodes, especially when hosting demanding applications, also require substantial CPU, memory, and high-performance I/O to shared storage.

• CPU and Memory Contention: Running both roles on a single server can lead to resource contention. A sudden spike in authentication requests on the DC could starve the cluster services of CPU cycles, potentially impacting application performance or even triggering an unwanted failover. Similarly, a high-load application running on the cluster could degrade DC performance, slowing down authentication across the entire domain.
• I/O Bottlenecks: Both AD and clustered applications rely heavily on disk I/O. Mixing these roles on a single server can lead to I/O bottlenecks, as the server’s disk subsystem struggles to keep up with the demands of both AD database operations and cluster application data access. This can result in slow logon times, delayed application responses, and overall system sluggishness.
• Network Latency: Cluster heartbeat networks are sensitive to latency, while AD replication also requires stable network connectivity. Overlapping these critical network demands on a single server’s network interfaces can introduce performance issues or instability.

Reason 4: Disaster Recovery and High Availability Paradox¶

While the intention might be to make both services highly available, combining them can paradoxically reduce overall resilience.

• Single Point of Failure: Despite being part of a cluster, if the single server hosting both the DC and a clustered application fails, both the Active Directory services (for that particular DC) and the clustered application become unavailable on that node. While other DCs exist and other cluster nodes can take over, the immediate impact on that server is significant.
• Recovery Complexity: In a disaster scenario, recovering a server that was both a DC and a cluster node is far more complex than recovering a server with a single, dedicated role. The recovery process must account for AD database consistency, cluster quorum state, and shared storage integrity simultaneously, significantly increasing RTO (Recovery Time Objective) and RPO (Recovery Point Objective).
• Snapshot and Backup Challenges: Traditional backup and snapshot methods might not be fully compatible or effective for a server performing both roles, especially considering AD’s reliance on USN (Update Sequence Number) rollbacks and the cluster’s sensitivity to timestamp inconsistencies.

Recommended Architecture and Best Practices¶

The industry standard and Microsoft’s strong recommendation is to maintain strict separation between the Domain Controller role and the Failover Cluster role. This architectural principle enhances security, simplifies management, improves performance, and ensures robust high availability.

Separation of Concerns: Dedicated Servers for Each Role¶

The most crucial best practice is to deploy Domain Controllers on dedicated servers, and Failover Cluster nodes on separate, dedicated servers. This means:

• Dedicated Domain Controllers: Deploy multiple DCs (at least two per site) on their own physical or virtual machines. These servers should exclusively run the AD DS role and related services like DNS.
• Dedicated Cluster Nodes: Configure your failover cluster nodes on separate servers. These nodes will host your clustered applications (e.g., SQL Server, File Server, Hyper-V VMs).

Leveraging Virtualization for Efficiency¶

While you should not combine roles on a single server instance, virtualization technologies like Hyper-V allow you to run multiple virtual machines (VMs) on a single physical host. This is an entirely different concept and is highly recommended.

Mermaid Diagram: Recommended Virtualized Architecture

```mermaid
graph TD
A[Physical Host Server] → B(Hypervisor - e.g., Hyper-V)
B → C(Virtual Machine: Domain Controller 1)
B → D(Virtual Machine: Domain Controller 2)
B → E(Virtual Machine: Cluster Node A)
B → F(Virtual Machine: Cluster Node B)

subgraph Active Directory Domain
    C --- C_AD(Active Directory)
    D --- D_AD(Active Directory)
end

subgraph Failover Cluster
    E --- E_Cluster(Cluster Services)
    F --- F_Cluster(Cluster Services)
    E -- Shared Storage --> G[Shared Storage]
    F -- Shared Storage --> G
end

E_Cluster -- Relies on AD --> C_AD
F_Cluster -- Relies on AD --> D_AD

```

In this setup, each VM is a distinct server, adhering to the separation principle. The physical host provides the underlying hardware, but the guest operating systems perceive themselves as independent servers. This allows for efficient use of hardware resources while maintaining logical isolation.

Robust Network and Storage Design¶

Proper network and storage configurations are vital for both AD and clusters:

• Network Redundancy: Implement redundant network adapters and paths for both DCs and cluster nodes. Cluster nodes typically require multiple networks (e.g., public, private heartbeat, iSCSI/SMB for storage).
• Dedicated Storage for Clusters: Failover Clusters rely on shared storage. Ensure this storage is highly available and performs optimally for the clustered applications. Active Directory has its own storage requirements, which are met by the local disks of the DC.
• DNS and Time Synchronization: Ensure reliable DNS resolution for all servers, especially cluster nodes, pointing them to separate, dedicated Domain Controllers. Accurate time synchronization across all servers (including DCs and cluster nodes) is critical for Kerberos authentication and cluster operations.

Active Directory’s Role in a Cluster (Without Co-location)¶

It’s important to clarify that while DCs should not be cluster nodes, Failover Clusters themselves rely heavily on Active Directory.

• Cluster Name Object (CNO): The cluster identity is represented by a CNO in AD. This object needs to be created and managed by the cluster.
• Virtual Computer Objects (VCOs): For each clustered role that uses a client access point (network name), a VCO is created in AD.
• Authentication: Cluster operations, inter-node communication, and client access to clustered services rely on Kerberos authentication provided by Domain Controllers.

This dependency highlights why a healthy, separate AD infrastructure is fundamental to a well-functioning failover cluster, reinforcing the need for distinct architectural components.

Conclusion¶

The decision to separate Domain Controllers from Failover Cluster nodes in Windows Server 2012 and later versions is a deliberate architectural choice based on years of operational experience and best practices. While older versions might have technically allowed such configurations, they frequently led to increased complexity, security vulnerabilities, performance bottlenecks, and complicated disaster recovery scenarios.

Adhering to the principle of “separation of concerns” by deploying dedicated servers for each critical role—whether physical or virtual—provides a more stable, secure, and manageable IT environment. This approach simplifies troubleshooting, enhances overall system performance, and ultimately delivers a more resilient infrastructure capable of meeting the high availability demands of modern enterprises. Understanding and implementing this fundamental architectural guideline is crucial for any IT professional managing Windows Server environments.

What are your experiences with deploying Domain Controllers and Failover Clusters? Have you encountered challenges when trying to combine these roles, or have you found success with the recommended separate architecture? Share your thoughts and questions in the comments below!
