Fix Error 2409: Resolving Storage Selection Issues in Virtual Machine Manager

Table of Contents

System Center 2012 Virtual Machine Manager (VMM) serves as a critical component in managing large-scale virtualized environments, particularly those built on Microsoft Hyper-V. It streamlines the deployment, management, and optimization of virtual machines across multiple hosts and clusters. However, like any complex system, users may encounter specific errors that hinder operations. This article focuses on addressing Error 2409, a common issue encountered when attempting to define storage locations for new virtual machines, particularly within a clustered setup. Understanding the nuances of VMM’s storage management capabilities and the underlying principles of high availability is key to resolving this particular challenge efficiently.

Understanding System Center 2012 Virtual Machine Manager (VMM)¶

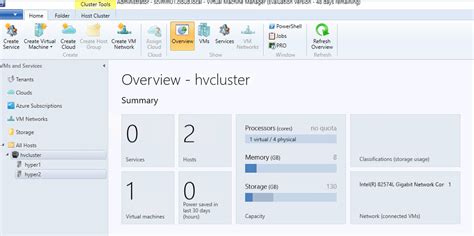

System Center 2012 Virtual Machine Manager is a powerful management solution designed to provide a unified console for managing your virtualized datacenter. It enables administrators to create, deploy, and manage virtual machines, services, and cloud resources across Hyper-V hosts. VMM simplifies complex tasks such as P2V (physical-to-virtual) conversions, V2V (virtual-to-virtual) conversions, and virtual machine migration. Its robust feature set makes it indispensable for organizations leveraging Microsoft’s virtualization platform for their infrastructure needs. Proper configuration and understanding of its capabilities are paramount for maintaining a stable and efficient virtual environment.

One of VMM’s core functionalities is its ability to manage storage for virtual machines. This includes allocating storage resources, defining logical units, and ensuring that VMs have consistent access to their virtual hard disks. The way VMM interacts with storage, especially in a clustered environment, is designed to uphold the principles of high availability and fault tolerance. Misconfigurations or misunderstandings regarding storage paths can lead to errors such as ID 2409, highlighting the importance of adhering to VMM’s operational guidelines for clustered resources.

The Significance of Virtual Machine Storage¶

Virtual machine storage is a foundational element of any robust virtualization infrastructure. It dictates performance, availability, and overall scalability of the virtualized workload. In Hyper-V environments, virtual machines typically store their configuration files, virtual hard disk (VHD/VHDX) files, and snapshots on specific storage locations. These locations can range from local storage directly attached to a Hyper-V host to shared network storage solutions like Storage Area Networks (SANs), Network Attached Storage (NAS), or Cluster Shared Volumes (CSVs).

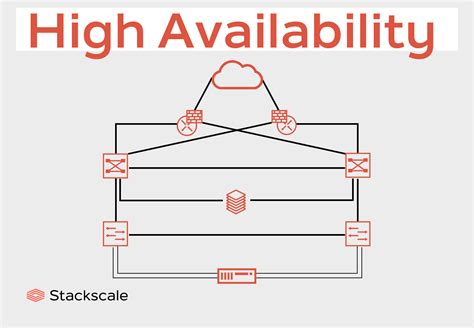

The choice of storage type is particularly critical for virtual machines intended to be highly available (HA). HA virtual machines are designed to automatically fail over to another host in the event of a host failure, ensuring continuous operation. This failover capability relies entirely on the virtual machine’s files being accessible from all nodes in the cluster, which necessitates the use of shared storage. Without properly configured shared storage, a virtual machine cannot achieve true high availability within a clustered environment, as its files would be isolated to a single host.

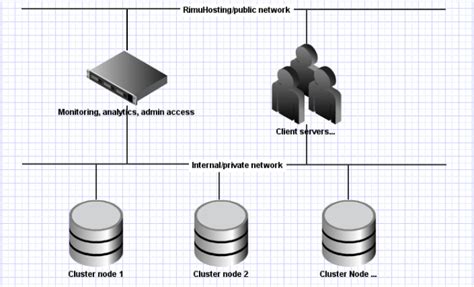

Clustered storage solutions are engineered to provide shared access to data for multiple servers. Technologies such as Cluster Shared Volumes (CSV) in Windows Server Failover Clustering allow multiple nodes to concurrently access the same LUN (Logical Unit Number), presenting it as a single file system. This mechanism is crucial for live migration and rapid failover of virtual machines. Similarly, shared SMB 3.0 file shares can also serve as highly available storage for virtual machines, offering another flexible option for clustered deployments.

Deciphering Error 2409 in VMM¶

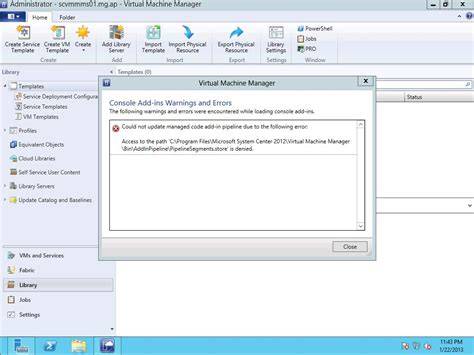

When provisioning a new virtual machine using the System Center 2012 Virtual Machine Manager Create Virtual Machine wizard, users are prompted to specify the storage location for the VM’s files. It is during this crucial step, within the “Select Path” dialog, that Error 2409 may manifest. The error message is clear and direct, indicating a problem with the chosen path:

Virtual Machine Manager
The specified path is not a valid folder path on CLUSTERHOSTNAME.contoso.local.
Specify a valid folder path on CLUSTERHOSTNAME.contoso.local which the virtual machine will be saved on.
ID: 2409

This message specifically highlights that the selected path, although it might exist, is not considered “valid” by VMM for the intended purpose on the specified cluster host. The “ID: 2409” serves as a unique identifier for this particular issue within the VMM error reporting framework. It points directly to a constraint or requirement that the chosen storage path fails to meet, particularly in the context of a clustered Hyper-V environment.

Further diagnostic insights can often be gleaned from ETL (Event Tracing for Windows) logs, which provide a more granular view of VMM’s internal operations. As indicated by typical logging output, a similar message reiterates the core problem:

567 01:51:46.950 02-16-2012 ErrorDialog.cs(306) “Error Dialog.Show: Code: 2409; DetailedErrorCode: ; DetailedErrorSource: NoneProblem: The specified path is not a valid folder path on CLUSTERHOSTNAME.contoso.local.Action: Specify a valid folder path on CLUSTERHOSTNAME.contoso.local which the virtual machine will be saved on.” {00000000-0000-0000-0000-000000000000}

This log entry confirms that the validation check performed by VMM determined the path to be unsuitable. It reinforces the need for the administrator to select a path that adheres to the storage requirements for highly available virtual machines on a clustered host. The error doesn’t indicate a system crash or a severe bug, but rather a deliberate blockage by VMM to prevent a configuration that would compromise the cluster’s high availability capabilities.

Root Cause Analysis: Why Local Storage is Blocked on Clustered Hosts¶

The fundamental reason for Error 2409 lies in the architectural design and operational principles of System Center Virtual Machine Manager when interacting with Hyper-V clusters. VMM’s primary goal in a clustered environment is to facilitate the creation and management of highly available (HA) virtual machines. A core tenet of HA for virtual machines is that their configuration files and virtual hard disks must reside on shared storage accessible by all nodes in the cluster. This shared access is what enables seamless live migration and automatic failover.

When an administrator attempts to specify a local hard drive path on a single cluster node—for example, a path like E:\ or E:\VMS where E: is a drive local to only one host and not a part of the clustered storage pool—VMM intervenes. The system recognizes that placing a virtual machine on such a path would result in the creation of a non-highly available (non-HA) virtual machine. While creating non-HA VMs on standalone Hyper-V hosts is perfectly acceptable, doing so on a clustered host defeats the very purpose of the cluster’s high availability design.

The logic is straightforward: if a virtual machine resides on storage that is only available to one specific node in the cluster, then should that node fail, the virtual machine would become inaccessible and could not fail over to another healthy node. This would violate the high availability contract that a Hyper-V cluster is designed to provide. Therefore, VMM deliberately blocks this action to ensure that all virtual machines provisioned on a cluster conform to the HA best practices. This preventative measure safeguards the integrity and fault tolerance of the virtualized infrastructure, ensuring that deployed VMs can leverage the full benefits of the underlying cluster.

Resolution Strategies for Error 2409¶

Resolving Error 2409 primarily involves ensuring that the virtual machine’s storage path points to a highly available, shared storage resource accessible by all nodes in the Hyper-V cluster. This section outlines the primary solution and additional troubleshooting steps to ensure successful VM deployment.

1. The Primary Solution: Utilize Clustered Storage¶

The most direct solution is to select a storage path that is part of your cluster’s shared storage infrastructure. This typically means using a Cluster Shared Volume (CSV) path or a highly available SMB 3.0 share.

• For Cluster Shared Volumes (CSV): If your cluster utilizes CSVs, the valid path will typically look like C:\ClusterStorage\VolumeX\YourVMs, where VolumeX refers to a specific CSV. When browsing for the path in the VMM wizard, navigate to C:\ClusterStorage and select the appropriate CSV. Within the CSV, you should create a dedicated folder for your virtual machines (e.g., C:\ClusterStorage\Volume1\VMs).
  • How to Verify CSV: Open Failover Cluster Manager, navigate to Storage > Disks. Ensure that your CSVs are online and listed with the “Cluster Shared Volume” role.
• For Highly Available SMB 3.0 Shares: If you are using SMB 3.0 file shares as your clustered storage, ensure the share itself is highly available (e.g., hosted on a Scale-Out File Server or a File Server for general use on a cluster). The path in VMM would then be a UNC path, such as \\YourSOFSClusterName\YourVMShare.
  • Permissions: Critical for SMB shares. The VMM service account, the Hyper-V host computer accounts (e.g., CLUSTERHOSTNAME$), and potentially the administrator account performing the action must have appropriate NTFS and share permissions (Full Control) on the shared folder.

2. Verify Clustered Storage Configuration¶

Before attempting to create the VM, double-check that your clustered storage is correctly configured and accessible from all cluster nodes.

• Failover Cluster Manager: Use this tool to confirm that all shared disks (including CSVs) are online and healthy. Ensure no disks are stuck in a pending state or have connectivity issues.
• Storage Network: Verify network connectivity to your SAN, NAS, or Scale-Out File Server. Ensure that iSCSI initiators are correctly configured and connected on all Hyper-V hosts, or that SMB network paths are reachable.
• Disk Signatures: Confirm that shared disks have unique disk signatures and are not presenting duplicate IDs.

3. Ensure Proper Permissions¶

Incorrect permissions are a frequent cause of storage-related errors in VMM.

• VMM Service Account: The service account under which the VMM management server runs must have sufficient permissions to create folders and write files on the chosen shared storage path.
• Hyper-V Host Computer Accounts: Each Hyper-V host in the cluster (represented by its computer account, e.g., CLUSTERHOSTNAME$) needs Full Control permissions on the shared storage where VM files will reside. This is especially true for SMB 3.0 shares.
• Administrators: Ensure the user account attempting to create the VM also has the necessary permissions within VMM and on the target storage.

4. General Troubleshooting Steps¶

If the issue persists despite correctly identifying and configuring shared storage, consider these broader troubleshooting steps:

• Review VMM Job Logs: In the VMM console, go to Jobs to find the failed VM creation job. Expand the job details to see if there are more specific error messages or steps that failed.
• Windows Event Logs: Check the Event Viewer on both the VMM management server and the target Hyper-V cluster nodes. Look for errors or warnings related to VMM, Hyper-V, Storage, or Cluster Service logs.
• VMM Agent Health: Ensure that the VMM agent on all Hyper-V cluster nodes is healthy and communicating correctly with the VMM management server. An unhealthy agent can prevent VMM from properly interacting with the host’s resources.
• Firewall Configuration: Verify that firewall rules on your Hyper-V hosts and any file servers (for SMB shares) are not blocking necessary VMM or SMB traffic.
• DNS Resolution: Confirm that all cluster nodes, the VMM server, and any file servers can correctly resolve each other’s hostnames via DNS.

5. Best Practices for VMM Storage Management¶

Adhering to best practices can prevent future storage-related issues:

• Dedicated Storage: Always use dedicated, highly available storage for production virtual machines on a Hyper-V cluster. Avoid mixing production VM storage with other data or local host operating system drives.
• Storage Planning: Carefully plan your storage layout, including LUN sizes, CSVs, and SMB share configurations, well in advance of deployment.
• Naming Conventions: Implement clear and consistent naming conventions for your storage volumes, folders, and virtual machines for easier management and troubleshooting.
• Capacity Planning: Regularly monitor storage capacity and performance to ensure adequate resources for current and future VM growth.
• Educate Administrators: Ensure all administrators working with VMM and Hyper-V clusters understand the fundamental differences between local and shared clustered storage and their implications for high availability.

By systematically applying these resolution strategies and adhering to best practices, administrators can effectively overcome Error 2409 and successfully provision highly available virtual machines within their System Center 2012 Virtual Machine Manager environment. This ensures that the virtualization infrastructure remains resilient and capable of supporting critical business workloads.

The process of managing virtual machine storage within a clustered environment requires precision and an understanding of underlying shared storage mechanisms. Error 2409 serves as a valuable indicator that the intended storage path does not meet the high-availability requirements enforced by System Center Virtual Machine Manager for clustered hosts. By ensuring that all virtual machine files reside on truly shared, highly available storage like Cluster Shared Volumes or resilient SMB 3.0 shares, administrators can overcome this error. This not only resolves the immediate problem but also reinforces the foundational principles of a robust and fault-tolerant virtualization infrastructure. Understanding these core concepts is paramount for seamless operations and maintaining the integrity of your virtual datacenter.

Have you encountered Error 2409 in your System Center VMM environment? What specific steps did you take to resolve it? Share your experiences and insights in the comments below, or feel free to ask any questions you might have regarding VMM storage management!
