Fixing SSL Certificate Errors in IIS: A Practical Troubleshooting Guide

Table of Contents

Applies to: Internet Information Services (IIS)

Overview¶

Secure Sockets Layer (SSL) certificates are fundamental for securing web communications, ensuring data encryption, and verifying server identity. When issues arise with SSL certificates in Internet Information Services (IIS), they can prevent users from accessing websites over HTTPS, leading to frustration and potential security risks. This comprehensive guide focuses specifically on troubleshooting server certificate-related problems within IIS environments. It’s crucial to understand that this article addresses issues with server authentication certificates, not client certificates. If your setup requires client certificates and you are facing authentication failures, a different troubleshooting approach may be necessary.

Every digital certificate is inherently composed of two critical components: a public key, which is used by clients for encrypting data, and a corresponding private key, known only to the server, essential for decrypting that data. This intricate relationship is vital for the cryptographic operations during an SSL handshake. HTTPS, the secure version of HTTP, primarily uses port 443 by default. A basic understanding of the SSL handshake process and server authentication is assumed to make the most of this guide.

Essential Prerequisites and Tools¶

Before delving into specific SSL troubleshooting scenarios, it’s paramount to ensure that your website is fully operational over HTTP. If the site is not accessible via HTTP, the problem likely stems from a broader issue unrelated to SSL, such as IIS configuration, network connectivity, or application errors, which falls outside the scope of this document. Always confirm HTTP functionality as a baseline before proceeding with SSL diagnostics.

For deep-dive analysis into network traffic and SSL handshake failures, two powerful tools are invaluable:
* Network Monitor 3.4: A Microsoft tool for capturing and analyzing network traffic.
* Wireshark: A widely used open-source network protocol analyzer.

These tools allow you to inspect the communication flow at a low level, providing insights into where the SSL handshake might be failing, which protocols are being negotiated, and what error messages are being exchanged between the client and server.

Initial Troubleshooting Scenarios¶

When attempting to browse a website over HTTPS, encountering a generic “Page cannot be displayed” or “Secure connection failed” error indicates a problem with the SSL handshake. This critical initial step in securing the connection has failed for various reasons. The following scenarios outline common causes for these failures and provide actionable resolutions.

Scenario 1: Missing Private Key¶

A server certificate is rendered useless for SSL/TLS encryption if its corresponding private key is not present or cannot be accessed by the server. Without the private key, the server cannot decrypt the symmetric encryption key exchanged during the SSL handshake, leading to an immediate failure. This is one of the most common reasons for SSL errors.

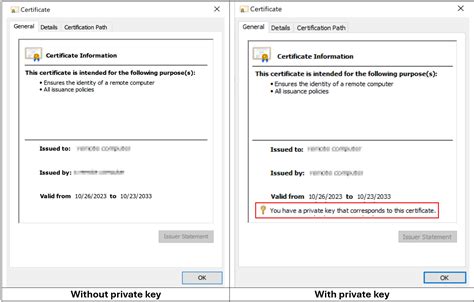

To verify if the server certificate has a private key, open the certificate details. You should typically see an icon or a statement indicating that “You have a private key that corresponds to this certificate.”

Resolution¶

If the private key is missing or not associated with the certificate, you need to obtain a certificate that includes it, typically in a .PFX (Personal Information Exchange) format, which bundles both the public certificate and its private key. Alternatively, if you have the private key separately (e.g., from the Certificate Signing Request generation on the same server), you can attempt to associate it with the existing certificate using the certutil command-line utility.

Execute the following command, replacing the thumbprint with your certificate’s specific thumbprint:

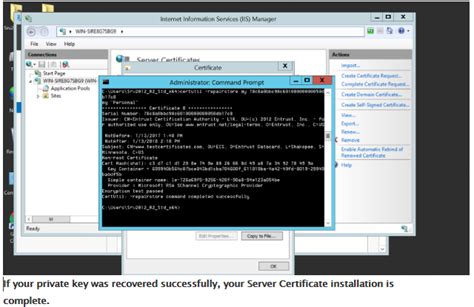

C:\>certutil -repairstore my "906c9825e56a13f1017ea40eca770df4c24cb735"

This command attempts to locate and associate the private key with the specified certificate in the “My” (Personal) certificate store. A successful association will be indicated by a confirmation window.

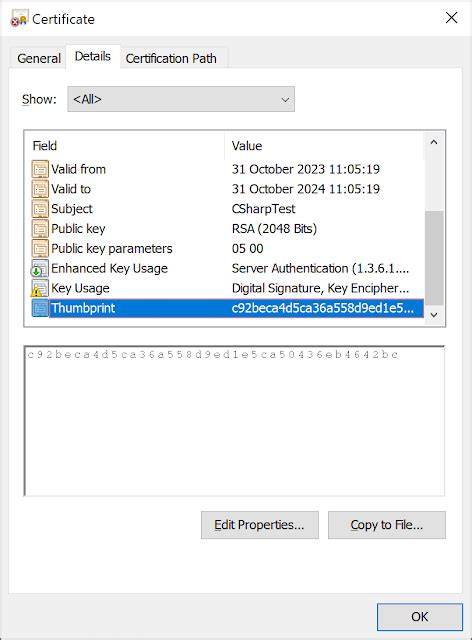

To retrieve the thumbprint of your certificate:
1. Open the certificate through the Microsoft Management Console (MMC) or by double-clicking the certificate file.
2. Navigate to the Details tab.
3. Scroll down the list of fields to find the Thumbprint entry.
4. Select the Thumbprint value and then use Ctrl+A to select all text, followed by Ctrl+C to copy it. Remember to remove any spaces that might be copied with the thumbprint before using it in the certutil command.

Scenario 2: Private Key Acquisition Failures, Corrupted Certificates, or Trust Issues¶

Even if a certificate appears to have a private key associated with it, problems can still arise if IIS cannot properly acquire or utilize that private key. This scenario often manifests with specific error codes in the system event logs, pointing to underlying cryptographic module issues or certificate integrity problems.

You might encounter the following SChannel warning or error in the system event logs:

Event Type: Error
Event Source: Schannel
Event Category: None
Event ID: 36870
Date: 2/11/2012
Time: 12:44:55 AM
User: N/A
Computer: [YourComputerName]
Description: A fatal error occurred when attempting to access the SSL server credential private key. The error code returned from the cryptographic module is 0x80090016.

This specific SChannel event (0x80090016) indicates that IIS was unable to access the private key for the SSL certificate. This often points to permission issues on the folder where private keys are stored.

Resolution¶

Addressing these complex issues requires a multi-faceted approach, focusing on permissions, certificate integrity, and trust relationships.

1. Verify Permissions on MachineKeys Folder: All private keys are stored within the MachineKeys folder on Windows systems. It is critical that the IIS_IUSRS group or the specific application pool identity has Read permissions on the private key file. Incorrect permissions are a very common cause of private key acquisition failures. The MachineKeys folder is typically located at C:\ProgramData\Microsoft\Crypto\RSA\MachineKeys or C:\Documents and Settings\All Users\Application Data\Microsoft\Crypto\RSA\MachineKeys (depending on the Windows version). Ensure the necessary user accounts (e.g., Network Service, ApplicationPoolIdentity) have proper access.

2. Check for Certificate Corruption: If permissions are correctly set and the issue persists, the certificate itself might be corrupted. A corrupted certificate can lead to various cryptographic errors, including the SChannel event log error 0x8009001a which signifies that the cryptographic module encountered an invalid state.

   • Test with a Self-Signed Certificate: To quickly diagnose if the issue is with the certificate or IIS configuration, try binding a test self-signed certificate to the website.
     • First, back up your existing certificate configuration.
     • Create a new self-signed certificate using IIS Manager or PowerShell.
     • Bind this self-signed certificate to your website and attempt to access it over HTTPS.
   • If the website works with the self-signed certificate, it strongly suggests that your original certificate was either corrupted or problematic. In such cases, obtaining a new, fresh certificate from your Certificate Authority (CA) is the recommended solution.

3. Address Untrusted Root Certificates (CERT_E_UNTRUSTEDROOT or 0x800b0109): During the SSL handshake, the client verifies the entire certificate chain presented by the server, all the way up to the Root Certificate Authority (CA). If any part of this chain, especially the root CA certificate, is not trusted by the client or the server (in the case of intermediate CAs not being properly installed), the handshake will fail with an “untrusted root” error.

   • To resolve this, ensure that all intermediate CA certificates are installed in the Intermediate Certification Authorities store on your server.
   • Most importantly, the Root CA’s certificate must be present in the Trusted Root Certification Authorities store under the Local Computer account on your IIS server. If it’s missing, import it. This ensures the server trusts its own certificate chain, which is essential for proper function.

4. Verify Certificate Usage Type (-2146762480 or 0x800b0110): Certificates are issued with specific “Enhanced Key Usage” (EKU) extensions that define their intended purpose. For a server certificate to be used for SSL/TLS, it must explicitly include “Server Authentication” as one of its allowed usages. If this usage is missing or disabled, the certificate cannot be used for securing web traffic.

   • To check and configure the usage type:
     1. Open the certificate (via MMC or by double-clicking).
     2. Navigate to the Details tab.
     3. Select Edit Properties… (if available and you have permissions).
     4. Under the General tab, ensure that Enable all purposes for this certificate is selected. More critically, verify that Server Authentication is explicitly listed under the “Application policies” or “Enhanced Key Usage” section on the Details tab.

        If “Server Authentication” is not listed, the certificate is not suitable for IIS SSL bindings and a new certificate with the correct usage will be required.

Scenario 3: Port Conflicts¶

After confirming the integrity and proper installation of your SSL certificate, the next logical step is to verify that no other application or service is already listening on the specific IP address and port that your IIS website is configured to use for HTTPS (typically 0.0.0.0:443 or a specific IP:443). A port conflict will prevent IIS from binding to the port, making the website inaccessible via HTTPS.

Resolution¶

1. Identify Listening Processes: Use the netstat command to list all active network connections and listening ports, along with the process IDs (PIDs) that own them.


   netstat -ano



   To also see the executable names associated with the PIDs, use:


   netstat -anob



   Look for entries listening on port 443 (or your configured HTTPS port) with a LISTENING state. Note the PID associated with any unexpected process.

2. Investigate Conflicting Processes: If netstat reveals another process occupying port 443, use the tasklist command to identify the executable name associated with the PID:


   tasklist /svc /fi "pid eq [PID_from_netstat]"



   For example, tasklist /svc /fi "pid eq 1234". This will tell you which application is unexpectedly using the port. Determine why that process is active on that port. It might be another web server, a VPN client, or a specific application.

3. Resolve the Conflict:

   • If the conflicting process is not essential, terminate it.
   • If it’s a necessary service, consider reconfiguring it to use a different port, or change the HTTPS binding of your IIS website to a different port (e.g., 8443) temporarily to verify if the port conflict was indeed the issue.
   • Restart IIS after making any changes to ensure the new binding takes effect.

Scenario 4: HTTP.SYS SSL Listener Configuration Issues¶

Even with a proper certificate and no port conflicts, issues can arise at the HTTP.SYS layer, which is the kernel-mode driver responsible for handling HTTP and HTTPS requests before they reach IIS. The HTTP.SYS SSL configuration maintains a mapping of IP:Port combinations to certificate hashes and application IDs. If this configuration is incorrect, or if the certificate hash is null or the application ID is invalid (all zeros GUID), SSL negotiations will fail. This often presents as a “Page cannot be displayed” error without clear SChannel events.

Resolution¶

1. Inspect HTTP.SYS SSL Configuration: Use the netsh http command to view the current SSL bindings configured at the HTTP.SYS layer.

   netsh http show sslcert


   Compare your output to the examples below:

   Working scenario (Example):

   Configuration Setting	Value
   IP:port	0.0.0.0:443
   Certificate Hash	c09b416d6b8d615db2264079d15638e96823d
   Application ID	{4dc3e181-e14b-4a21-b022-59fc669b0914}
   Certificate Store Name	My
   Verify Client Certificate Revocation	Enabled
   Revocation Freshness Time	0
   URL Retrieval Timeout	0
   … (further settings)	…

   The Certificate Hash should match the thumbprint of your SSL certificate, and the Application ID should be a unique GUID generated by IIS.

   Non-working scenario (Example):

   Configuration Setting	Value
   IP:port	0.0.0.0:443
   Certificate Hash
   Application ID	{00000000-0000-0000-0000-000000000000}
   CertStoreName	My
   Verify Client Certificate Revocation	0
   Revocation Freshness Time	0
   URL Retrieval Timeout	0
   … (further settings)	…

   In a non-working scenario, the Certificate Hash might be blank, or the Application ID might be an all-zero GUID. This indicates a problem with the HTTP.SYS binding that needs to be reset. Even if you remove the certificate from the website in IIS Manager, this netsh output might still show a problematic entry.

2. Remove Corrupted SSL Binding: If you observe an all-zero GUID or a blank certificate hash for your IP:port combination, remove this problematic entry from HTTP.SYS.

   netsh http delete sslcert ipport=<IP Address>:<Port>



   For example:


   netsh http delete sslcert ipport=0.0.0.0:443


3. Check and Clear iplisten Entries: Occasionally, HTTP.SYS might have specific IP addresses configured to listen on, which can interfere with bindings. Check if any explicit iplisten entries exist.

   netsh http show iplisten


   If this command returns a list of IP addresses, and they are not intentionally configured for specific purposes, remove them one by one:


   netsh http delete iplisten ipaddress=<IP Address>


   Important Note: After making changes to the HTTP.SYS configuration, it is crucial to restart the HTTP service to ensure the changes take effect.


   net stop http /y



   This command will stop dependent services and then restart them. Once done, perform an iisreset to restart IIS completely. Then, re-bind your SSL certificate in IIS Manager to recreate the correct HTTP.SYS entry.

Scenario 5: Protocol and Cipher Mismatch¶

Even if the certificate is perfectly installed and bound, the SSL handshake can fail if there is a mismatch between the SSL/TLS protocols or cipher suites supported/enabled by the client and the server. This often happens when clients are configured to use newer TLS versions (e.g., TLS 1.1, TLS 1.2, TLS 1.3) exclusively, while the server is only configured to support older versions (e.g., TLS 1.0 or SSL 3.0).

Resolution¶

The most effective way to diagnose protocol and cipher mismatches is by capturing a network trace from either the client or the server during an attempted HTTPS connection. Filter the trace by “SSL” or “TLS” to focus on the encrypted traffic.

Network Trace Analysis:

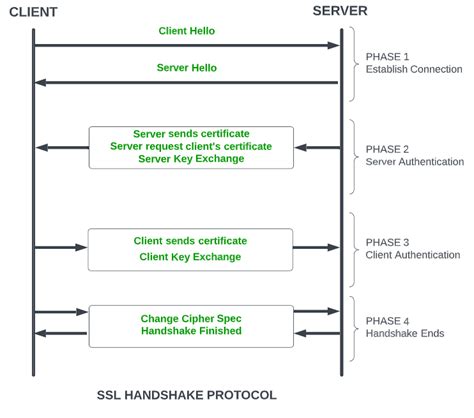

* Non-working scenario example: In a network trace, you might see the client offering specific TLS versions in its “Client Hello” message, but the server responds with a “Handshake Failure” without proposing a “Server Hello” with a mutually acceptable protocol.

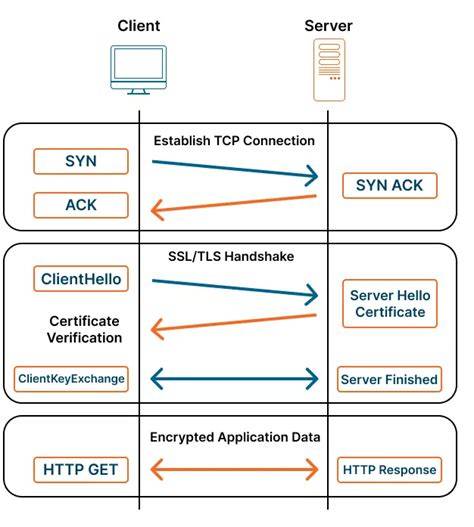

• Working scenario example: A successful handshake will show the client’s “Client Hello” followed by the server’s “Server Hello,” where the server explicitly selects a common TLS protocol version and a cipher suite.


  To examine the details within the trace, expand the frame details and look for the “Server Hello” section. This will reveal the chosen protocol (e.g., TLS 1.2) and the cipher suite.

Registry Configuration for SSL/TLS Protocols:
Windows uses registry keys to enable or disable specific SSL/TLS protocols and cipher suites. You can find these settings under the SCHANNEL registry path:

HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\SecurityProviders\SCHANNEL\Protocols

Under this path, you will typically find subkeys for various protocols like SSL 2.0, SSL 3.0, TLS 1.0, TLS 1.1, TLS 1.2, and potentially TLS 1.3. Each protocol subkey usually contains Client and Server subkeys. Within these, an Enabled DWORD value determines if the protocol is active:
* Enabled = 1: The protocol is enabled.
* Enabled = 0: The protocol is disabled.

For example, SSL 2.0 is typically disabled by default due to security vulnerabilities. Ensure that the Enabled DWORD is set to 1 for the TLS versions you wish to support on your server (e.g., TLS 1.2, TLS 1.3) under the Server subkey for each protocol. After making any changes to these registry keys, a system reboot is often required for them to take full effect. Also, consider reviewing the Ciphers and Hashes subkeys under SCHANNEL to ensure compatible cipher suites are enabled.

Conclusion¶

Troubleshooting SSL certificate errors in IIS can be a complex process involving multiple layers, from certificate integrity and permissions to network configurations and protocol compatibility. By systematically working through these common scenarios, leveraging tools like netstat, netsh, certutil, and network analyzers like Wireshark, administrators can effectively diagnose and resolve most SSL connectivity issues. Always remember to approach troubleshooting methodically, confirming each step before moving on, and to back up configurations before making significant changes.

We hope this guide has provided you with a clear and actionable framework for resolving your IIS SSL certificate errors. Have you encountered other challenging SSL issues in IIS? Share your experiences and solutions in the comments below, or ask any questions you might have! Your insights can help the community.
