Mastering Measured Boot: Decode PCR Changes in Windows Client Logs

Updated: • 0 • min read
Table of Contents

Measured Boot is a critical security feature in modern Windows environments, designed to enhance system integrity by providing an immutable record of boot components. This process leverages the Trusted Platform Module (TPM) to securely measure and log every stage of the boot sequence, from the earliest firmware execution to the operating system’s final loaded state. By creating a verifiable chain of trust, Measured Boot helps to detect and mitigate threats such as rootkits and bootkits that attempt to compromise the system before the operating system’s security mechanisms are fully operational. Understanding and analyzing these measurements, particularly Platform Configuration Register (PCR) changes, is paramount for security professionals and IT administrators tasked with maintaining robust system security.

The Foundation of Trust: Measured Boot and TPM

Measured Boot operates by using the TPM, a cryptographic co-processor that provides secure storage and cryptographic functions. During the boot process, each component—including firmware, bootloaders, and operating system kernels—is measured (hashed) before it is executed. These unique cryptographic hashes are then extended into specific PCRs within the TPM. PCRs are designed to be “extend-only” registers, meaning a new measurement does not overwrite the previous one but rather is cryptographically combined with it. This creates a tamper-evident log that can be later verified.

The integrity of this process is fundamental to the security posture of a modern system. If any component in the boot chain is maliciously modified or altered, its hash will differ from the expected value, leading to a change in the corresponding PCR. This change serves as an indicator of potential compromise, enabling security systems to identify and respond to threats that might otherwise remain undetected. Measured Boot complements Secure Boot, which ensures that only signed code is executed, by providing a verifiable log of what was executed, even if it was signed.

Mastering Measured Boot: Decode PCR Changes in Windows Client Logs

Understanding Platform Configuration Registers (PCRs)

PCRs are registers within the TPM that store cryptographic hashes reflecting the state of various system components. There are typically 24 PCRs (PCR0 to PCR23), with each reserved for specific types of measurements:

  • PCR0-PCR7: Generally reserved for core system components, including firmware, bootloaders, and the operating system loader. For instance, PCR7 often measures the Secure Boot policy and database.
  • PCR8-PCR15: Often used by the operating system for runtime measurements, such as system configuration or dynamic code loading.
  • PCR16-PCR23: Available for operating system or application-specific measurements.

The values within these PCRs are not directly readable from the operating system for security reasons, but the TPM provides mechanisms for attesting to their values. The raw measurements that contribute to these PCR values are stored in log files, which is where the TBSLogGenerator.exe utility becomes invaluable. By analyzing these logs, administrators can retrospectively examine the boot process and pinpoint precisely where unexpected changes occurred. This detailed forensic capability is essential for incident response and proactive security monitoring.

Why Analyze Measured Boot Logs?

Analyzing Measured Boot logs and decoding PCR changes offers several critical advantages for system security:

  1. Tamper Detection: The primary benefit is detecting unauthorized modifications to firmware, bootloaders, or critical system files. Any unexpected change in a PCR value signals a potential security incident, such as a rootkit infection or a malicious update.
  2. Compliance and Auditing: Many regulatory frameworks require robust system integrity checks. Measured Boot logs provide verifiable evidence of a system’s boot state, aiding in compliance audits and demonstrating adherence to security policies.
  3. Troubleshooting Boot Issues: Sudden and unexplained boot failures can sometimes be traced back to unexpected changes in the boot environment. Decoded PCR logs can help diagnose these issues by revealing which components deviated from their expected state.
  4. Baseline Establishment: By regularly logging and decoding PCRs on known good systems, administrators can establish baselines for their fleet. Future deviations from these baselines can then be flagged for investigation.
  5. Remote Attestation: In enterprise environments, Measured Boot logs can be used for remote attestation, where a trusted server verifies the integrity of a client machine’s boot process before granting it access to sensitive resources. This ensures that only healthy and uncompromised devices can connect to the network.

The TBSLogGenerator.exe Utility: A Deep Dive

The TBSLogGenerator.exe utility is a crucial tool for converting the raw binary Measured Boot logs into a human-readable text format. This executable is part of the Windows Hardware Lab Kit (HLK) or Windows Assessment and Deployment Kit (ADK), specifically within the Hardware Lab Kit\Tests directory. It interacts with the TPM Base Services (TBS), a system service that manages the TPM on behalf of Windows and applications.

The utility’s function is straightforward: it takes a raw .log file containing the series of measurements and PCR events generated during boot and decodes them into a structured text file. This text file provides details about each measurement, including the component measured, its hash, and how it contributed to the PCR values. This transformation is essential because the raw .log files are not directly interpretable by humans.

Prerequisites for Using TBSLogGenerator.exe

Before you can use TBSLogGenerator.exe, you must ensure it is available on your system. This utility is typically distributed as part of the Windows Kits.

  1. Install Windows Kits: The TBSLogGenerator.exe file is usually found within the Windows Hardware Lab Kit (HLK) or Windows Assessment and Deployment Kit (ADK). You will need to download and install the appropriate version of the Windows Kit that matches your Windows operating system version. During installation, select the necessary components that include the Hardware Lab Kit tools or the “Windows Performance Toolkit” which often contains such diagnostic tools.

Once the installation is complete, the executable will be located in a specific directory structure.

Locating TBSLogGenerator.exe

After the installation finishes, open an elevated Command Prompt window. Elevated privileges are required to navigate to system directories and execute commands. Navigate to the following folder:

C:\Program Files (x86)\Windows Kits\10\Hardware Lab Kit\Tests\amd64\NTTEST\BASETEST\ngscb

This folder contains the TBSLogGenerator.exe file, which is the tool you will use to decode your Measured Boot logs. The amd64 path indicates that this version of the tool is designed for 64-bit systems, which are standard for modern Windows clients. Ensure you are in this directory to execute the command directly, or add its path to your system’s PATH environment variable for easier access from any directory.

Decoding the Measured Boot Logs: Step-by-Step

Once you have located the TBSLogGenerator.exe tool, the decoding process is a simple command-line operation. The command syntax is designed to be flexible, allowing you to specify input and output file paths.

The Decoding Command Syntax

Run the following command in your elevated Command Prompt:

TBSLogGenerator.exe -LF <LogFolderName>\<LogFileName>.log > <DestinationFolderName>\<DecodedFileName>.txt

Here’s a breakdown of the variables and their meanings:

  • <LogFolderName>: This represents the name of the folder that contains the raw Measured Boot .log file you wish to decode. For example, if your logs are in C:\MeasuredBoot\, this would be C:\MeasuredBoot.
  • <LogFileName>: This is the exact name of the binary log file to be decoded. Measured Boot logs often have names like 0000000005-0000000000.log, which indicates a sequence number.
  • <DestinationFolderName>: This specifies the directory where you want the decoded text file to be saved. It can be the same as the log file’s folder or a different one.
  • <DecodedFileName>: This is the desired name for the output text file. It’s good practice to use a descriptive name that corresponds to the original log file.

The > symbol is a standard command-line redirection operator that sends the output of TBSLogGenerator.exe to the specified text file instead of displaying it directly in the console. This ensures that the entire decoded content is captured for analysis.

Practical Example of Decoding

Consider a scenario where Measured Boot logs have been collected from a Windows 10 computer and are stored in the C:\MeasuredBoot\ folder. You want to decode a specific log file named 0000000005-0000000000.log.

The command to perform this decoding would be:

TBSLogGenerator.exe -LF C:\MeasuredBoot\0000000005-0000000000.log > C:\MeasuredBoot\0000000005-0000000000.txt

Upon execution, this command will produce a new text file named 0000000005-0000000000.txt in the C:\MeasuredBoot\ folder. This file contains the human-readable representation of the Measured Boot events and PCR changes captured in the original binary log. The process is quick and efficient, providing immediate access to the detailed boot measurements.

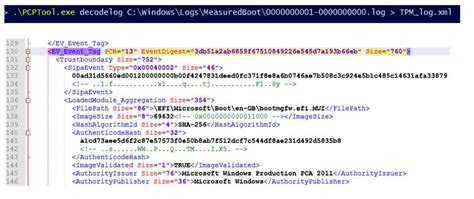

Output File Content and PCR Information

The generated text file will contain a structured list of measurements, each detailing a specific component measured during the boot process. The content of this text file will resemble a series of entries, with each entry providing details such as the event type, the measured component, and its corresponding cryptographic hash.

To find the crucial PCR information, you should typically scroll or navigate to the end of the generated .txt file. The utility often summarizes the final PCR values after processing all recorded events. This section is vital for understanding the accumulated state of the system’s integrity at the end of the measured boot process. Each PCR’s final value, typically presented as a hexadecimal hash, will be listed, allowing for comparison against known good baselines.

Interpreting Decoded Logs and PCR Values

Once you have the decoded text file, the real work of analysis begins. The file will list numerous events, each corresponding to a measurement taken during boot. Each event contributes to the PCR values.

Here’s a simplified representation of what you might see:

[Event Type: EFI_BOOT_SERVICES_APPLICATION]
  [Component: bootmgfw.efi]
  [Hash Algorithm: SHA256]
  [Measurement: 7D7C4F2B0E8A9A3C2D1E4F5B6A7C8D9E0F1A2B3C4D5E6F7A8B9C0D1E2F3A4B5C]
  [Extended PCR: PCR4]
...
[Final PCR Values]
  PCR0: 0000000000000000000000000000000000000000000000000000000000000000
  PCR1: FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF
  ...
  PCR7: ABCDEF1234567890ABCDEF1234567890ABCDEF1234567890ABCDEF1234567890

The “Extended PCR” field tells you which PCR was affected by that specific measurement. The “Final PCR Values” at the end of the log provide the cumulative hash for each PCR after all relevant boot events have transpired.

Analyzing PCR Deviations

The power of Measured Boot lies in detecting deviations. When a system boots normally and securely, its PCR values (especially for PCR0-PCR7) should remain consistent across reboots, provided no legitimate updates or configuration changes occur.

  • Expected Changes: Legitimate updates to firmware, bootloaders, or critical system files (e.g., Windows updates) will cause PCRs to change. It’s crucial to distinguish these from malicious changes. Documentation of system updates and their expected impact on PCRs is vital.
  • Unexpected Changes: If a PCR changes without a corresponding legitimate system update or configuration modification, it’s a strong indicator of a potential security breach. This could mean a rootkit has infected the boot sector, an unauthorized firmware update has been installed, or a critical system file has been tampered with.

To effectively utilize this information, organizations often implement baselining: storing known-good PCR values for their systems. Automated tools can then periodically check the current PCR values against these baselines, alerting security teams to any discrepancies. For deeper analysis, the individual measurement events preceding a PCR change can be examined to identify the exact component that caused the deviation.

Advanced Considerations and Troubleshooting

While TBSLogGenerator.exe provides the raw decoded data, advanced analysis often involves further steps and tools.

Integrating with Security Tools

For enterprise-level security, the decoded PCR logs can be integrated into Security Information and Event Management (SIEM) systems. By parsing the .txt output, SIEMs can generate alerts when unexpected PCR changes are detected, enabling rapid response to potential integrity compromises. Automation scripts can be developed to periodically collect, decode, and transmit these logs to a central analysis platform.

Secure Boot vs. Measured Boot

It’s important to differentiate between Secure Boot and Measured Boot, though they often work in conjunction:

  • Secure Boot: Ensures that only trusted software (signed with valid digital certificates) can load during the boot process. It’s a preventative measure.
  • Measured Boot: Measures the hashes of all boot components and records them in the TPM’s PCRs. It’s a detective measure, providing an audit trail of the boot process.

Both are vital for a comprehensive boot security strategy, with Measured Boot providing the crucial forensic evidence that Secure Boot alone cannot.

Understanding PCR Banks

Modern TPMs support different PCR banks (e.g., SHA-1 and SHA-256). Measured Boot typically uses SHA-256 for stronger cryptographic integrity. When analyzing logs, ensure you are looking at the relevant PCR bank and its corresponding hash algorithm for accurate interpretation. The decoded log will usually specify the hash algorithm used for each measurement.

Visualizing the Measured Boot Process

For a clearer conceptual understanding of how Measured Boot logs are generated and processed, consider the following flow diagram:

mermaid graph TD A[System Power On] --> B(UEFI Firmware Init); B --> C{Measure Firmware Components}; C --> D[Extend PCR0, PCR2, PCR7]; D --> E(Load Boot Manager); E --> F{Measure Boot Manager}; F --> G[Extend PCR4]; G --> H(Load OS Loader/Kernel); H --> I{Measure OS Loader}; I --> J[Extend PCR4, PCR5]; J --> K(OS Loads, Initializes TPM Services); K --> L[Generate Measured Boot Logs (.log)]; L --> M[Administrator Runs TBSLogGenerator.exe]; M --> N[Decoded Logs (.txt) for Analysis];

This diagram illustrates the sequence of events and where the measurements occur, ultimately leading to the generation and decoding of the logs.

Sample PCR Data Table

For reference, here is an example of common PCR indices and the type of information they typically contain, along with illustrative (not actual) SHA-256 hash values:

PCR Index Description Illustrative Measurement (SHA-256)
PCR0 CRTM, BIOS/UEFI core root of trust d406a6c49e195669b9170566367852c2...
PCR1 Host platform configuration, CPU microcode e3b0c44298fc1c149afbf4c8996fb924...
PCR2 UEFI driver/firmware components, Option ROM code 00000000000000000000000000000000...
PCR3 UEFI boot manager, GPT/MSR partition table 405f63d047b85089f214223f6e91f1a5...
PCR4 OS bootloader (bootmgr.efi), system settings 8a7b931d87e2f5b5c92c8159e1f57b6f...
PCR5 OS boot options (BCD), boot sequence a3d90708f5d0b49f390d40212f43d0b2...
PCR7 Secure Boot Policy, PK, KEK, DB, DBX (Secure Boot state) b0c7c34d28fe79745b78b01a70c3260c...

(Note: Actual hash values will vary significantly based on specific hardware, firmware versions, operating system builds, and applied updates.)

Conclusion

Mastering the art of decoding Measured Boot logs is an indispensable skill for anyone involved in Windows client security. By leveraging the TBSLogGenerator.exe utility, administrators gain the ability to peer into the very foundation of their systems’ integrity, detecting subtle changes that could indicate compromise. The process, while requiring specific tools from the Windows Kits, is straightforward and provides invaluable forensic data. Regularly collecting, decoding, and analyzing these logs, especially in conjunction with establishing baseline PCR values, forms a robust defense mechanism against advanced persistent threats that target the boot path. This proactive approach to system integrity ensures that your Windows client environments remain secure from the earliest moments of their operation.

Do you regularly analyze Measured Boot logs in your environment? What challenges have you encountered, and what insights have you gained from decoding PCR changes? Share your experiences and best practices in the comments below!
