Mastering Network Detection: A Visual Basic Guide to Connection State

Updated: • 0 • min read
Table of Contents

Developing robust applications often requires the ability to intelligently interact with the underlying operating system and its network capabilities. For Visual Basic developers, understanding how to detect network connectivity and manage dial-up connections is a fundamental skill that can significantly enhance an application’s user experience and reliability. This guide delves into using the Windows Internet (WinINet) API through P/Invoke in Visual Basic to precisely determine connection states and even initiate or terminate dial-up connections.

Visual Basic Network Detection

Setting Up Your Visual Basic Project

To begin, we need to establish a new Windows Application project in Visual Studio. This provides the foundational environment for our user interface and code. The steps are straightforward and will set the stage for integrating the network detection logic.

Initializing Visual Studio

  1. Launch Microsoft Visual Studio .NET or Microsoft Visual Studio 2005. The specific version might slightly alter the UI, but the core steps remain consistent. Visual Studio serves as our integrated development environment (IDE), offering all the tools needed for coding, debugging, and compiling our application.

  2. From the File menu, navigate to New, and then click on Project. This action opens the “New Project” dialog, where we define the type and name of our application. Choosing the correct project type is crucial for accessing the appropriate templates and libraries.

  3. Under Project types, select Visual Basic Projects. In Visual Studio 2005, this might simply be labeled Visual Basic. This selection filters the available templates to those relevant for Visual Basic development, streamlining the project creation process.

  4. From the Templates section, choose Windows Application. This template creates a standard desktop application with a default form (Form1) already present, providing a graphical user interface (GUI) foundation. A Windows Application is ideal for this project as it allows us to easily add buttons and display messages to the user.

By default, the IDE creates Form1, which will be the canvas for our application’s user interface. This form will house the controls that trigger our network detection and management functions.

Harnessing WinINet API with P/Invoke Declarations

The core functionality for network detection and dial-up management in our Visual Basic application comes from the wininet.dll library, a crucial component of the Windows operating system. To access functions within this unmanaged DLL from our managed Visual Basic code, we utilize a technique called P/Invoke (Platform Invoke). P/Invoke allows us to declare external functions and call them as if they were native Visual Basic methods.

Understanding P/Invoke

P/Invoke acts as a bridge, enabling interoperability between managed code (like Visual Basic .NET) and unmanaged code (like the Win32 API functions in wininet.dll). Each external function we intend to use must be declared within our Visual Basic class, specifying its library, name, return type, and parameters. This process ensures that the Common Language Runtime (CLR) can correctly marshal data types between the managed and unmanaged environments. Incorrect declarations can lead to runtime errors or unexpected behavior, making precision essential.

Wininet DLL Diagram

Adding Core Declarations to Form1

  1. Right-click on Form1 in the Solution Explorer, and then click View Code. This action opens the code-behind file for Form1, where we will place our P/Invoke declarations. It is good practice to put these at the class level so they are accessible throughout the form’s methods.

  2. Add the following declaration statements to the Form1 class. These declarations define the signatures of the WinINet functions we’ll be using, along with relevant enumerated types and constants.

    Private Declare Function InternetGetConnectedState Lib "wininet.dll" (ByRef lpdwFlags As Int32, _
ByVal dwReserved As Int32) As Boolean

Private Declare Function InternetDial Lib "Wininet.dll" (ByVal hwndParent As IntPtr, _
ByVal lpszConnectoid As String, ByVal dwFlags As Int32, ByRef lpdwConnection As Int32, _
ByVal dwReserved As Int32) As Int32

Private Declare Function InternetHangUp Lib "Wininet.dll" _
(ByVal lpdwConnection As Int32, ByVal dwReserved As Int32) As Int32

Private Enum Flags As Integer
 'Local system uses a LAN to connect to the Internet.
 INTERNET_CONNECTION_LAN = &H2
 'Local system uses a modem to connect to the Internet.
 INTERNET_CONNECTION_MODEM = &H1
 'Local system uses a proxy server to connect to the Internet.
 INTERNET_CONNECTION_PROXY = &H4
 'Local system has RAS installed.
 INTERNET_RAS_INSTALLED = &H10
End Enum

'Declaration Used For InternetDialUp.
Private Enum DialUpOptions As Integer
 INTERNET_DIAL_UNATTENDED = &H8000
 INTERNET_DIAL_SHOW_OFFLINE = &H4000
 INTERNET_DIAL_FORCE_PROMPT = &H2000
End Enum

Private Const ERROR_SUCCESS = &H0
Private Const ERROR_INVALID_PARAMETER = &H87

Private mlConnection As Int32

Detailed Breakdown of Declarations

  • InternetGetConnectedState: This function retrieves the connected state of the local system. It takes two parameters: lpdwFlags, which is an Int32 variable passed by reference (ByRef) to receive the connection type flags, and dwReserved, which is typically set to 0. It returns a Boolean indicating whether an Internet connection is available. This is the cornerstone of our connection detection logic.

  • InternetDial: This function initiates a dial-up connection to the Internet. Its parameters include hwndParent (a handle to the parent window for UI purposes), lpszConnectoid (the name of the dial-up connection to use), dwFlags (options for dialing), lpdwConnection (an Int32 passed by reference to receive the connection handle), and dwReserved. It returns an Int32 indicating success or failure.

  • InternetHangUp: This function terminates an Internet connection. It requires lpdwConnection, the handle of the connection to terminate (obtained from InternetDial), and dwReserved. It also returns an Int32 for success or failure.

  • Flags Enum: This enumeration defines constant values that represent different types of Internet connections. These flags are bitwise values that InternetGetConnectedState returns in lpdwFlags.

    • INTERNET_CONNECTION_LAN: Indicates a Local Area Network connection.
    • INTERNET_CONNECTION_MODEM: Signifies a modem (dial-up) connection.
    • INTERNET_CONNECTION_PROXY: Denotes connection via a proxy server.
    • INTERNET_RAS_INSTALLED: Specifies that Remote Access Service (RAS) is installed, a prerequisite for dial-up.

  • DialUpOptions Enum: This enumeration provides options for the InternetDial function.

    • INTERNET_DIAL_UNATTENDED: Attempts to dial without user interaction (e.g., no password prompt).
    • INTERNET_DIAL_SHOW_OFFLINE: Displays a dialog box with an “offline” button.
    • INTERNET_DIAL_FORCE_PROMPT: Forces a prompt for user credentials even if they are saved.

  • Constants ERROR_SUCCESS and ERROR_INVALID_PARAMETER: These standard Win32 error codes are used to check the return values of our WinINet API calls, indicating whether an operation was successful or encountered an issue.

  • mlConnection: This Private Int32 variable will store the connection handle returned by InternetDial. It’s crucial for subsequently calling InternetHangUp to terminate the specific connection.

These declarations form the backbone of our application, allowing us to interact with the system’s network capabilities at a low level. Understanding each component is vital for effective implementation and debugging.

Designing the User Interface

A user-friendly interface is essential for any application, even a simple utility. For our network detection tool, we will add three buttons to Form1, each corresponding to a specific network action: detecting the connection state, initiating a dial-up connection, and hanging up an active connection. This design provides clear interaction points for the user.

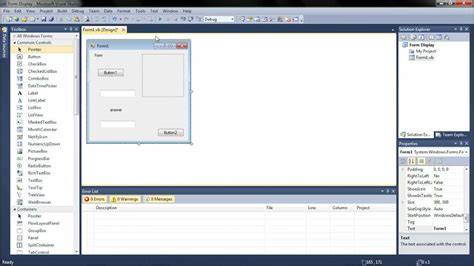

Visual Basic Form Designer

Adding Controls to Form1

  1. On the View menu, click Designer. This brings you back to the visual design view of Form1, where you can drag and drop controls.

  2. Add a Button control to Form1. Locate the Button control in the Toolbox (usually on the left side of the IDE) and drag it onto Form1. This will automatically be named Button1.

  3. Right-click Button1, and then click Properties. The Properties window allows you to customize various attributes of the selected control, such as its text, size, and appearance.

  4. In the Properties window, modify the Text property of the Button1 control to Detect Connection. This label will clearly indicate the button’s purpose to the user.

  5. Add another Button control to Form1. This will be Button2.

  6. Right-click Button2, and then click Properties.

  7. In the Properties window, change the Text property of the Button2 control to Dial Up. This button will be responsible for initiating a dial-up connection.

  8. Add another Button control to Form1. This will be Button3.

  9. Right-click Button3, and then click Properties.

  10. In the Properties window, modify the Text property of the Button3 control to Hang Up. This button will allow users to terminate an active dial-up connection.

At this point, your Form1 should have three distinct buttons, ready to be programmed with their respective functionalities. The clear labeling ensures that users can intuitively interact with the application.

Implementing Connection Detection Logic

With our UI set up, the first piece of functionality we’ll implement is the connection detection. This will allow the application to query the system’s current network state and inform the user whether they are connected via LAN, modem, or proxy, or if no connection is present.

Coding the Detect Connection Button

  1. Double-click Detect Connection (Button1) on Form1. This action automatically generates the Button1_Click event handler in the code-behind file, which is where we will place the logic for detecting the connection state.

  2. Add the following code within the Button1_Click event handler:

    Dim lngFlags As Long

If InternetGetConnectedState(lngFlags, 0) Then
    'connected.
    If lngFlags And Flags.INTERNET_CONNECTION_LAN Then
        'LAN connection.
        MsgBox("LAN connection.")
    ElseIf lngFlags And Flags.INTERNET_CONNECTION_MODEM Then
        'Modem connection.
        MsgBox("Modem connection.")
    ElseIf lngFlags And Flags.INTERNET_CONNECTION_PROXY Then
        'Proxy connection.
        MsgBox("Proxy connection.")
    End If
Else
    'not connected.
    MsgBox("Not connected.")
End If

Explaining the Connection Detection Process

The code starts by declaring lngFlags as a Long integer. This variable will be used to store the connection flags returned by the InternetGetConnectedState function. The function is called with lngFlags passed ByRef and 0 for the dwReserved parameter.

  • If InternetGetConnectedState(lngFlags, 0) Then: This line attempts to retrieve the current Internet connection state. If the function returns True, it means an Internet connection is detected, and lngFlags will contain a bitmask representing the connection type(s). If it returns False, no active Internet connection is found.

  • Interpreting lngFlags: Inside the If block (meaning a connection exists), we use bitwise And operations to check which specific connection type flags are set in lngFlags.

    • If lngFlags And Flags.INTERNET_CONNECTION_LAN Then: Checks if the LAN connection flag is active. If true, a message box indicates a “LAN connection.”
    • ElseIf lngFlags And Flags.INTERNET_CONNECTION_MODEM Then: If not a LAN, it checks for a modem connection. If true, “Modem connection” is displayed.
    • ElseIf lngFlags And Flags.INTERNET_CONNECTION_PROXY Then: If neither LAN nor modem, it checks for a proxy connection. If true, “Proxy connection” is displayed.

  • Else Block: If InternetGetConnectedState returns False, indicating no connection, the Else block executes, and a “Not connected.” message box is displayed.

This logic provides a comprehensive way to assess and report the network status to the user, distinguishing between various connection methods.

Implementing Dial-Up Functionality

For users who still rely on dial-up or need to programmatically manage such connections, our application provides a specific button. This functionality leverages the InternetDial API to initiate a connection, complete with user prompts if necessary.

Coding the Dial Up Button

  1. Double-click Dial Up (Button2) on Form1. This generates the Button2_Click event handler.

  2. Add the following code within the Button2_Click event handler:

    Dim DResult As Int32

DResult = InternetDial(Me.Handle, "My Connection", DialUpOptions.INTERNET_DIAL_FORCE_PROMPT, mlConnection, 0)

If (DResult = ERROR_SUCCESS) Then
    MessageBox.Show("Dial Up Successful", "Dial-Up Connection")
Else
    MessageBox.Show("UnSuccessFull Error Code" & DResult, "Dial-Up Connection")
End If

    Note: Replace "My Connection" with the exact name of a dial-up connection configured on your computer. This name is case-sensitive and must match an existing connection.

Understanding the Dial-Up Process

This section initiates a dial-up connection using the InternetDial API.

  • Dim DResult As Int32: A variable DResult is declared to store the integer return code from the InternetDial function.

  • DResult = InternetDial(Me.Handle, "My Connection", DialUpOptions.INTERNET_DIAL_FORCE_PROMPT, mlConnection, 0): This is the call to the InternetDial function.

    • Me.Handle: Provides the window handle of the current form, allowing the dial-up dialogs to be parented correctly.
    • "My Connection": This string must be replaced with the actual name of your dial-up connection. For example, if your connection is named “ISP Connect”, you would use "ISP Connect". You can find this name in your network and sharing center settings (e.g., “Change adapter options” -> “Dial-up” section).
    • DialUpOptions.INTERNET_DIAL_FORCE_PROMPT: This flag ensures that the user is prompted for credentials (username, password) even if they were previously saved. This is good for demonstration and ensuring explicit user consent. Other options like INTERNET_DIAL_UNATTENDED could be used for silent dialing if credentials are known and stored securely.
    • mlConnection: This variable, declared earlier at the class level, is passed ByRef to receive the unique connection handle if the dial-up is successful. This handle is crucial for later hanging up the connection.
    • 0: The dwReserved parameter, typically set to zero.

  • Error Checking:

    • If (DResult = ERROR_SUCCESS) Then: After the InternetDial call, the DResult is compared with ERROR_SUCCESS (&H0). If they match, it means the dial-up process was initiated successfully, and a “Dial Up Successful” message is displayed.
    • Else: If DResult is not ERROR_SUCCESS, it indicates a problem. An error message including the DResult value is shown, which can be helpful for debugging. Common errors might include ERROR_INVALID_PARAMETER if the connection name is wrong, or other Win32 error codes if the modem or line is busy.

This functionality demonstrates programmatic control over a system’s dial-up connections, offering a robust solution for specific application needs.

Implementing Hang-Up Functionality

To complete our network management suite, we need a way to gracefully disconnect an active dial-up connection. The InternetHangUp API provides this capability, ensuring that resources are released and the connection is properly terminated.

Coding the Hang Up Button

  1. Double-click Hang Up (Button3) on Form1. This generates the Button3_Click event handler.

  2. Add the following code within the Button3_Click event handler:

    Dim Result As Int32

If Not (mlConnection = 0) Then
    Result = InternetHangUp(mlConnection, 0&)
    If Result = 0 Then
        MessageBox.Show("Hang up successful", "Hang Up Connection")
    Else
        MessageBox.Show("Hang up NOT successful", "Hang Up Connection")
    End If
Else
    MessageBox.Show("You must dial a connection first!", "Hang Up Connection")
End If

Understanding the Hang-Up Process

This section handles the termination of an active dial-up connection.

  • Dim Result As Int32: A local variable Result is declared to capture the return value from the InternetHangUp function.

  • If Not (mlConnection = 0) Then: This crucial check ensures that a connection has actually been dialed before attempting to hang it up. The mlConnection variable, which stores the connection handle, will only be non-zero if InternetDial was previously called successfully. If mlConnection is 0, it means no connection was initiated through our application, preventing an attempt to hang up a non-existent connection.

  • Result = InternetHangUp(mlConnection, 0&): If a connection handle exists, InternetHangUp is called with mlConnection as the identifier for the connection to terminate and 0& (long zero) for the reserved parameter.

  • Verifying Hang-Up Success:

    • If Result = 0 Then: The function InternetHangUp returns 0 on success. If Result is 0, a “Hang up successful” message is displayed.
    • Else: If Result is not 0, it indicates an error during the hang-up process, and a “Hang up NOT successful” message is shown. This could happen if the connection was already terminated by other means or if there’s an internal system error.

  • No Connection Error:

    • Else (of the initial If Not (mlConnection = 0) block): If mlConnection is 0, the application informs the user, “You must dial a connection first!”, providing clear guidance.

This comprehensive approach to hanging up connections ensures that the application manages dial-up sessions responsibly, preventing errors and providing clear feedback to the user.

Saving Your Project and Exploring Modern Alternatives

After implementing all the features, it’s vital to save your project to preserve your work. Beyond that, it’s worth considering how network detection has evolved in modern .NET development.

Saving the Project

  1. On the File menu, click Save All to save the entire project, including all forms, code modules, and project settings. This ensures that all your changes are stored on your disk.

Modern Network Detection in .NET

While wininet.dll and P/Invoke offer a powerful way to interact with low-level network functions, modern .NET applications often leverage higher-level abstractions provided by the .NET Framework itself.

The System.Net.NetworkInformation namespace, introduced in .NET Framework 2.0, offers a more managed and robust approach to network detection and monitoring. This namespace provides classes and events for:

  • NetworkInterface: Retrieving information about network adapters (Ethernet, Wi-Fi, virtual adapters, etc.).
  • Ping: Sending ICMP (Internet Control Message Protocol) echo requests to check host reachability.
  • NetworkChange: Subscribing to events that notify your application when network availability or IP address configuration changes. This is incredibly useful for creating reactive applications that adapt to network fluctuations without constant polling.

Example of System.Net.NetworkInformation for Connectivity Check:

Imports System.Net.NetworkInformation
Imports System.Windows.Forms

Public Class Form1

    Private Sub Button4_Click(sender As Object, e As EventArgs) Handles Button4.Click
        If NetworkInterface.GetIsNetworkAvailable() Then
            Dim connectedTypes As New List(Of String)()
            For Each ni As NetworkInterface In NetworkInterface.GetAllNetworkInterfaces()
                If ni.OperationalStatus = OperationalStatus.Up AndAlso ni.Speed > 0 AndAlso ni.NetworkInterfaceType <> NetworkInterfaceType.Loopback Then
                    Select Case ni.NetworkInterfaceType
                        Case NetworkInterfaceType.Ethernet
                            connectedTypes.Add("Ethernet (LAN)")
                        Case NetworkInterfaceType.Wireless80211
                            connectedTypes.Add("Wi-Fi")
                        Case NetworkInterfaceType.Ppp, NetworkInterfaceType.Modem
                            connectedTypes.Add("Dial-Up/PPP")
                        Case Else
                            connectedTypes.Add(ni.NetworkInterfaceType.ToString())
                    End Select
                End If
            Next

            If connectedTypes.Any() Then
                MessageBox.Show("Connected via: " & String.Join(", ", connectedTypes.Distinct()), "Network Status")
            Else
                MessageBox.Show("Network available, but specific connection type not identified.", "Network Status")
            End If
        Else
            MessageBox.Show("No network connection available.", "Network Status")
        End If
    End Sub

End Class

This managed approach typically provides better performance, simpler syntax, and reduces the risk of errors associated with manual memory management and data marshaling inherent in P/Invoke. While wininet.dll remains relevant for specific low-level tasks, for general network availability checks, System.Net.NetworkInformation is often the preferred modern choice for .NET developers.

When to Use P/Invoke vs. Managed APIs

  • Use P/Invoke (wininet.dll) when:

    • You need to interact with very specific, low-level Win32 API functions that do not have direct .NET equivalents (like initiating or hanging up specific dial-up connections by name).
    • You are working in an older .NET Framework version where managed alternatives might be less mature or absent.
    • You require fine-grained control over network operations at the OS level.

  • Use Managed APIs (System.Net.NetworkInformation) when:

    • You need general network availability checks.
    • You want to monitor network changes asynchronously.
    • You need to query basic information about network interfaces (IP addresses, MAC addresses, connection speeds).
    • You prefer a safer, more abstract, and generally easier-to-use approach that integrates seamlessly with the .NET ecosystem.

Understanding both methods equips you with a versatile toolkit for tackling various network-related programming challenges in Visual Basic.

Best Practices and Considerations

When working with network operations, especially using P/Invoke, it’s essential to consider several best practices to ensure your application is stable, secure, and user-friendly.

Error Handling

The example code uses simple MessageBox.Show for error reporting. In a production application, you should implement more robust error handling:

  • Logging: Log detailed error messages to a file or an event log, including timestamps and stack traces, to aid in debugging and troubleshooting.
  • User Feedback: Provide clear, actionable feedback to the user. Instead of just an error code, explain what might have gone wrong (e.g., “Connection ‘My Connection’ not found” instead of “Error 135”).
  • Retry Mechanisms: For transient network issues, consider implementing retry logic with exponential backoff.

Security Implications of P/Invoke

Using P/Invoke involves directly calling unmanaged code, which can introduce security risks if not handled carefully:

  • Buffer Overruns: If string parameters are not marshaled correctly or if fixed-size buffers are used improperly, buffer overruns can occur, leading to crashes or potential security vulnerabilities.
  • Incorrect Function Calls: Calling an unmanaged function with incorrect parameters can lead to memory corruption or application instability.
  • Privilege Escalation: If the unmanaged DLL has elevated privileges and your P/Invoke call unintentionally triggers a vulnerable path, it could be exploited.
    • Always ensure you understand the exact signature and behavior of the unmanaged functions you are calling.
    • Use the SuppressUnmanagedCodeSecurity attribute sparingly and only when absolutely necessary, as it bypasses critical security checks.

User Experience

  • Asynchronous Operations: Network operations can be time-consuming. To prevent your application’s UI from freezing, consider performing network calls asynchronously (e.g., using Async/Await in modern VB.NET or BackgroundWorker for older versions). This keeps the UI responsive while waiting for network responses.
  • Clear Status Indicators: Provide visual cues to the user when a network operation is in progress (e.g., a “connecting…” message, a spinning indicator).
  • Configuration Management: For the dial-up connection name, consider storing it in application settings (e.g., app.config) rather than hardcoding it. This allows users to easily change it without recompiling the application.

Testing

Thoroughly test your application under various network conditions:

  • No network connection.
  • LAN connection.
  • Modem/dial-up connection (if applicable).
  • Proxy connection.
  • Disabling and enabling network adapters while the application is running.
  • Entering incorrect dial-up connection names.

By adhering to these best practices, you can build a more robust, secure, and user-friendly application that effectively manages network detection and connectivity.

Conclusion

This guide has provided a comprehensive walkthrough of how to implement network connection detection and dial-up management in Visual Basic using the WinINet API via P/Invoke. You’ve learned how to declare external functions, interpret connection flags, and programmatically initiate and terminate dial-up sessions. We also explored modern alternatives in the .NET Framework and discussed crucial best practices for error handling, security, and user experience.

Mastering these techniques empowers you to create more intelligent and adaptive applications that can respond dynamically to the network environment. Whether you’re supporting legacy systems or building modern tools, understanding the nuances of network interaction is an invaluable skill for any Visual Basic developer.

We encourage you to experiment further with the WinINet API, explore the System.Net.NetworkInformation namespace, and integrate these capabilities into your own projects. What challenges have you faced with network detection in your applications? Share your thoughts and experiences in the comments below!

Post a Comment
