.NET Framework Alert: WPF XBAPs Experiencing Startup Crashes

Table of Contents

WPF XBAP (XAML Browser Application) technology, an integral part of the .NET Framework, has long offered a unique way to deploy rich client applications directly within a web browser. These applications leverage the power of WPF to deliver visually stunning and interactive user experiences, bridging the gap between traditional desktop applications and web-based content. However, like any complex software component, XBAPs can encounter various issues, and one particularly disruptive problem is startup crashes. This article delves into the specifics of why WPF XBAPs might crash during their initial launch and, more importantly, provides a clear, actionable resolution to restore their functionality.

The ability for WPF XBAPs to execute within a browser environment depends heavily on seamless integration with the underlying operating system and its web browsing components. When this intricate connection is disrupted, users can face immediate and frustrating application failures. Understanding the root causes of these crashes is crucial for effective troubleshooting and maintaining system stability, ensuring that critical business applications or engaging user experiences remain accessible.

Understanding the Symptom: XBAP Startup Crashes¶

The primary symptom observed in this scenario is straightforward: WPF XBAPs fail to launch successfully, resulting in an immediate crash during their startup sequence. This can manifest in several ways, from a brief flash of an application window before it disappears, to a more explicit “Application has stopped working” message, or even a silent exit with no visible error dialogs. In some instances, users might observe a spinning cursor or a non-responsive browser tab before the application unexpectedly terminates.

Such crashes can significantly impede productivity for users relying on these applications, as the software becomes completely inaccessible. From a developer’s perspective, these issues are challenging to diagnose without clear error messages, often leading to a frustrating user experience and a breakdown in the expected application workflow. The impact extends beyond mere inconvenience, potentially halting critical business processes or depriving users of essential interactive content.

Deeper Dive into the Cause: Broken System-Level Interface Registrations¶

The fundamental reason behind these startup crashes often lies in corrupt or missing system-level interface registrations. Specifically, the registrations for two critical Component Object Model (COM) interfaces, IID_IWebBrowser2 and IID_IShellBrowser, are frequently identified as the culprits. These interfaces are not merely abstract programming constructs; they are the bedrock upon which many Windows components, including the mechanisms that allow XBAPs to function, are built.

• IID_IWebBrowser2: This interface is a crucial part of Microsoft’s Internet Explorer (IE) COM component model. XBAPs, by their design, rely on certain IE components to render and operate within the browser sandbox. The IWebBrowser2 interface provides programmatic access to control an instance of the IE browser, including navigation, document loading, and event handling. If its registration is broken, the XBAP cannot properly instantiate or interact with the necessary browser components it relies on for its execution environment. This disrupts the very foundation of how an XBAP is rendered and managed.

• IID_IShellBrowser: This interface is part of the Windows Shell API and is fundamental for applications that need to integrate with or manage the Windows shell (e.g., navigating folders, opening files, managing views). While less directly obvious than IWebBrowser2 for a browser-hosted application, shell integration can still be vital for an XBAP’s functionality, especially if it interacts with local file systems or requires specific shell services for its operation within the browser context. A corrupted registration here can lead to unexpected failures when the XBAP attempts to access or utilize these core shell functionalities.

The integrity of these COM interface registrations is paramount for the stable operation of various Windows applications and services. When these registrations become corrupted or go missing, the operating system and applications like XBAPs lose their ability to correctly locate and utilize the associated system components.

Why do these registrations break?¶

Several factors can lead to the corruption or absence of these critical interface registrations:

1. Failed Installations or Upgrades: Incomplete or interrupted software installations, especially those involving browser updates, system patches, or even other applications that modify core system components, can leave the registry in an inconsistent state. A partial update might overwrite some keys while failing to write others correctly, leading to broken links.
2. Malware Infections: Malicious software frequently targets system files and registry entries to gain control, hide its presence, or disrupt normal system operations. Some malware might intentionally or unintentionally corrupt critical COM registrations, including those vital for browser functionality and application execution.
3. Aggressive Registry Cleaners: While designed to optimize system performance, some overly aggressive or poorly designed registry cleaner tools can mistakenly identify legitimate and necessary registry entries as “junk” and remove them. This can lead to unforeseen system instabilities and application failures.
4. System File Corruption: Issues like hard drive errors, sudden power loss, or hardware failures can corrupt system files and the registry hive itself, leading to invalid or missing data for these crucial registrations.
5. Manual Registry Modifications: Inexperienced users attempting to manually edit the registry can inadvertently delete or modify critical keys, leading to widespread system issues.

These scenarios underscore the delicate nature of the Windows registry and the interconnectedness of system components. Any disruption to these foundational elements can have cascading effects, preventing applications like WPF XBAPs from initializing correctly.

Resolution: Re-registering Broken Interfaces¶

Fortunately, the solution to this problem is typically straightforward: re-registering the affected interfaces using the regsvr32 command-line utility. regsvr32 is a command-line tool used to register and unregister OLE controls (like DLLs and ActiveX controls) in the Windows registry. By re-running the registration commands for the specific DLLs that house these interfaces, we can repair the broken links in the registry, allowing the system and applications to correctly locate and utilize the necessary components.

The following commands are essential for re-establishing the correct registrations. It’s crucial to execute these commands with the appropriate administrative privileges to ensure they can modify system-level registry entries.

Standard Commands (for both 32-bit and 64-bit systems)¶

These commands target the common locations for 32-bit components on a 32-bit Windows system, and for 64-bit components on a 64-bit Windows system.

regsvr32 %SystemRoot%\System32\actxprxy.dll
regsvr32 "%ProgramFiles%\Internet Explorer\ieproxy.dll"

• %SystemRoot%\System32\actxprxy.dll: actxprxy.dll is the ActiveX Interface Marshaling Library. It is responsible for marshalling interface calls between different execution contexts, which is critical for COM objects communicating across process boundaries. Re-registering this DLL ensures that the system can correctly handle COM interface calls for various ActiveX controls and components.
• "%ProgramFiles%\Internet Explorer\ieproxy.dll": ieproxy.dll is related to Internet Explorer’s proxy settings and internal mechanisms. Given XBAPs’ reliance on IE components, ensuring this DLL is correctly registered is vital for their proper operation within the browser environment. The quotes around the path are important because %ProgramFiles% often resolves to a path containing spaces (e.g., “C:\Program Files”).

Commands for 64-bit Windows (Additional Steps)¶

On 64-bit versions of Windows, applications can be either 64-bit or 32-bit. To support 32-bit applications, Windows uses a compatibility layer called WOW64 (Windows 32-bit On Windows 64-bit). This means that 32-bit DLLs and programs reside in different locations than their 64-bit counterparts. Therefore, if the XBAP is a 32-bit application running on a 64-bit OS, or if the corruption affects 32-bit versions of these DLLs, additional commands are necessary.

regsvr32 %SystemRoot%\SysWOW64\actxprxy.dll
regsvr32 "%ProgramFiles(x86)%\Internet Explorer\ieproxy.dll"

• %SystemRoot%\SysWOW64\actxprxy.dll: SysWOW64 is the directory where 32-bit system files are stored on a 64-bit Windows installation. This command re-registers the 32-bit version of actxprxy.dll, ensuring compatibility for 32-bit applications that rely on it.
• "%ProgramFiles(x86)%\Internet Explorer\ieproxy.dll": ProgramFiles(x86) is the default installation path for 32-bit applications on a 64-bit Windows system. This command re-registers the 32-bit version of ieproxy.dll located within the 32-bit Internet Explorer installation.

It is generally recommended to run all four commands if you are on a 64-bit Windows system to cover all bases and ensure both 32-bit and 64-bit component registrations are restored.

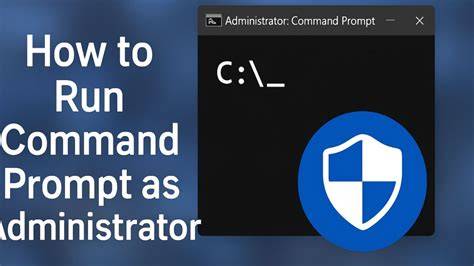

Executing Commands with Administrative Privileges¶

Modifying system-level registrations requires elevated permissions. Failing to run these commands as an administrator will result in an “Access is denied” error or similar failure messages. The procedure varies slightly depending on your Windows version:

• On Windows XP and Windows Server 2003: Log in to an administrator account on the machine. Open the Command Prompt by going to Start > All Programs > Accessories > Command Prompt. Then, type each command and press Enter.

• On Windows Vista or later (Windows 7, 8, 10, 11, Server 2008 R2 and newer):

  1. Click Start.
  2. Go to All Programs (or simply type in the search bar).
  3. Navigate to Accessories.
  4. Right-click on Command Prompt.
  5. Select Run as Administrator from the context menu. If prompted by User Account Control (UAC), click Yes.
  6. Once the elevated Command Prompt window appears (it will usually have “Administrator” in the title bar), type each command precisely as listed above and press Enter after each one. You should see a confirmation message like “DllRegisterServer in <DLL Name> succeeded.”

Table: regsvr32 Commands Summary

Operating System Architecture	Commands to Execute	Notes
32-bit Windows	regsvr32 %SystemRoot%\System32\actxprxy.dll regsvr32 "%ProgramFiles%\Internet Explorer\ieproxy.dll"	Run from an administrator account.
64-bit Windows	regsvr32 %SystemRoot%\System32\actxprxy.dll regsvr32 "%ProgramFiles%\Internet Explorer\ieproxy.dll" regsvr32 %SystemRoot%\SysWOW64\actxprxy.dll regsvr32 "%ProgramFiles(x86)%\Internet Explorer\ieproxy.dll"	Run Command Prompt as Administrator. Recommended to run all four.

After successfully executing the commands, it’s often a good practice to restart the computer, though it might not always be strictly necessary. A restart ensures that all system processes pick up the newly registered or updated registry entries.

Troubleshooting regsvr32 Issues¶

While regsvr32 is generally reliable, you might encounter issues:

• “The module was loaded but the entry-point DllRegisterServer was not found.”: This usually means the file is not a valid DLL for regsvr32 to register (i.e., it doesn’t contain the DllRegisterServer function), or you’re trying to register a 64-bit DLL with a 32-bit regsvr32 (or vice-versa). Ensure you are using the correct paths (System32 vs. SysWOW64) and matching regsvr32 versions.
• “Access is denied.”: Confirm you are running the Command Prompt with administrative privileges.
• “The specified module could not be found.”: Double-check the path to the DLL. Ensure there are no typos and that the file actually exists at the specified location.
• Other Errors: Consult the specific error code if one is provided. Windows Event Viewer (Application and System logs) might offer more detailed information about the failure.

Preventing Future Occurrences and Further Investigations¶

While the regsvr32 fix addresses the immediate problem, understanding how to prevent future occurrences and conduct deeper investigations can save time and frustration.

Best Practices for Prevention¶

1. Maintain System Updates: Regularly update your Windows operating system and the .NET Framework to ensure you have the latest patches and fixes. Microsoft often releases updates that address vulnerabilities or improve system stability, which can prevent registry corruption.
2. Use Reputable Security Software: Employ a robust antivirus and anti-malware solution and keep it updated. Regularly scan your system to detect and remove any malicious software that could tamper with system files or registry entries.
3. Careful Software Installation/Uninstallation: Always ensure software installations complete successfully. Avoid force-quitting installers or interrupting system updates. When uninstalling software, use the official uninstaller rather than manually deleting files.
4. Create System Restore Points: Before making significant system changes (like installing new software, major updates, or registry edits), create a system restore point. This provides a safety net, allowing you to revert your system to a previous stable state if something goes wrong.

Deeper Investigation and Debugging¶

If the regsvr32 solution doesn’t resolve the issue, or if the problem recurs, further investigation might be necessary:

1. Event Viewer: Check the Windows Event Viewer (Application and System logs) immediately after an XBAP crash. Look for error entries related to .NET Runtime, WPF, or any specific application errors that occur around the time of the crash. These logs can provide critical clues about the underlying cause, such as specific module failures or access violations.
2. Process Monitor: Tools like Process Monitor from Sysinternals (Microsoft) can provide highly detailed, real-time monitoring of file system, Registry, and process/thread activity. Running Process Monitor during an XBAP startup attempt can reveal which files or registry keys are being accessed or failing to be accessed, pinpointing the exact point of failure.
3. Clean Boot: Perform a clean boot to determine if a third-party service or startup program is interfering with the XBAP’s launch. This involves starting Windows with a minimal set of drivers and startup programs.
4. .NET Framework Repair Tool: Microsoft offers a .NET Framework Repair Tool that can automatically detect and fix some common issues with the .NET Framework installation. This might be a useful step if general framework corruption is suspected beyond specific DLL registrations.

The Broader Context: XBAPs in Modern Development¶

While the .NET Framework and WPF XBAPs have served a vital role in application deployment, the landscape of web and application development has evolved. Modern alternatives like ClickOnce, MSIX, and increasingly sophisticated web applications (SPA, PWA) offer different deployment models and sandbox environments. XBAPs, running within the browser, presented unique security challenges and dependencies on technologies like Internet Explorer. As IE phased out, and browsers moved towards more sandboxed, independent execution models, the viability and support for XBAPs naturally diminished.

However, for organizations with existing critical applications built on XBAP technology, ensuring their continued functionality remains paramount. This knowledge article serves as a testament to the ongoing need to support and troubleshoot legacy systems, providing concrete steps to resolve common, yet critical, issues like startup crashes. Understanding the underlying mechanisms, such as COM interface registrations, is timeless in its value for diagnosing and resolving complex Windows application problems.

Conclusion¶

The sudden and unexpected crash of WPF XBAPs during startup can be a frustrating experience, hindering productivity and access to vital applications. By understanding that these crashes often stem from corrupted or missing system-level interface registrations, specifically for IID_IWebBrowser2 and IID_IShellBrowser, the path to resolution becomes clear. The regsvr32 command, executed with appropriate administrative privileges, offers a powerful and direct method to repair these essential registry entries, restoring the functionality of your XBAPs.

Always ensure you run the correct commands for your system architecture and follow the steps for elevated privileges. Beyond the immediate fix, adopting preventative measures and knowing how to conduct further diagnostics are key to maintaining a stable computing environment.

Has this resolution helped you resolve your XBAP startup issues? Do you have any additional tips or experiences to share regarding this problem? We invite you to share your comments and insights below!
