Secure LDAP on Windows Server: A Step-by-Step Guide to LDAP over SSL

Table of Contents

Lightweight Directory Access Protocol (LDAP) is the cornerstone for reading from and writing to Active Directory, enabling critical directory services for applications and users alike. By default, LDAP communication occurs over an unencrypted channel, making it vulnerable to eavesdropping and data tampering. To safeguard this vital communication, implementing LDAP over Secure Sockets Layer (SSL), commonly known as LDAPS, is imperative. This comprehensive guide outlines the step-by-step process of enabling LDAPS using a third-party certification authority, enhancing the confidentiality and integrity of your directory traffic.

Understanding LDAPS and Its Importance¶

LDAPS leverages SSL/Transport Layer Security (TLS) technology to encrypt the communication between LDAP clients and domain controllers. This encryption ensures that sensitive information, such as user credentials, queries, and directory updates, is protected from unauthorized access during transit. While there’s no dedicated user interface for configuring LDAPS, the process simplifies to installing a properly formatted certificate on a domain controller. Once a valid certificate is in place, the LDAP service automatically begins listening for and accepting SSL connections for both standard LDAP and global catalog traffic.

The adoption of LDAPS is not merely a best practice; it is a critical security measure in today’s threat landscape. Without LDAPS, directory interactions are susceptible to man-in-the-middle attacks, where malicious actors could intercept and potentially alter data. Furthermore, many regulatory compliance standards and internal security policies now mandate the encryption of directory services, making LDAPS a necessity for maintaining a robust and compliant IT infrastructure.

Prerequisites for Enabling LDAPS¶

Before embarking on the certificate enrollment process, ensure you meet the following prerequisites:

• Administrative Privileges: You must have administrative rights on the domain controller where you intend to install the LDAPS certificate.

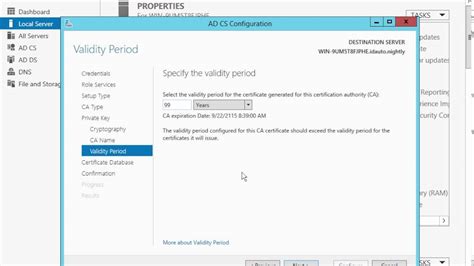

• Certification Authority (CA): A functional Certification Authority (CA) is required to issue the LDAPS certificate. This can be a Microsoft Enterprise CA, a standalone Microsoft CA, or a trusted third-party commercial CA. The key requirement is that the CA must be trusted by both the domain controller and all LDAP clients that will connect to it.
• Network Connectivity: Verify that the domain controller can communicate with the CA for certificate request and retrieval.

Establishing trust with the CA is paramount. Clients connecting to the domain controller via LDAPS must trust the root CA that issued the domain controller’s certificate. This trust is typically established by deploying the root CA certificate to all client machines, often accomplished through Group Policy in an Active Directory environment.

Requirements for an LDAPS Certificate¶

For LDAPS to function correctly, the certificate installed on the domain controller must adhere to a specific set of requirements. Failure to meet any of these criteria will prevent the LDAP service from initiating SSL/TLS connections. Understanding these requirements is crucial for a successful implementation.

1. Certificate Store Location: The LDAPS certificate must be placed in the Local Computer’s Personal certificate store (programmatically known as the computer’s MY certificate store). This is the primary location where the Schannel cryptographic service provider (CSP) looks for certificates. It’s important to note that if a certificate is present in the NT Directory Services (NTDS) store (for Windows Server 2008 and later), the domain controller will preferentially use that certificate instead, providing greater control.
2. Private Key Availability: A private key corresponding to the certificate must be present in the Local Computer’s store. This private key must be correctly associated with the certificate and, crucially, must not have strong private key protection enabled. Strong private key protection, while enhancing security for user accounts, interferes with the automated access required by the LDAP service.
3. Enhanced Key Usage (EKU) Extension: The certificate’s Enhanced Key Usage extension must include the Server Authentication (1.3.6.1.5.5.7.3.1) object identifier (OID). This OID explicitly designates the certificate’s purpose for server authentication, allowing it to be used for SSL/TLS connections where the server needs to prove its identity to the client.
4. Subject Name or Subject Alternative Name: The Active Directory fully qualified domain name (FQDN) of the domain controller (e.g., dc01.contoso.com) must appear in one of two locations within the certificate:
   • The Common Name (CN) in the Subject field.
   • A DNS entry within the Subject Alternative Name (SAN) extension.
     Including the FQDN is vital for clients to verify the identity of the server they are connecting to, preventing impersonation attacks.
5. Trusted Issuing CA: The certificate must be issued by a Certification Authority that is explicitly trusted by both the domain controller itself and all the LDAPS clients that will connect to it. This trust chain typically means that the root CA certificate of the issuing CA must be installed in the Trusted Root Certification Authorities store on both the server and the clients.
6. Cryptographic Service Provider (CSP): The certificate’s key pair must be generated using the Schannel cryptographic service provider (CSP). This ensures compatibility and optimal performance with Windows’ native SSL/TLS implementation.

Adhering to these stringent requirements ensures that the installed certificate is valid and can be properly utilized by the LDAP service to establish secure, encrypted connections.

Creating the Certificate Request¶

To obtain an LDAPS certificate, you first need to generate a certificate request file. While various utilities can create a valid PKCS #10 request, the Certreq.exe tool is commonly used and highly effective for this purpose on Windows Server. This process involves creating a text instruction file (an .inf file) that specifies the certificate’s properties.

Step-by-Step Certificate Request Generation¶

1. Create the .inf File:
   Using your preferred ASCII text editor (like Notepad), create a new file and save it with an .inf extension (e.g., request.inf) in a convenient folder on your hard drive. This file will contain the parameters for your certificate request. Below is a sample request.inf file:

   ;----------------- request.inf -----------------
   [Version]
   Signature="$Windows NT$"

   [NewRequest]
   Subject = "CN=<DC fqdn>" ; Replace with the FQDN of your Domain Controller, e.g., "CN=dc01.contoso.com"
   KeySpec = 1 ; AT_KEYEXCHANGE. Specifies that the key can be used for encryption and key exchange.
   KeyLength = 2048 ; Can be 1024, 2048, 4096, 8192, or 16384. Larger key sizes are more secure but impact performance. 2048 is generally recommended.
   Exportable = TRUE ; Allows the private key to be exported, useful for disaster recovery or migration.
   MachineKeySet = TRUE ; Indicates that the private key is stored in the local computer's key store, not a user's store.
   SMIME = FALSE ; Not an S/MIME certificate.
   PrivateKeyArchive = FALSE ; Private key will not be archived.
   UserProtected = FALSE ; No user interaction required for private key operations.
   UseExistingKeySet = FALSE ; A new key pair will be generated.
   ProviderName = "Microsoft RSA SChannel Cryptographic Provider" ; Specifies the CSP to use.
   ProviderType = 12 ; Type of CSP (PROV_RSA_SCHANNEL).
   RequestType = PKCS10 ; Standard PKCS #10 certificate request format.
   KeyUsage = 0xa0 ; Digital Signature, Key Encipherment.

   [EnhancedKeyUsageExtension]
   OID=1.3.6.1.5.5.7.3.1 ; This OID specifies "Server Authentication".
   ;-----------------------------------------------


   Important Considerations for the request.inf file:
   * Subject: Replace <DC fqdn> with the actual fully qualified domain name of your domain controller (e.g., dc01.contoso.com). For third-party certification authorities, you might need to include additional subject parameters like E-mail (E), Organizational Unit (OU), Organization (O), Locality (L), State/Province (S), and Country/Region (C). For example: Subject="E=admin@contoso.com, CN=dc01.contoso.com, OU=Servers, O=Contoso, L=Redmond, S=Washington, C=US."
   * KeyLength: While 1024-bit keys are technically supported, modern security standards recommend a minimum of 2048-bit keys for stronger encryption. Higher key lengths provide greater security but come with a performance overhead.
   * Exportable = TRUE: This setting is often necessary if you plan to back up the certificate with its private key or migrate it to another server.

2. Generate the Request File:
   Open an elevated command prompt (Run as Administrator), navigate to the folder where you saved request.inf, and execute the following command:

   certreq -new request.inf request.req


   This command processes the request.inf file and generates a new file named request.req. This request.req file is a base64-encoded certificate request that you will submit to your Certification Authority.

3. Submit the Request to Your CA:
   The method for submitting the request.req file depends on your CA.

   • Microsoft Enterprise CA: You can typically open a web browser to the CA’s enrollment page (e.g., http://<CA_Server_Name>/certsrv), select “Request a certificate,” then “advanced certificate request,” and paste the contents of request.req into the submission box.
   • Third-Party CA: You will generally follow the instructions provided by your commercial CA. This usually involves logging into their portal and uploading the request.req file.

4. Retrieve and Save the Issued Certificate:
   After the CA processes your request and issues the certificate, you need to retrieve it.

   • If using a Microsoft CA web enrollment, you will be able to download the certificate.
   • Third-party CAs usually provide a download link or email the certificate as base64-encoded text.
     Create a new file named Certnew.cer (or any other .cer name) in the same folder as your request.req file. Open this new .cer file in Notepad, paste the base64-encoded certificate content into it, and then save the file. Ensure the certificate is saved in base64 X.509 format.

5. Accept the Issued Certificate:
   Once you have saved the issued certificate as Certnew.cer, return to your elevated command prompt and execute the following command:

   certreq -accept Certnew.cer


   This command imports the certificate into the Local Computer’s Personal certificate store and associates it with the private key that was generated during the certreq -new step. This is the crucial step that makes the certificate available for LDAPS.

6. Verify Certificate Installation:
   It is vital to confirm that the certificate has been installed correctly and meets all the LDAPS requirements.

   • Start Microsoft Management Console (MMC) by typing mmc in the Run dialog.
   • Go to File > Add/Remove Snap-in…
   • Select Certificates from the available snap-ins and click Add.
   • Choose Computer account, then Local computer, and click Finish, then OK.
   • In the MMC console, navigate to Certificates (Local Computer) > Personal > Certificates.
   • You should see your newly installed certificate. Double-click on it to open its properties.
   • Verify the following:
     • Issued To: Should match the FQDN of your domain controller.
     • Issued By: Should be your CA.
     • Intended Purposes: Should list “Server Authentication.”
     • Private Key: Confirm that it states, “You have a private key that corresponds to this certificate.”

7. Restart the Domain Controller:
   For the changes to take full effect and for the LDAP service to begin using the newly installed certificate, you must restart the domain controller. This allows the Schannel provider to load the certificate and enable LDAPS listeners on ports 636 and 3269.

For more in-depth information on advanced certificate enrollment and management, consult relevant documentation on Microsoft’s official channels.

Verifying an LDAPS Connection¶

After successfully installing the LDAPS certificate and restarting the domain controller, the next critical step is to verify that LDAPS is indeed enabled and functioning as expected. The Active Directory Administration Tool, Ldp.exe, is the primary utility for this verification.

Using Ldp.exe to Confirm LDAPS Functionality¶

1. Launch Ldp.exe:
   Open the Run dialog (Windows Key + R), type ldp.exe, and press Enter. This will open the Ldp.exe utility window.

2. Establish an LDAPS Connection:

   • In Ldp.exe, navigate to the Connection menu and select Connect.
   • In the “Connect” dialog box:
     • Server: Type the fully qualified domain name (FQDN) of the domain controller to which you want to connect (e.g., dc01.contoso.com). Do not use an IP address, as certificate validation relies on the FQDN.
     • Port: Type 636. This is the standard port for secure LDAPS communication. For global catalog servers, you can also test port 3269.
     • SSL: Ensure the SSL checkbox is selected. This instructs Ldp.exe to attempt an SSL/TLS connection.
   • Click OK.

3. Interpret the Results:
   If the connection is successful, Ldp.exe will display the RootDSE information in the right pane of the window. This indicates that a secure connection has been successfully established and the domain controller is responding to LDAPS queries. Look for indicators like “Host: :636” and no errors related to SSL/TLS negotiation. If you encounter connection errors or SSL-related messages, it indicates an issue with the LDAPS configuration or the certificate.

A successful connection using Ldp.exe on port 636 with SSL enabled is the definitive confirmation that your domain controller is configured to accept secure LDAP connections.

Common Issues and Troubleshooting Tips¶

While enabling LDAPS is generally straightforward, several common issues can arise. Understanding these potential pitfalls and their resolutions can significantly expedite troubleshooting.

Start TLS Extended Request vs. Direct SSL Connection¶

LDAPS communication typically occurs over TCP port 636. For a global catalog server, LDAPS communication utilizes TCP port 3269. When a client initiates a connection to these specific ports, SSL/TLS negotiation begins immediately before any LDAP traffic is exchanged. This is a direct SSL connection.

Conversely, standard LDAP connections on port 389 (or 3268 for global catalog) can be “upgraded” to an encrypted connection using a Start TLS extended operation. While this also provides encryption, it’s distinct from a direct LDAPS connection on ports 636/3269. It’s crucial to differentiate these, as the certificate requirements and client configurations can vary slightly. Ensure your clients are configured to connect directly to port 636/3269 for full LDAPS utilization, or to explicitly initiate Start TLS on the standard ports.

Handling Multiple SSL Certificates¶

Schannel, Microsoft’s SSL/TLS provider, is designed to select the first valid certificate it finds in the local computer’s certificate store that meets the necessary criteria (Server Authentication OID, FQDN match, private key). If there are multiple valid certificates present in the Local Computer’s Personal store, Schannel might inadvertently select an incorrect certificate, leading to LDAPS connection failures or certificate warnings on clients.

Troubleshooting Multiple Certificates:
* Clean Up Old Certificates: Regularly review the Local Computer’s Personal certificate store and remove any expired, duplicate, or unneeded certificates.
* Utilize the NTDS Store (Windows Server 2008+): As discussed in the “Improvements” section, placing the certificate in the NTDS Service’s Personal certificate store offers greater control over which certificate AD DS uses, minimizing the chances of Schannel picking an undesired certificate. This is the recommended approach for modern Windows Server versions.
* Specific Certificate Naming: While not a guaranteed solution, sometimes naming conventions or distinct properties can help identify the correct certificate if manual intervention is needed.

Pre-SP3 SSL Certificate Caching Issue¶

In older versions of Windows Server (prior to Windows Server 2003 Service Pack 3 and subsequent improvements), if an existing LDAPS certificate was replaced—either due to renewal or a change in the issuing CA—the server would often cache the old certificate information. In such scenarios, a simple restart of the LDAP service might not suffice. A full restart of the domain controller was required for Schannel to clear its cache and begin using the new certificate. This issue is largely mitigated in modern Windows Server versions, but it’s a good historical context for troubleshooting.

Other Common Issues¶

• Firewall Blocks: Ensure that network firewalls (both Windows Firewall on the DC and external network firewalls) are not blocking incoming connections on TCP port 636 and 3269.
• FQDN Mismatch: The FQDN specified in the certificate’s Common Name or Subject Alternative Name must exactly match the FQDN used by clients to connect to the domain controller. Mismatches will result in certificate validation errors.
• CA Trust Issues: If clients do not trust the issuing CA (or its root CA), they will reject the domain controller’s certificate. Ensure the CA’s root certificate is distributed to all client machines.
• Certificate Expiration: Always monitor certificate expiration dates. An expired certificate will immediately cause LDAPS connections to fail.

Thorough investigation of event logs, especially under the System and Application logs, can often reveal specific error messages related to Schannel, LDAP, or certificate services, providing valuable clues for troubleshooting.

Modern Enhancements in Windows Server 2008 and Later¶

Windows Server 2008 and subsequent versions of Active Directory Domain Services (AD DS) introduced significant improvements to LDAPS certificate management, making the process more robust and easier to maintain. These enhancements address several challenges faced in earlier versions.

NTDS Service’s Personal Certificate Store¶

The primary improvement is the introduction of the NTDS Service’s Personal certificate store as a preferred location for LDAPS certificates. While placing certificates in the Local Machine’s Personal store remains supported, AD DS now preferentially looks for certificates in this dedicated NTDS store. This distinction is crucial because the Local Machine’s store might contain numerous certificates for various services, making it difficult for Schannel to predictably select the correct one for LDAPS. By using the NTDS store, administrators gain greater control over which certificate AD DS utilizes, significantly reducing the chances of conflicts or unintended certificate selection.

For Active Directory Lightweight Directory Services (AD LDS) instances, the same principle applies. Instead of the NTDS service store, certificates for AD LDS instances should be placed into the Personal certificate store for the specific service that corresponds to that AD LDS instance.

Dynamic Certificate Updates¶

A major quality-of-life improvement is AD DS’s ability to detect when a new certificate is placed into its dedicated NTDS certificate store. When a new, valid LDAPS certificate is added to this store, AD DS automatically triggers an SSL certificate update without requiring a restart of the AD DS service or a full domain controller reboot. This capability minimizes downtime and simplifies certificate rotation or replacement procedures, enhancing service availability.

The renewServerCertificate RootDSE Operation¶

Windows Server 2008 introduced a new RootDSE operation called renewServerCertificate. This operation allows administrators to manually trigger AD DS to update its SSL certificates without needing to restart the AD DS service or the domain controller. This is particularly useful in scenarios where a certificate is updated outside of the standard detection mechanism or for immediate activation of a new certificate.

This attribute can be updated using tools like adsiedit.msc or by importing a change using the LDAP Directory Interchange Format (LDIF) with ldifde.exe. For example, a simple LDIF file could look like this:

dn:
changetype: modify
replace: renewServerCertificate
renewServerCertificate: 1
-

Importing this LDIF file using ldifde -i -f <filename.ldf> would instruct the domain controller to refresh its SSL certificate configuration.

Random Certificate Selection (If Multiple Exist)¶

It’s important to note that if a Windows Server 2008 or later version domain controller finds multiple valid certificates within its preferred store (the NTDS store), it will randomly choose one of these certificates to use for LDAPS. While the NTDS store helps narrow down the choices compared to the Local Machine store, it underscores the best practice of ensuring only the intended, current certificate is present in the active store for LDAPS.

These improvements significantly enhance the manageability and reliability of LDAPS implementations in modern Windows Server environments, reducing the operational overhead associated with secure directory services.

Conclusion¶

Enabling LDAPS on your Windows Server domain controllers is a fundamental step towards fortifying your Active Directory environment. By encrypting LDAP traffic, you protect sensitive data, adhere to compliance requirements, and build a more resilient infrastructure. While the process involves careful attention to certificate requirements and command-line operations, the security benefits far outweigh the implementation effort.

With the enhancements in Windows Server 2008 and later versions, managing LDAPS certificates has become more streamlined and efficient, allowing for dynamic updates and dedicated certificate storage. Regularly reviewing your certificate status, ensuring CA trust, and promptly replacing expiring certificates are ongoing tasks crucial for maintaining continuous secure operation.
