Secure Your Network: VPN Server Setup Guide for Windows Server 2003

Updated: • 0 • min read
Table of Contents

Windows Server 2003 VPN Setup

This comprehensive guide details the process of installing and configuring a Virtual Private Network (VPN) server on Windows Server 2003. It also outlines the steps for creating a new VPN connection from a client computer. By following these instructions, you can enable remote users to securely access your network resources over the Internet, effectively extending your private network.

Understanding Virtual Private Networks (VPN)

A Virtual Private Network (VPN) offers a secure method to connect network components over a public network, such as the Internet. It essentially creates a “tunnel” through this public infrastructure, providing the same level of security and functionality as a dedicated private network connection. This technology allows organizations to link branch offices or partner companies securely over the Internet, functioning as a logical wide area network (WAN) link.

Windows Server 2003 can be configured as a remote-access server, allowing users to connect via VPN, log onto the network, and access shared resources as if they were physically present. The primary advantage of a VPN is its ability to combine the convenience of an Internet connection with the security of a private link. Users can connect from virtually anywhere in the world with Internet access, enjoying secure, high-speed communication with their office network, often surpassing traditional dial-up speeds.

VPNs achieve their security through several mechanisms, including authenticated links to ensure only authorized individuals can connect. Data transmitted over the public network is encrypted using established tunneling protocols like Point-to-Point Tunneling Protocol (PPTP) or Layer Two Tunneling Protocol (L2TP). These protocols encapsulate and encrypt data, making it unreadable to unauthorized parties even if intercepted.

Components of a VPN

A Windows Server 2003-based VPN system comprises several key elements that work together to establish and maintain secure connections. These include the VPN server, which acts as the gateway to the private network, and the VPN client, which initiates the connection from a remote location. The actual communication path involves a VPN connection, where data is encrypted, and a tunnel, where data is encapsulated.

The core of the VPN functionality in Windows Server 2003 is provided by the Routing and Remote Access service. This service is automatically installed during the initial Windows Server 2003 installation process, though it is typically turned off by default. It includes the necessary tunneling protocols that facilitate VPN connections.

Windows Server 2003 supports two primary tunneling protocols:

  • Point-to-Point Tunneling Protocol (PPTP): This protocol provides data encryption using Microsoft Point-to-Point Encryption (MPPE), offering a foundational level of security for VPN connections.
  • Layer Two Tunneling Protocol (L2TP): L2TP offers enhanced security features, including data encryption, authentication, and integrity, by leveraging IPSec (Internet Protocol Security). It is generally considered more secure than PPTP.

For optimal performance and reliability, the VPN server’s connection to the Internet should utilize a dedicated line such as T1, Fractional T1, or Frame Relay. The Wide Area Network (WAN) adapter on the server must be correctly configured with the IP address and subnet mask provided by your domain or Internet Service Provider (ISP). Additionally, this WAN adapter should be set as the default gateway to the ISP router to ensure proper external communication.

How to Install and Enable a VPN Server

Enabling a VPN server on Windows Server 2003 involves activating and configuring the Routing and Remote Access service. This process transforms your server into a central point for secure remote access. Follow these step-by-step instructions to get your VPN server up and running.

  1. Access Routing and Remote Access: Begin by clicking Start, pointing to Administrative Tools, and then selecting Routing and Remote Access. This will open the console for managing remote access settings.
  2. Check Service Status: In the left pane of the console, locate the server icon that corresponds to your local server name.
    • If the icon displays a red circle in its lower-left corner, the Routing and Remote Access service is currently disabled.
    • If the icon shows a green arrow pointing upwards, the service is already active.
  3. Reconfigure (If Already On): If the Routing and Remote Access service was previously enabled, you might need to reconfigure it to set up VPN functionality properly.
    • Right-click the server object, and then click Disable Routing and Remote Access. Confirm by clicking Yes when prompted with the informational message.
    • After disabling, right-click the server icon again and select Configure and Enable Routing and Remote Access to launch the setup wizard. Click Next to proceed through the initial wizard screen.
  4. Select Configuration Type: In the wizard, choose Remote access (dial-up or VPN). This option allows remote computers to connect to your network via either dial-up modem or through the Internet using VPN. Click Next to continue.
  5. Choose Access Method: On the next screen, click to select VPN if your intention is to primarily provide Virtual Private Network access. If you also plan to support traditional dial-up connections, you can select Dial-up as well, depending on the server’s intended role.
  6. Specify Internet Interface: In the VPN Connection window, select the network interface card (NIC) that is directly connected to the Internet. This interface will handle incoming VPN requests. Click Next to proceed.
  7. IP Address Assignment: Determine how IP addresses will be assigned to remote VPN clients.
    • Click Automatically if a DHCP server is available on your network and will be used to dynamically assign addresses. This is generally the simplest option to manage.
    • Alternatively, click From a specified range of addresses if you prefer to allocate IP addresses from a predefined static pool. This is useful in environments without DHCP or where specific address ranges are required for clients. Click Next to continue.
  8. Define Address Range (If Chosen): If you selected From a specified range of addresses, the Address Range Assignment dialog box will appear.
    • Click New.
    • In the Start IP address box, enter the first IP address of your desired range.
    • In the End IP address box, enter the last IP address of the range. Windows will automatically calculate the total number of available addresses.
    • Click OK to return to the Address Range Assignment window, then click Next to proceed.
  9. Authentication Method: Accept the default setting, No, use Routing and Remote Access to authenticate connection requests. This configures the server itself to handle authentication for incoming connections. Click Next to continue.
  10. Finalize Setup: Click Finish to finalize the configuration. This action will enable the Routing and Remote Access service and configure your server as a Remote Access server, ready to accept VPN connections.

How to Configure the VPN Server

Once the VPN server is installed and enabled, further configuration is essential to ensure it operates efficiently and securely within your network environment. These steps involve setting up the server as a router, adjusting the number of simultaneous connections, managing IP addresses, and defining user access policies.

How to Configure the Remote Access Server as a Router

For the remote access server to effectively forward traffic between your internal network and VPN clients, it must be configured as a router. This involves setting up either static routes or utilizing routing protocols, ensuring that all internal network locations are reachable from the remote access server. Proper routing is critical for VPN clients to access resources beyond the VPN server itself.

To configure the server as a router:

  1. Click Start, point to Administrative Tools, and then click Routing and Remote Access.
  2. Right-click the server name in the console tree, and then click Properties.
  3. Navigate to the General tab. Under Enable this computer as a, click to select Router.
  4. Ensure that LAN and demand-dial routing is selected beneath the Router option. This enables the server to route traffic between local area networks and demand-dial interfaces, including VPN connections.
  5. Click OK to apply the changes and close the Properties dialog box.

How to Modify the Number of Simultaneous Connections

By default, after the initial setup, a Windows Server 2003 VPN server typically allows 128 simultaneous VPN connections. However, you may need to adjust this number based on your specific organizational needs, available resources, and security policies. The number of physical dial-up modem connections is limited by the number of modems installed, but VPN connections are configurable.

To change the number of simultaneous VPN connections:

  1. Click Start, point to Administrative Tools, and then click Routing and Remote Access.
  2. In the console tree, double-click the server object (your server name), then right-click Ports, and select Properties.
  3. In the Ports Properties dialog box, locate and click on WAN Miniport (PPTP) or WAN Miniport (L2TP) depending on which protocol you wish to configure, and then click Configure.
  4. In the Maximum ports box, type the desired number of VPN connections that you want to permit concurrently.
  5. Click OK to confirm the change for that miniport. Repeat for the other WAN Miniport if needed.
  6. Click OK again on the Ports Properties dialog box, and then close the Routing and Remote Access console.

How to Manage Addresses and Name Servers

The VPN server must have an adequate pool of IP addresses to assign to both its own virtual interface and to the connecting VPN clients during the IP Control Protocol (IPCP) negotiation phase. The IP address assigned to a VPN client becomes its identifier on the network, mapped to the client’s virtual interface. By default, Windows Server 2003 VPN servers obtain these IP addresses from a DHCP server. Alternatively, you can configure a static IP address pool if DHCP is not preferred or available.

In addition to IP addresses, the VPN server must be configured with the addresses of name resolution servers, typically Domain Name System (DNS) servers and Windows Internet Name Service (WINS) servers. These addresses are also provided to the VPN client during IPCP negotiation, enabling clients to resolve network resource names to their corresponding IP addresses, facilitating access to shared resources and services.

How to Manage Access

Controlling who can connect to your VPN is crucial for network security. Access can be managed either on a user-by-user basis or through group membership, leveraging remote access policies. These policies dictate the conditions under which a user or group is allowed to establish a VPN connection.

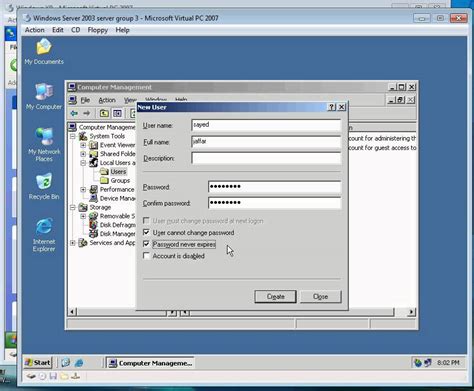

Access by User Account

If your remote access management strategy focuses on individual user permissions, you can grant or deny dial-in access directly through each user’s account properties. This method is suitable for smaller organizations or specific cases where granular control is required for a limited number of users.

To grant dial-in access to a user account:

  1. Click Start, point to Administrative Tools, and then click Active Directory Users and Computers.
  2. In the console, locate and right-click the specific user account you wish to configure, then click Properties.
  3. Navigate to the Dial-in tab within the user’s properties.
  4. Click Allow access to grant the user permission to establish a remote connection.
  5. Click OK to save the changes and close the dialog box.

Access by Group Membership

For larger organizations or those requiring more scalable and centralized access control, managing remote access based on group membership is more efficient. This involves creating security groups and then defining remote access policies that apply to these groups. Any user added to the designated group will inherit the permissions defined by the policy.

To manage access by group membership:

  1. First, create a security group in Active Directory Users and Computers. Add all users who should be permitted to create VPN connections to this new group.
  2. Click Start, point to Administrative Tools, and then click Routing and Remote Access.
  3. In the console tree, expand Routing and Remote Access, then expand your server name, and click Remote Access Policies.
  4. Right-click anywhere in the right pane, point to New, and then click Remote Access Policy. This will start the wizard.
  5. Click Next, provide a descriptive name for the policy, and then click Next.
  6. Select the access method for this policy: Click VPN for Virtual Private Access connections, or Dial-up for traditional dial-up access. Click Next.
  7. Click Add, then type the name of the group you created in step 1. This links the policy to your security group. Click Next.
  8. Follow the remaining on-screen instructions to complete the wizard, defining any additional conditions or profile settings for the policy.

Important Note: If your VPN server already provides dial-up networking remote access services and has a default policy, do not delete it. Instead, move it so that it is the last policy to be evaluated. This ensures that more specific policies (like your new VPN group policy) are processed first.

How to Configure a VPN Connection from a Client Computer

After setting up your Windows Server 2003 as a VPN server, the next step is to configure client computers to establish a secure connection to it. These instructions guide you through creating and configuring a VPN connection on a client workstation.

  1. Verify Internet Connection: On the client computer, ensure that the connection to the Internet is correctly configured and active. The VPN connection will tunnel through this existing Internet connection.
  2. Start New Connection Wizard: Click Start > Control Panel > Network Connections. Under Network Tasks, click Create a new connection, and then click Next.
  3. Choose Connection Type: Click Connect to the network at my workplace to create a connection specifically designed for accessing a corporate network. Click Next to continue.
  4. Select VPN Connection: Choose Virtual Private Network connection from the options. This specifies the type of secure tunnel you intend to create. Click Next.
  5. Enter Connection Name: In the Company name dialog box, type a descriptive name for this VPN connection (e.g., “Office VPN” or “My Company VPN”). Click Next.
  6. Initial Connection Handling:
    • If the client computer has a permanent, always-on connection to the Internet (e.g., via cable or DSL router), click Do not dial the initial connection.
    • If the computer connects to the Internet through an Internet Service Provider (ISP) using a dial-up modem, click Automatically dial this initial connection and then select the name of your existing ISP connection. Click Next.
  7. VPN Server Address: Type the IP address or the host name of your VPN server computer (e.g., VPNServer.SampleDomain.com). This tells the client where to connect.
  8. Connection Availability:
    • Click Anyone’s use if you want any user who logs on to this workstation to have access to this VPN connection.
    • Click My use only if you want this connection to be available exclusively to the currently logged-on user. Click Next.
  9. Save Connection: Click Finish to save the newly configured VPN connection.
  10. Access Network Connections: Click Start > Control Panel > Network Connections to view your saved connections.
  11. Configure Connection Properties: Double-click the new VPN connection icon. Click Properties to access further configuration options:
    • Include Windows logon domain: On the Options tab, click to select the Include Windows logon domain check box if you want the client to prompt for Windows Server 2003 logon domain information before attempting to connect. This is typically required when connecting to a domain.
    • Redial if line is dropped: On the Options tab, click to select the Redial if line is dropped check box if you want the VPN client to automatically attempt to re-establish the connection if it unexpectedly disconnects.

To use the connection:

  1. Click Start, point to Connect to, and then click the new VPN connection you just created.
  2. If you do not currently have an active Internet connection, Windows will prompt you to connect to the Internet first, as the VPN relies on it.
  3. Once the Internet connection is established, the VPN server will prompt you for your user name and password. Enter your credentials and click Connect.
  4. Upon successful connection, your network resources (shared folders, printers, internal applications) should be accessible to you in the same way they are when you are directly connected to the network.

Note: To disconnect from the VPN, locate the connection icon (often in the system tray or Network Connections folder), right-click it, and then click Disconnect.

Troubleshooting

Despite careful configuration, you may encounter issues when setting up or using your VPN server. This section provides solutions to common problems related to establishing remote access VPN connections and transmitting data.

Troubleshooting Remote Access VPNs

Several factors can prevent a remote access VPN connection from being established. Identifying the root cause is key to resolving these issues.

  • Cause: The client computer’s name is identical to another computer on the network.

    • Solution: Ensure that all computers on your network, including those connecting via VPN, have unique computer names. Duplicate names can lead to conflicts and connection failures.

  • Cause: The Routing and Remote Access service is not running on the VPN server.

    • Solution: Verify the operational status of the Routing and Remote Access service on your VPN server. If it’s stopped, start it from the Services console within Administrative Tools.

  • Cause: Remote access functionality has not been enabled on the VPN server.

    • Solution: Turn on remote access on the VPN server using the Routing and Remote Access console, as described in the “How to Install and Enable a VPN Server” section.

  • Cause: PPTP or L2TP ports are not enabled for inbound remote access requests.

    • Solution: Configure the Routing and Remote Access service to allow inbound connections on the necessary PPTP (TCP port 1723 and GRE protocol 47) or L2TP (UDP port 1701 and IPSec ESP/AH) ports, or both, as per your chosen protocol.

  • Cause: The LAN protocols (e.g., TCP/IP, IPX) used by VPN clients are not enabled for remote access on the VPN server.

    • Solution: Ensure that the appropriate LAN protocols are enabled for remote access within the VPN server’s Routing and Remote Access properties.

  • Cause: All available PPTP or L2TP ports on the VPN server are currently in use by other connected clients or demand-dial routers.

    • Solution: Check the Ports section in the Routing and Remote Access console to see if the maximum number of simultaneous connections has been reached. If needed, increase the “Maximum ports” setting for the relevant WAN Miniport.

  • Cause: The VPN server does not support the tunneling protocol being used by the VPN client.

    • Solution: By default, Windows Server 2003 VPN clients attempt L2TP over IPSec first, then PPTP. Ensure your VPN server is configured to support the protocol the client is trying to use. Verify that the appropriate number of PPTP or L2TP ports are configured on the server. A PPTP-only server would have zero L2TP ports, and vice-versa.

  • Cause: The VPN client and server (or remote access policy) lack a common authentication method.

    • Solution: Configure both the VPN client and server, in conjunction with your remote access policies, to use at least one mutually supported authentication method (e.g., MS-CHAP v2, EAP).

  • Cause: The VPN client and server (or remote access policy) lack a common encryption method.

    • Solution: Ensure that both the VPN client and server, along with any relevant remote access policies, are configured to use at least one common encryption method.

  • Cause: The VPN connection lacks the necessary permissions via user account dial-in properties or remote access policies.

    • Solution: Verify that the user account’s dial-in properties are set to “Allow access” or that the remote access policy is configured to “Grant remote access permission” for the matching connection attempt. All conditions in the policy and user account properties must be met.

  • Cause: Remote access policy profile settings conflict with VPN server properties.

    • Solution: Examine settings for Multilink, Bandwidth Allocation Protocol (BAP), and authentication protocols in both the remote access policy profile and the VPN server properties. Conflicting settings (e.g., EAP-TLS required in policy but not enabled on server) will cause connection rejection.

  • Cause: The answering router cannot validate the credentials (username, password, domain name) of the calling router.

    • Solution: Confirm that the VPN client’s credentials are correct and can be authenticated by the VPN server. This often points to incorrect username, password, or an unreachable domain controller.

  • Cause: Insufficient IP addresses available in the static IP address pool.

    • Solution: If using a static IP address pool, verify that enough addresses are configured. If all addresses are allocated, the server cannot assign one, and the connection will fail. Modify the pool to include more addresses if needed.

  • Cause: VPN client is requesting its own IPX node number, but the VPN server is not configured to allow this.

    • Solution: Configure the VPN server to permit IPX clients to request their own IPX node numbers if IPX is in use on your network.

  • Cause: The VPN server’s configured IPX network number range conflicts with other ranges on your IPX network.

    • Solution: Assign a range of IPX network numbers to the VPN server that is unique within your IPX network to prevent routing issues.

  • Cause: The authentication provider on the VPN server is improperly configured.

    • Solution: Verify the configuration of your authentication provider. Ensure the VPN server is correctly set up to use either Windows Server 2003’s built-in authentication or a Remote Authentication Dial-In User Service (RADIUS) server.

  • Cause: The VPN server cannot access Active Directory.

    • Solution: For a Windows Server 2003 domain member server configured for Windows authentication, confirm:
      • The RAS and IAS Servers security group exists with ‘Security’ type and ‘Domain local’ scope.
      • This group has ‘Read’ permission to the RAS and IAS Servers Access Check object.
      • The VPN server’s computer account is a member of the RAS and IAS Servers group. Use netsh ras show registeredserver and netsh ras add registeredserver if needed. Remember to restart the VPN server after making changes to group membership.
      • The VPN server is correctly joined to the domain.

  • Cause: A Windows NT 4.0-based VPN server cannot validate connection requests from a Windows Server 2003 domain.

    • Solution: If Windows NT 4.0 VPN servers are in a Windows Server 2003 mixed-mode domain, ensure the “Everyone” group is added to the “Pre-Windows 2000 Compatible Access” group using net localgroup "Pre-Windows 2000 Compatible Access" everyone /add on a domain controller, then restart the DC.

  • Cause: The VPN server cannot communicate with the configured RADIUS server.

    • Solution: If your RADIUS server is only reachable via the Internet interface, add appropriate input and output filters to that interface for the UDP ports used by RADIUS (1812/1645 for authentication, 1813/1646 for accounting).

  • Cause: Cannot ping the VPN server over the Internet using Ping.exe.

    • Solution: Due to PPTP/L2TP over IPSec packet filtering, ICMP (ping) packets are typically filtered. To allow the VPN server to respond to pings, add an input and output filter for IP protocol 1 (ICMP traffic) to the Internet interface.

Can’t Send and Receive Data

Even after a successful VPN connection, issues with data transmission can arise. These often stem from routing or filtering misconfigurations.

  • Cause: The appropriate demand-dial interface has not been added to the protocol being routed.

    • Solution: Ensure that the VPN demand-dial interface is explicitly added to the routing configuration for the protocols you intend to use (e.g., IP, IPX). This enables traffic to flow through the VPN tunnel.

  • Cause: No routes exist on either side of a router-to-router VPN connection to support two-way traffic exchange.

    • Solution: Unlike client-to-server VPNs, router-to-router VPNs do not automatically create default routes. You must manually add static routes to the routing tables on both sides of the VPN connection, or implement dynamic routing protocols like OSPF or RIP, to ensure full network reachability.

  • Cause: A two-way initiated router-to-router VPN connection is being misinterpreted by the answering router as a remote access client connection.

    • Solution: Verify that the username used by the calling router matches the name of a demand-dial interface on the answering router. If correctly interpreted as a router, the port status will show “Active” and the corresponding demand-dial interface will be “Connected.”

  • Cause: Packet filters on the demand-dial interfaces of both the calling and answering routers are blocking traffic.

    • Solution: Check for any configured IP and IPX input and output filters on the demand-dial interfaces. These filters can inadvertently prevent the flow of necessary traffic. Adjust or remove them as required.

  • Cause: Packet filters within the remote access policy profile are preventing the flow of IP traffic.

    • Solution: Review the TCP/IP packet filters configured in the profile properties of your remote access policies on the VPN server (or RADIUS server). Ensure these filters are not blocking the legitimate TCP/IP traffic that needs to traverse the VPN connection.

We hope this detailed guide helps you successfully set up and manage your VPN server on Windows Server 2003. If you have any further questions, tips, or experiences to share regarding Windows Server 2003 VPN configurations, please feel free to comment below! Your insights are valuable to the community.
