Introduction: Navigating Multihomed Domain Controllers and DNS Challenges¶

In complex enterprise environments, it’s common to encounter servers configured with multiple network interface controllers (NICs). These “multihomed” servers often serve various purposes, such as separating management traffic from production data, connecting to different security zones like a DMZ, or enabling access to isolated network segments. While multihoming offers flexibility and can enhance network design, it introduces specific challenges, particularly for crucial infrastructure roles like Domain Controllers (DCs).

A critical issue that frequently arises on multihomed Domain Controllers is the unintended registration of unwanted NIC IP addresses in the Domain Name System (DNS). DNS is the backbone of Active Directory, facilitating everything from client authentication to inter-DC replication and Group Policy processing. When a DC registers an IP address that clients cannot reach or should not use, it severely compromises the stability and functionality of the entire Active Directory domain, leading to widespread service disruptions.

Unpacking the Symptoms: The Domino Effect of DNS Misconfiguration¶

The primary symptom of unwanted NIC registration in DNS is the failure of clients to reliably contact the Domain Controller. This issue manifests in several critical ways, directly impacting user experience and system operations. Clients querying for a DC’s DNS records might inadvertently receive an IP address belonging to an unwanted NIC, which is often on a network segment unreachable by the client. This misdirection prevents clients from establishing a connection with the correct DC.

Consequently, this leads to significant authentication failures. Services relying on Active Directory for authentication, such as user logins, access to network shares, or application authentications, will experience delays or outright rejections. Beyond authentication, other vital services that depend on proper DC resolution, like Group Policy application, DFS (Distributed File System) access, and even Active Directory replication between DCs, can suffer severe disruptions or complete outages. The system’s round-robin DNS response, a default behavior for multiple registered IPs, exacerbates this problem, as clients might randomly receive an incorrect or unreachable IP address on their first attempt to connect.

Understanding Multihomed Domain Controllers and DNS Dynamics¶

To effectively mitigate unwanted DNS registrations, it’s crucial to understand the underlying mechanisms that govern IP address registration on a Domain Controller. A multihomed DC presents a unique challenge because multiple network paths exist, each potentially vying for DNS registration. The DNS server, when presented with multiple IP addresses for the same hostname, often responds in a round-robin fashion, distributing the query responses among all registered IPs. While this is a load-balancing mechanism for reachable IPs, it becomes a liability when an IP is unreachable or undesirable for client access.

Several key services contribute to the registration of Host A records (IP address to hostname mapping) for a Domain Controller. Identifying and correctly configuring each of these services is paramount. These include the Netlogon service, the DNS Server service itself (if the DC is also a DNS server), and the DHCP Client or DNS Client service that manages the operating system’s network adapter configurations.

The Role of Netlogon Service¶

The Netlogon service is fundamental to a Domain Controller’s operation within Active Directory. It is responsible for dynamic registration of Service Location (SRV) records and Host A records for the DC in DNS. SRV records allow clients to locate DCs, Global Catalog servers, and other essential Active Directory services. When the Netlogon service starts, it queries the DC’s IP addresses and attempts to register them. If the DC has multiple NICs, Netlogon might try to register Host A records for all configured IP addresses, potentially including those on unwanted interfaces. Proper configuration is essential to ensure Netlogon only registers the intended, client-accessible IP addresses.

DNS Server Service Registration Behavior¶

If a Domain Controller is also running the DNS Server service, it has an additional layer of DNS registration responsibility. The DNS Server service registers its own Host A records based on which network interfaces it is configured to “listen” on for DNS queries. The “Interfaces” tab within the DNS server properties dictates which IP addresses the DNS service will bind to and accept queries from. If the DNS server is configured to listen on an unwanted network interface, it will automatically register an “Host A” record for that interface’s IP address within its own hosted zones. Furthermore, the “Name Server” (NS) tab in the zone properties will list the IP addresses of the interfaces present on the DC that are authoritative for that zone. If an unwanted IP address is listed here, the DNS server will consider it a valid address for itself, leading to its registration.

DHCP Client or DNS Client Service Interaction¶

The DHCP Client service, or more broadly the DNS Client service (depending on the Windows Server version), is responsible for the overall operating system’s network configuration and dynamic DNS updates. Each individual network adapter can be configured to automatically register its connection’s IP address in DNS. This setting is found within the TCP/IP properties of each NIC. By default, this option is often enabled, leading to the registration of all active network interfaces in DNS. On a multihomed DC, this means that even interfaces not intended for client-facing DNS resolution can have their IP addresses registered, creating confusion and connectivity issues.

Impact of Incorrect DNS Registrations¶

The consequences of incorrect DNS registrations on a Domain Controller extend far beyond simple inconvenience. They can cripple critical business operations and compromise the security and stability of the entire IT infrastructure. Understanding these impacts highlights the urgency of proper configuration.

Client Connectivity Failures¶

At the most fundamental level, clients will struggle to connect to the correct Domain Controller. When a client performs a DNS query for its domain controller (e.g., _ldap._tcp.dc._msdcs.yourdomain.com), the DNS server might respond with a list of DC IP addresses. If an unwanted, unreachable IP is among these, and especially if it’s returned first due to round-robin, the client’s authentication attempt will fail. This can lead to slow logins, “No logon servers available” errors, or applications failing to connect to directory services. Even if the client eventually tries another IP, the initial delay or failure significantly degrades user experience and application performance.

Authentication and Authorization Issues¶

Active Directory is the primary authentication and authorization mechanism for most Windows-based networks. Incorrect DNS records directly impede this process. Kerberos, the default authentication protocol in Active Directory, relies heavily on DNS for service principal name (SPN) resolution and KDC (Key Distribution Center) location. If a client attempts to obtain a Kerberos ticket from a DC via an unreachable IP address, the request will fail. This prevents users from logging on, accessing shared resources, or running domain-joined applications. Similarly, NTLM authentication, often used as a fallback, also requires correct DC resolution.

Active Directory Replication Problems¶

Domain Controllers continuously replicate Active Directory data among themselves to ensure consistency across the domain. This replication process relies on DNS to locate replication partners. If a DC’s replication partner attempts to connect using an IP address registered to an unwanted NIC, replication will fail. Persistent replication failures can lead to inconsistencies in Active Directory, causing objects (users, computers, groups, GPOs) to appear differently on various DCs, eventually leading to a broken Active Directory forest state.

Group Policy Application Failures¶

Group Policy Objects (GPOs) are essential for managing user and computer settings across the domain. Clients need to locate a Domain Controller to retrieve and apply GPOs during startup or logon. If the client cannot connect to a DC due to an incorrect DNS record, GPOs will not be applied, leaving computers and users without their intended configurations, security settings, or software deployments. This can lead to compliance issues, security vulnerabilities, and operational inefficiencies.

Strategic Prevention and Resolution: A Multi-Step Approach¶

Addressing the issue of unwanted NIC registration requires a precise, multi-pronged approach. It is critical to perform all the following steps to ensure comprehensive mitigation and prevent recurrence. Neglecting any one step can leave a loophole for the unwanted IP address to re-register.

```mermaid
graph TD
A[Identify Unwanted NIC] → B{Prevent Registration};
B → C[Configure Network Adapter Settings];
C → D[Configure DNS Server Interfaces];
D → E[Configure DNS Zone Name Server Records];
E → F[Delete Existing Unwanted Records];
F → G[Verify Configuration];

subgraph Network Adapter Configuration
    C1[Uncheck "Register this connection's Address in DNS" on Unwanted NIC]
end

subgraph DNS Server Service Configuration
    D1[Open DNS Server Console]
    D2[Highlight Server -> Properties -> Interfaces Tab]
    D3[Select "Listen on only the following IP addresses"]
    D4[Remove Unwanted IP from the list]
end

subgraph DNS Zone Properties
    E1[Open DNS Server Console]
    E2[Navigate to Zone -> Properties -> Name Server Tab]
    E3[Identify and Remove Unwanted IP Address for the DC's FQDN]
end

subgraph Post-Configuration
    F1[Manually delete any remaining unwanted Host A records for the DC]
    G1[Verify DNS resolution with nslookup and ipconfig /flushdns /registerdns]
end

C --> C1;
D --> D1 & D2 & D3 & D4;
E --> E1 & E2 & E3;
F --> F1;
G --> G1;

```

Step 1: Configure Network Adapter Properties¶

The first crucial step involves modifying the TCP/IP settings of the unwanted network interface. This directly prevents the operating system’s DNS client from automatically registering that NIC’s IP address.

1. Access Network Connections: Open “Network Connections” on your Domain Controller (e.g., via ncpa.cpl in Run dialog or through Server Manager).
2. Locate Unwanted NIC: Identify the network adapter whose IP address you wish to prevent from being registered in DNS. This is typically an interface connected to a private, management, or isolated network segment.
3. Open TCP/IP Properties: Right-click on the unwanted NIC, select Properties, then highlight Internet Protocol Version 4 (TCP/IPv4), and click Properties.

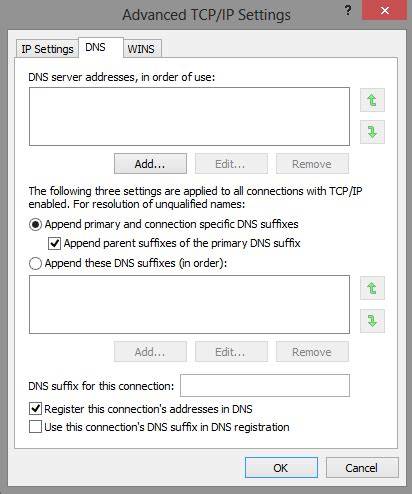

4. Access Advanced DNS Settings: In the TCP/IPv4 Properties window, click the Advanced… button. Navigate to the DNS tab.
5. Disable Automatic Registration: Under the “DNS” tab, uncheck the box labeled “Register this connection’s Address in DNS”.

   This setting prevents the local DNS Client service from attempting to register the IP address of this specific network adapter. By disabling this, you ensure that the operating system itself does not contribute to the problem by publishing an undesirable record. Click OK on all open windows to apply the changes.

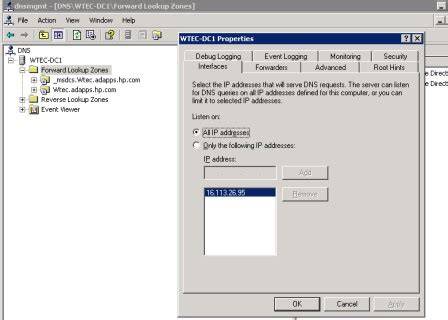

Step 2: Configure DNS Server Service Interfaces¶

If your Domain Controller is also hosting the DNS Server role, you must instruct the DNS service to listen only on the desired, client-accessible IP addresses. This prevents the DNS server from binding to and registering its own unwanted interface IP.

1. Open DNS Server Console: Launch the DNS Management console (e.g., from Server Manager > Tools > DNS).
2. Access Server Properties: In the left pane of the DNS console, highlight your DNS server. Then, go to Action menu and select Properties, or right-click the server name and choose Properties.
3. Navigate to Interfaces Tab: In the server’s Properties dialog box, click on the Interfaces tab.
4. Specify Listening IP Addresses: By default, “All IP addresses” might be selected, meaning the DNS server will listen on every available NIC. To restrict this, select the option “Listen on only the following IP addresses”.
5. Remove Unwanted IP: From the list of IP addresses presented, carefully identify and remove the unwanted IP address(es) associated with the NIC you wish to exclude. Ensure that only the IP addresses of the client-facing NICs remain selected.

   This configuration ensures that the DNS service itself will only bind to and answer queries on the specified IP addresses, preventing it from registering its hostname with an IP that clients should not use. Click OK to save these changes.

Step 3: Configure DNS Zone Name Server (NS) Records¶

Finally, you must ensure that the DNS zone properties accurately reflect the authoritative Name Server IP addresses for your Domain Controller. The NS records in a zone indicate which DNS servers are authoritative for that zone. While primarily for delegating sub-domains, the DNS server will often register its own NS records based on its perceived IP addresses.

1. Open DNS Server Console: Again, launch the DNS Management console.
2. Navigate to Your Domain Zone: In the left pane, expand Forward Lookup Zones, then expand your Active Directory domain zone (e.g., yourdomain.com).
3. Access Zone Properties: Right-click on your domain zone and select Properties.
4. Navigate to Name Servers Tab: In the zone’s Properties dialog box, click on the Name Servers tab.
5. Review and Edit NS Records: This tab lists the Fully Qualified Domain Name (FQDN) of your Domain Controller(s) acting as Name Servers for this zone. Along with the FQDN, you will see the associated IP address(es) that the DNS server believes it is authoritative for. If an unwanted IP address for your DC is listed here, select it and click Remove.

   This step ensures that the zone itself does not advertise an undesirable IP address for its own Name Servers. Click OK to apply the changes.

After completing all three configuration steps, it is imperative to manually delete any existing unwanted Host A records of the Domain Controller from DNS. Even after reconfiguring, stale records might persist. You can do this by navigating to your domain’s Forward Lookup Zone, locating your DC’s Host A record (often named after the DC’s hostname), and manually deleting the entry corresponding to the unwanted IP address. It is also advisable to force DNS registration from the DC using ipconfig /registerdns and then verify with nslookup.

Verifying the Solution and Best Practices¶

Implementing the above steps is critical, but equally important is verifying that the changes have taken effect and establishing best practices to maintain a healthy DNS environment. Verification ensures that your efforts have successfully eliminated the unwanted registrations and that clients can now reliably communicate with the correct Domain Controller.

Post-Configuration Verification Steps¶

1. Clear DNS Caches: On the Domain Controller, open an elevated Command Prompt and run ipconfig /flushdns followed by ipconfig /registerdns. This clears the local DNS resolver cache and forces the DC to re-register its IP addresses based on the new configurations.
2. Check DNS Records: From a client machine (or another server), perform ipconfig /flushdns. Then, use nslookup to query for your Domain Controller’s hostname. For example, nslookup your-dc-name.yourdomain.com. Verify that only the intended, reachable IP addresses are returned in the query results. You can also directly inspect the Host A records in your DNS management console to confirm the unwanted entries are gone.
3. Test Client Connectivity: Attempt user logins, access network shares, and test applications that rely on Active Directory authentication from various client machines. Monitor for any authentication failures or connectivity issues that were present before.
4. Monitor Event Logs: Check the System and DNS Server event logs on the Domain Controller for any new errors related to DNS registration or network binding.

Best Practices for Multihomed Domain Controllers¶

While preventing unwanted NIC registration is crucial, the broader strategy for multihomed Domain Controllers involves several best practices:

• Avoid Multihoming for DCs Where Possible: Generally, Microsoft recommends against multihoming Domain Controllers unless absolutely necessary due to the complexities it introduces. A single, dedicated NIC for the production network is often the simplest and most robust configuration for a DC.
• Dedicated Management NICs: If multihoming is unavoidable, consider segregating networks with clear purposes. For instance, a dedicated NIC for management (e.g., iDRAC, iLO, or Windows Remote Management) should ideally be on a separate network segment and configured not to register its IP in DNS, nor should it be the primary NIC for Active Directory services.
• Firewall Rules: Implement strict firewall rules on the DC to restrict inbound and outbound traffic on the unwanted NICs. This adds an additional layer of security, even if an IP is accidentally registered, preventing client connections.
• Network Segmentation: Ensure proper network segmentation and routing. Clients should only be routed to the intended DC NICs.
• DNS Scavenging: Configure DNS scavenging on your zones to automatically remove stale DNS records. While manual cleanup is necessary after making changes, scavenging helps prevent the accumulation of old, incorrect records over time. This setting is found in the Zone properties under the “General” tab and in the Server properties under the “Advanced” tab.

By meticulously applying these configuration steps and adhering to best practices, you can ensure that your Domain Controllers operate optimally within your Active Directory environment, providing reliable and secure services to your network clients.

---
