SQL Server backups are an essential component of any robust disaster recovery strategy. Ensuring data integrity and availability often hinges on efficient backup processes. One critical aspect of backup management in SQL Server is compression, which can significantly reduce storage requirements and improve backup/restore times.

However, the behavior of compressed backups, particularly when appending them to existing media sets, can sometimes lead to unexpected outcomes. This article delves into the nuances of SQL Server backup compression, explaining its underlying mechanisms, potential pitfalls, and how to manage it effectively. A clear understanding of these behaviors is crucial for database administrators to maintain consistent and reliable backup operations.

The Fundamentals of SQL Server Backups and Compression¶

Backups in SQL Server serve as a safeguard against data loss, protecting against hardware failures, data corruption, and accidental deletions. They involve copying data from a database or transaction log to a separate storage location. These copies, known as backup sets, are then stored within larger constructs called media sets.

A media set is an ordered collection of backup media, such as disk files or tapes, that were created by one or more backup operations using the WITH FORMAT or WITH INIT options. When a media set is initially created, its header records crucial metadata, including the compression setting of the first backup written to it. This initial compression state becomes a fundamental characteristic of the entire media set, dictating the compatibility of subsequent backups.

Backup compression, introduced in SQL Server 2008, offers substantial benefits. It can dramatically shrink the size of backup files, saving valuable disk space and reducing the time required to transfer backups across networks. Furthermore, smaller backup files can often lead to faster backup and restore operations, as less data needs to be read from or written to storage. This efficiency gain makes compression a highly desirable feature for most SQL Server environments.

The Core Restriction: Incompatible Backup Compression States¶

One of the most fundamental rules governing SQL Server backup compression is that compressed and uncompressed backups cannot co-exist within the same media set. This restriction is a cornerstone of how SQL Server manages backup integrity and read operations. The internal structure and metadata required for compressed backups differ significantly from those of uncompressed backups, making it impossible for the database engine to interchangeably process both within the same logical container.

This design principle ensures that SQL Server can efficiently identify and restore backup sets without ambiguity regarding their compression state. Attempting to mix compression types within a single media set will inevitably lead to errors, as the system cannot reconcile the conflicting formats. Consequently, database administrators must meticulously plan their backup strategies to ensure consistency in compression settings across all backup sets written to a particular media set. Adhering to this rule is paramount for preventing backup failures and ensuring smooth restore processes.

Server Configuration vs. Statement Clauses: The Precedence Game¶

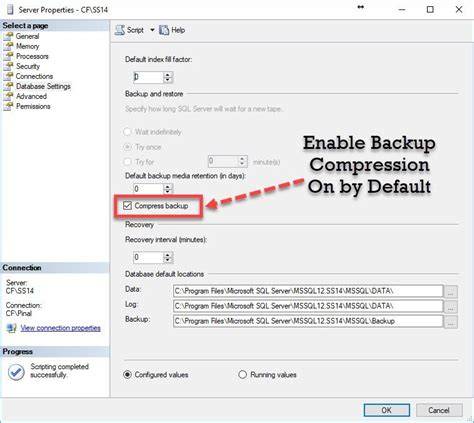

SQL Server offers flexibility in defining backup compression behavior through both server-level configurations and statement-level clauses. Understanding their hierarchy and interaction is vital for predictable backup operations. The backup compression default server configuration option establishes a default compression setting for all new backups performed on the instance, unless explicitly overridden.

This option can be viewed and modified using the sp_configure system stored procedure. When backup compression default is set to 1, all subsequent backups will attempt to be compressed by default. Conversely, a setting of 0 means backups will be uncompressed by default. This server-wide setting provides a convenient way to enforce a consistent backup strategy across multiple databases without specifying compression for each individual backup statement.

However, individual BACKUP statements can override the server’s default setting by including the WITH COMPRESSION or WITH NO_COMPRESSION clauses. These clauses act as explicit instructions, telling SQL Server precisely how to compress (or not compress) that specific backup, regardless of the backup compression default value. The statement-level clauses take precedence over the server configuration, offering granular control when specific backup sets require different compression behaviors than the server’s general default. This hierarchical approach allows for both broad policy enforcement and targeted exceptions in backup management.

The Dynamics of Appending Backups to Existing Media Sets¶

When a backup is appended to an existing media set, its compression behavior is not solely determined by the backup compression default server option or even the explicit WITH COMPRESSION/WITH NO_COMPRESSION clauses in the backup statement. Instead, a crucial inheritance mechanism comes into play. The appended backup will inherit the compression setting already established in the media set’s header file.

This inheritance means that if a media set was initially created with an uncompressed backup, any subsequent appended backup must also be uncompressed to succeed, regardless of the server’s default or the backup statement’s explicit clause. The reverse is also true: if a media set started with a compressed backup, all subsequent appended backups must be compressed. The media header acts as a definitive record of the media set’s compression state, ensuring that the fundamental rule of “no mixed compression types” is always upheld.

To fully grasp the behavior of compressed backups, three key factors must be considered simultaneously:

1. SQL Server’s Configuration Option - backup compression default: This server-level setting determines the default compression behavior when no explicit clause is provided.
2. Backup Set Options - COMPRESSION or NO_COMPRESSION: These are explicit clauses within the BACKUP statement that override the server-level default.
3. Existing Media Compression State: For existing media sets, it is critical to know whether the media set currently contains a compressed or an uncompressed backup, as this state dictates compatibility for appended backups.

Understanding the interplay of these three factors is essential for predicting and controlling the compression state of your SQL Server backups. Misinterpreting this dynamic can lead to unexpected uncompressed backups or, more critically, backup failures.

Understanding Backup Compression Behavior: A Detailed Guide¶

The interaction between server-level defaults, statement-level clauses, and the existing media set’s state can be complex. The following table provides a comprehensive summary of how SQL Server behaves under various conditions when dealing with backup compression. This matrix serves as a critical reference for predicting outcomes and troubleshooting issues related to backup compression.

Backup Statement	New Media Set	Append to an existing media set that has a compressed backup	Append to an existing media set that has an uncompressed backup
Statement level clause WITH COMPRESSION	The backup is successful and will be compressed	Success	Error (compression mismatch)
Statement level clause WITH NO_COMPRESSION	The backup is successful and will be uncompressed	Error (compression mismatch)	Success
Backup statement without statement level compression clause (relying on backup compression default)	The backup is successful, and the compression depends on the option backup compression default of the system stored procedure sp_configure at that moment	The backup is successful and will be compressed (inherits media set setting)	The backup is successful and will be uncompressed (inherits media set setting)

Detailed Analysis of Table Rows:

• WITH COMPRESSION Clause: When this clause is explicitly used, SQL Server attempts to perform a compressed backup. If it’s a new media set (WITH FORMAT), the backup proceeds successfully, and the media set is marked as compressed. If appending to an existing compressed media set, it also succeeds. However, if appending to an uncompressed media set, an error occurs because compressed and uncompressed backups cannot mix. This outcome is expected, as the explicit instruction conflicts with the media set’s established state.

• WITH NO_COMPRESSION Clause: Similarly, when WITH NO_COMPRESSION is specified, SQL Server attempts an uncompressed backup. For a new media set, it succeeds, and the media set is marked as uncompressed. If appending to an existing uncompressed media set, it succeeds. But, if the target is an existing compressed media set, an error is raised, again due to the fundamental incompatibility. This demonstrates the power of explicit clauses to enforce a desired state, even if it leads to a conflict with existing media.

• No Statement-Level Compression Clause (Relying on backup compression default): This is where the behavior can become less intuitive. For a new media set, the backup’s compression state is determined directly by the backup compression default server option. If the server default is 1, it’s compressed; if 0, it’s uncompressed.
  Crucially, when appending to an existing media set without an explicit compression clause, the backup always inherits the compression setting from the media set itself. This means if you append to a compressed media set, the backup will be compressed, regardless of whether backup compression default is 0. Conversely, if you append to an uncompressed media set, the backup will be uncompressed, even if backup compression default is 1. This implicit inheritance ensures the media set’s integrity and prevents errors, but it can lead to backups being in a different compression state than the server default might suggest.

This table highlights that while explicit WITH COMPRESSION or WITH NO_COMPRESSION clauses enforce a specific behavior, they will result in an error if that behavior conflicts with the existing media set’s state. In contrast, relying on the backup compression default for appended backups ensures success by adapting to the media set’s current compression state, potentially overriding the server’s default intention. This crucial distinction helps explain why backups might complete successfully but exhibit an unexpected compression state.

Practical Scenarios and Unexpected Outcomes Explained¶

To illustrate the intricate behaviors of compressed backups, let’s explore several practical scenarios with their associated SQL scripts and outcomes. These examples demonstrate how the server’s backup compression default option, explicit backup clauses, and the existing media set’s state interact.

Example 1: Explicit Compression Request on Uncompressed Media (Failure)¶

This scenario demonstrates an attempt to force a compressed backup onto a media set that was initially created with an uncompressed backup. The explicit WITH COMPRESSION clause directly conflicts with the media set’s established state, leading to a failure.

1. Check backup compression default (default is 0):


   -- The value of the option "backup compression default" is 0 by default
   EXEC sp_configure 'backup compression default';



   This command confirms the current server-wide default for backup compression. Typically, it is 0, meaning uncompressed.

2. Create a New Media Set with an Uncompressed Backup:


   BACKUP DATABASE test TO DISK = N'E:\testbackup.bak'
   WITH FORMAT, INIT,
   NAME = N'testbackup-Full Database Backup', SKIP, NOUNLOAD, STATS = 10;
   GO



   This statement creates a new media set (due to WITH FORMAT) and writes the first backup set to it. Since backup compression default is 0 and no explicit compression clause is used, this backup will be uncompressed, and the media set header will reflect this state.

3. Verify Media Set Compression State:


   RESTORE HEADERONLY FROM DISK = N'E:\testbackup.bak';



   Executing RESTORE HEADERONLY on the backup file will show the Compressed column value as 0, confirming that the media set contains an uncompressed backup.

4. Attempt to Append a Compressed Backup:


   -- The backup will fail as compressed and non-compressed backups can't be mixed within the same media set
   BACKUP DATABASE test TO DISK = N'E:\testbackup.bak'
   WITH NAME = N'testbackup-Full Database Backup', SKIP, NOREWIND, NOUNLOAD, COMPRESSION, STATS = 10;
   GO



   Here, we attempt to append a new backup to the existing media set, but crucially, we include WITH COMPRESSION. Despite the server default being 0, the explicit COMPRESSION clause dictates the intent. However, this intent clashes with the media set’s uncompressed state, resulting in Error messages 3098 and 3013. This clearly illustrates the “no mixing” rule enforced by the media set’s header.

Example 2: Server Default ON, Appending to Uncompressed Media (Unexpected Uncompressed)¶

This example showcases a scenario where the server’s default is set to compressed, but an appended backup unexpectedly becomes uncompressed because it inherits the state of an existing uncompressed media set.

1. Enable backup compression default at the Server Level:


   -- The option "backup compression default" at this point is set to 1.
   EXEC sp_configure 'backup compression default', 1;
   RECONFIGURE;
   GO



   This changes the server’s default behavior, so all new backups without an explicit clause should now be compressed.

2. Append Backup to the Same Existing Uncompressed Media Set:


   -- Given that you may expect the backup to be compressed, and it will be if it is a new media set.
   -- However, if you have a backup and append the backup to the same media set,
   -- the backup works but results in an uncompressed backup.
   BACKUP DATABASE test TO DISK = N'E:\testbackup.bak'
   WITH NAME = N'testbackup-Full Database Backup', SKIP, NOREWIND, NOUNLOAD, STATS = 10;
   GO



   In this step, we append a backup to the testbackup.bak media set (which from Example 1 we know is uncompressed). Even though backup compression default is now 1, no explicit COMPRESSION or NO_COMPRESSION clause is used. The backup succeeds, but the output indicates it’s uncompressed, like:


   Processed two pages for database 'test', file '_test_log_' on file 2.
   BACKUP DATABASE successfully processed 162 pages in 6.211 seconds (0.203 MB/sec).



   This demonstrates the critical point: when appending without an explicit clause, the media set’s existing compression state takes precedence over the server’s default.

3. Verify Backup and Media Set Header:


   -- Then, you will see that though Server default is set to compressed, the backup, given that
   -- it is appended to an existing media set, inherits the compression setting of the media set itself.
   -- You may expect this to have failed with the same error as when specifying the clause `WITH COMPRESSION`
   -- in the backup statement, given that compressed and non-compressed backups can't co-exist in the media set.
   RESTORE HEADERONLY FROM DISK = N'E:\testbackup.bak';



   The RESTORE HEADERONLY output will reveal that the new backup, despite the server default, is also uncompressed (Compressed column will be 0). This confirms that the media set’s existing state dictated the compression behavior.

Example 3: Server Default OFF, Appending with INIT to Compressed Media (Unexpected Compressed)¶

This example explores the behavior of WITH INIT and how it interacts with the media set’s header. Even when backup compression default is 0, using WITH INIT on an existing compressed media set results in a compressed backup because INIT only overwrites backup sets, not the media header.

1. Create a New Media Set with a Compressed Backup:


   -- If you create a new media set by using the FORMAT option, the current compression setting is inherited
   -- (assuming backup compression default is 1 from the previous example, or explicitly setting it for this step)
   EXEC sp_configure 'backup compression default', 1; RECONFIGURE; GO
   BACKUP DATABASE test TO DISK = N'E:\testbackup.bak'
   WITH FORMAT, INIT, NAME = N'testbackup-Full Database Backup', SKIP, NOUNLOAD, STATS = 10;
   GO



   This creates a new media set, marked as compressed (since backup compression default is 1).

2. Verify Media Set Header:


   RESTORE HEADERONLY FROM DISK = N'E:\testbackup.bak';



   The Compressed column will show 1, confirming the media set is compressed.

3. Set backup compression default back to 0:


   EXEC sp_configure 'backup compression default', 0;
   RECONFIGURE;
   GO



   The server’s default is now uncompressed.

4. Back up to the Same Media Set Using WITH INIT:


   -- If you use the clause "WITH INIT", the backup sets are overwritten but the media header is not.
   -- Thus, the compression setting of the media set persists.
   BACKUP DATABASE test TO DISK = N'E:\testbackup.bak'
   WITH INIT, NAME = N'testbackup-Full Database Backup', SKIP, NOUNLOAD, STATS = 10;
   GO



   Here, WITH INIT means any existing backup sets on this media will be overwritten. However, the media header itself, which contains the compression state, remains unchanged. Since no explicit compression clause is specified, the backup inherits the state from the media header.

5. Verify Backup and Media Set Header:


   -- Note that even though we changed backup compression default to 0, the old media header is preserved, which has it as 1, and the backup goes as compressed.
   RESTORE HEADERONLY FROM DISK = N'E:\testbackup.bak';



   The RESTORE HEADERONLY output will still show Compressed as 1, indicating that the new backup is compressed, overriding the server’s backup compression default due to media set inheritance. This highlights a common misunderstanding about WITH INIT — it doesn’t reformat the media set in terms of its core compression property.

Example 4: Compressed SQL Backups and NT Backups (Failure)¶

This example demonstrates the inability of compressed SQL Server backups to co-exist with non-SQL Server (NT) backups on the same media.

1. Take an NT Backup (conceptual step, assuming a tape device has one):


   -- You can see that it is not a SQL backup and the value of compressed is 0
   -- This assumes a non-SQL Server backup has already been written to the tape.
   -- For demonstration, let's conceptualize checking its header.
   RESTORE HEADERONLY FROM TAPE = N'\\.\Tape0';



   If RESTORE HEADERONLY is run on a tape device containing a non-SQL Server backup, it might show specific metadata or indicate that it’s not a SQL backup, and crucially, it would not be a SQL-compressed backup.

2. Attempt to Back Up a Database with WITH COMPRESSION to the Same Tape:


   BACKUP DATABASE test TO TAPE = N'\\.\Tape0'
   WITH INIT, COMPRESSION,
   NAME = N'testbackup-Full Database Backup', SKIP, NOUNLOAD, STATS = 10;
   GO



   Attempting a compressed SQL Server backup (WITH COMPRESSION) to a tape that already contains an NT backup will fail, resulting in Error messages 3098 and 3013. This is because SQL Server backups, especially compressed ones, cannot share media with fundamentally different backup formats like NT backups, even if WITH INIT is used.

Example 5: Non-Compressed SQL Backups and NT Backups (Co-existence and Subsequent Failure)¶

This example shows that non-compressed SQL Server backups can sometimes co-exist with NT backups, but compressed SQL backups still cannot.

1. Back up a Database without Compression to the Same Tape (Appending):


   -- The backups (NT and non-compressed SQL backup) can co-exist on the same tape, appended sequentially.
   BACKUP DATABASE test TO TAPE = N'\\.\Tape0'
   WITH NAME = N'testbackup-Full Database Backup', SKIP, NOUNLOAD, STATS = 10;
   GO



   A non-compressed SQL backup, when appended to a tape already containing an NT backup, may succeed. This is because both are essentially uncompressed and written sequentially, and SQL Server can recognize its own backup format within the media.

2. Verify Backup Header (Both SQL and NT Backups):


   RESTORE HEADERONLY FROM TAPE = N'\\.\Tape0';



   The RESTORE HEADERONLY output will now list both the NT backup and the uncompressed SQL backup, demonstrating their co-existence.

3. Force a Compressed Backup on the Tape with NT and Non-Compressed SQL Backups:


   BACKUP DATABASE test TO TAPE = N'\\.\Tape0'
   WITH COMPRESSION,
   NAME = N'testbackup1 Full Database Backup', SKIP, NOUNLOAD, STATS = 10;
   GO



   Finally, attempting to write a compressed SQL backup to this same tape (which now contains both NT and a non-compressed SQL backup) will again result in Error messages 3098 and 3013. This reiterates the strict rule: compressed SQL backups require a media set explicitly designated for compression and cannot mix with other uncompressed backup types, including other SQL backups or non-SQL backups.

Understanding Error Messages 3098 and 3013¶

When encountering issues with backup compression, particularly during append operations, two common error messages you might see are 3098 and 3013. Understanding these messages is key to diagnosing and resolving the problem.

• Error Message 3098:


  Msg 3098, Level 16, State 2, Line 1
  The backup cannot be performed because 'COMPRESSION' was requested after the media was formatted with an incompatible structure.
  To append to this media set, either omit 'COMPRESSION' or specify 'NO_COMPRESSION'. Alternatively, you can create a new media set by using WITH FORMAT in your BACKUP statement.
  If you use WITH FORMAT on an existing media set, all its backup sets will be overwritten.



  This error message explicitly indicates a mismatch in compression settings. It occurs when you try to perform a compressed backup on a media set that has been formatted for uncompressed backups (or vice-versa). The message is quite informative, guiding you on how to resolve the issue: either adjust your backup statement’s compression clause to match the media set, or use WITH FORMAT to create a new, compatible media set (which will overwrite all existing backup sets). This error underscores the fundamental rule that compressed and uncompressed backups cannot co-exist within the same media set.

• Error Message 3013:


  Msg 3013, Level 16, State 1, Line 1
  BACKUP DATABASE is terminating abnormally.



  Error 3013 is a more generic message indicating that the BACKUP DATABASE operation failed and terminated unexpectedly. It often accompanies more specific errors like 3098. While 3013 itself doesn’t provide root cause details, its presence, especially alongside 3098, points directly to a compression incompatibility issue. When you see 3013, always look for preceding or accompanying error messages that offer more diagnostic information. In the context of backup compression, it’s a strong indicator that the operation failed due to the media set’s incompatible structure.

Best Practices for Managing Compressed Backups¶

To avoid unexpected behavior and ensure reliable backup operations, consider these best practices when working with SQL Server backup compression:

1. Maintain Compression Consistency: The most crucial practice is to maintain a consistent compression strategy for each media set. Decide if a media set will store compressed or uncompressed backups and stick to that decision for its entire lifecycle. Do not attempt to mix compression types.
2. Use WITH FORMAT for Strategy Changes: If you need to change the compression strategy for a particular backup destination, always use WITH FORMAT in your BACKUP statement. This will create a new media set, overwriting any existing backup sets but also establishing the new compression state (either compressed or uncompressed, depending on your backup compression default or explicit clause). Be aware that WITH FORMAT destroys previous backups on that media.
3. Explicitly Define Compression in Statements: While backup compression default is convenient, explicitly including WITH COMPRESSION or WITH NO_COMPRESSION in your BACKUP statements removes ambiguity. This practice makes your backup scripts self-documenting and less susceptible to changes in the server’s default configuration. It also clarifies intent for future administrators.
4. Monitor Backup Logs and RESTORE HEADERONLY: Regularly review SQL Server error logs and backup history for any warnings or errors related to backup compression. Additionally, use RESTORE HEADERONLY frequently to inspect the metadata of your backup files. This command provides valuable information, including the compression state of each backup set and the media set as a whole, allowing you to verify that backups are indeed compressed (or uncompressed) as expected.
5. Consider Separate Media Sets: For distinct backup strategies or different databases, consider using separate media sets. For example, dedicate one set of backup files or tapes exclusively to compressed backups and another to uncompressed backups. This separation simplifies management and minimizes the risk of compression conflicts.
6. Review backup compression default Regularly: Ensure that your backup compression default server configuration option aligns with your organization’s overarching backup policy. While statement-level clauses override it, the default still impacts new media sets created without explicit instructions.
7. Test Restore Operations: Always test your restore procedures periodically to confirm that your compressed backups are valid and can be restored successfully. This validates your entire backup strategy, including compression settings.

Understanding the behavior of SQL Server compressed backups, especially when appending to existing media sets, is vital for any database administrator. By adhering to the principles outlined in this article and implementing robust best practices, you can ensure that your backup strategy is both efficient and reliable.
