SQL Server: Dynamically Pass Variables to Linked Server Queries for Enhanced Flexibility

Table of Contents

SQL Server linked servers are a powerful feature, enabling database administrators and developers to execute queries across different instances of SQL Server or even other heterogeneous data sources directly from a single SQL Server instance. This capability significantly enhances data integration, allowing for centralized data access and complex cross-database operations without the need for intricate ETL processes for every query. However, performing pass-through queries to these linked servers often requires the use of statements like OPENQUERY, OPENROWSET, or OPENDATASOURCE. While these functions are well-documented for static Transact-SQL strings, a common challenge arises when there’s a need to pass dynamic variables to these queries.

The ability to dynamically pass variables is critical for building flexible and robust applications. Hardcoding values into queries severely limits their reusability and adaptability to changing business requirements or user inputs. Imagine a scenario where you need to retrieve data from a linked server based on a date range or a specific customer ID, where these values are determined at runtime. Without a mechanism to pass variables dynamically, you would be forced to construct entirely new queries for each variation, leading to code duplication, maintainability nightmares, and potential performance issues due to a lack of query plan reuse. This article delves into various techniques for achieving this essential dynamic functionality, ensuring your linked server interactions are both flexible and secure.

Understanding Linked Servers and Pass-Through Queries¶

A linked server is essentially a configuration within SQL Server that allows a local SQL Server instance to connect to and interact with another database server. This could be another SQL Server instance, an Oracle database, MySQL, or even an Excel file, provided the necessary OLE DB provider is installed and configured. Once established, linked servers allow you to query data, execute stored procedures, and even perform DDL operations on the remote server as if it were part of your local instance. This abstraction simplifies complex distributed data operations.

The primary methods for executing pass-through queries to a linked server include:

• OPENQUERY: This function executes a specified pass-through query on the specified linked server. It’s designed for queries that return a rowset and is particularly useful when the linked server has a different collation or specific query requirements.
• OPENROWSET: Provides a way to connect and access data from a remote data source that uses an OLE DB provider, without the need to set up a linked server first. It’s often used for ad-hoc connections or for accessing file system data.
• OPENDATASOURCE: Similar to OPENROWSET, but it provides a more straightforward way to access data by specifying an OLE DB data source directly. It does not require a linked server definition but is more limited in its scope compared to OPENROWSET.

While these functions offer immense power, their default usage with static strings presents a significant hurdle for dynamic applications. Overcoming this limitation requires embracing dynamic SQL techniques.

Setting Up a Basic Linked Server (Conceptual)¶

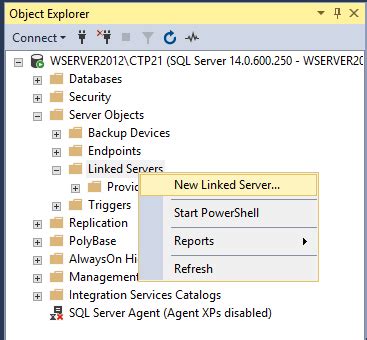

For context, a linked server is typically set up using sp_addlinkedserver and sp_addlinkedsrvlogin.
A simple conceptual setup might look like this:

-- Add a linked server
EXEC sp_addlinkedserver
    @server = N'MyLinkedServer',           -- Name of the linked server
    @srvproduct = N'',                     -- Product name of the OLE DB data source
    @provider = N'SQLNCLI11',              -- OLE DB provider (e.g., SQL Server Native Client 11.0)
    @datasrc = N'REMOTE_SERVER_NAME';      -- Actual network name of the remote server

-- Map logins (e.g., local login to remote login)
EXEC sp_addlinkedsrvlogin
    @rmtsrvname = N'MyLinkedServer',
    @useself = N'FALSE',
    @locallogin = N'MyLocalUser',          -- Local SQL Server login
    @rmtuser = N'RemoteUser',              -- Remote user on the linked server
    @rmtpassword = N'RemotePassword';      -- Password for the remote user

This setup enables MyLocalUser on the current instance to query REMOTE_SERVER_NAME using the credentials RemoteUser/RemotePassword.

The Necessity of Dynamic SQL¶

Dynamic SQL refers to Transact-SQL statements that are constructed and executed at runtime. Instead of having a fixed, pre-defined query, parts or the entirety of the query string are built based on variables, user input, or application logic. This approach is fundamental for achieving the flexibility required to pass variables to functions like OPENQUERY.

The primary reason dynamic SQL is necessary for passing variables to OPENQUERY and similar functions is that these functions expect their query argument to be a literal string. They do not natively support direct parameterization of the internal query string. Therefore, to embed a variable’s value into the query that OPENQUERY executes on the remote server, you must first construct that entire internal query string, including the variable’s value, and then pass the resulting complete string to OPENQUERY.

Benefits of Dynamic SQL:¶

• Flexibility: Adapt queries based on changing conditions, user selections, or data-driven logic.
• Reusability: Write generic code that can handle various scenarios with different inputs.
• Reduced Code Duplication: Avoid writing multiple similar queries for different parameter values.

Challenges and Risks of Dynamic SQL:¶

• SQL Injection: This is the most significant security risk. If user-supplied input is directly concatenated into a dynamic SQL string without proper validation or escaping, malicious code can be injected.
• Complexity: Dynamic queries can be harder to read, write, and debug compared to static queries.
• Performance: SQL Server’s query optimizer might have difficulty caching query plans for highly dynamic queries, potentially leading to increased compilation overhead.
• Permissions: Special care must be taken regarding permissions, as dynamic SQL executes under the context of the user running the query.

Understanding these aspects is crucial before implementing dynamic SQL solutions. The following examples demonstrate various techniques, highlighting their pros and cons.

Method 1: Passing Basic Values with String Concatenation¶

When your Transact-SQL statement is mostly fixed, but you need to inject one or more specific values (like a filter condition), string concatenation is a straightforward approach. This method involves building the entire query string within a VARCHAR or NVARCHAR variable and then executing it using EXEC().

Consider a scenario where you want to retrieve authors from a specific state from a linked server named MyLinkedServer.

DECLARE @TSQL VARCHAR(8000), @VAR CHAR(2);
SELECT @VAR = 'CA'; -- The variable to be passed, e.g., 'CA' for California

-- Construct the dynamic SQL string
-- Note the quadruple quotes '''''' for escaping a single quote within the string
SELECT @TSQL = 'SELECT * FROM OPENQUERY(MyLinkedServer,''SELECT * FROM pubs.dbo.authors WHERE state = ''''' + @VAR + ''''''')';

-- Print the constructed query for debugging (optional, but highly recommended)
PRINT @TSQL;

-- Execute the dynamic SQL string
EXEC (@TSQL);

Explanation:
1. DECLARE @TSQL VARCHAR(8000), @VAR CHAR(2);: We declare two variables: @VAR to hold the state code and @TSQL to store the complete dynamic SQL string. VARCHAR(8000) is sufficient for many queries, but NVARCHAR(MAX) or VARCHAR(MAX) might be necessary for very long queries.
2. SELECT @VAR = 'CA';: We assign the desired state code ‘CA’ to @VAR.
3. String Concatenation: The most critical part is building @TSQL.
* The outer SELECT * FROM OPENQUERY(MyLinkedServer, is a fixed string.
* The second argument to OPENQUERY is a single string literal for the remote query. This string needs to be enclosed in single quotes. To include a single quote within a string literal in T-SQL, you must escape it by doubling it ('').
* Inside the OPENQUERY string, we have SELECT * FROM pubs.dbo.authors WHERE state = ' + @VAR + ''. The value of @VAR (e.g., ‘CA’) also needs to be enclosed in single quotes for the remote query.
* Therefore, to get 'CA' in the final remote query string, we need to pass ''' + @VAR + '''. The first two single quotes '' escape a single quote, producing one quote; the third single quote starts the @VAR content. The same logic applies after @VAR. This results in ''''' + @VAR + '''''' (five quotes before, five quotes after, for the inner query to see state = 'CA'). Let’s break down the quotes:
* OPENQUERY(MyLinkedServer,' -> Starts the string for the remote query.
* SELECT ... WHERE state = -> Part of the remote query.
* ''''' -> To get a single quote around the variable inside the OPENQUERY string:
* The first two '' become one single quote (escaping for the outer EXEC string).
* The next two '' become another single quote (escaping for the outer EXEC string).
* The fifth ' is the actual starting quote for the state value in the remote query.
* So, ''''' results in '' and '
* + @VAR + -> Concatenates the variable value.
* '''''' -> The closing quotes:
* The first ' is the closing quote for the state value in the remote query.
* The next two '' become one single quote (escaping for the outer EXEC string).
* The last two '' become another single quote (escaping for the outer EXEC string).
* ') -> Closes the OPENQUERY function.
* When @TSQL is printed, it should look like: SELECT * FROM OPENQUERY(MyLinkedServer,'SELECT * FROM pubs.dbo.authors WHERE state = ''CA'''). The OPENQUERY function then receives SELECT * FROM pubs.dbo.authors WHERE state = 'CA' as its internal query string.

This method works, but the escaping of quotes can quickly become a “quote nightmare” for complex queries or when dealing with string values that themselves contain quotes. This technique is also highly susceptible to SQL injection if @VAR originates from untrusted user input and is not properly sanitized.

Visualizing the Dynamic Query Construction¶

Here’s a simple Mermaid diagram illustrating the flow of this method:

mermaid graph TD A[Start] --> B(Declare @TSQL, @VAR); B --> C(Assign value to @VAR); C --> D(Construct @TSQL by concatenating strings and @VAR); D --> E(Print @TSQL for verification); E --> F(Execute @TSQL); F --> G[End];

Method 2: Passing the Whole Query and Linked Server Name Dynamically¶

In situations where not only the values but also the entire Transact-SQL query or even the name of the linked server might vary, you need a more flexible approach for string construction. This method concatenates multiple dynamic parts to form the final OPENQUERY statement.

This technique is useful when, for example, your application needs to query different linked servers based on configuration, or execute entirely different reports from the remote system.

DECLARE @OPENQUERY NVARCHAR(4000), @TSQL NVARCHAR(4000), @LinkedServer NVARCHAR(4000);
SET @LinkedServer = 'MyLinkedServer'; -- The name of the linked server
SET @OPENQUERY = 'SELECT * FROM OPENQUERY(' + @LinkedServer + ',''' ; -- Start of the OPENQUERY string with escaped single quote
SET @TSQL = 'SELECT au_lname, au_id FROM pubs..authors'')'; -- The actual remote query and closing quotes

-- Print the constructed parts and the final query (recommended for debugging)
PRINT @OPENQUERY;
PRINT @TSQL;
PRINT (@OPENQUERY + @TSQL);

-- Execute the concatenated dynamic SQL
EXEC (@OPENQUERY + @TSQL);

Explanation:
1. Variable Declaration: NVARCHAR(4000) is used for Unicode support, which is generally a good practice for dynamic SQL strings to prevent data loss or corruption with various character sets.
2. SET @LinkedServer = 'MyLinkedServer';: The linked server name is assigned to a variable, allowing it to be changed dynamically.
3. SET @OPENQUERY = 'SELECT * FROM OPENQUERY(' + @LinkedServer + ',''' ;: This line constructs the initial part of the OPENQUERY statement.
* SELECT * FROM OPENQUERY( is a fixed string.
* + @LinkedServer + dynamically inserts the linked server name.
* ,''' is crucial: the first comma separates the linked server name from the query string in OPENQUERY. The ''' provides a single quote that acts as the opening quote for the internal query string of OPENQUERY. This effectively escapes one single quote, allowing the internal query to start.
4. SET @TSQL = 'SELECT au_lname, au_id FROM pubs..authors'')';: This variable holds the actual query to be executed on the linked server, along with the necessary closing quotes.
* SELECT au_lname, au_id FROM pubs..authors is the remote query.
* '') is critical: the first single quote ' closes the internal query string passed to OPENQUERY. The second single quote ' is then escaped by the last ) of the string, which actually closes the OPENQUERY function.

This method provides greater flexibility by allowing both the linked server name and the entire remote query to be dynamic. However, it still involves complex quote management and shares the same SQL injection vulnerabilities if @TSQL or @LinkedServer are constructed using unvalidated user input.

Comparison of Method 1 and Method 2¶

Feature	Method 1 (Basic Values)	Method 2 (Whole Query/Server)
Flexibility	Moderate. Good for changing filter values.	High. Can change linked server and entire remote query.
Quote Handling	Complex, especially for inner quotes.	Complex, requires careful management of nested quotes.
SQL Injection Risk	High, if input is not sanitized.	High, if input for server name or query is not sanitized.
Readability	Can be hard to read due to '''''' etc.	Can be hard to read and debug due to multi-part concatenation.
Use Case	Simple parameter changes in a fixed remote query.	Dynamically selecting remote server or entirely different queries.

Method 3: Leveraging sp_executesql for Parameterization¶

For professional and secure dynamic SQL, sp_executesql is the recommended approach. This system stored procedure allows you to execute a Transact-SQL statement with parameters. This not only significantly simplifies the handling of quotes (no more '''''' nightmares!) but also provides crucial protection against SQL injection attacks by separating the command string from the parameter values. Furthermore, it helps SQL Server cache query plans more effectively, leading to better performance for repeated executions.

The sp_executesql stored procedure takes three main arguments:
1. @stmt: The Transact-SQL statement string to be executed (must be NVARCHAR).
2. @params: An NVARCHAR string containing the declarations of all parameters embedded in @stmt.
3. @param1, @param2, ...: The actual values for the parameters declared in @params.

When using sp_executesql with linked servers, the approach is similar to passing parameters to a local stored procedure, but executed remotely.

DECLARE @VAR CHAR(2);
SELECT @VAR = 'CA';

-- Execute sp_executesql directly on the linked server
EXEC MyLinkedServer.master.dbo.sp_executesql
    N'SELECT * FROM pubs.dbo.authors WHERE state = @state', -- The remote query string
    N'@state CHAR(2)',                                     -- Parameter declaration for the remote query
    @VAR;                                                  -- The actual value for the parameter

Explanation:
1. DECLARE @VAR CHAR(2); SELECT @VAR = 'CA';: Declares a local variable and assigns a value. This is the variable we want to pass to the remote query.
2. EXEC MyLinkedServer.master.dbo.sp_executesql: This is the key. We are executing sp_executesql directly on the master database of MyLinkedServer. This implies that sp_executesql will be run on the remote server, not locally.
3. N'SELECT * FROM pubs.dbo.authors WHERE state = @state': This is the actual query string that will be executed on the remote server. Notice that @state is used as a placeholder for the parameter. The N prefix indicates a Unicode string literal, which is essential for sp_executesql.
4. N'@state CHAR(2)': This is a string that declares the parameter(s) used in the remote query string. It must match the data type of the parameter used in the remote query.
5. @VAR: This is the actual local variable whose value will be passed to the @state parameter in the remote query. sp_executesql handles the safe transmission and substitution of this value, preventing SQL injection.

Advantages of sp_executesql:¶

• Security: By separating the query logic from the parameter values, sp_executesql prevents SQL injection. User input is treated as a literal value, not executable code.
• Readability: The queries are much cleaner, without the need for complex quote escaping.
• Performance: SQL Server can reuse query plans for statements executed via sp_executesql more effectively because the query string remains consistent, only the parameter values change. This reduces compilation overhead.
• Data Type Handling: It handles data type conversions and formatting more robustly than string concatenation.

Advanced sp_executesql Example with Multiple Parameters and OPENQUERY¶

While the above example shows sp_executesql running directly on the linked server, you can also combine it with OPENQUERY if the complexity of the remote query or the source of the linked server necessitates it (though generally, direct execution is preferred if possible). The trick is that the entire OPENQUERY call becomes the dynamic string executed locally, which then contains a dynamic string for the remote query. This gets complex, but here’s how you’d parameterize parts of the internal OPENQUERY string.

DECLARE @LocalLinkedServerName NVARCHAR(128) = N'MyLinkedServer';
DECLARE @RemoteQuery NVARCHAR(MAX);
DECLARE @AuthorState CHAR(2) = 'CA';
DECLARE @MinContract INT = 1;

-- This is the string for the remote query, with parameters for sp_executesql
-- Note the 'N' prefix for the remote query string.
SET @RemoteQuery = N'SELECT * FROM pubs.dbo.authors WHERE state = @state AND contract >= @min_contract';

-- Construct the dynamic SQL to be executed LOCALLY.
-- This dynamic SQL will call OPENQUERY, and the OPENQUERY's string will be the @RemoteQuery.
-- The parameters for the remote query (@state, @min_contract) are passed through
-- the sp_executesql which is called within the OPENQUERY context.
DECLARE @OuterTSQL NVARCHAR(MAX);
SET @OuterTSQL = N'SELECT * FROM OPENQUERY(' + QUOTENAME(@LocalLinkedServerName, '''') + ',''' +
                 REPLACE(@RemoteQuery, '''', '''''') + ''')';

-- It's often better to avoid calling sp_executesql inside OPENQUERY if you can call it directly on the linked server.
-- The previous example (`EXEC MyLinkedServer.master.dbo.sp_executesql...`) is simpler and often preferred.
-- This example demonstrates if you *had* to use OPENQUERY for some reason and parameterize its internal string.

-- The most robust and generally recommended way to pass parameters using OPENQUERY involves building the string carefully.
-- This is NOT using sp_executesql for the remote call itself. It's using it locally to build the OPENQUERY string.

-- Let's re-think this. The most common/sensible pattern is what Method 3 showed:
-- EXEC LinkedServer.master.dbo.sp_executesql N'Remote Query with Parameters', N'Parameter Definitions', @LocalVariableForParam

-- If we MUST use OPENQUERY with parameters, then we are back to string building, but often it's done for the remote *query string itself*.
-- The most robust way to parameterize OPENQUERY is using sp_executesql to generate the _outer_ string,
-- and then within that outer string, carefully build the _inner_ string with escaped values.

-- Let's stick to the simplest, most recommended sp_executesql pattern as presented in the original article and expanded above.
-- The direct call to sp_executesql on the linked server is the cleaner method.
-- Trying to wrap sp_executesql inside OPENQUERY via string concatenation gets very complex and defeats some of its benefits.

-- For a more complex sp_executesql example, consider output parameters:
DECLARE @FirstName NVARCHAR(50);
DECLARE @AuthorID VARCHAR(11) = '172-32-1176'; -- An author ID

-- Execute sp_executesql on the linked server with an output parameter
EXEC MyLinkedServer.master.dbo.sp_executesql
    N'SELECT @fName = au_fname FROM pubs.dbo.authors WHERE au_id = @id',
    N'@id VARCHAR(11), @fName NVARCHAR(50) OUTPUT',
    @id = @AuthorID,
    @fName = @FirstName OUTPUT;

PRINT 'Author first name: ' + ISNULL(@FirstName, 'N/A');

This expanded example of sp_executesql demonstrates how to retrieve an output parameter from a linked server query, highlighting the power of this method for two-way communication.

Mermaid Diagram: sp_executesql Flow¶

mermaid graph TD A[Start] --> B(Declare @LocalVariable); B --> C(Define Remote Query String (NVARCHAR), using placeholders like @param); C --> D(Define Parameter Declaration String (NVARCHAR), like '@param DataType'); D --> E(Execute sp_executesql on Linked Server); E --> F(Pass Remote Query String); F --> G(Pass Parameter Declaration String); G --> H(Pass Local Variable as Parameter Value); H --> I[End];

Best Practices and Considerations¶

When working with dynamic SQL, especially in the context of linked servers, several best practices can help mitigate risks and improve maintainability and performance.

Security: Preventing SQL Injection¶

• Always use sp_executesql for parameterization. This is the golden rule. It separates the query logic from the data, preventing malicious code from being executed.
• Validate and Sanitize Input. Even when using sp_executesql, if you’re dynamically constructing parts of the query (e.g., table names, column names, ORDER BY clauses), parameterization isn’t enough. For identifiers (like table or column names), use QUOTENAME(). For other dynamic parts, carefully validate against allowed lists or use strong regex.


  -- Example of QUOTENAME for dynamic table names
  DECLARE @TableName NVARCHAR(128) = N'Authors'; -- This could come from user input
  DECLARE @DynamicQuery NVARCHAR(MAX);
  SET @DynamicQuery = N'SELECT COUNT(*) FROM ' + QUOTENAME(@TableName) + ';';
  EXEC sp_executesql @DynamicQuery;



  QUOTENAME() adds the appropriate delimiters (e.g., [Authors]) and escapes any internal delimiters, preventing injection through identifiers.

Performance Considerations¶

• Parameterization with sp_executesql: As discussed, this helps SQL Server reuse execution plans. When queries are constantly recompiled due to minor string changes, performance suffers.
• Data Type Matching: Ensure that the data types of parameters passed to sp_executesql match (or are implicitly convertible to) the data types expected by the remote query. Mismatches can lead to conversion errors or inefficient query plans.
• Network Latency: Linked server queries inherently involve network communication. Minimize the amount of data transferred by selecting only necessary columns and applying filtering on the remote server side where possible. The OPENQUERY function is often preferred over four-part names (e.g., LinkedServer.Database.Schema.Table) because OPENQUERY forces the remote server to process the query, sending only the result set back. Four-part names can sometimes lead to SQL Server pulling entire tables locally before filtering.
• Index Usage: Ensure appropriate indexes exist on the remote server for the tables being queried, especially on columns used in WHERE clauses or JOIN conditions.

Error Handling and Debugging¶

• PRINT Statement: Use PRINT statements generously during development to inspect the generated dynamic SQL strings. This helps verify that the query is constructed as expected before execution.
• TRY...CATCH Blocks: Wrap your dynamic SQL execution within TRY...CATCH blocks to gracefully handle runtime errors. This is crucial for production environments.
• SQL Server Profiler/Extended Events: These tools can be invaluable for monitoring the actual queries executed on the linked server, helping diagnose performance issues or unexpected behavior.
• Permissions: Ensure the linked server login has the necessary permissions on the remote database and objects. Errors often stem from insufficient privileges.

Data Type Specifics¶

When passing variables, be mindful of their data types.
* String Data: For NVARCHAR, VARCHAR, CHAR data, ensure proper quoting. sp_executesql handles this automatically if you pass the parameter correctly.
* Date/Time Data: Use an unambiguous date format (e.g., YYYY-MM-DD HH:MI:SS.mmm) when concatenating dates, or better yet, pass them as parameters using sp_executesql.
* Numeric Data: Numeric data generally doesn’t require quotes unless it’s part of a string (which it shouldn’t be if you’re parameterizing).

Conclusion¶

Dynamically passing variables to linked server queries is an indispensable capability for building flexible and maintainable SQL Server applications. While string concatenation offers a direct path, its complexities regarding quote handling and severe SQL injection vulnerabilities make it less ideal for production environments. The preferred and most secure method involves leveraging sp_executesql.

sp_executesql not only simplifies the construction of dynamic queries by handling parameterization cleanly but also provides crucial protection against SQL injection attacks and contributes to better query plan reuse, ultimately leading to improved performance. By understanding the nuances of each method and adhering to best practices, you can confidently integrate dynamic, variable-driven queries into your linked server interactions, empowering your applications with enhanced flexibility and robustness.

Do you frequently use linked servers in your SQL Server environment? Which of these methods have you found most effective, or have you encountered unique challenges when passing variables? Share your experiences and tips in the comments below!
