Streamline Azure VMs: Managing Multiple Certificates via Extensions in IaaS

Table of Contents

Azure Virtual Machines (VMs), serving as the foundational infrastructure as a service (IaaS) offering, are powerful and flexible computing resources. A critical component enabling their versatility is the robust system of VM extensions. These small applications empower post-deployment configuration, automation, and security tasks. However, the secure operation of these extensions inherently relies on cryptographic certificates. This article delves into a common issue where Azure IaaS VMs, particularly those leveraging extensions, accumulate multiple unnecessary certificates, leading to potential operational complexities.

The efficient management of certificates within an Azure VM environment is paramount. While extensions offer immense benefits, the proliferation of certificates can introduce challenges such as increased disk space consumption, potential performance overhead during certificate store enumeration, and a cluttered management interface. This guide will help you understand the symptoms, identify the root causes, and implement effective solutions to streamline certificate management on your Azure Windows and Linux VMs.

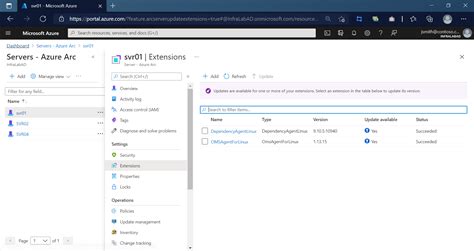

Understanding Azure VM Extensions and Certificate Management¶

Azure VM extensions are essential tools that enable a wide range of functionalities on your virtual machines. They can be used for tasks like installing software, configuring anti-malware protection, running custom scripts, and collecting diagnostic data. Each extension needs a secure way to communicate with the Azure control plane and sometimes with other services. This secure communication is often facilitated by certificates.

The Azure VM Agent (known as WaAppAgent.exe on Windows and waagent on Linux) is the primary component responsible for managing the lifecycle of these extensions and, by extension, their associated certificates. When an extension is deployed or updated, the VM Agent ensures that the necessary certificates are provisioned and made available to the extension for secure operations. These certificates ensure that the communication between the VM and Azure services is authenticated and encrypted, safeguarding data integrity and confidentiality.

Symptoms of Certificate Proliferation¶

The accumulation of multiple certificates manifests differently across Windows and Linux Azure VMs. Recognizing these symptoms is the first step towards resolving the underlying issue.

Symptoms on Windows VMs¶

On Windows-based Azure VMs, the most common symptom is the presence of numerous certificates within the Microsoft Management Console (MMC) Certificates snap-in. These certificates typically bear a subject name of Windows Azure CRP Certificate Generator. For older, classic RedDog Front End (RDFE) VMs, you might observe certificates with the subject name Windows Azure Service Management for Extensions. This accumulation clutters the certificate store, making it challenging to identify valid, active certificates.

Symptoms on Linux VMs¶

For Linux-based Azure VMs, the symptom is observed in the file system. You will find a large number of files, each containing 40 hexadecimal digits followed by a .crt (certificate) file extension, located within the /var/lib/waagent directory. For example, you might see files named 0123456789ABCDEF0123456789ABCDEF01234567.crt. These files represent the generated certificates, and their sheer number indicates the issue.

Verifying Symptoms on Windows¶

To confirm the presence of excessive certificates on a Windows VM, you can inspect the C:\WindowsAzure\logs\WaAppAgent.log file. You may observe a pattern of log entries similar to the following, indicating repeated attempts to import certificates that already exist or are similar:

[01/16/2017 21:42:25.50] [INFO]  Imported Certificate: DC=Windows Azure CRP Certificate Generator.
[01/16/2017 21:42:25.50] [INFO]  Certificate thumbprint: 1D59A4E7F60F6D978124ED7D3E177B0D6A6806C9
[01/16/2017 21:42:25.50] [INFO]  Comparing normalizedHash: 1D59A4E7F60F6D978124ED7D3E177B0D6A6806C9 and hash 1D59A4E7F60F6D978124ED7D3E177B0D6A6806C9.
[01/16/2017 21:42:25.50] [INFO]  Certificate 1D59A4E7F60F6D978124ED7D3E177B0D6A6806C9 is found.
[01/16/2017 21:42:25.50] [INFO]  Comparing normalizedHash: 1D59A4E7F60F6D978124ED7D3E177B0D6A6806C9 and hash FC2FFCDEE6A8C6033EE4986B4D5080E3E2083CC9.
...
[01/16/2017 21:42:25.50] [INFO]  Comparing normalizedHash: 1D59A4E7F60F6D978124ED7D3E177B0D6A6806C9 and hash 1E1A0BF89A1FDD0722F4F94083A6CCDF94EFC78A.
[01/16/2017 21:42:25.50] [INFO]  Comparing normalizedHash: 1D59A4E7F60F6D978124ED7D3E177B0D6A6806C9 and hash 1D59A4E7F60F6D978124ED7D3E177B0D6A6806C9.
[01/16/2017 21:42:25.50] [INFO]  Certificate 1D59A4E7F60F6D978124ED7D3E177B0D6A6806C9 is found.
[01/16/2017 21:42:25.50] [INFO]  Certificate with the subject: DC=Windows Azure CRP Certificate Generator will not be added because it already exists in the store.
[01/16/2017 21:42:25.50] [INFO]  Successfully imported cert TenantEncryptionCert into the store My

If you observe this pattern, follow these steps to visually verify the multiple certificates using MMC:

1. On the Windows Start menu, search for and select MMC.exe to open the Microsoft Management Console.
2. On the File menu of the Microsoft Management Console, select Add/Remove Snap-in.
3. In the Add or Remove Snap-ins dialog box, under the list of Available snap-ins, select Certificates, and then select the Add button.
4. In the Certificates snap-in dialog box, select Computer Account, and then select Next > Finish.
5. In the Add or Remove Snap-ins dialog box, select the OK button.
6. In the console tree, expand Certificates (Local Computer), expand Personal, and then select Certificates. A comprehensive list of certificates will appear. You will likely find many certificates with an Issued By column value of Windows Azure CRP Certificate Generator (or Windows Azure Service Management for Extensions if using a classic RDFE VM).

The Root Cause: Frequent VM Restarts and Agent Lifecycle¶

The primary cause of this certificate proliferation issue is the frequent stopping and starting of the Azure VM, particularly when coupled with older versions of the Azure VM Agent. When you stop a VM (and specifically deallocate it), its state is partially reset from the perspective of the Azure Compute Resource Provider (CRP).

VM Deallocation vs. Reboot¶

It’s important to distinguish between simply rebooting a VM and stopping/deallocating it. A simple reboot within the guest OS or a restart command from the Azure portal that doesn’t deallocate the VM typically maintains its existing certificate context more reliably. However, when a VM is stopped and deallocated, it releases its underlying compute resources. Upon the next start, the Azure platform may treat it as a new deployment cycle for certain aspects, including the provisioning of certificates for extensions.

Azure CRP and VM Agent Interaction¶

During each VM startup after deallocation, the Azure CRP interacts with the VM Agent to ensure all necessary extensions are configured and operational. As part of this process, the agent requests and receives certificates for secure communication. Older versions of the VM Agent lacked sophisticated logic to efficiently manage the lifecycle of these certificates. They might not adequately check for existing valid certificates or perform routine cleanup of old, expired, or redundant certificates that are no longer needed by the active extensions. This leads to the generation of a new certificate upon each restart, while the old ones are left behind, cluttering the certificate store. This process can be visualized as follows:

mermaid graph TD A[Azure VM Deallocated] --> B{VM Started/Re-allocated} B --> C[Azure CRP Initiates VM Agent Provisioning] C --> D{VM Agent Checks Extensions Status} D --> E{Extensions Require Secure Communication} E --> F[VM Agent Requests New Certificate from CRP] F --> G[CRP Generates & Issues Certificate] G --> H[Certificate Imported to VM Store] H --> I{VM Operations...} I --> J{VM Deallocated Again} J --> B; K[Older VM Agent Behavior] -- If certificate exists --> L[Do Not Clean Up Old Certs]; K -- Else --> M[Always Generate New Cert]; L & M --> Accumulate[Certificate Accumulation]; N[Newer VM Agent Behavior] -- If certificate exists --> O[Validate & Reuse Current Cert]; N -- Else --> P[Generate New Cert & Clean Up Old/Expired]; O & P --> Streamline[Streamlined Certificate Management];

The cycle of deallocation and restart, combined with the older agent’s behavior, creates an environment where certificates continuously accumulate.

Solution 1: Proactive Management with Updated VM Agents¶

The most effective and recommended solution to this issue is to ensure that your Azure VM Agent is running a recent version. Newer versions of the VM Agent include enhanced logic for certificate lifecycle management, specifically designed to address the problem of certificate proliferation.

Importance of VM Agent Updates¶

Updating the Azure VM Agent is crucial for several reasons beyond just certificate management:

• Security: Newer agents incorporate the latest security patches, protecting your VMs from known vulnerabilities.
• Stability: Improved agent versions often include bug fixes and performance enhancements, leading to more reliable VM operations.
• New Features: Modern agents support the latest Azure features and extensions, ensuring your VMs can leverage the full capabilities of the platform.
• Automated Cleanup: Critically, updated agents include intelligent mechanisms to identify and automatically delete old, expired, or redundant certificates that are no longer required for active extensions or the current deployment cycle. This prevents the clutter and associated issues discussed earlier.

How to Update the VM Agent¶

By default, the Azure VM Agent is configured for automatic updates, ensuring that you generally run a recent version. However, in some scenarios, especially for VMs created a long time ago or those with specific configurations, manual intervention might be necessary.

For Windows VMs:
The Azure Windows VM Agent automatically updates when new versions are released. You can verify its version and sometimes trigger an update using PowerShell:

Get-AzVM -ResourceGroupName "YourResourceGroup" -Name "YourVMName" -Status | Select-Object -ExpandProperty VMAgent

To explicitly set or ensure automatic updates, you can use:

Set-AzVMExtension -ResourceGroupName "YourResourceGroup" -VMName "YourVMName" -Name "BGInfo" -Publisher "Microsoft.Compute" -ExtensionType "BGInfo" -TypeHandlerVersion "2.1" -EnableAutomaticUpgrade $true

While this command specifically enables auto-upgrade for an extension, the underlying VM Agent typically manages its own auto-update process. If you find your agent is outdated, simply redeploying an extension or restarting the VM might trigger an update.

For Linux VMs:
Similarly, the Azure Linux VM Agent is designed for automatic updates. To check its status or manually update (if automatic update is not enabled or working):

sudo /usr/sbin/waagent -version
sudo /usr/sbin/waagent -update
sudo systemctl restart waagent

Ensure your VM Agent is running at version 2.2.x or later for optimal certificate management. These versions are designed to clean up old certificates proactively, significantly reducing the accumulation issue.

Verification After Update¶

After updating the VM Agent, or confirming it’s on a recent version, monitor your certificate stores (MMC for Windows, /var/lib/waagent for Linux) over a few VM restart cycles. You should observe a steady state where new certificates are issued only when genuinely required, and old certificates are systematically removed, preventing excessive growth.

Solution 2: Manual Remediation (Use with Caution)¶

While updating the VM agent is the preferred long-term solution, in cases where immediate cleanup is required or an agent update isn’t feasible, manual remediation can be performed. However, this approach carries risks. Deleting a certificate currently in use by an active extension can disrupt VM functionality. Proceed with extreme caution and consider creating a VM snapshot or backup before attempting manual deletion.

Identifying Redundant Certificates¶

The key challenge in manual remediation is distinguishing active, valid certificates from old, redundant ones. Generally, active certificates will have recent issuance dates and valid expiration dates. Old certificates will often be expired or have issuance dates far in the past compared to the last VM start/extension deployment.

For Windows VMs:

1. Open the Certificates snap-in in MMC (as described in the “Verifying Symptoms on Windows” section).
2. Navigate to Certificates (Local Computer) > Personal > Certificates.
3. Carefully examine the list. Sort by Issued By and Expiration Date.
4. Identify certificates issued by “Windows Azure CRP Certificate Generator” (or “Windows Azure Service Management for Extensions”) that have expired or are significantly older than your VM’s last restart or extension deployment.
5. Before deleting, consider cross-referencing with WaAppAgent.log to see if a specific certificate thumbprint is actively being used or referenced. When in doubt, it is safer to leave a certificate than to remove an active one.
6. To delete a certificate, select it, right-click, and choose Delete.

For Linux VMs:

1. Access your VM via SSH.
2. Navigate to the /var/lib/waagent directory.
3. List the .crt files: ls -la /var/lib/waagent/*.crt
4. Inspect the certificates. You can view the contents of a .crt file using openssl:


   openssl x509 -in /var/lib/waagent/0123456789ABCDEF0123456789ABCDEF01234567.crt -text -noout | less



   Look for Not Before and Not After dates to identify expired certificates or those significantly older than your VM’s last operational date.
5. Before deleting, it’s advisable to stop the waagent service:


   sudo systemctl stop waagent # For systemd-based systems
   # OR
   sudo service waagent stop # For older init systems


6. Carefully remove the identified redundant .crt files:


   sudo rm /var/lib/waagent/OLD_CERTIFICATE_FILE_NAME.crt


7. Restart the waagent service:


   sudo systemctl start waagent
   # OR
   sudo service waagent start


WARNING: Deleting a currently active certificate can cause Azure VM extensions to fail, potentially leading to loss of monitoring, configuration, or security features. Always exercise extreme caution when performing manual certificate deletions. It is highly recommended to prioritize updating the VM Agent over manual cleanup.

Best Practices for Azure VM Certificate Lifecycle Management¶

To prevent future certificate accumulation and ensure efficient operations, consider implementing these best practices:

• Always Deallocate When Not In Use: When a VM is not actively running, always use the “Stop (deallocate)” option in the Azure portal or Stop-AzVM -Deallocate (PowerShell) / az vm deallocate (Azure CLI). This not only saves costs but also allows the Azure platform and VM Agent to manage resources, including certificates, more cleanly upon the next startup.
• Monitor VM Agent Health: Regularly check the status of your Azure VM Agent to ensure it is running and healthy. A malfunctioning agent can lead to issues with extension management and certificate provisioning.
• Enable Automated Updates: Confirm that your VM Agents are configured for automatic updates. This ensures they always benefit from the latest improvements, including enhanced certificate cleanup logic.
• Regular Audits of Certificate Stores: For environments with very strict compliance or where this issue has historically been problematic, consider implementing periodic audits of the certificate stores on your VMs to proactively identify and address accumulation. Simple scripts can be used to count certificates and flag excessive numbers.
• Leverage Azure Key Vault for Application Certificates: While the certificates discussed here are managed by the Azure platform for extensions, remember to use Azure Key Vault for your application’s certificates. This provides a secure, centralized store for managing the lifecycle of your application-specific certificates, separate from the VM Agent’s operational certificates.

Troubleshooting Common Certificate Issues¶

Beyond certificate proliferation, issues with VM extensions often tie back to certificate validity or access. If an extension fails to install or run, consider checking the following:

• VM Agent Logs: The WaAppAgent.log (Windows) or /var/log/waagent.log (Linux) files are invaluable for diagnosing extension-related problems, including certificate errors.
• Certificate Expiration: Ensure that the active certificates, especially those related to the VM Agent itself, have not expired.
• Permissions: Verify that the VM Agent process has the necessary permissions to access and manage the certificate store.

Consider reviewing relevant documentation from Microsoft for more in-depth troubleshooting specific to your operating system and extension types.

You might find this video helpful for understanding the broader context of Azure VM extensions and their management:

Azure VM Extensions Explained
This video provides an overview of Azure VM extensions, their purpose, and how they contribute to automated deployment and configuration tasks within your Azure virtual machines.

Conclusion¶

Managing multiple certificates on Azure IaaS VMs, particularly those generated by the Azure CRP for extensions, is a common operational challenge. By understanding the symptoms, recognizing the root cause linked to frequent VM restarts and older VM Agent versions, and implementing the recommended solutions, you can maintain a cleaner, more efficient, and secure Azure environment. Prioritizing VM Agent updates is the most straightforward and effective method for proactive certificate management, significantly reducing the need for manual intervention.

We hope this guide provides clarity and actionable steps for streamlining certificate management in your Azure VM deployments. What are your experiences with certificate accumulation on Azure VMs? Share your insights and any additional tips in the comments below!
