Troubleshooting Azure Recovery Services Agent System State Backup Failure (Error 8007007B)

Table of Contents

Maintaining robust backup strategies is paramount for business continuity, and Azure Recovery Services Agent (MARS Agent) plays a critical role for many organizations in safeguarding on-premise data by backing it up to Azure. However, encountering failures, such as the System State Backup failure with Error 8007007B, can be a significant setback. This error typically indicates an issue with file, directory, or volume label syntax, often pointing to a path resolution problem within the system’s configuration.

A System State Backup encompasses vital system components like boot files, the COM+ Class Registration database, the Registry, and system files, all of which are crucial for restoring a Windows server to a functional state. When this backup fails, it suggests an underlying inconsistency that needs immediate attention to ensure your disaster recovery capabilities remain intact. This guide provides a detailed walkthrough to diagnose and resolve Error 8007007B, focusing on common misconfigurations found in system paths that impact backup operations.

Understanding Error 0x8007007B: “The filename, directory name, or volume label syntax is incorrect.”¶

The error code 0x8007007B, frequently presented as “The filename, directory name, or volume label syntax is incorrect,” is a standard Windows system error that typically arises when a process attempts to access a file or directory using a malformed or invalid path. In the specific context of an Azure Recovery Services Agent System State Backup, this error signifies that the intricate backup process, particularly the Volume Shadow Copy Service (VSS) writers, is encountering difficulty in properly enumerating or accessing a specific system file due to a path syntax issue. This prevents the creation of a consistent snapshot required for a successful backup.

This problem is usually not related to physical disk corruption, a missing file, or fundamental disk issues, but rather to how the path to that file is registered or interpreted by the operating system services during the backup operation. A seemingly minor inconsistency, such as an extraneous character or an incorrectly placed backslash, can disrupt the complex path resolution mechanisms that VSS relies upon for creating a stable and consistent snapshot of the system state. Identifying and correcting this subtle path discrepancy within the system’s configuration is the key to resolving the backup failure and restoring data integrity.

Initial Diagnosis: Examining WSB Failure Logs¶

The first and most critical step in our troubleshooting journey is to accurately pinpoint the exact location where the backup process encountered the path syntax error. Windows Server Backup (WSB) logs are an invaluable resource for this, as they capture detailed information about backup operations, including any failures, along with the precise context of the error. By reviewing these logs, we can identify the specific Systemroot_path that the system struggled to process during the enumeration phase.

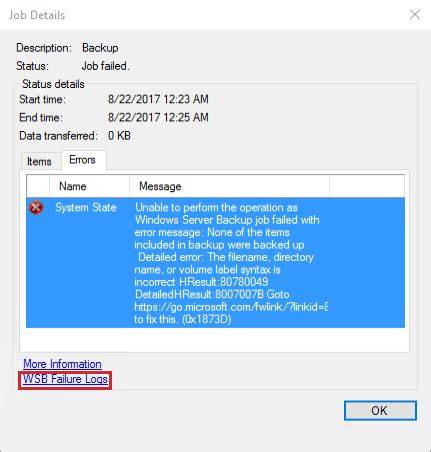

1. Accessing WSB Failure Logs: Begin by navigating to the location where your Windows Server Backup logs are stored. These logs are typically found within the Event Viewer under “Applications and Services Logs” -> “Microsoft” -> “Windows” -> “Backup” or within the Windows Server Backup console itself. These logs often provide a clear indication of the problematic path, detailing the moment the backup operation failed.

2. Verifying the Systemroot_path: Within the failure log, locate the entry that explicitly details the error 0x8007007B. Pay close attention to the Systemroot_path cited in the error message, as this is the primary indicator of where the problem lies. For instance, an error might clearly state:
   > Error in backup of c:\windows\systemroot\ during enumerate: Error [0x8007007b] The filename, directory name, or volume label syntax is incorrect.
   In this illustrative example, the Systemroot_path is unequivocally identified as c:\windows\systemroot\. The presence of such a specific path in the error message indicates that the backup operation failed when attempting to enumerate files or directories within this critical system location. This strongly suggests a path resolution problem originating from a component associated with this root, halting the backup process.

The Systemroot_path represents the fundamental directory where the Windows operating system is installed and contains critical system files. An incorrect or malformed reference to this path, even if subtle, can lead to the VSS writer failing to correctly prepare components for backup. This initial verification step is crucial as it helps narrow down the scope of the problem to a specific area of the system’s file structure, thereby guiding our subsequent diagnostic steps directly towards the underlying registry configuration that dictates how services and drivers access these paths.

Investigating VSS Writers with Diskshadow¶

System State Backups fundamentally rely on the Volume Shadow Copy Service (VSS) to create consistent snapshots of data, ensuring data integrity even while applications are actively running. VSS works in close coordination with various VSS writers, which are integral components installed with applications or the operating system itself, to prepare their respective data for a snapshot. A malfunction, corruption, or incorrect configuration within one of these writers can significantly disrupt the VSS process and lead directly to backup failures. The diskshadow utility is a powerful, built-in command-line tool that provides direct interaction with VSS, enabling system administrators to diagnose writer issues comprehensively.

Executing Diskshadow to List Writers¶

To effectively troubleshoot the 0x8007007B error, we require a detailed report of all VSS writers and their current operational states. This comprehensive report can often reveal which writer might be implicitly involved in the backup failure due to subtle path configuration issues, even if the writer itself isn’t explicitly showing a “Failed” status.

1. Open an Elevated Command Prompt: It is absolutely crucial to run diskshadow with administrative privileges to ensure it has the necessary permissions to query the VSS service effectively. To do this, right-click the Start button, select Run, type cmd, and then press Ctrl+Shift+Enter. This action opens an elevated Command Prompt, indicated by “Administrator” in the window title, guaranteeing diskshadow has the authority it needs.

2. Run the diskshadow command: At the elevated command prompt, execute the following command. This initiates the diskshadow utility and crucially directs its verbose output to a specified file. This step is vital for capturing a comprehensive and static snapshot of your VSS writer configurations, which can then be thoroughly reviewed without information scrolling out of view.

   diskshadow /l Output_File_Path


   Note: It is imperative to replace Output_File_Path with an actual, accessible path and filename, such as C:\vsswriters.txt. This designated file will meticulously store all the detailed output from the diskshadow utility, allowing for a thorough and unhurried review of the VSS writer statuses and file specifications.

3. Interact with the DISKSHADOW Prompt: After successfully running the command, your command prompt window will change, presenting you with a distinctive DISKSHADOW> prompt. At this prompt, you can directly issue commands to the VSS service. To obtain the necessary granular details about all registered writers on your system, type the following commands sequentially, pressing Enter after each one to execute it:

   list writers detailed

   exit


   The list writers detailed command will diligently query all VSS writers present on your system and output extensive information about each, including their current status (e.g., stable, failed), their associated component files, and, most importantly for this troubleshooting scenario, their referenced paths. The exit command then gracefully closes the diskshadow utility, signaling the completion of the data collection phase.

Interpreting VSS Writer Output¶

The output file generated by diskshadow is a rich source of information, providing a comprehensive diagnostic overview of your VSS environment. While reviewing this file, you should generally look for VSS writers that are in a “Failed” state. However, for the specific error 0x8007007B, our focus shifts beyond just the writer’s state to a particular type of file path information that might be malformed within a writer’s component list. This error points directly to a path syntax issue, rather than a general writer failure, which means a “Stable” writer might still be referencing a problematic path.

Example VSS Writer States and Their Implications:

State	Description
Stable	The VSS writer is operating correctly, indicating it has successfully initialized and is ready for backup operations. Most writers should consistently be in this state, ensuring data consistency for backups.
Failed	The VSS writer has encountered a significant error and is not functioning correctly. This often points to a problem with the underlying application, service, or system component that the writer is responsible for, requiring immediate attention beyond just path issues.
Waiting	The writer is actively awaiting a response or action from another component, an application, or the VSS service itself. This state can be temporary during an active shadow copy creation, but if persistent, it might indicate a hung operation or a dependency issue.
Timed Out	The writer failed to complete its required operation within the allotted time frame. This is frequently due to resource contention, an unresponsive application, excessive I/O, or a deadlocked process, preventing the writer from preparing its data for the snapshot within the expected duration.

While diligently reviewing the output, prioritize any writers that are not in a Stable state as they might indicate other system health issues. However, for diagnosing error 0x8007007B, our primary objective is to meticulously examine the file list paths within the detailed writer information. This error specifically highlights a path syntax issue, often indicating that a “Stable” writer might be configured with an incorrectly specified path for one of its components. The diskshadow utility, through its detailed output, provides a critical snapshot of your VSS configuration, which is essential for identifying the granular root cause of this particular backup failure.

Identifying the Problematic File Specification¶

Once the diskshadow output file has been meticulously generated and saved, the next crucial step is to carefully examine its extensive contents to pinpoint the specific file path that is causing the Azure Recovery Services Agent backup failure. This process involves a critical cross-referencing exercise, linking the general Systemroot_path information from the initial WSB failure logs with the highly detailed VSS writer output. This careful correlation helps us isolate the exact file that is being misreferenced.

1. Open the Output File: Navigate to the Output_File_Path you specified during step 2 of the diskshadow execution (e.g., C:\vsswriters.txt) and open it using a plain text editor such as Notepad or Notepad++. This file contains a comprehensive listing of all VSS writers and their intricately detailed file specifications, which is where our problematic path will be hidden.

2. Locate the Systemroot_path Reference: Within the opened file, initiate a search for the Systemroot_path that you originally identified in the WSB Failure Logs (e.g., C:\Windows\systemroot\). This targeted search will help you narrow down precisely which VSS writer or system component is referencing this problematic path. You are specifically looking for lines that detail file lists associated with a VSS writer, often structured in a manner similar to the following:

   File List: Path = Systemroot_path\system32\drivers, Filespec = File_Spec_Path


   For example, during your search, you might discover a line that closely resembles:

   File List: Path = C:\windows\systemroot\system32\drivers, Filespec = winmad.sys


   In this highly specific example, C:\windows\systemroot\system32\drivers clearly represents the directory path being referenced, and winmad.sys is the File_Spec_Path. This File_Spec_Path is the very specific file that the VSS writer is attempting to include in the backup snapshot, and its corresponding service or driver entry within the Windows Registry is highly likely to be the source of the misconfiguration. The system32\drivers directory is particularly significant here as it houses core system drivers, making any pathing issues within this critical location highly detrimental to system stability and backup operations.

The File_Spec_Path identified in this meticulous step is the single most crucial piece of information that will directly guide our subsequent investigation into the Windows Registry. The consistent backup failure, unequivocally indicated by Error 0x8007007B, strongly suggests that the way this particular file’s path is defined for its associated service is syntactically incorrect, specifically in a manner that causes the backup agent to misinterpret or fail to resolve it. The next, and most critical, phase of troubleshooting will involve precisely correcting this specific path within the Registry to ensure the backup process can accurately enumerate, shadow, and ultimately back up the file without encountering further syntax errors.

Correcting the Path in the Windows Registry¶

The Windows Registry serves as a critical hierarchical database that meticulously stores low-level settings for the Microsoft Windows operating system and for applications that choose to utilize its structure. Incorrect or malformed entries within the Registry can lead to a wide spectrum of system issues, including, but not limited to, application malfunctions, system instability, and, as we have seen, critical backup failures. For Error 0x8007007B, a frequently encountered culprit is a malformed ImagePath value for a system service or driver, specifically one that contains an extraneous leading backslash character.

---

CRITICAL WARNING: Editing the Windows Registry incorrectly carries a significant risk and can potentially cause severe system instability, make your operating system unbootable, or render essential applications inoperable. It is highly recommended to create a system restore point and to back up your Registry before making any modifications. You can achieve this by exporting the relevant Registry key (e.g., the entire Services key or the specific service key you intend to modify) as a .reg file before proceeding with any changes.

---

1. Open Registry Editor: To safely access the Registry Editor, right-click the Start button, select Run, type regedit in the Open box, and then click OK. You will then need to confirm the User Account Control (UAC) prompt if it appears, granting the editor administrative privileges.

2. Navigate to the Services Subkey: In the left-hand pane of the Registry Editor, meticulously navigate to the following precise path:
   HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services
   This pivotal subkey contains the comprehensive configuration information for all services and drivers installed on your system. This includes their startup parameters, inter-service dependencies, and, most importantly for our troubleshooting, their executable paths, which are typically defined by the ImagePath value.

3. Initiate a Search for the File_Spec_Path: Right-click directly on the Services folder within the left-hand pane, and then select Find… from the context menu. In the Find what dialog box, carefully type the exact File_Spec_Path that you precisely identified in step 5 (e.g., winmad.sys). Once entered, click Find Next to initiate the search within the Services key.

   The search operation will typically locate a specific subkey directly under the Services folder. This subkey corresponds to the service or driver that is associated with your problematic File_Spec_Path. Within this identified service’s subkey, you will discover various configuration values, among which is the ImagePath. This ImagePath value explicitly specifies the full path to the executable or driver file that the service utilizes to function correctly.

4. Examine and Precisely Correct the ImagePath Value: This is the most critical and delicate part of the entire troubleshooting process: carefully inspecting and, if necessary, modifying the ImagePath value of the located registry key.
   If its value begins with an extraneous leading backslash (e.g., \SystemRoot\System32\drivers\winmad.sys), this is very often the direct cause of the 0x8007007B error. A leading backslash can be misinterpreted by the VSS writers or the backup agent as a path relative to the root of the current drive (which is often C:\), or simply as an invalid absolute path when it expects the path to commence directly with an environment variable (like %SystemRoot%) or a specific drive letter. This misinterpretation prevents proper path resolution during the backup.

   To accurately correct this misconfiguration:
   * Double-click the ImagePath value to open the Edit String dialog box.
   * In the Value data field, very carefully remove only the single leading backslash from the absolute beginning of the path.
   * For instance, if the original value data was \SystemRoot\System32\drivers\winmad.sys, it must be precisely changed to SystemRoot\System32\drivers\winmad.sys.
   * Once the correction is made, click OK to save the modified value and close the dialog box.

   The change, though seemingly minor, is profoundly significant. By removing the spurious leading backslash, you ensure that the path is correctly interpreted by the operating system, the VSS writer, and the Azure Recovery Services Agent. This correction allows the backup agent to enumerate the file without encountering a syntax error, thus unblocking the backup process.

   Illustrative Example of ImagePath Correction:

   Before Change (Problematic)	After Change (Corrected)
   \SystemRoot\System32\drivers\winmad.sys	SystemRoot\System32\drivers\winmad.sys
   \??\C:\Program Files\SomeApp\service.exe	??\C:\Program Files\SomeApp\service.exe
   \windows\system32\drivers\problematic_driver.sys	windows\system32\drivers\problematic_driver.sys
   \System32\Drivers\AnotherService.sys	System32\Drivers\AnotherService.sys

   Important Note: If, after meticulously locating the ImagePath value, you find that it does not begin with a leading backslash, or if the File_Spec_Path leads you to a service whose ImagePath is already correctly formatted according to these guidelines, then the root cause of your backup failure may be significantly more complex than a simple path syntax error. In such intricate scenarios, it is highly advisable to submit a detailed support request directly through the Azure portal. Microsoft support engineers possess the specialized tools and expertise to conduct a deeper analysis, potentially involving advanced diagnostics, system logs, or hotfixes, to meticulously resolve the underlying issue.

Post-Correction Steps and Verification¶

After successfully and carefully modifying the ImagePath in the Windows Registry, it is crucial to perform a few final, essential steps to ensure that the change takes full effect and to definitively verify the resolution of the backup failure. Registry modifications, especially those concerning system services and drivers, often require a complete system restart or at least a restart of the affected service to be properly applied and integrated into the operating system’s active configuration.

1. Restart the Affected Service (Optional, but Recommended): If you are absolutely certain about which specific service’s ImagePath you modified, you may attempt to restart only that particular service through the Windows Services console (services.msc). However, for critical system drivers or services whose paths are located under SystemRoot, a full server restart is almost always the safest and most effective way to ensure that the new, corrected path is properly loaded and recognized by all system components and the VSS writers.

2. Restart Your Server: A full server restart is strongly recommended. This action ensures that all system services, drivers, and background processes reload their configurations from the updated Registry. This step is paramount to eliminate any lingering issues or cached incorrect path information from the previous, malformed path, providing a clean slate for the next backup attempt.

3. Attempt a New System State Backup: Once your server has completed its restart and has fully loaded, proceed to attempt a new System State Backup using the Azure Recovery Services Agent. During this process, diligently monitor the backup status for any signs of the previous Error 0x8007007B. If all the troubleshooting steps were followed correctly and the registry path was the sole root cause, the backup should now complete successfully without error.

4. Review Backup Logs: After the new backup attempt, irrespective of whether it succeeds or fails, always review the latest WSB Failure Logs within the Event Viewer and carefully check the Azure Backup reports in the Azure portal. A successful backup will be clearly indicated in these logs and reports. If, by some rare chance, new errors appear (though highly unlikely if the path was the sole issue), these new log entries will provide fresh diagnostic information for further investigation.

Maintaining System Health and Backup Integrity¶

To prevent similar issues from arising in the future and to ensure the continuous reliability and integrity of your Azure backups, consider incorporating the following best practices into your regular system administration routine:

• Regular System State Backups and Monitoring: Implement a schedule for regular System State Backups and diligently monitor their completion status. Consistent monitoring allows for the early detection of subtle issues, enabling proactive intervention before they escalate into critical failures.
• Keep Drivers and Software Updated: Outdated drivers or software applications can occasionally lead to VSS writer instability, compatibility issues, or problems with path interpretation. Ensure your operating system, critical applications, and device drivers are kept consistently up to date with the latest stable releases and patches.
• Periodically Monitor VSS Writer Status: As part of your routine system health checks, periodically run diskshadow list writers detailed to identify any VSS writers that might be in a “Failed” or “Unstable” state. Addressing writer issues promptly can prevent backup failures.
• Document All Changes: Maintain a comprehensive and detailed record of all troubleshooting steps undertaken, especially any modifications made to the Windows Registry. This meticulous documentation can prove invaluable for future reference, for auditing purposes, or if similar issues recur down the line.

By meticulously following these troubleshooting steps, exercising caution during Registry modifications, and adopting a proactive approach to system maintenance, you can effectively resolve Azure Recovery Services Agent System State Backup failures related to Error 0x8007007B and ensure the enduring integrity and reliability of your critical backup strategy.

---

We sincerely hope this comprehensive guide has provided you with the clarity, detailed instructions, and confidence needed to effectively resolve Error 0x8007007B. Your experiences, insights, and alternative solutions are incredibly valuable to the entire technical community. Did these steps help you overcome your backup challenges? Do you have additional tips or further questions to share? Please feel free to leave a comment below and join the discussion. Your contributions can greatly assist others facing similar issues.
