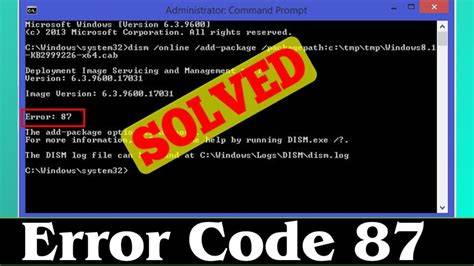

Troubleshooting DISM Error 87: A Comprehensive Guide for Windows Clients

Table of Contents

Encountering errors during Windows image deployment can be a significant hurdle for IT professionals and system administrators. One such persistent issue is DISM Error 87, which frequently arises when attempting to apply Windows 10 images. This comprehensive guide aims to unravel the complexities behind this specific error, providing a clear understanding of its root causes and offering a detailed resolution strategy. By understanding the underlying mechanisms, users can efficiently diagnose and rectify the problem, ensuring smoother deployment workflows.

Understanding DISM and Its Role¶

Deployment Image Servicing and Management (DISM) is a powerful command-line tool utilized by Microsoft to service Windows images. It plays a pivotal role in preparing, modifying, and repairing Windows images, including Windows Setup, Windows Recovery Environment (Windows RE), and Windows PE (Preinstallation Environment). DISM allows for tasks such as installing drivers, enabling or disabling Windows features, and managing language packs. Its versatility makes it an indispensable utility in modern IT environments, facilitating robust and consistent system deployments.

DISM operates on both online and offline images, meaning it can service a running Windows installation or an image mounted from a WIM (Windows Imaging Format) file. The tool is essential for maintaining the integrity and functionality of Windows installations before they are deployed to end-user machines. Understanding its core functions is key to troubleshooting image-related issues effectively. Ensuring the correct version of DISM is used for specific Windows images is a fundamental best practice that prevents many common errors.

Symptoms of DISM Error 87¶

Users typically encounter DISM Error 87 when trying to apply a Windows 10 image using the /Apply-Image command. This scenario often involves a specific set of conditions that trigger the error. The problem commonly manifests when using an older version of the DISM tool, perhaps from Windows 8.1 or an even earlier iteration of the operating system. Despite the command syntax appearing correct, the operation fails, leaving administrators perplexed.

The core issue surfaces particularly when the Windows 10 image in question has Compact OS compression enabled on some of its files. This feature, designed to reduce the disk footprint of Windows installations, relies on specific handling mechanisms that older DISM versions lack. The failure is typically accompanied by a tell-tale error message within the DISM log file, indicating a problem with reparse points. The log often shows Error DISM DISM WIM Provider: PID=1804 [RestoreReparsePoint:(1332) -> ioctl: setting reparse point tag failed] along with a hexadecimal error code like HRESULT=0x80070057. This HRESULT value specifically translates to ERROR_INVALID_PARAMETER, pointing to an incompatibility or an unsupported operation during the image application process.

Decoding the Error Log: 0x80070057¶

The HRESULT=0x80070057 code is critical in diagnosing DISM Error 87. This specific error code, ERROR_INVALID_PARAMETER, indicates that one or more parameters passed to a function were invalid or the operation itself was not supported in the given context. In the case of DISM, it signifies that the version of DISM being used cannot correctly interpret or apply certain features within the Windows 10 image. The log message mentioning RestoreReparsePoint further narrows down the problem. Reparse points are a type of file system object that can redirect an operation to another file or directory, commonly used by features like Compact OS to handle compressed data.

When an older DISM version encounters these advanced reparse points within a Windows 10 image, it fails to process them correctly, leading to the setting reparse point tag failed error. This is a direct consequence of the version mismatch between the DISM tool and the sophisticated features present in the newer Windows image. Understanding this specific error pattern is crucial for identifying the precise cause of the problem, guiding users towards the appropriate resolution.

The Root Cause: Version Incompatibility¶

The fundamental reason behind DISM Error 87 when deploying Windows 10 images is a version mismatch between the DISM tool and the target Windows image. To successfully apply a Windows 10 image, it is imperative to use the corresponding Windows 10 version of DISM. This requirement stems from the continuous evolution of Windows operating systems and their underlying file system technologies. Newer Windows versions, like Windows 10, introduce features such as Compact OS compression that leverage advanced file system functionalities, including specific reparse point tags.

Older versions of DISM, designed for Windows 8.1 or earlier, are simply not equipped to understand or correctly handle these modern image features. They lack the necessary logic and, crucially, the required filter drivers to interact with compressed files and reparse points introduced in Windows 10. Attempting to deploy a Windows 10 image with an outdated DISM tool is akin to trying to open a new file format with an old software version—it simply won’t work as intended, leading to errors.

The Critical Role of Wofadk.sys¶

Central to the resolution of DISM Error 87 is the Wofadk.sys filter driver. This driver is a component of the Windows Overlay File System (WOF), which is responsible for managing compressed system files in features like Compact OS. When Windows 10 images utilize Compact OS compression, Wofadk.sys is essential for the operating system to access and decompress these files on the fly. Without the proper support from this driver, DISM cannot correctly interact with the compressed components of the Windows 10 image during the application process.

The Wofadk.sys filter driver is specifically included and designed to work with the Windows 10 Assessment and Deployment Kit (ADK). This kit provides the necessary tools, including the correct version of DISM, and the associated drivers required for deploying Windows 10. Therefore, if you are attempting to apply a Windows 10 image from an older Windows host machine or a Windows Preinstallation Environment (WinPE) that predates Windows 10, the Wofadk.sys driver might not be present or properly configured. This absence prevents the older DISM from understanding and processing the compressed data within the Windows 10 image, inevitably leading to Error 87. Ensuring that the ADK for Windows 10 is properly installed and its components are used is the key to incorporating Wofadk.sys support into your deployment environment.

Resolution: Using the Correct DISM Version¶

The primary resolution for DISM Error 87 is straightforward: always use the Windows 10 version of DISM, which inherently includes support for the Wofadk.sys filter driver. This ensures compatibility with the advanced features present in Windows 10 images, particularly Compact OS compression. The recommended way to obtain the correct DISM version is by installing the Windows 10 Assessment and Deployment Kit (ADK).

The ADK is a collection of tools and documentation specifically designed to help manufacturers and IT professionals deploy Windows operating systems. It contains the most up-to-date versions of critical deployment tools, including DISM, Windows System Image Manager (WSIM), Windows Preinstallation Environment (WinPE), and more. By leveraging the ADK, you guarantee that your deployment environment is equipped with the necessary components to handle modern Windows images without compatibility issues.

Step-by-Step Guide to Resolution¶

To effectively resolve DISM Error 87, follow these detailed steps:

1. Download and Install the Windows 10 ADK:

   • Navigate to the official Microsoft website and locate the download page for the Windows 10 ADK (Assessment and Deployment Kit). Ensure you download the version corresponding to the Windows 10 image you are deploying, or the latest available if in doubt.
   • Run the downloaded ADK installer. During the installation process, you will be prompted to select the features you wish to install.
   • Crucially, ensure that Deployment Tools is selected. This component includes the correct version of DISM. You may also want to select Windows Preinstallation Environment (Windows PE) if you plan to create bootable media for offline deployments.
   • Complete the installation process.

2. Verify the DISM Version:

   • After installing the ADK, the correct DISM executable will be located in the ADK installation directory, typically C:\Program Files (x86)\Windows Kits\10\Assessment and Deployment Kit\Deployment Tools\amd64\DISM.
   • Open an elevated Command Prompt or PowerShell window.
   • Navigate to the DISM directory (e.g., cd "C:\Program Files (x86)\Windows Kits\10\Assessment and Deployment Kit\Deployment Tools\amd64").
   • Run dism.exe /? or dism.exe /Get-ImageInfo /ImageFile:"path_to_your_wim". The output will display the DISM version number. Verify that it aligns with the Windows 10 version. For instance, a DISM version starting with 10.0.x indicates the correct Windows 10 ADK version.

3. Use the Correct DISM Executable for Image Application:

   • When performing the /Apply-Image command, ensure you are calling the DISM executable from the ADK installation path.
   • Instead of simply typing dism /Apply-Image..., use the full path to the ADK’s DISM, for example:
     "C:\Program Files (x86)\Windows Kits\10\Assessment and Deployment Kit\Deployment Tools\amd64\DISM\dism.exe" /Apply-Image /ImageFile:"D:\images\install.wim" /Index:1 /ApplyDir:"C:\"
   • By explicitly calling the ADK’s DISM, you guarantee that the correct version is utilized, along with its integrated support for Wofadk.sys. This approach circumvents any potential path conflicts with older DISM versions that might be present on your system.

Diagram: DISM Version Compatibility¶

mermaid graph TD A[Windows 10 Image] --> B{Contains Compact OS}; B -- Yes --> C[Requires Wofadk.sys Driver]; C --> D[Requires Windows 10 DISM]; D --> E[Obtained via Windows 10 ADK]; B -- No --> D; F[Older DISM Version (e.g., Win 8.1)] --> G[Incompatible with Compact OS]; G --> H[Error 87 Occurs]; E --> I[Successful Deployment];
This diagram illustrates the dependency chain, highlighting how a Windows 10 image with Compact OS necessitates the Wofadk.sys driver, which in turn requires the Windows 10 DISM found within the ADK. Using an older DISM version bypasses this critical compatibility, leading directly to the Error 87.

Advanced Considerations and Best Practices¶

While installing the correct ADK and using its DISM version resolves Error 87 in most cases, there are advanced scenarios and best practices that can further streamline your deployment process and prevent future issues. Maintaining a robust and efficient deployment environment is crucial for any organization.

Integrating DISM with Windows PE¶

When performing offline image deployments or recoveries, you often boot into a Windows Preinstallation Environment (WinPE). If your WinPE boot media was created using an older ADK version, it will contain an older DISM and lack the necessary Wofadk.sys support. To resolve this, you must update your WinPE environment with components from the latest Windows 10 ADK. This involves rebuilding your WinPE image using the copype and MakeWinPEMedia commands from the Windows 10 ADK’s Deployment and Imaging Tools Environment. This ensures that the WinPE environment itself carries the correct DISM and driver support for Windows 10 images.

Image Servicing and Maintenance¶

Regularly servicing your Windows images is a critical best practice. This includes applying the latest cumulative updates, security patches, and necessary driver updates to your base WIM files. Always use the latest available version of DISM (from the most recent ADK) to service these images. This proactive approach ensures that your images are up-to-date and compatible with the newest deployment tools, reducing the likelihood of encountering version-related errors during future deployments.

Alternative Deployment Methods¶

For large-scale deployments, consider integrating DISM into more comprehensive deployment solutions like Microsoft Deployment Toolkit (MDT) or Microsoft Endpoint Configuration Manager (formerly SCCM). These platforms automate much of the deployment process, including ensuring the correct tool versions are used. They provide a more robust and scalable framework for image management, task sequencing, and post-deployment configuration, significantly reducing manual intervention and potential for errors.

Troubleshooting Persistent Issues¶

If Error 87 persists despite using the correct DISM version, consider these additional troubleshooting steps:

• Check Image Integrity: Verify that the Windows 10 image (WIM file) itself is not corrupted. You can do this by running dism /Get-WimInfo /WimFile:"path_to_your_wim" to ensure DISM can read its contents.
• Administrative Privileges: Always run the Command Prompt or PowerShell with administrative privileges when executing DISM commands.
• Path Environment Variable: While explicitly calling the ADK’s DISM is recommended, ensure your system’s PATH environment variable doesn’t inadvertently point to an older DISM version first if you are not using the full path.
• Antivirus Interference: Temporarily disable any antivirus software on the deployment machine, as it might interfere with file operations.
• Review DISM Logs Thoroughly: The DISM log file (typically found in C:\Windows\Logs\DISM\dism.log) contains detailed information about each operation. Look for entries around the time the error occurred for more specific clues.

Further Insights into Compact OS¶

Compact OS is a feature introduced in Windows 10 designed to reduce the disk footprint of the operating system. It achieves this by compressing system files using advanced algorithms. This is particularly beneficial for devices with limited storage capacity, such as tablets and certain laptops. Compact OS is not merely a simple file compression; it utilizes an underlying technology called Single-Instancing, which allows multiple instances of the same file to point to a single physical copy on disk, further saving space.

Understanding Compact OS is vital because it explains why the Wofadk.sys driver and the latest DISM are essential. The reparse points mentioned in the error log are the file system’s way of managing these compressed or single-instanced files. When a program, like DISM, tries to access such a file, the reparse point redirects the request to the actual compressed data, which then needs Wofadk.sys to decompress it on the fly. An older DISM version simply doesn’t recognize these specific reparse point tags or lacks the integration with Wofadk.sys, leading to the failure to restore them properly during image application.

For a deeper dive into Compact OS and image optimization techniques, Microsoft provides extensive documentation on managing Windows images. These resources often detail how to deploy Windows using a WIM file that incorporates these space-saving features. It’s recommended to consult the official documentation for the most up-to-date information on optimizing your Windows deployments.

Explore More: Understanding DISM and Windows Image Management¶

Video: Understanding DISM and Windows Image Management. Learn about the core functionalities of DISM, best practices for maintaining Windows images, and advanced deployment strategies to optimize your IT operations. This video provides a visual walkthrough of common DISM commands and troubleshooting techniques for common deployment errors.

This video provides supplementary information to enhance your understanding of DISM and overall Windows image management. It covers not only the basics of the tool but also delves into more advanced concepts, equipping you with the knowledge to handle complex deployment scenarios.

Conclusion¶

DISM Error 87, while frustrating, is primarily a compatibility issue stemming from using an outdated DISM tool with modern Windows 10 images. The solution lies in obtaining and utilizing the correct version of DISM, which is readily available within the Windows 10 Assessment and Deployment Kit. By ensuring your deployment environment is equipped with the latest tools and drivers, particularly the Wofadk.sys filter driver, you can effectively overcome this error and ensure successful Windows 10 image application. Adhering to best practices in image management and keeping your deployment tools updated will prevent many future headaches.

We hope this comprehensive guide has provided you with a clear path to resolving DISM Error 87. If you have encountered this error and found a specific method particularly effective, or if you have any further questions or insights, please feel free to share your experiences below. Your contributions help the entire community.
