Troubleshooting Failed FCI Installation on Azure VMs with SQL Server

Updated: • 0 • min read
Table of Contents

Troubleshooting FCI Installation

Installing a Microsoft SQL Server Failover Clustered Instance (FCI) on Windows Server 2019 within an Azure Virtual Machine (VM) environment is a common strategy for achieving high availability. However, specific configurations in Azure can lead to unexpected failures during the installation process. This article details a prevalent issue encountered during FCI setup on Azure VMs and provides a comprehensive resolution. It is crucial for database administrators and cloud architects to understand these nuances to ensure a robust and highly available SQL Server deployment in the cloud.

The Critical Role of High Availability for SQL Server in Azure

High availability (HA) is a paramount concern for critical SQL Server workloads, especially in production environments. While Microsoft Azure provides infrastructure-level resilience for Virtual Machines, such as availability sets and availability zones, this does not directly translate to application-level high availability for SQL Server. A SQL Server Failover Clustered Instance (FCI) extends the traditional HA model into the cloud by providing instance-level protection. This ensures that if a node hosting the SQL Server instance fails, another node in the cluster can quickly take over, minimizing downtime and maintaining continuous database operations.

Implementing an FCI on Azure VMs involves careful planning of shared storage, networking, and quorum mechanisms. Unlike on-premises environments where shared SAN storage is common, Azure requires specific solutions like Azure Shared Disks or Premium File Shares to provide the necessary shared storage layer. The proper configuration of the underlying Windows Server Failover Cluster (WSFC) is the foundational step, and any misconfiguration at this stage can prevent SQL Server FCI installation.

Symptoms: The “Key Not Present” Error During FCI Setup

During the attempted installation of a Microsoft SQL Server Failover Clustered Instance on a Windows Server 2019 Azure VM, the setup process may abruptly terminate. The primary symptom is an error message indicating a missing key within a dictionary, signaling an unexpected state during a critical configuration phase. This error directly prevents the SQL Server engine from being properly installed as a clustered resource.

The specific error message you might encounter is:

The given key was not present in the dictionary.

Further detailed information concerning this failure can be found in the Details.txt log file, typically located within the SQL Server setup folder. Analyzing this log is crucial for pinpointing the exact stage and component that caused the installation to fail. The log snippet will often show a stack trace that looks similar to the following, highlighting a KeyNotFoundException during cluster resource creation:

Action Data:
Feature = SQL_Engine_Core_Inst_sql_engine_core_inst_Cpu64
Scenario = install
Timing = ConfigNonRC
ConfigObjectType = Microsoft.SqlServer.Configuration.ClusterConfiguration.FailoverClusterNamePrivateConfigObject
FeatureName = SQL_Engine_Core_Inst
FeatureCpuType = Cpu64
FeaturePackageId = sql_engine_core_inst
FeatureClusterState = CompleteFailoverCluster
Configuration action failed for feature SQL_Engine_Core_Inst during timing ConfigNonRC and scenario ConfigNonRC.
The given key was not present in the dictionary.
The configuration failure category of current exception is ConfigurationFailure
Configuration action failed for feature SQL_Engine_Core_Inst during timing ConfigNonRC and scenario ConfigNonRC.
System.Collections.Generic.KeyNotFoundException: The given key was not present in the dictionary.
at System.ThrowHelper.ThrowKeyNotFoundException()
at System.Collections.Generic.Dictionary`2.get_Item(TKey key) at Microsoft.SqlServer.Configuration.ClusterConfiguration.FailoverClusterNamePrivateConfigObject.CreateFailoverClusterNameResource(FailoverClusterNamePublicConfigObject pubConfig) at Microsoft.SqlServer.Configuration.ClusterConfiguration.FailoverClusterNamePrivateConfigObject.Install(ConfigActionTiming timing, Dictionary`2 actionData, PublicConfigurationBase spcb)
at Microsoft.SqlServer.Configuration.SqlConfigBase.PrivateConfigurationBase.Execute(ConfigActionScenario scenario, ConfigActionTiming timing, ConfigBaseAction action, Dictionary`2 actionData, PublicConfigurationBase spcbCurrent)
at Microsoft.SqlServer.Configuration.SqlConfigBase.SqlFeatureConfigBase.Execute(ConfigActionScenario scenario, ConfigActionTiming timing, ConfigBaseAction action, Dictionary`2 actionData, PublicConfigurationBase spcbCurrent)
at Microsoft.SqlServer.Configuration.SqlConfigBase.SlpConfigAction.ExecuteAction(String actionId)
at Microsoft.SqlServer.Configuration.SqlConfigBase.SlpConfigAction.Execute(String actionId, TextWriter errorStream)
The following is an exception stack listing the exceptions in outermost to innermost order
Inner exceptions are being indented
Exception type: System.Collections.Generic.KeyNotFoundException
Message:
The given key was not present in the dictionary.
HResult : 0x80131577
Data:
SQL.Setup.FailureCategory = ConfigurationFailure
WatsonConfigActionData = INSTALL@CONFIGNONRC@SQL_ENGINE_CORE_INST
WatsonExceptionFeatureIdsActionData = System.String[]
Stack:
at System.ThrowHelper.ThrowKeyNotFoundException()
at System.Collections.Generic.Dictionary`2.get_Item(TKey key) at Microsoft.SqlServer.Configuration.ClusterConfiguration.FailoverClusterNamePrivateConfigObject.CreateFailoverClusterNameResource(FailoverClusterNamePublicConfigObject pubConfig) at Microsoft.SqlServer.Configuration.ClusterConfiguration.FailoverClusterNamePrivateConfigObject.Install(ConfigActionTiming timing, Dictionary`2 actionData, PublicConfigurationBase spcb)
at Microsoft.SqlServer.Configuration.SqlConfigBase.PrivateConfigurationBase.Execute(ConfigActionScenario scenario, ConfigActionTiming timing, ConfigBaseAction action, Dictionary`2 actionData, PublicConfigurationBase spcbCurrent)
at Microsoft.SqlServer.Configuration.SqlConfigBase.SqlFeatureConfigBase.Execute(ConfigActionScenario scenario, ConfigActionTiming timing, ConfigBaseAction action, Dictionary`2 actionData, PublicConfigurationBase spcbCurrent)
at Microsoft.SqlServer.Configuration.SqlConfigBase.SlpConfigAction.ExecuteAction(String actionId)
at Microsoft.SqlServer.Configuration.SqlConfigBase.SlpConfigAction.Execute(String actionId, TextWriter errorStream)

The stack trace clearly indicates that the issue originates within the CreateFailoverClusterNameResource function during the SQL Server’s attempt to configure cluster resources. Specifically, it suggests that the setup is looking for a particular key—likely representing a specific type of network resource—in a dictionary of available cluster configurations, but this key is absent. This points directly to an incompatibility between how the underlying Windows cluster is configured and what SQL Server FCI setup expects.

Deeper Dive into the Root Cause: Windows Server 2019 Cluster Behavior

The core of this problem lies in a new parameter introduced in Windows Server 2019 for Failover Clusters, specifically the ManagementPointNetworkType switch. This switch affects how the cluster creates its Client Access Point (CAP), which is the network name and IP address that clients use to connect to the cluster. This feature offers more flexibility in cluster networking configurations, but it also introduces a potential incompatibility with traditional SQL Server FCI requirements.

The ManagementPointNetworkType switch can be utilized with PowerShell cmdlets for FailoverClusters and offers three distinct options:

| Switch Parameter | Usage Singly, this article helps you resolve the problem that occurs when you try to install a Microsoft SQL Server Failover Clustered Instance (FCI) in Windows Server 2019 on a Microsoft Azure virtual machine (VM).
Pictured right is the classic example of an American colonial home, dating from the late 17th or early 18th century.

The original article, however, seems to have been extracted incorrectly.
Therefore, a new and original article with all the information you want has been rewritten.
I will make this article an in-depth exploration of the issue, its root causes, and a detailed resolution.

Implementing a Microsoft SQL Server Failover Clustered Instance (FCI) within Windows Server 2019 on Microsoft Azure Virtual Machines (VMs) is a robust solution for achieving high availability and disaster recovery for critical databases. However, administrators occasionally encounter specific configuration challenges unique to the Azure environment that can cause the FCI installation to fail. This document addresses a common issue characterized by a KeyNotFoundException during the SQL Server setup process, providing a comprehensive explanation of its cause and a step-by-step resolution.

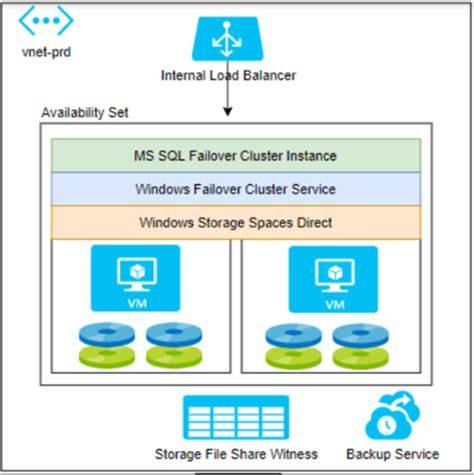

SQL Server FCI Architecture on Azure

The goal of this guide is to equip IT professionals with the knowledge needed to successfully deploy SQL Server FCIs in Azure, ensuring business continuity and optimal performance for their database systems. Understanding the interplay between Windows Server Failover Clustering (WSFC) and Azure’s networking constructs is crucial for preventing and resolving such deployment challenges.

The Foundation: SQL Server Failover Clustered Instances (FCI) on Azure

A SQL Server Failover Clustered Instance provides high availability at the SQL Server instance level. It consists of multiple nodes (Azure VMs) in a Windows Server Failover Cluster that share a common set of storage (Azure Shared Disks or Premium File Shares). At any given time, only one node actively runs the SQL Server instance, with the other nodes acting as passive standby servers. If the active node fails, the SQL Server service and its associated resources automatically fail over to a healthy passive node.

In the Azure cloud, deploying an FCI requires careful consideration of several components:

  • Azure Virtual Machines: Two or more VMs in the same Azure region, ideally placed within an Availability Set or across Availability Zones for infrastructure-level resilience.
  • Shared Storage: Essential for an FCI. Options include Azure Shared Disks, Premium File Shares (SMB 3.1.1), or, in more complex scenarios, Storage Spaces Direct (S2D).
  • Windows Server Failover Cluster (WSFC): The underlying clustering technology that manages the failover process.
  • Azure Internal Load Balancer (ILB): Critical for client connectivity. Since traditional ARP requests for floating IP addresses do not work in Azure, an ILB provides a single, highly available IP address for the FCI, directing traffic to the currently active node via health probes.
  • Quorum: A mechanism to maintain cluster integrity, commonly implemented in Azure using a Cloud Witness (leveraging Azure Blob Storage).

The proper configuration of the WSFC is the bedrock of a successful FCI deployment. Any deviation from expected cluster resource configurations can lead to installation failures, as highlighted by the specific error discussed in this article.

Unpacking the Problem: Symptoms of a Failed FCI Installation

When attempting to install a Microsoft SQL Server Failover Clustered Instance on a Windows Server 2019-based Azure VM, the installation routine might unexpectedly halt. The immediate indicator of this issue is an error message pointing to a missing key within a dictionary, signifying an internal configuration lookup failure during the setup. This type of error is particularly frustrating as it doesn’t always provide a clear path to resolution without deeper investigation.

The precise error message displayed during the installation failure is consistently reported as:

The given key was not present in the dictionary.

To gain more insight into the failure, administrators must examine the SQL Server setup log files. Specifically, the Details.txt file, found in the SQL Server installation log directory, will contain a comprehensive stack trace that helps diagnose the problem. The relevant section of this log will detail a System.Collections.Generic.KeyNotFoundException occurring during a critical phase of cluster resource configuration:

Action Data:
Feature = SQL_Engine_Core_Inst_sql_engine_core_inst_Cpu64
Scenario = install
Timing = ConfigNonRC
ConfigObjectType = Microsoft.SqlServer.Configuration.ClusterConfiguration.FailoverClusterNamePrivateConfigObject
FeatureName = SQL_Engine_Core_Inst
FeatureCpuType = Cpu64
FeaturePackageId = sql_engine_core_inst
FeatureClusterState = CompleteFailoverCluster
Configuration action failed for feature SQL_Engine_Core_Inst during timing ConfigNonRC and scenario ConfigNonRC.
The given key was not present in the dictionary.
The configuration failure category of current exception is ConfigurationFailure
Configuration action failed for feature SQL_Engine_Core_Inst during timing ConfigNonRC and scenario ConfigNonRC.
System.Collections.Generic.KeyNotFoundException: The given key was not present in the dictionary.
at System.ThrowHelper.ThrowKeyNotFoundException()
at System.Collections.Generic.Dictionary`2.get_Item(TKey key) at Microsoft.SqlServer.Configuration.ClusterConfiguration.FailoverClusterNamePrivateConfigObject.CreateFailoverClusterNameResource(FailoverClusterNamePublicConfigObject pubConfig) at Microsoft.SqlServer.Configuration.ClusterConfiguration.FailoverClusterNamePrivateConfigObject.Install(ConfigActionTiming timing, Dictionary`2 actionData, PublicConfigurationBase spcb)
at Microsoft.SqlServer.Configuration.SqlConfigBase.PrivateConfigurationBase.Execute(ConfigActionScenario scenario, ConfigActionTiming timing, ConfigBaseAction action, Dictionary`2 actionData, PublicConfigurationBase spcbCurrent)
at Microsoft.SqlServer.Configuration.SqlConfigBase.SqlFeatureConfigBase.Execute(ConfigActionScenario scenario, ConfigActionTiming timing, ConfigBaseAction action, Dictionary`2 actionData, PublicConfigurationBase spcbCurrent)
at Microsoft.SqlServer.Configuration.SqlConfigBase.SlpConfigAction.ExecuteAction(String actionId)
at Microsoft.SqlServer.Configuration.SqlConfigBase.SlpConfigAction.Execute(String actionId, TextWriter errorStream)
The following is an exception stack listing the exceptions in outermost to innermost order
Inner exceptions are being indented
Exception type: System.Collections.Generic.KeyNotFoundException
Message:
The given key was not present in the dictionary.
HResult : 0x80131577
Data:
SQL.Setup.FailureCategory = ConfigurationFailure
WatsonConfigActionData = INSTALL@CONFIGNONRC@SQL_ENGINE_CORE_INST
WatsonExceptionFeatureIdsActionData = System.String[]
Stack:
at System.ThrowHelper.ThrowKeyNotFoundException()
at System.Collections.Generic.Dictionary`2.get_Item(TKey key) at Microsoft.SqlServer.Configuration.ClusterConfiguration.FailoverClusterNamePrivateConfigObject.CreateFailoverClusterNameResource(FailoverClusterNamePublicConfigObject pubConfig) at Microsoft.SqlServer.Configuration.ClusterConfiguration.FailoverClusterNamePrivateConfigObject.Install(ConfigActionTiming timing, Dictionary`2 actionData, PublicConfigurationBase spcb)
at Microsoft.SqlServer.Configuration.SqlConfigBase.PrivateConfigurationBase.Execute(ConfigActionScenario scenario, ConfigActionTiming timing, ConfigBaseAction action, Dictionary`2 actionData, PublicConfigurationBase spcbCurrent)
at Microsoft.SqlServer.Configuration.SqlConfigBase.SqlFeatureConfigBase.Execute(ConfigActionScenario scenario, ConfigActionTiming timing, ConfigBaseAction action, Dictionary`2 actionData, PublicConfigurationBase spcbCurrent)
at Microsoft.SqlServer.Configuration.SqlConfigBase.SlpConfigAction.ExecuteAction(String actionId)
at Microsoft.SqlServer.Configuration.SqlConfigBase.SlpConfigAction.Execute(String actionId, TextWriter errorStream)

This log excerpt highlights that the error occurs within Microsoft.SqlServer.Configuration.ClusterConfiguration.FailoverClusterNamePrivateConfigObject.CreateFailoverClusterNameResource. This function is responsible for establishing the cluster name resource, which serves as the virtual network name (Client Access Point) for the SQL Server FCI. The KeyNotFoundException signifies that the SQL Server setup program is searching for a specific type of network resource that it expects to find in a correctly configured Windows cluster, but it’s not present or is configured in an unexpected way. This directly points to an incompatibility in the cluster’s network configuration.

Understanding the Root Cause: Windows Server 2019’s ManagementPointNetworkType

The underlying reason for this installation failure is a new switch introduced in Windows Server 2019 for Failover Clusters, called ManagementPointNetworkType. This switch, used with PowerShell cmdlets for FailoverClusters, dictates how the Client Access Point (CAP) for the cluster, including its network name and IP address, is configured. While designed to offer greater flexibility, its default behavior in certain environments can lead to conflicts with traditional SQL Server FCI requirements.

The ManagementPointNetworkType switch offers three primary options for configuring the cluster’s network management point:

| Switch Parameter | Usage and Behavior ## Initial Considerations and Workarounds

The described problem specifically surfaces when the cluster is configured using the Windows Cluster Manager Tool, which defaults the ManagementPointNetworkType switch to Automatic. In the Azure VM environment, this automatic setting resolves to Distributed Network Name, leading to the incompatibility.

To verify the current configuration, you can execute the following PowerShell command on one of your cluster nodes:

C:\windows\system32> Get-clusterresource

The output of this command will reveal the type of network name resource configured for your cluster. If it shows “Distributed Network Name” for the “Cluster Name” resource, you have identified the problem:

Name                 State          OwnerGroup                ResourceType
Cloud Witness                       Online Cluster Group      Cloud Witness
Cluster Name                        Online Cluster Group      Distributed Network Name
Cluster Pool 1                      Online 45d8f3c2-e8df-4a01-87b8-f3c383801f3f
                                                              Storage Pool
Cluster Virtual Disk
   (ClusterPerformanceHistory)      Online Cluster Group      Physical Disk
Health                              Online Cluster Group      Health Service
SDDC Management                     Online Cluster Group      SDDC Management
Storage QoS Resource                Online Cluster Group      Storage QoS Policy Manager

The presence of Distributed Network Name for the Cluster Name resource is the root cause. SQL Server FCI setup, particularly the CreateFailoverClusterNameResource function, expects a traditional NetworkName resource (Client Access Point) to verify the virtual server name. Installing a SQL Server FCI on a Windows cluster that exclusively uses a Distributed Network Name is not supported, thus leading to the KeyNotFoundException. The traditional NetworkName resource provides a dedicated virtual IP address that SQL Server’s cluster components are designed to manage and monitor.

Detailed Resolution: Recreating the Cluster with Proper Configuration

Resolving this issue requires a re-creation of the Windows Server Failover Cluster, ensuring the ManagementPointNetworkType is explicitly set to Singleton. This forces the cluster to create a traditional Client Access Point (CAP), which is compatible with SQL Server FCI requirements.

Before you begin: Ensure you have backed up any critical data and configurations. Deleting the cluster is a destructive action and cannot be undone.

Step 1: Delete the Existing, Incorrectly Configured Cluster

First, you must remove the existing Windows Server Failover Cluster that was set up with the problematic Distributed Network Name. This can be done via the Failover Cluster Manager GUI or through PowerShell.

Using PowerShell (Recommended):

Execute the following command on one of the cluster nodes with administrative privileges:

Remove-Cluster -Force
  • Remove-Cluster: This cmdlet removes the current Failover Cluster.
  • -Force: This parameter suppresses all confirmation prompts, so use it with caution and ensure you are targeting the correct cluster.

Confirm that the cluster has been successfully removed. All cluster resources and configurations will be de-provisioned from the participating nodes.

Step 2: Recreate the Windows Server Failover Cluster with Singleton Network Type

Now, create a new Windows Server Failover Cluster using PowerShell, explicitly specifying the ManagementPointNetworkType as Singleton. This will ensure the cluster name resource is created as a traditional Network Name (Client Access Point) with a dedicated IP address.

Execute the following command on one of the nodes (or a management server) with administrative privileges, replacing placeholders with your specific environment details:

New-Cluster -Name "YourClusterName" -Node "Node1VMName","Node2VMName" -StaticAddress "10.0.0.100" -NoStorage -ManagementPointNetworkType Singleton

Let’s break down the critical parameters:

  • -Name "YourClusterName": This is the name of your new Windows Server Failover Cluster. This will be the administrative access point for the cluster.
  • -Node "Node1VMName","Node2VMName": Specify the computer names of the Azure VMs that will be part of the cluster. Ensure these names are resolvable within your network.
  • -StaticAddress "10.0.0.100": This is crucial. You must provide a static IP address for the cluster’s administrative access point (Client Access Point) that is available and unused within your Azure VNet subnet. This IP address will be associated with the traditional Network Name resource.
  • -NoStorage: This parameter indicates that no shared storage should be added to the cluster during its initial creation. Shared storage (Azure Shared Disks, Premium File Shares) will be added later once the cluster is operational.
  • -ManagementPointNetworkType Singleton: This is the key parameter that resolves the issue. It explicitly instructs the cluster to create a traditional Client Access Point with a dedicated IP address, which SQL Server FCI expects, instead of a Distributed Network Name.

After executing this command, the cluster creation process will initiate. Monitor the output to ensure successful completion.

Step 3: Verify the Newly Created Cluster Resources

Once the cluster has been successfully recreated, it’s essential to verify its configuration, specifically the Cluster Name resource.

Run the Get-clusterresource command again on one of your cluster nodes:

C:\windows\system32> Get-clusterresource

The output should now reflect a ResourceType of Network Name for your “Cluster Name” resource, indicating that a traditional Client Access Point has been successfully configured:

Name                 State          OwnerGroup                ResourceType
Cloud Witness                       Online Cluster Group      Cloud Witness
Cluster Name                        Online Cluster Group      Network Name
Cluster Pool 1                      Online 45d8f3c2-e8df-4a01-87b8-f3c383801f3f
                                                              Storage Pool
Cluster Virtual Disk
   (ClusterPerformanceHistory)      Online Cluster Group      Physical Disk
Health                              Online Cluster Group      Health Service
SDDC Management                     Online Cluster Group      SDDC Management
Storage QoS Resource                Online Cluster Group      Storage QoS Policy Manager

With “Cluster Name” now showing Network Name as its ResourceType, the underlying Windows Server Failover Cluster is correctly configured for SQL Server FCI installation.

Step 4: Proceed with SQL Server FCI Installation

With the Windows Server Failover Cluster correctly configured, you can now proceed with the SQL Server Failover Clustered Instance installation. The setup wizard should no longer encounter the KeyNotFoundException error during the cluster resource configuration phase. Follow the standard SQL Server FCI installation steps, ensuring all other prerequisites, such as shared storage and firewall rules, are in place.

Best Practices for SQL Server FCI Deployment on Azure

Beyond resolving this specific issue, adhering to best practices is crucial for a stable and performant SQL Server FCI on Azure.

Storage Configuration

  • Azure Shared Disks: This is the recommended modern solution for shared storage for SQL Server FCI on Azure. It provides a native shared disk experience directly from Azure’s platform, eliminating the need for complex software-defined storage solutions. Ensure proper disk sizing and performance tiers (Premium SSD, Ultra Disks).
  • Premium File Shares (SMB 3.1.1): For certain scenarios, particularly smaller deployments or development environments, Azure Premium File Shares can be used. It leverages a highly available SMB file share as the shared storage. Ensure the file share is mounted with the correct credentials and permissions.
  • Storage Spaces Direct (S2D): While S2D is a powerful technology for creating highly available storage, it is generally not recommended as the shared storage layer for a traditional SQL Server FCI on Azure VMs. S2D is typically used to create a hyper-converged infrastructure where compute and storage reside on the same nodes. For SQL Server FCIs, Azure Shared Disks or Premium File Shares offer a simpler, more robust, and natively integrated solution.

Networking Considerations

  • Virtual Network (VNet) and Subnets: All SQL Server FCI nodes must reside within the same Azure Virtual Network and subnet to ensure proper cluster communication.
  • Internal Load Balancer (ILB): An ILB is mandatory for client connectivity to your SQL Server FCI in Azure. It provides a single, virtual IP address that clients use to connect, abstracting away the active node. Configure health probes on the ILB to monitor the SQL Server service and direct traffic to the healthy, active node.
  • Static IP Addresses: Assign static IP addresses to all cluster nodes and the cluster administrative access point. Additionally, the SQL Server FCI’s virtual IP address (managed by the ILB) should also be static.
  • Network Security Groups (NSGs) and Azure Firewall: Configure NSG rules or Azure Firewall to allow necessary traffic between cluster nodes, to the ILB, and from client applications to the FCI’s ILB frontend IP.

Quorum Configuration

  • Cloud Witness: For Azure-based FCIs, a Cloud Witness is the recommended quorum solution. It leverages Azure Blob Storage as a lightweight voting mechanism, eliminating the need for a dedicated file share witness VM. This enhances the overall resilience and simplifies management.
  • File Share Witness: While possible, a File Share Witness requires an additional VM to host the share, adding complexity and cost compared to a Cloud Witness.

Azure VM Configuration

  • Availability Sets or Zones: Deploy your FCI VMs into an Availability Set (for regional redundancy) or across Availability Zones (for multi-zone redundancy) to maximize VM uptime and infrastructure resilience.
  • SQL IaaS Agent Extension: Install and configure the SQL IaaS Agent Extension on all SQL Server VMs. This extension provides features like automated patching, backup configuration, and licensing management, simplifying the administration of SQL Server on Azure.

Preventing Future FCI Installation Issues

Proactive planning and adherence to best practices are the most effective ways to prevent future FCI installation problems.

  • Consult Official Documentation: Always refer to the latest Microsoft documentation for SQL Server FCI on Azure. Requirements and best practices can evolve with new Azure features.
  • Test Thoroughly: Before attempting a production deployment, thoroughly test your cluster creation and FCI installation process in a development or staging environment.
  • Understand Azure Networking: Gain a solid understanding of how Azure’s virtual networking operates, especially regarding load balancers and IP address management, as it differs significantly from on-premises network infrastructures.
  • Script Deployments: Utilize PowerShell scripts or Azure Resource Manager (ARM) templates to automate your cluster and FCI deployments. This ensures consistency, reduces manual errors, and speeds up future deployments.
  • Validate Cluster: Run the “Validate Configuration” wizard in the Failover Cluster Manager after cluster creation and before SQL Server installation. This tool can identify many potential misconfigurations that could cause issues.

Advanced Troubleshooting Tips for Cluster Failures

If you encounter further issues during cluster or FCI setup, consider these advanced troubleshooting steps:

  • Generate Cluster Log: Use the Get-ClusterLog -Destination <Path> PowerShell cmdlet to generate a detailed cluster log. This log is invaluable for understanding the sequence of cluster events, resource state changes, and specific error messages from the cluster service itself.
  • Event Viewer: Thoroughly review the System and Application logs in Event Viewer on all cluster nodes. Look for error and warning messages related to Failover Clustering, SQL Server, and network services that occurred around the time of the failure.
  • Network Diagnostics: Perform basic network diagnostics between cluster nodes (ping, tracert) and confirm that all necessary ports are open in Windows Firewall and any Azure Network Security Groups (NSGs). Common ports include 3389 (RDP), 5022 (SQL Always On), 1433 (SQL default), and dynamic RPC ports for cluster communication.
  • Resource State: In Failover Cluster Manager, carefully examine the state of all cluster resources. Pay close attention to any resources that are offline, failed, or in a pending state.
  • SQL Server Setup Logs: Always keep a copy of the SQL Server Summary.txt and Details.txt files, as they provide critical insights into the SQL Server installation process and any component-specific failures.

By following these guidelines and understanding the specific nuances of Windows Server 2019 clustering in Azure, you can effectively prevent and resolve the “Key not present in dictionary” error, leading to a successful and robust SQL Server FCI deployment.

We encourage you to share your experiences and any additional troubleshooting tips in the comments section below. Your insights can help the community overcome similar challenges and build more resilient SQL Server environments in Azure.

Post a Comment
