Troubleshooting 'Full formXml' Errors in Microsoft Dataverse Forms

Updated: • 0 • min read
Table of Contents

Organizations leveraging the Microsoft Power Platform, specifically Dataverse, often rely on robust solution management for deploying customizations. While this process streamlines development and deployment, developers and administrators may occasionally encounter cryptic errors that halt progress. One such error, Microsoft.Crm.CrmInvalidOperationException: full formXml is expected to create a form, presents a significant hurdle during solution imports, particularly when deploying new or updated form configurations. Understanding the root cause and implementing effective troubleshooting strategies are crucial for maintaining smooth development and deployment pipelines.

Understanding Dataverse Forms and Solutions

Microsoft Dataverse forms are integral components that define the user interface for displaying and interacting with data. These forms are typically managed and transported between environments using solutions, which are containers for all Dataverse components, including tables, columns, processes, and forms. Solutions can be unmanaged, allowing for further customization in the target environment, or managed, imposing restrictions on modifications post-import, thereby ensuring consistency.

The underlying structure of a Dataverse form is defined in XML, known as FormXml. This XML describes everything from the form’s layout and controls to event handlers and scripts. When a solution is exported, it includes the FormXml for all forms contained within it. During an import operation, the Dataverse platform processes this FormXml to apply the form definitions to the target environment.

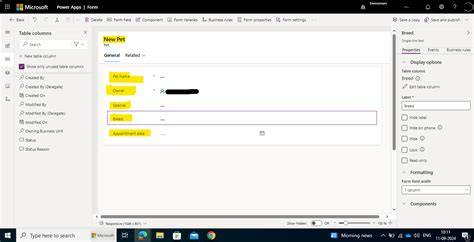

Dataverse FormXml Error

Symptoms of the ‘Full formXml’ Error

The primary symptom of this issue is a failed solution import operation. When attempting to import a solution into a target Dataverse environment, users will encounter a specific error message prominently displayed in the import log. This error message typically states:

Microsoft.Crm.CrmInvalidOperationException: full formXml is expected to create a form

This message clearly indicates that the Dataverse platform expected a complete definition of the form, but instead received only a partial update or ‘diff’. The import process will terminate, and none of the components within the solution, including the problematic form, will be successfully deployed. This can lead to significant delays in development cycles and the deployment of critical business features.

Beyond the direct error message, administrators might observe that the form in question does not exist in the target environment, even after a seemingly successful import of other solution components (though typically the entire import fails). Alternatively, if the form does exist, it might not reflect the expected changes, suggesting that the partial update was rejected. Monitoring system jobs and solution import history within the Power Platform admin center can help pinpoint the exact failure point and retrieve the detailed error logs.

Deeper Dive into the Cause

The full formXml is expected to create a form error arises specifically when a form is being imported for the first time into a target environment, or when an existing form has been completely deleted and is being recreated. In such scenarios, Dataverse requires a complete FormXml definition to successfully create or re-establish the form. However, the solution being imported contains only a ‘diff’ (difference) FormXml – essentially, a set of changes or modifications to an existing form.

This ‘diff’ FormXml is typically generated when a form already exists in the source environment, and only incremental changes have been made to it since its last export. When a solution is exported from a development environment, the platform can optimize the FormXml by including only the modifications if it detects that the form already exists and is being updated. This optimization is beneficial for reducing solution size and streamlining updates, but it becomes problematic when the target environment lacks the base form.

To verify this, one can examine the customizations.xml file within the exported solution package. This file contains the XML definitions for all solution components. Searching for the FormXml node associated with the form ID mentioned in the error message will reveal its structure. A key indicator of a ‘diff’ FormXml is the presence of the solutionaction attribute within the FormXml node or its child elements. For instance, if solutionaction="Modified" is present, it signifies that the XML is intended as an update, not a full creation.

How solutionaction Influences Imports

The solutionaction attribute provides instructions to the Dataverse platform on how to handle a component during import. Common values include:

  • solutionaction="Added": Indicates a new component. This would typically be accompanied by a full FormXml.
  • solutionaction="Modified": Indicates changes to an existing component. This is often associated with a ‘diff’ FormXml.
  • solutionaction="Removed": Indicates that a component should be deleted.

When a solution containing a form with solutionaction="Modified" is imported into an environment where that form does not exist, the Dataverse import engine cannot find the base form to apply the modifications. It then throws the full formXml is expected to create a form error, as it realizes it needs a complete definition to create the form, but only has instructions for modifying an absent one.

This often occurs due to:
1. First-time deployment: The solution containing the form is being deployed to a brand-new target environment.
2. Form deletion and recreation: The form was previously deleted in the target environment, and the current import attempts to bring it back as an update instead of a fresh creation.
3. Branching and merging issues: In collaborative development, if forms are developed independently or if base solutions are not properly synchronized, one branch might generate a ‘diff’ while the target environment expects a full definition.
4. Manual XML modifications: Though not recommended, manual edits to customizations.xml can inadvertently introduce this issue if solutionaction attributes are misconfigured.

Understanding these underlying causes is paramount for implementing an effective workaround and establishing robust solution management practices.

Comprehensive Workarounds and Remediation

While the root cause lies in the type of FormXml imported, several strategies can be employed to resolve or mitigate this error. The primary goal is to ensure that the target environment receives a full FormXml when one is needed.

Workaround 1: Re-exporting the Solution with Full Forms

The most straightforward and recommended workaround is to re-export the solution from the source environment, ensuring that the problematic form is included with its complete definition.

Steps:

  1. Identify the Source Environment: Locate the Dataverse environment where the form was originally created or where its complete, intended state currently resides. This is usually your development or master environment.
  2. Ensure Form Integrity: Verify that the form in the source environment is exactly as you intend it to be in the target environment. Make any necessary final adjustments.
  3. Perform a Managed Export (Recommended):
    • Navigate to Solutions in the Power Apps portal (make.powerapps.com).
    • Select the solution containing the problematic form.
    • Click Export solution.
    • Choose “Managed” as the package type. Managed solutions are generally preferred for deployment to production or UAT environments as they prevent unintended modifications. While unmanaged can also work, managed export often results in a more robust, full export of components.
    • When prompted for “Publish All Customizations,” select Yes. This is a critical step, as publishing ensures that all recent changes are compiled and included in the solution package, often forcing a full component definition.
    • Crucially, ensure you have published all customizations in the source environment before export. Sometimes, merely publishing all customizations can trigger the generation of a full FormXml for components that have undergone significant changes.
  4. Import the New Solution: Attempt to import this newly exported solution into your target environment.

This method typically resolves the issue because a fresh, complete export from a healthy source environment will include the full FormXml for all components, regardless of whether they were previously updated or newly created.

Workaround 2: Manual customizations.xml Adjustment (Advanced & Risky)

Warning: This method involves directly modifying solution XML and should only be attempted by experienced developers. Incorrect modifications can corrupt the solution and render it unusable.

If re-exporting is not immediately feasible, or if you need to understand the underlying XML, you can manually adjust the customizations.xml file.

Steps:

  1. Export the Solution (Unmanaged): Export the problematic solution as an unmanaged solution.
  2. Extract the Solution Package: Rename the .zip file to .zip.txt (or similar) to extract its contents. You’ll find customizations.xml inside.
  3. Locate the Form’s FormXml: Open customizations.xml in a text editor (e.g., Visual Studio Code, Notepad++). Search for the form’s unique ID (GUID) which is usually part of the error message.
  4. Identify and Remove solutionaction: Within the <FormXml> node for the problematic form, look for the solutionaction attribute. If it exists (e.g., solutionaction="Modified"), remove this attribute entirely. This essentially tells Dataverse to treat this form as a new creation or a full replacement, rather than just an update.
  5. Ensure Full Definition: While removing solutionaction is key, also quickly scan the FormXml to ensure it looks like a complete definition of the form, and not just a small snippet of changes. If it appears truncated or incomplete, this manual fix might not be sufficient, and re-exporting is strongly recommended.
  6. Re-package the Solution:
    • Save the modified customizations.xml file.
    • Re-zip all the extracted files and folders back into a single .zip archive. Ensure the folder structure within the zip file is identical to the original exported solution.
  7. Import the Modified Solution: Attempt to import this manually modified .zip file into your target environment.

This method forces the import engine to treat the FormXml as a complete definition, allowing the form to be created successfully. However, it’s brittle and prone to human error, so use with extreme caution.

Workaround 3: Recreating the Form in the Target Environment

In scenarios where the form is simple or the above workarounds fail, recreating the form directly in the target environment can be a quick fix.

Steps:

  1. Identify Form Details: Note down the table, name, and any specific configurations of the problematic form from your source environment.
  2. Create New Form: In the target environment, navigate to the relevant table in Power Apps, and create a new form with the exact same name and type (e.g., Main, Quick Create).
  3. Copy/Re-build Layout: Manually recreate the form’s layout and add all necessary fields, sections, tabs, and controls. If complex JavaScript or business rules are involved, copy them over carefully.
  4. Save and Publish: Save and publish the newly created form.
  5. Import Remaining Solution: Once the form exists in the target environment, you might be able to import the original solution (even with its ‘diff’ FormXml) as the base form is now present. However, it’s safer to re-export the entire solution from the source and import it again after the form is manually created in the target.

This is a last resort, especially for complex forms, but can be effective for simpler ones.

Preventing ‘Full formXml’ Errors: Best Practices

Preventing this error is far more efficient than troubleshooting it. Adopting robust solution management practices can significantly reduce the likelihood of encountering this and similar import issues.

1. Consistent Solution Management

  • Dedicated Development Environments: Always perform development and initial customization in a dedicated, isolated development environment.
  • Version Control: Integrate your Dataverse solutions with a version control system (e.g., Azure DevOps, GitHub). This allows for tracking changes, merging, and rolling back if necessary. Exporting solutions from Dataverse and committing them to version control regularly ensures a reliable backup and audit trail.
  • Managed vs. Unmanaged Strategy: Understand when to use unmanaged solutions (for development and full customization flexibility) versus managed solutions (for deployment to UAT, Staging, and Production environments where consistency and immutability are key). Typically, unmanaged solutions are exported from Dev, then imported into Test/UAT as managed, and subsequently into Production as managed.

2. Thorough Testing and Validation

  • Pre-Import Checks: Before importing a solution into a critical environment, consider a dry run in a non-production environment (e.g., UAT or Sandbox). This helps catch errors like the ‘full FormXml’ issue early.
  • Component Dependency Checks: Always verify solution dependencies before export. Dataverse provides tools to check for missing dependencies.
  • Publish All Customizations: Before exporting any solution from a source environment, always publish all customizations. This ensures that the most recent changes are committed to the Dataverse database and are included in the solution export package in their most complete form. This often helps in generating full FormXml definitions.

3. Understanding Form Lifecycle

  • Creation vs. Modification: Be acutely aware of whether a form is being newly introduced or merely modified. If a form is truly new, ensure it is treated as such in your solution packaging process.
  • Deletion and Re-creation: If a form has been deleted in a target environment and is being re-introduced, the system will treat it as a new form, requiring a full FormXml. Avoid simply importing a ‘diff’ solution in such cases. Consider recreating the form or ensuring the solution export captures its full definition.

4. Automated Deployment Pipelines (CI/CD)

For advanced development teams, implementing Continuous Integration/Continuous Deployment (CI/CD) pipelines using tools like Azure DevOps or GitHub Actions can automate the solution export, import, and testing processes. This significantly reduces manual errors and ensures consistency.

A well-configured pipeline would typically:
1. Export an unmanaged solution from the development environment.
2. Run automated tests.
3. Convert the unmanaged solution to a managed solution.
4. Import the managed solution into the target environment.

By automating these steps, the chance of human error in selecting export options or managing customizations.xml is minimized. The pipeline can be configured to always produce a ‘full’ solution package, mitigating the FormXml issue.

mermaid graph TD A[Developer Modifies Form in Dev Environment] --> B{Publish All Customizations}; B --> C[Export Solution (Unmanaged)]; C --> D[Commit Solution to Version Control]; D --> E[Build Pipeline Triggered]; E --> F{Convert to Managed Solution?}; F --> G{Deploy to Target Environment (e.g., UAT)}; G --> H{Solution Import Successful?}; H -- No --> I[Analyze Import Log]; H -- Yes --> J[Validation & Testing]; I --> A;
Figure 1: Simplified Dataverse Solution Deployment Flow

This diagram illustrates a typical managed solution deployment flow. The ‘Full FormXml’ error often occurs between steps F and G, where the exported solution lacks the complete definition required by the target environment.

Conclusion

The Microsoft.Crm.CrmInvalidOperationException: full formXml is expected to create a form error is a common yet frustrating hurdle in Dataverse solution deployments. It primarily stems from attempting to apply partial form updates (diff FormXml) to an environment where the base form does not exist, or where a full definition is required. By understanding the underlying mechanics of FormXml and the solutionaction attribute, and by adopting robust solution export and import practices, developers and administrators can effectively troubleshoot and prevent this issue. Prioritizing thorough exports, consistent version control, and potentially automated deployment pipelines are key to a smooth and reliable Dataverse development lifecycle.

Have you encountered this ‘Full formXml’ error in your Dataverse deployments? What specific strategies or tools did you find most effective in resolving or preventing it? Share your experiences and insights in the comments below to help the community.
