Troubleshooting Hardware Inventory Failures in Configuration Manager

Updated: • 0 • min read
Table of Contents

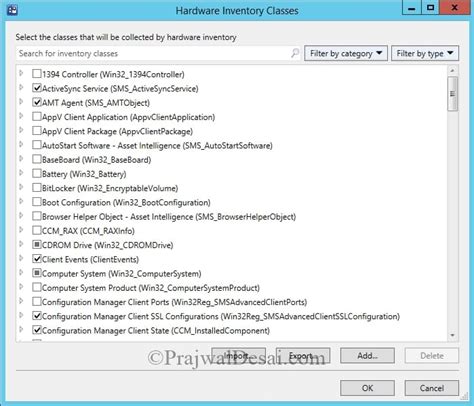

Configuration Manager hardware inventory failure

The smooth operation of hardware inventory within Microsoft Configuration Manager is paramount for effective IT asset management. This critical process ensures that administrators possess accurate and up-to-date information regarding the hardware specifications of managed devices across the enterprise. When this fundamental process falters, it can lead to significant operational challenges, including incomplete asset reporting, inaccurate compliance assessments, and impaired decision-making regarding software deployment or hardware upgrades. This article delves into a specific and insidious issue where the hardware inventory process encounters failures, often accompanied by telltale signs such as persistently high CPU utilization by the SMSexec.exe process.

This guide provides a detailed examination of the symptoms associated with this particular failure mode, explores the root cause with an emphasis on its technical implications, and outlines a clear, step-by-step resolution strategy. Understanding the nuances of this problem is crucial for maintaining a healthy and efficient Configuration Manager environment.

Symptoms of Hardware Inventory Failure

When the hardware inventory process experiences issues, several distinct symptoms typically manifest, signaling a deeper problem within the Configuration Manager infrastructure. Recognizing these indicators early can significantly reduce troubleshooting time and mitigate potential impact on IT operations. These symptoms collectively point towards a bottleneck in the data processing pipeline, often rooted in database interaction complexities.

Persistent High CPU Utilization by SMSexec.exe

One of the most immediate and noticeable symptoms is the sustained high CPU utilization by the SMSexec.exe process on the Configuration Manager site server. The SMSexec.exe process is a vital component of Configuration Manager, responsible for managing various site server components, including the Data Loader (dataldr.dll), which handles inventory processing. When this process consistently consumes a significant portion of CPU resources without apparent progress in inventory processing, it strongly suggests a stalled or inefficient operation. This elevated CPU usage can severely impact the overall performance of the site server, affecting other critical Configuration Manager functions and potentially leading to a degradation in administrative console responsiveness.

Backlog of MIF Files

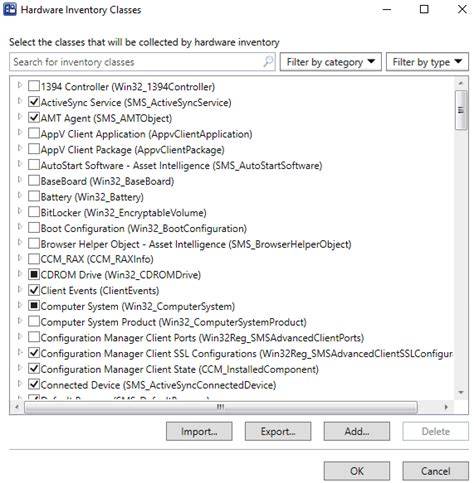

MIF files backlog SCCM

Another key indicator of trouble is the accumulation of .MIF (Management Information Format) files in the inboxes\auth\dataldr.box\process folder on the site server. These .MIF files contain the raw hardware inventory data collected from client machines. Under normal circumstances, these files are quickly processed by the Data Loader component and imported into the Configuration Manager database. A growing backlog signifies that the Data Loader is unable to process these files efficiently, leading to an increasing delay in inventory data updates. This backlog can grow exponentially, consuming significant disk space and rendering the inventory data in the database increasingly stale and unreliable. Monitoring this folder regularly is a good practice for proactive health checks.

Elevated NextGroupKey Value in ArchitectureMap Table

A more subtle but highly diagnostic symptom involves an unusually high value for the NextGroupKey column within the ArchitectureMap table in the Configuration Manager database. This NextGroupKey value is an internal counter used by Configuration Manager to manage and extend the hardware inventory schema dynamically. When new hardware classes or properties are discovered, Configuration Manager extends its database schema to accommodate this new data. The NextGroupKey plays a critical role in this schema extension process. If this value consistently climbs to unusually high numbers, typically exceeding 20,000, it indicates that Configuration Manager is repeatedly attempting to extend the schema but failing to finalize these operations successfully.

To examine the current value of NextGroupKey, you can execute the following SQL query against your Configuration Manager database:

select NextGroupKey from ArchitectureMap where ArchitectureKey = 5

A value significantly above the expected range (which is typically much lower than 20,000 in a healthy environment for ArchitectureKey = 5, representing a specific architecture type) strongly points towards the underlying issue.

Repeated SQLTracing Messages

For administrators who have enabled SQLTracing on their site server, additional diagnostic messages can provide further confirmation. SQLTracing captures detailed information about the SQL queries executed by Configuration Manager components. When this issue is present, the SQLTracing logs will show a repetitive pattern of specific messages, indicating a loop in the database interaction for schema management. You will typically observe messages similar to these:

SQL>>> select NextGroupKey from ArchitectureMap where ArchitectureKey = 5
SQL>>>>> Done.
SQL>>> update ArchitectureMap set NextGroupKey = NextGroupKey + 1 where ArchitectureKey = 5 and NextGroupKey = 15080
SQL>>>>> Done.

These messages illustrate Configuration Manager’s attempt to retrieve the NextGroupKey and then increment it, which is part of its schema extension logic. The constant repetition without successful completion of the schema extension cycle is a key diagnostic clue.

To enable SQLTracing for more in-depth diagnostics, you can set the SQLEnabled registry value to 1. The location of this registry key varies based on your operating system architecture:

  • On 64-bit systems:
    HKEY_LOCAL_MACHINE\SOFTWARE\Wow6432Node\Microsoft\SMS\Tracing\SQLEnabled
  • On 32-bit systems:
    HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\SMS\Tracing\SQLEnabled

Enabling SQLTracing should be done cautiously in production environments, as it can generate a substantial amount of log data. It is generally recommended to enable it for a limited duration during active troubleshooting.

Root Cause: The “No Count” Option in SQL Server

The underlying cause of these symptoms is a specific configuration setting within SQL Server: the global “No count” option. This option, when enabled, modifies how SQL Server reports the number of rows affected by a Transact-SQL statement. While it might seem innocuous, its impact on Configuration Manager’s internal database operations, particularly those related to hardware inventory and schema management, is profound and detrimental.

Understanding the “No Count” Option

In SQL Server, the SET NOCOUNT ON option prevents the message indicating the number of rows affected by a Transact-SQL statement from being returned to the client. When NOCOUNT is ON, the ROWCOUNT value is not incremented. This means that after an INSERT, UPDATE, or DELETE statement, the @@ROWCOUNT function will return 0, even if rows were actually affected. Conversely, when NOCOUNT is OFF (the default setting), SQL Server sends a message back to the client after each statement, indicating how many rows were affected, and @@ROWCOUNT reflects the true number of affected rows.

Why “No Count” Impacts Configuration Manager

Configuration Manager relies heavily on the ROWCOUNT value returned by SQL Server after database operations, especially when managing its complex and dynamic schema. During the hardware inventory process, when Configuration Manager needs to extend the schema to incorporate new hardware classes or properties reported by clients, it performs a series of database operations. These operations include checking for existing schema definitions, attempting to create new tables or columns, and then verifying the success of these operations by examining the ROWCOUNT returned by SQL Server.

Specifically, Configuration Manager expects a non-zero ROWCOUNT when a schema extension operation successfully modifies the database. If the global “No count” option is enabled, all SQL statements, including those critical for schema management, will report a ROWCOUNT of 0 to Configuration Manager, regardless of whether the operation actually succeeded.

This misinterpretation leads to a vicious cycle:
1. Configuration Manager attempts to extend the schema (e.g., by incrementing NextGroupKey and preparing for new table/column creation).
2. The SQL operation might succeed at the database level, but because “No count” is enabled, SQL Server reports 0 rows affected to Configuration Manager.
3. Configuration Manager interprets the 0 ROWCOUNT as a failure to modify the schema or an indication that the schema extension did not occur as expected.
4. Consequently, Configuration Manager gets stuck in a loop, repeatedly attempting the same schema extension operation, incrementing the NextGroupKey without ever completing the cycle because it never receives the expected success confirmation via ROWCOUNT.

This continuous, failed attempt at schema extension consumes excessive CPU resources via SMSexec.exe and prevents the Data Loader from processing MIF files, leading to their backlog. The ArchitectureMap table’s NextGroupKey value escalates as Configuration Manager repeatedly tries to advance its internal schema state without ever achieving a successful, confirmed transition.

Resolution: Disabling the “No Count” Option

The solution to this issue is straightforward but critical: the global “No count” option must be disabled on the SQL Server instance hosting the Configuration Manager database. This action will restore the default behavior of SQL Server, allowing Configuration Manager to receive accurate ROWCOUNT values and correctly interpret the success of its database operations.

Step-by-Step Guide to Disable “No Count”

Follow these steps carefully to disable the “No count” option using SQL Server Management Studio (SSMS):

  1. Launch SQL Server Management Studio: Open SSMS and connect to the SQL Server instance that hosts your Configuration Manager database. Ensure you have sufficient permissions (e.g., sysadmin role) to modify server-level properties.

  2. Access Server Properties: In the Object Explorer pane, right-click on the SQL Server instance name (the top-level node) and select Properties. This will open the Server Properties dialog box.

    SQL Server Management Studio Server Properties

  3. Navigate to Connections Page: In the Server Properties dialog box, select the Connections page from the left-hand navigation pane.

    SQL Server Management Studio Connections No count option

  4. Locate “No count” Option: On the Connections page, under the Default connection options section, you will find a checkbox labeled “no count”.

  5. Disable “No count”: Ensure that the “no count” checkbox is unchecked. If it is checked, uncheck it to disable the option. This is the crucial step to resolve the inventory failure.

  6. Apply Changes: Click OK to apply the changes to the SQL Server instance.

Post-Resolution Steps and Verification

After disabling the “No count” option, the following actions and observations are expected:

  • Immediate Impact: You should observe a gradual decrease in the CPU utilization by SMSexec.exe on the site server as it begins to process the backlog efficiently.
  • MIF File Processing: The backlog of .MIF files in the inboxes\auth\dataldr.box\process folder should start to diminish and eventually clear.
  • Database Schema Normalization: Configuration Manager will now be able to successfully complete its schema extension cycles. The NextGroupKey value in the ArchitectureMap table will no longer exhibit unusual increases, and it will stabilize.
  • Inventory Data Updates: Newly collected hardware inventory data will be processed and reflected in the Configuration Manager console and reports in a timely manner.

It may take some time for the system to clear the existing backlog and normalize its operations, especially if a large number of .MIF files have accumulated. Monitor the site server’s performance and the inboxes\auth\dataldr.box\process folder closely for several hours or even a day to confirm full resolution. Restarting the SMS_Executive service on the site server after making the SQL change can sometimes expedite the process by forcing a reinitialization of the Data Loader component, although it’s not always strictly necessary.

Deeper Dive into Inventory Processing and Database Interaction

To fully appreciate the impact of the “No count” option, it’s beneficial to understand the typical flow of hardware inventory processing in Configuration Manager and its intricate relationship with the SQL Server database.

  1. Client-Side Collection: Configuration Manager clients collect hardware inventory data based on assigned client settings. This data is stored locally in a WMI repository and then converted into a .MIF file.
  2. MIF File Transmission: The .MIF files are sent to the management point, which then forwards them to the site server’s inboxes\auth\dataldr.box folder.
  3. Data Loader (dataldr.dll): The SMSexec.exe process hosts the Data Loader component (dataldr.dll). This component monitors the dataldr.box\process subfolder for new .MIF files.
  4. Schema Evaluation: Before importing data from a .MIF file, the Data Loader evaluates the inventory classes and attributes present in the file. It compares these against the current database schema defined in Configuration Manager.
  5. Schema Extension (if needed): If new classes or attributes are found (i.e., not yet present in the database), Configuration Manager initiates a schema extension process. This involves:
    • Querying the ArchitectureMap table to get the NextGroupKey.
    • Attempting to create new tables, views, or columns in the Configuration Manager database to accommodate the new data.
    • Updating the ArchitectureMap table and other internal metadata to reflect the new schema. This step heavily relies on accurate ROWCOUNT feedback.
  6. Data Import: Once the schema is confirmed or extended, the Data Loader imports the .MIF file data into the respective tables in the Configuration Manager database.
  7. MIF File Deletion: After successful processing, the .MIF file is moved to the dataldr.box\done folder or deleted, depending on configuration.

The “No count” option disrupts step 5, leading to an endless loop of failed schema extensions, which then prevents subsequent data import operations, causing the backlog and high CPU.

Preventative Measures and Best Practices

To avoid similar issues and maintain a robust Configuration Manager environment, consider these preventative measures and best practices:

  • Regular SQL Server Health Checks: Implement routine monitoring for your SQL Server instance hosting the Configuration Manager database. This includes checking for unexpected configuration changes, performance metrics, and error logs.
  • Baseline Configuration: Document and maintain a baseline configuration for your SQL Server. Any deviation from this baseline, especially regarding global settings, should be investigated.
  • Controlled Changes: Exercise extreme caution when making global changes to SQL Server settings. Always understand the potential impact on all hosted applications, including Configuration Manager, before implementing.
  • Configuration Manager Database Maintenance: Ensure regular database maintenance tasks are performed, such as re-indexing and statistics updates, to optimize database performance.
  • Monitoring Inventory Backlogs: Set up alerts for excessive .MIF file backlogs in the dataldr.box\process folder to proactively detect issues.
  • Service Account Permissions: Verify that the Configuration Manager site server’s service accounts have the necessary permissions on the SQL Server instance and database to perform all required operations.

Conceptual Troubleshooting Flowchart for Inventory Failures

Here’s a simplified Mermaid flowchart to visualize the troubleshooting process for inventory issues:

mermaid graph TD A[Hardware Inventory Failure Reported?] --> B{High CPU on SMSexec.exe?}; B -- Yes --> C{MIF Files Backlog in dataldr.box\process?}; B -- No --> Z[Investigate other causes]; C -- Yes --> D{Check NextGroupKey in ArchitectureMap (ArchitectureKey=5)}; C -- No --> Y[Investigate dataldr.log/MP issues]; D -- Is NextGroupKey > 20,000? --> E{Enable SQLTracing (Optional) and check for repetitive update ArchitectureMap queries}; D -- No --> X[Consider other inventory processing issues]; E -- Yes --> F[Suspect "No count" option in SQL Server]; E -- No --> W[Further SQL/DB investigation needed]; F --> G[Connect to SQL Server via SSMS]; G --> H[Right-click SQL Server Instance -> Properties]; H --> I[Navigate to Connections page]; I --> J[Uncheck "no count" option]; J --> K[Click OK]; K --> L[Monitor SMSexec.exe CPU & MIF backlog]; L -- Resolved --> M[Issue fixed. Resume normal operations]; L -- Not Resolved --> N[Review all steps, consult Microsoft support if needed];

Relevant Video Resource (Conceptual Placeholder)

For a visual demonstration of navigating SQL Server Management Studio to locate and modify server properties, specifically the “No count” option, a short instructional video could be highly beneficial.

Video Title Idea: “Configuring SQL Server for Configuration Manager: Disabling ‘No Count’ Option”
Content: The video would walk through the steps mentioned above, showing how to connect to SQL Server, open server properties, navigate to the connections tab, and uncheck the “no count” option. It could also briefly explain the implications of this setting.
(Note: As an AI, I cannot actually embed a YouTube video. This is a conceptual placeholder.)

Conclusion

The hardware inventory process in Configuration Manager is a cornerstone of effective IT asset management. When this process fails due to issues like the “No count” option being enabled in SQL Server, it can lead to a cascade of problems, from stale data to significant performance degradation on the site server. By understanding the symptoms—high SMSexec.exe CPU, .MIF file backlogs, and an unusually high NextGroupKey value—administrators can quickly diagnose this specific issue.

The resolution, while simple, requires careful execution within SQL Server Management Studio. Disabling the “No count” option restores the expected database communication, allowing Configuration Manager to properly manage its schema and process inventory data. Implementing robust monitoring and adhering to best practices for SQL Server configuration in a Configuration Manager environment are vital for preventing such issues and ensuring the continuous health and accuracy of your asset intelligence.

Have you encountered this issue in your Configuration Manager environment? What other troubleshooting steps did you find effective? Share your experiences and insights in the comments below!
