Troubleshooting NDES Enrollment Password Errors on Windows Server 2012

Table of Contents

The Network Device Enrollment Service (NDES) plays a critical role in modern enterprise environments, facilitating the secure enrollment of network devices and mobile clients by enabling them to obtain certificates from an Active Directory Certificate Services (AD CS) Certificate Authority (CA) using the Simple Certificate Enrollment Protocol (SCEP). This mechanism is fundamental for Mobile Device Management (MDM) solutions, BYOD initiatives, and securing network access for diverse client types. However, administrators occasionally encounter obstacles during the NDES setup or operation, particularly when attempting to retrieve the challenge password necessary for enrollment.

This article delves into a specific error scenario encountered on Windows Server 2012 where the NDES enrollment challenge password cannot be retrieved. We will explore the symptoms, the underlying technical conflict within Internet Information Services (IIS), and provide a detailed workaround to resolve this issue, ensuring the smooth operation of your certificate enrollment infrastructure. Understanding these intricacies is crucial for maintaining a robust and secure device management ecosystem.

Understanding the Network Device Enrollment Service (NDES)¶

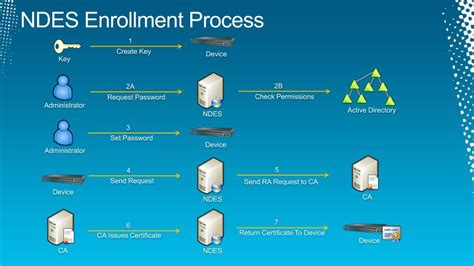

Before diving into the troubleshooting, it’s essential to grasp what NDES is and its operational components. NDES acts as a bridge between devices that support SCEP and an enterprise CA. It allows devices that cannot directly communicate with an AD CS CA (e.g., routers, switches, mobile devices) to enroll for certificates. The process typically involves a device requesting a challenge password from the NDES server, then using that password to submit a certificate request.

NDES relies heavily on several core Windows Server roles and services. These include Active Directory Certificate Services (AD CS) for issuing certificates, Internet Information Services (IIS) for hosting the web-based SCEP interface, and a dedicated NDES service account for interacting with the CA and managing certificate templates. A misconfiguration or an issue in any of these interconnected components can lead to enrollment failures, including problems with challenge password retrieval. Proper configuration of certificate templates, the NDES service account, and IIS is paramount for a functional NDES deployment.

Symptoms of NDES Enrollment Password Errors¶

When encountering this specific issue on a Windows Server 2012 machine with the NDES role service installed, administrators typically observe a distinctive set of symptoms. The primary indication of the problem manifests when an attempt is made to access the NDES enrollment challenge password page, usually through a web browser navigating to a URL like http://<NDES_SERVER>/certsrv/mscep_admin/. Instead of the expected page displaying the challenge password, users are met with a generic server error message.

The most common error displayed in the web browser is:

Http error 500.0 - internal server error.
the page cannot be displayed because an internal server error has occurred.

This “HTTP 500.0” error is a catch-all for server-side issues, indicating that the web server (IIS) encountered an unexpected condition that prevented it from fulfilling the request. It provides little direct information to the end-user, necessitating further investigation on the server itself. This internal server error suggests a problem within the IIS application pipeline responsible for serving the NDES pages.

Concurrently with the web browser error, administrators will find specific error entries logged in the server’s Event Viewer, providing more granular details about the internal failure. An event resembling the following will be recorded in the Application log:

Log Name: Application
Source: Microsoft-Windows-NetworkDeviceEnrollmentService
Date: date time
Event ID: 2
Task Category: None
Level: Error
Keywords: Classic
User: N/A
Computer: computer name
Description:
The Network Device Enrollment Service cannot be started (0x800700ea). More data is available.

This Event ID 2, sourced from Microsoft-Windows-NetworkDeviceEnrollmentService, clearly indicates that the NDES service itself is failing to initialize or operate correctly. The error code 0x800700ea translates to ERROR_MORE_DATA. While this specific error code often implies that more data is available than a buffer can hold, in the context of a service startup failure, it more broadly points to an underlying configuration problem or a dependency issue that prevents the service from fully starting or processing requests. It suggests that NDES cannot retrieve necessary information or perform an action due due to an unexpected condition, which in this case, is tied to how IIS is processing its requests.

The Role of IIS and MSCEP Handlers¶

Internet Information Services (IIS) is the web server component that hosts the NDES web application, making the SCEP interface accessible. Within IIS, request processing is managed by a pipeline of handlers. When a web request arrives, IIS routes it through various modules and handlers, each responsible for a specific type of content or functionality. For instance, one handler might process static HTML files, another might execute ASP.NET code, and yet another might handle requests for ISAPI extensions. The order in which these handlers are configured is critical, as it determines which handler gets the first opportunity to process a given request.

The Microsoft Simple Certificate Enrollment Protocol (MSCEP) application within NDES relies on specific IIS handlers to function correctly. Specifically, it uses an ISAPI (Internet Server Application Programming Interface) extension, mscep.dll, to handle SCEP requests. This DLL is invoked by IIS when requests are made to specific NDES-related URLs. The conflict arises when the default handler order on Windows Server 2012 places a more generic or overly aggressive handler, such as ExtensionlessUrlHandler-ISAPI-4.0_64bit, before more specific handlers required by NDES.

The ExtensionlessUrlHandler-ISAPI-4.0_64bit is typically used for applications that route requests to URLs without file extensions, common in modern web frameworks like ASP.NET. If this handler is positioned too high in the processing order, it might prematurely attempt to process requests intended for the mscep.dll ISAPI module, or other components of the NDES application. When it fails to properly interpret or route these requests, it results in the generic HTTP 500.0 internal server error because the NDES application cannot receive and process the request as expected. The NDES service, in turn, registers its inability to start or function, leading to Event ID 2.

Prerequisites and Initial Checks¶

Before attempting the specific workaround, it’s prudent to perform a few initial checks to ensure other common NDES dependencies are in order. This helps isolate the problem and confirms that the handler order is indeed the most likely culprit.

1. NDES Service Account Permissions: Verify that the NDES service account (often named NDES Service or similar, depending on your setup) has the necessary permissions. This includes “Read” and “Enroll” permissions on the certificate templates NDES is configured to use, “Request certificates” permission on the CA, and “Read” access to the mscep and mscep_admin virtual directories in IIS.
2. AD CS Health: Ensure your Certificate Authority (CA) is online, accessible, and healthy. Check the CA server’s event logs for any issues related to certificate issuance or template availability.
3. Network Connectivity: Confirm that the NDES server can communicate with the CA server over RPC (Remote Procedure Call) and DCOM (Distributed Component Object Model). Firewalls should be configured to allow necessary traffic.
4. Basic IIS Functionality: Verify that other basic IIS sites or applications on the server are functioning correctly. Check the Application Pool associated with NDES (typically SCEP) is running.
5. NDES Configuration: Double-check the NDES configuration settings in the registry (HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Cryptography\MSCEP) to ensure the correct CA name and certificate template names are specified. Incorrect template names are a frequent cause of NDES issues.

If these initial checks do not reveal any obvious issues, the problem likely lies within the IIS handler configuration as described.

Workaround: Adjusting IIS Handler Order¶

The solution to this specific problem involves adjusting the order of IIS handlers for the Microsoft Simple Certificate Enrollment Protocol (MSCEP) applications. By ensuring that the ExtensionlessUrlHandler-ISAPI-4.0_64bit handler comes after the StaticFile handler, we allow IIS to correctly process requests intended for the NDES SCEP interface. This prevents the extensionless handler from prematurely intercepting and mishandling requests that should be processed by the MSCEP ISAPI module.

Follow these detailed steps to implement the workaround:

Step-by-Step Guide¶

1. Open IIS Manager:

   • On your Windows Server 2012, open Server Manager.
   • From the “Tools” menu, select “Internet Information Services (IIS) Manager.”

2. Navigate to the NDES Site:

   • In the “Connections” pane on the left, expand your server name.
   • Expand “Sites,” and then expand “Default Web Site” (or the specific site where NDES is installed, if different).
   • Locate and select the mscep virtual directory. This is typically found under the Default Web Site.

3. Open Handler Mappings:

   • In the central “Features View” pane for the mscep virtual directory, double-click on “Handler Mappings.” This will open a list of all handlers configured for this specific virtual directory.

4. Identify the Handlers:

   • In the “Handler Mappings” list, carefully scroll and locate two specific handlers:
     • StaticFile
     • ExtensionlessUrlHandler-ISAPI-4.0_64bit
   • You might need to sort by name or scroll down, as there can be many handlers listed.

5. Adjust the Handler Order:

   • Select the ExtensionlessUrlHandler-ISAPI-4.0_64bit handler.
   • In the “Actions” pane on the right, you will see options to “Move Up” and “Move Down.”
   • Click “Move Down” repeatedly until the ExtensionlessUrlHandler-ISAPI-4.0_64bit handler is positioned after the StaticFile handler. The exact position relative to other handlers may vary, but the critical requirement is that StaticFile must precede ExtensionlessUrlHandler-ISAPI-4.0_64bit.

6. Repeat for mscep_admin:

   • Go back to the “Connections” pane and select the mscep_admin virtual directory (also typically under “Default Web Site”).
   • Repeat steps 3, 4, and 5 for the mscep_admin virtual directory. Both NDES application directories need this adjustment.

7. Restart IIS:

   • Once the handler order has been adjusted for both mscep and mscep_admin, it is crucial to restart IIS for the changes to take effect.
   • In the “Connections” pane, select your server name at the top.
   • In the “Actions” pane on the right, click “Restart” under the “Manage Server” section. Alternatively, you can open an elevated command prompt and type iisreset.

After restarting IIS, attempt to access the NDES enrollment challenge password page (http://<NDES_SERVER>/certsrv/mscep_admin/) again. The page should now load correctly, displaying the challenge password. Also, verify that Event ID 2 from Microsoft-Windows-NetworkDeviceEnrollmentService is no longer appearing in the Application Event Log.

Broader Troubleshooting and Advanced Diagnostics¶

While the handler order adjustment typically resolves the HTTP 500 error for NDES challenge password retrieval, it’s beneficial to be aware of broader troubleshooting techniques that can provide deeper insights into IIS and NDES issues. These methods can be invaluable for diagnosing other related problems or if the primary workaround doesn’t fully resolve the issue.

IIS Logging¶

IIS logs all requests and responses, including errors. By default, these logs are located at %SystemDrive%\inetpub\logs\LogFiles.
1. Enable Detailed Logging: Ensure that detailed logging is enabled for the NDES site or virtual directories. This includes logging all fields, especially sc-status (HTTP status code) and sc-substatus (HTTP substatus code) and cs-uri-stem (the URI being accessed).
2. Analyze Log Files: After reproducing the error, examine the latest IIS log file. Look for entries corresponding to the HTTP 500.0 error for requests to mscep or mscep_admin. The log entries might provide additional status codes or error messages that were not visible in the browser, such as 500 0 0 or 500 0 64 (indicating a handler issue).

Failed Request Tracing¶

Failed Request Tracing (FREB) in IIS is a powerful tool for diagnosing specific errors by providing a granular trace of all events during a request’s processing.
1. Enable FREB: In IIS Manager, select the mscep virtual directory, then double-click “Failed Request Tracing Rules.”
2. Create a Rule: Add a new rule for *.dll or * for content, and specify status codes 500-599 to trace.
3. Reproduce Error: Access the NDES page to trigger the error again.
4. Analyze Trace Logs: FREB logs are typically found in %SystemDrive%\inetpub\logs\FailedRequestTraces. Open the generated XML log file in a web browser. The trace will show the entire request pipeline, highlighting where the error occurred, which module or handler failed, and often providing the specific Win32 error code. This can offer definitive proof if the handler order was the root cause by showing which handler incorrectly processed the request.

Event Viewer Analysis (Beyond NDES)¶

While Event ID 2 from NDES is specific to the service, other event logs can provide contextual information.
* System Log: Check for errors related to service startup, network issues, or critical system failures.
* Security Log: Look for authentication failures if the NDES service account is having credential issues.
* Application Log (General): Apart from NDES, other applications or components might log errors that indirectly impact NDES. Pay attention to events from IIS-W3SVC-WP, WebEngine, or ASP.NET.

NDES Registry Settings¶

Though not directly related to this specific 500 error, misconfigured registry settings are a common source of NDES problems.
* HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Cryptography\MSCEP: Verify that CAConfig points to the correct CA server (e.g., <CAHostname>\<CAName>).
* EncryptionTemplate, SignatureTemplate, ExchangeTemplate: Ensure these refer to valid, existing certificate templates configured for NDES enrollment.
* UseSingleCertTemplate: If set to 1, only the SignatureTemplate is used for all purposes.

Service Account and SPN¶

Ensure the NDES service account is healthy and has a correct Service Principal Name (SPN) registered.
* SPN Registration: For NDES to properly authenticate with Kerberos, an SPN might be required for the NDES service account, especially in complex domain environments. Use setspn -L <NDESServiceAccount> to list existing SPNs and setspn -A HTTP/<NDES_Server_FQDN> <NDESServiceAccount> to add if missing, though typically not needed for default NDES setup.

Why This Specific Handler Order Matters¶

Reiterating the importance of handler order, IIS processes incoming requests by passing them through a series of modules and handlers. Each handler is designed to process specific types of requests based on file extensions, verbs (GET, POST), or other criteria. The “StaticFile” handler is a fundamental component responsible for serving static content like HTML files, images, CSS, and JavaScript. It’s a general-purpose handler that should ideally process such requests early in the pipeline.

The ExtensionlessUrlHandler-ISAPI-4.0_64bit handler, on the other hand, is designed for scenarios where URLs do not have traditional file extensions. This is common in routing-based web applications that interpret URL paths as logical resources rather than physical files. In the context of NDES, the mscep.dll ISAPI extension processes SCEP requests, many of which involve unique URL patterns without typical file extensions.

The issue arises when the ExtensionlessUrlHandler-ISAPI-4.0_64bit is configured to take precedence over the StaticFile handler. If a request that should ideally be handled by the NDES ISAPI module (which itself might be invoked after some initial static file checks or specific routing) is instead prematurely intercepted by the ExtensionlessUrlHandler, it can lead to an incorrect processing path. The extensionless handler might not understand how to correctly route the NDES-specific request, or it might throw an error because the request doesn’t conform to its expected pattern, resulting in the HTTP 500.0 error. By moving ExtensionlessUrlHandler-ISAPI-4.0_64bit after StaticFile, we ensure that the more general static file requests are handled first, and then the more specialized handlers (like those implicitly or explicitly invoked for mscep.dll) get a chance to process their specific requests correctly. This establishes a logical flow where more generic handlers are prioritized for general content, allowing specialized handlers to take over for their unique requirements further down the pipeline.

Prevention and Best Practices¶

To minimize the occurrence of such issues and ensure a stable NDES environment, consider the following best practices:

• Thorough Testing: After any NDES installation or configuration change, thoroughly test all functionalities, including challenge password retrieval and certificate enrollment from various client types.
• Document Configuration: Maintain detailed documentation of your NDES, AD CS, and IIS configurations. This includes handler orders, certificate templates, service accounts, and any custom settings.
• Stay Updated: Keep your Windows Server operating system and IIS components updated with the latest security patches and cumulative updates. While a specific fix might not always address a configuration issue, updates often improve stability and address known bugs.
• Understand IIS Pipeline: For administrators managing complex web applications, a deeper understanding of the IIS request processing pipeline and handler interactions is invaluable.
• Staging Environment: Implement changes in a staging or test environment first before deploying them to production. This allows for safe validation of changes, including IIS handler modifications.

Conclusion¶

The “HTTP Error 500.0 - Internal Server Error” during NDES enrollment password retrieval on Windows Server 2012, accompanied by Event ID 2 from the Network Device Enrollment Service, can be a frustrating roadblock for administrators. However, as demonstrated, the root cause often lies in a specific misconfiguration within IIS handler mappings, where the ExtensionlessUrlHandler-ISAPI-4.0_64bit handler is incorrectly prioritized over the StaticFile handler for MSCEP applications. By carefully adjusting this handler order, you can resolve the issue and restore the proper functionality of your NDES service.

NDES is a vital component for secure device management and certificate issuance in many organizations. Understanding its dependencies on IIS and AD CS, along with practical troubleshooting steps, empowers administrators to maintain a robust and reliable Public Key Infrastructure (PKI). This particular workaround highlights the importance of subtle configuration details within complex server roles.
