Troubleshooting Partition Errors: A Windows Client Guide to Successful Disk Management

Table of Contents

Installing Windows on modern, high-capacity storage drives can sometimes present unexpected challenges, particularly when dealing with older operating system versions like Windows 7. One common hurdle encountered by users attempting to utilize drives larger than 2.2 terabytes (TB) is a specific partitioning error. This guide aims to thoroughly address the error code 0x80042468, providing a comprehensive understanding of its root cause and a detailed, step-by-step resolution to ensure successful disk management and full utilization of your storage.

Understanding the Symptoms: Error 0x80042468¶

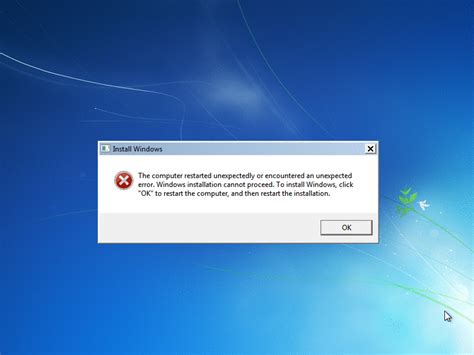

When you embark on the journey of installing Windows 7 onto a storage drive exceeding 2.2 TB, you might encounter a frustrating roadblock: Error 0x80042468. This error typically manifests when you manually attempt to create a single partition using the “Advanced Drive Options” feature during the Windows setup process. The system’s inability to correctly provision the entire drive space becomes evident, preventing a straightforward installation.

This particular error signifies a fundamental incompatibility between the default partitioning scheme Windows 7 attempts to use and the sheer size of the drive. While the installation might seem to proceed, a critical portion of your valuable storage capacity will remain inaccessible after Windows is installed. This often leads to confusion and underutilization of expensive, large-capacity hard drives or solid-state drives.

Deciphering the Cause: MBR, GPT, BIOS, and UEFI¶

The appearance of Error 0x80042468 is not a bug but rather an inherent design limitation related to disk partitioning standards. This issue specifically affects Windows 7 x86 (32-bit) systems and Windows 7 x64 (64-bit) systems running on non-UEFI (Unified Extensible Firmware Interface) hardware configurations. To fully grasp this, it’s essential to understand the distinction between two primary partitioning schemes: Master Boot Record (MBR) and GUID Partition Table (GPT), and their relationship with system firmware, namely BIOS and UEFI.

Master Boot Record (MBR): The Legacy Standard¶

The Master Boot Record (MBR) has been the traditional partitioning standard for personal computers since the early 1980s. It stores the boot loader and the disk’s partition table at the very beginning of the drive. While robust for its time, MBR comes with significant limitations that become apparent with modern, large-capacity drives.

Firstly, MBR-formatted disks can only support a maximum of four primary partitions. If more partitions are needed, one primary partition must be designated as an “extended partition,” which can then contain multiple “logical drives.” Secondly, and most critically for our error, MBR has a maximum addressable disk size of 2 TB (or approximately 2.2 TB due to binary calculations). Any storage beyond this limit on an MBR disk simply cannot be recognized or utilized by the operating system. This inherent limitation is precisely why you encounter the 0x80042468 error when attempting to install Windows 7 onto a drive larger than 2.2 TB using the default MBR scheme.

GUID Partition Table (GPT): The Modern Solution¶

In contrast, the GUID Partition Table (GPT) is a newer, more flexible, and robust partitioning scheme that largely supersedes MBR. It was developed as part of the UEFI standard to address the limitations of MBR, particularly concerning drive size and the number of partitions. GPT-formatted disks can support significantly larger capacities, theoretically up to 9.4 ZB (zettabytes), far exceeding any current drive size.

Furthermore, GPT allows for a virtually unlimited number of partitions, typically up to 128 primary partitions on Windows systems, without needing extended or logical drives. GPT also offers improved data integrity through redundant partition tables and cyclical redundancy checks (CRCs), which help detect and correct errors in the partition table itself. For any drive larger than 2.2 TB to be fully utilized, it must be formatted with GPT.

BIOS vs. UEFI: The Firmware Connection¶

The choice between MBR and GPT is intimately tied to the system’s firmware: Basic Input/Output System (BIOS) and Unified Extensible Firmware Interface (UEFI).

• BIOS: BIOS is the traditional firmware interface that has been used for decades. It’s known for its text-based, command-line interface and its reliance on MBR for booting. Legacy BIOS systems are generally unable to boot from GPT-partitioned drives. This means if your system uses traditional BIOS and you have a large drive, you’re stuck with MBR’s 2.2 TB limitation for the boot drive.
• UEFI: UEFI is the modern successor to BIOS, offering a more graphical interface, faster boot times, and enhanced security features. Crucially, UEFI is designed to work seamlessly with GPT-partitioned drives. A UEFI-enabled system can boot from a GPT disk, allowing the operating system to fully access and utilize very large storage capacities.

The specific cause of Error 0x80042468 arises because Windows 7 setup, especially on x86 architectures or x64 systems booting in legacy BIOS mode, defaults to or attempts to use the MBR partitioning scheme. When this MBR scheme encounters a drive larger than its 2.2 TB limit, it cannot correctly create the requested partition, leading to the error. While Windows 7 x64 can support GPT, it requires the system to be configured to boot in UEFI mode for this support to be leveraged effectively during installation. The setup routine might not automatically detect and switch to UEFI/GPT mode if the system isn’t explicitly configured for it or if it’s booting in compatibility (CSM) mode.

The Resolution: Converting to GPT for Full Disk Access¶

The good news is that the error is resolvable, provided your system hardware supports UEFI. If you are installing Windows 7 x64 on a system that supports UEFI, you can indeed partition the drive to use GUID Partition Table (GPT) and gain access to the entire drive capacity. This process must be performed while the system is operating in UEFI mode.

Important Precaution: Before proceeding with any disk partitioning operations, especially converting a drive from MBR to GPT, it is paramount to understand that the disk you are working with cannot contain any data you wish to keep. The conversion process will effectively erase all existing data and partitions on the selected drive. Therefore, if the drive contains any valuable information, you must back up your data or move it to another volume before following these steps. Failure to do so will result in permanent data loss.

Step-by-Step Diskpart Conversion¶

To convert your drive to GPT and enable full access, you will utilize the diskpart utility, a powerful command-line tool for managing disk partitions. This process is initiated directly from the Windows 7 setup environment.

1. Access the Command Prompt: During the Windows 7 installation process, when you reach the screen where you select the drive for installation, press Shift + F10. This key combination will open a command prompt window. This prompt provides access to various system utilities, including diskpart.

2. Launch Diskpart: In the command prompt window, type diskpart and press Enter. This command will launch the Diskpart console. Once it’s initialized, you will see the DISKPART> prompt, indicating that the console is ready to accept commands.



3. List Available Disks: At the DISKPART> prompt, type list disk and press Enter. This command displays a list of all physical disks connected to your system, along with their sizes and other attributes. Carefully identify the disk you intend to convert. It’s crucial to select the correct disk, especially if you have multiple drives. For instance, if your target drive is listed as “Disk 0,” that’s the one you’ll select. Pay close attention to the Size column to confirm you’re selecting the correct large drive.

   DISKPART> list disk

     Disk ###  Status         Size     Free     Dyn  Gpt
     --------  -------------  -------  -------  ---  ---
     Disk 0    Online         3726 GB      0 B
     Disk 1    Online          931 GB      0 B



   In this example, “Disk 0” is the 3.7 TB drive (approximately 3726 GB) that needs conversion.

4. Select the Target Disk: Once you have identified the correct disk number (e.g., Disk 0), type select disk 0 (replace ‘0’ with your identified disk number) and press Enter. You will receive confirmation that the disk has been selected. This command focuses all subsequent diskpart operations on this specific disk.

   DISKPART> select disk 0

   Disk 0 is now the selected disk.


5. Clean the Disk (Crucial Step): Before converting to GPT, the disk must be completely wiped of all existing partitions and data. At the DISKPART> prompt, type clean and press Enter. This command removes all partitioning and volume information from the selected disk, effectively making it unallocated space. This is why the data backup is so critical.

   DISKPART> clean

   DiskPart succeeded in cleaning the disk.


6. Convert to GPT: Now that the disk is clean, you can convert its partitioning scheme. At the DISKPART> prompt, type convert gpt and press Enter. This command initiates the conversion of the selected disk from MBR to GPT. This process is usually very quick.

   DISKPART> convert gpt

   DiskPart successfully converted the selected disk to GPT format.


7. Verify Conversion: To ensure that the conversion was successful, it’s good practice to re-list the disks. Type list disk again and press Enter. This time, the converted disk should have an asterisk (*) in the Gpt column, confirming that it is now a GPT-partitioned disk.

   DISKPART> list disk

     Disk ###  Status         Size     Free     Dyn  Gpt
     --------  -------------  -------  -------  ---  ---
     Disk 0    Online         3726 GB  3726 GB        *
     Disk 1    Online          931 GB   931 GB



   The asterisk next to Disk 0 in the Gpt column indicates successful conversion.

8. Exit Diskpart and Command Prompt: Once you have verified the conversion, type exit and press Enter to leave the diskpart console. Then, type exit again and press Enter to close the command prompt window.

Resuming Windows Installation¶

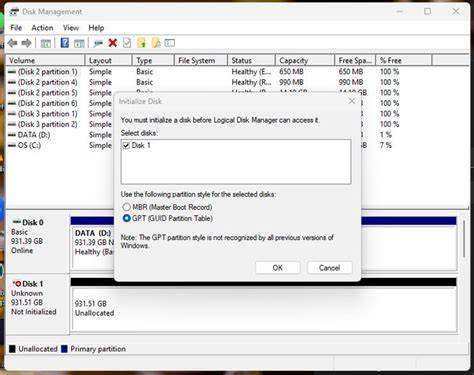

After closing the command prompt, you will be returned to the Windows 7 setup screen where you select the installation drive. The disk you just converted should now be displayed as Unallocated Space. Select this unallocated space, and the installation process should now proceed without the 0x80042468 error. Windows 7 x64 will be installed on the newly GPT-partitioned disk, allowing full access to its entire capacity after reboot.

Further Considerations and Compatibility¶

While converting to GPT resolves the large drive issue, it’s crucial to understand the broader compatibility landscape, especially concerning different Windows versions and firmware types.

Windows Version and Architecture Limitations¶

• 32-bit Windows: It is important to note that 32-bit versions of Windows (e.g., Windows 7 x86) do not support booting from GPT-initialized volumes on UEFI systems. Even if your system is UEFI-enabled and the disk is GPT, a 32-bit Windows installation cannot boot from it. This is a fundamental architectural limitation of the 32-bit operating system’s boot process.
• Legacy BIOS Systems: Similarly, traditional legacy BIOS (Basic Input/Output System) systems do not support booting from GPT-partitioned volumes, regardless of the Windows version. If your motherboard relies solely on old BIOS firmware, you are confined to the MBR partitioning scheme for your boot drive, which means you cannot boot Windows from a drive larger than 2.2 TB. You might be able to use the extra space as a data drive by converting it to GPT after Windows is installed on a separate MBR boot drive, but it won’t be usable as the primary boot disk.

System Vendor Consultation¶

Given these complexities, it is always advisable to consult with your system vendor or motherboard manufacturer to determine if your specific system supports UEFI and, more importantly, if it supports booting from devices greater than 2 TB. Many modern systems offer both UEFI and legacy BIOS compatibility modes (often referred to as Compatibility Support Module or CSM). For large drive support, ensuring your system is configured to operate in pure UEFI mode (with CSM disabled, if possible) is often necessary for optimal GPT functionality during installation. Incorrect UEFI settings can still cause the system to attempt a legacy boot, leading to MBR-related issues.

Best Practices for New Installations¶

For new system builds or upgrades involving large hard drives:
* Verify UEFI Support: Ensure your motherboard explicitly supports UEFI.
* Configure UEFI Mode: Access your system’s firmware settings (often by pressing a key like Del, F2, F10, or F12 during boot) and confirm that the boot mode is set to “UEFI” rather than “Legacy” or “CSM.”
* Use 64-bit Windows: Always opt for a 64-bit version of Windows when dealing with UEFI and GPT, as it natively supports booting from GPT disks.
* Perform Clean Installation: Starting with a clean, unallocated disk and converting it to GPT using diskpart during installation, as described above, is the most reliable method for setting up large drives.

Note: This is a placeholder for an illustrative video showing Diskpart conversion. Search for "Diskpart convert GPT" on YouTube for relevant guides.

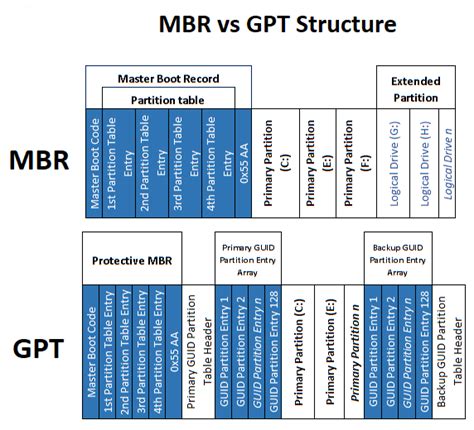

Comparison Table: MBR vs. GPT¶

To summarize the key differences and why GPT is necessary for large drives:

Feature	Master Boot Record (MBR)	GUID Partition Table (GPT)
Max Disk Size	2 TB (approx. 2.2 TB)	9.4 ZB (virtually unlimited)
Max Primary Partitions	4	128 (on Windows)
Firmware Requirement	Legacy BIOS	UEFI (required for boot, compatible with BIOS for data)
Redundancy	Single partition table, prone to corruption	Multiple copies of partition table for redundancy
CRC Checksums	No	Yes, for data integrity
Operating Systems	Older Windows versions, 32-bit Windows boot drive	64-bit Windows boot drive (with UEFI), most modern OS

This table highlights why GPT is the modern standard for disk management, especially with the ever-increasing capacities of storage devices.

Conclusion¶

Successfully installing Windows 7 on a drive larger than 2.2 TB, or indeed any modern operating system on such large storage, necessitates a clear understanding of MBR and GPT partitioning schemes and their relationship with system firmware (BIOS and UEFI). The Error 0x80042468 is a direct consequence of attempting to apply a legacy MBR standard to a capacity that far exceeds its limits. By leveraging the diskpart utility to convert your drive to GPT and ensuring your system is in UEFI boot mode, you can effectively bypass this limitation and harness the full potential of your high-capacity storage device. Always prioritize data backup and consult your system’s documentation to confirm UEFI compatibility for a smooth and successful installation.
