Troubleshooting WDS Multicast Deployment Failures on Windows Server

Table of Contents

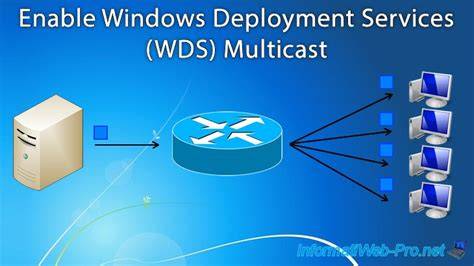

Deploying operating system images efficiently across an enterprise network is a critical function for IT administrators. Windows Deployment Services (WDS) is a powerful tool designed to facilitate this process, particularly through its multicast capabilities. Multicast deployment allows a single stream of data to be sent from the WDS server to multiple client computers simultaneously, significantly conserving network bandwidth compared to individual unicast transfers, especially in large-scale deployments. However, achieving successful multicast deployments is not without its challenges.

This article delves into common issues that can lead to failures during WDS multicast image deployments on Windows Server environments. It specifically addresses scenarios where the multicast session either fails to complete, generates errors, or performs at an unacceptably slow pace. A key focus will be on resolving problems related to how network infrastructure handles IP fragmentation, providing detailed steps for configuration adjustments on Windows Server 2008 and Windows Server 2008 R2.

Symptoms of Multicast Deployment Failures¶

When attempting to deploy an image from a WDS server using its multicast functionality, administrators might encounter a range of symptoms indicating a problem. These issues can severely impede deployment efforts and impact operational efficiency. Identifying these symptoms accurately is the first step towards effective troubleshooting.

One of the most frequently reported symptoms is that the multicast session never reaches completion. Client machines might join the session but then stall indefinitely, preventing the image transfer from finishing. This can lead to a prolonged waiting period or an outright failure, leaving clients un-imaged and deployment processes halted. The lack of progress can be particularly frustrating, as it might not always be immediately clear where the breakdown is occurring within the network path or on the server.

Another common manifestation of a problem is the display of explicit error messages during the multicast session. These error messages, though sometimes cryptic, provide vital clues about the underlying cause. They could indicate issues with network connectivity, server configuration, or client-side problems preventing proper reception of the multicast stream. Carefully noting these error codes and messages is crucial for targeted troubleshooting, as they often point directly to a specific component or setting that requires attention.

Furthermore, even if the multicast session eventually completes, it might do so at an unacceptably slow pace. This diminished performance defeats the primary purpose of using multicast, which is to accelerate large-scale deployments. A slow multicast session often suggests network congestion, inefficient data handling by network devices, or suboptimal WDS server configurations. Interestingly, if switching the deployment method to unicast (one-to-one transfer) resolves the speed issue, it strongly indicates that the problem lies specifically with the multicast configuration or the network’s ability to handle multicast traffic efficiently. This comparison serves as a diagnostic indicator, narrowing down the potential causes significantly.

Understanding Multicast and IP Fragmentation¶

To effectively troubleshoot WDS multicast deployment failures, it’s essential to understand the underlying networking concepts, particularly how multicast functions and the role of IP fragmentation. Multicast is a bandwidth-conserving technology that reduces traffic by simultaneously delivering a single stream of information to a select group of recipients. Instead of sending duplicate data streams to each client (unicast) or broadcasting to all devices on a segment, multicast sends one stream to a specific multicast IP address, and only devices configured to listen on that address receive the data.

The efficiency of multicast, however, heavily relies on the proper functioning of network infrastructure, including routers and switches. These devices must be capable of understanding and forwarding multicast traffic correctly, often utilizing protocols like IGMP (Internet Group Management Protocol) to manage group memberships. When issues arise, it frequently points back to how these network devices are configured or their inherent capabilities.

One significant and often overlooked cause for multicast deployment failures is the improper handling of IP fragmentation by network routers and switches. IP fragmentation occurs when an IP packet is too large to traverse a particular network link. When a packet exceeds the Maximum Transmission Unit (MTU) of a network segment, it must be broken down, or fragmented, into smaller pieces to fit. Each of these fragments then travels independently and must be reassembled by the destination device.

While fragmentation is a standard IP mechanism designed to ensure data delivery across networks with varying MTU sizes, it can introduce complexities and performance overhead, particularly with multicast traffic. When fragments are lost, delayed, or mishandled by network devices, the entire original packet cannot be reassembled, leading to data corruption or complete loss. In a multicast scenario, if even one fragment of a streamed image block is lost for one client, it can disrupt the entire stream for that client, or potentially for the entire group, causing the session to stall or fail. Some older or lower-end network hardware may not efficiently process fragmented multicast packets, leading to performance degradation or outright failure of the session.

Resolution: Adjusting WDS Packet Fragmentation¶

One primary resolution for WDS multicast deployment failures stemming from IP fragmentation issues is to configure WDS to avoid sending fragmented packets. This can be achieved by adjusting specific registry keys that control the size of data blocks WDS sends. By reducing the maximum size of these blocks, WDS ensures that the packets it generates are less likely to require fragmentation as they traverse the network, thereby mitigating potential problems with network devices.

The exact steps for implementing this resolution vary slightly between Windows Server 2008 R2 and Windows Server 2008 due to differences in how WDS configurations are managed on these operating systems.

For Windows Server 2008 R2¶

On Windows Server 2008 R2, the configuration is straightforward, involving a direct registry modification. This operating system provides a more streamlined approach to WDS settings compared to its predecessor. The adjustment ensures that WDS adheres to a packet size that is more universally compatible with various network devices, reducing the likelihood of fragmentation-related issues.

To implement this change, follow these steps:

1. Open the Registry Editor by typing regedit in the Run dialog or Search bar and pressing Enter.
2. Navigate to the following registry key:
   HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\WDSServer\Providers\WDSMC\Protocol
3. Locate or create a new DWORD (32-bit) Value named ApBlockSize.
4. Set the Value data for ApBlockSize to 1385 (decimal). This value is specifically chosen to minimize fragmentation issues across a wide range of network infrastructures.
5. After modifying the registry key, it is crucial to restart the WDSService (Windows Deployment Services Server) service for the changes to take effect. This can be done through the Services console (services.msc) or via an elevated command prompt using net stop WDSServer && net start WDSServer.

This ApBlockSize value of 1385 decimal is often effective because it typically ensures that the total size of the Ethernet frame, including headers, remains below the standard Ethernet MTU of 1500 bytes. By preventing fragmentation at the source, the WDS server reduces the burden on intermediate network devices, which might otherwise struggle with reassembling or forwarding fragmented multicast packets.

For Windows Server 2008¶

Windows Server 2008 utilizes network profiles to manage WDS settings, offering a slightly different approach to configuring fragmentation behavior. This design allows for more granular control over network-related aspects of WDS deployments, but it requires an extra step to enable a custom profile. The initial steps involve using the WDS management console to switch to a custom network profile before applying the registry modification.

To configure Windows Server 2008 to not send fragmented packets, follow these steps:

1. Click Start, then Run, and type WdsMgmt.msc to open the Windows Deployment Services management console.
2. In the left pane, expand Servers, then right-click on your WDS server.
3. Choose Properties from the context menu.
4. Navigate to the Network Settings tab.
5. Change the network profile to Custom. This action enables specific registry settings under a custom profile, allowing for granular control over various network parameters, including packet fragmentation.

After setting the custom network profile, you must then modify the specific registry key to adjust the block size:

1. Open the Registry Editor by typing regedit in the Run dialog or Search bar and pressing Enter.
2. Navigate to the following registry key:
   HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\WDSServer\Providers\WDSMC\Profiles\Custom
3. Locate or create a new DWORD (32-bit) Value named ApBlockSize.
4. Set the Value data for ApBlockSize to 1385 (decimal).
5. Similar to Server 2008 R2, you must restart the WDSService (Windows Deployment Services Server) service for these changes to be applied. Use the Services console or command prompt as described previously.

By configuring a custom profile and setting the ApBlockSize to 1385 decimal, Windows Server 2008 also minimizes the chance of IP fragmentation, ensuring more reliable multicast transmissions by aligning the packet sizes with network device capabilities.

Optimizing Performance with TpCacheSize¶

Once the initial adjustment to ApBlockSize allows multicast transmissions to complete successfully, the next step is to optimize performance by modifying the TpCacheSize registry key. While reducing ApBlockSize improves reliability by preventing fragmentation, it can inadvertently decrease overall performance if not balanced with TpCacheSize. This is because a smaller ApBlockSize means more individual packets are sent to transfer the same amount of data, potentially increasing overhead.

The TpCacheSize parameter directly influences the amount of data that WDS caches before sending it over the network. Essentially, ApBlockSize * TpCacheSize determines the maximum theoretical bandwidth that can be achieved during a multicast session. Increasing TpCacheSize while maintaining a smaller ApBlockSize allows WDS to buffer more data, compensating for the smaller individual packet sizes and improving the efficiency of the data stream.

For Windows Server 2008 R2¶

To adjust TpCacheSize on Windows Server 2008 R2:

1. Open the Registry Editor.
2. Navigate to the same protocol key:
   HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\WDSServer\Providers\WDSMC\Protocol
3. Locate or create a new DWORD (32-bit) Value named TpCacheSize.
4. Initially, set the Value data for TpCacheSize to 3145 (decimal). This is a recommended starting point for optimization.

For Windows Server 2008¶

To adjust TpCacheSize on Windows Server 2008:

1. Open the Registry Editor.
2. Navigate to the custom profile key:
   HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\WDSServer\Providers\WDSMC\Profiles\Custom
3. Locate or create a new DWORD (32-bit) Value named TpCacheSize.
4. Set the Value data for TpCacheSize to 3145 (decimal).

After setting this registry key, restart the WDSServer service again. Once the service has restarted, perform a test deployment and carefully note the time it takes to download the image. The goal is to find the optimal TpCacheSize that balances performance and stability. Incrementally increase this value in steps, performing a test deployment after each adjustment, until you observe a decrease in performance or the deployment fails. A common maximum value to aim for is 7550 decimal, but this can vary depending on your specific network environment and server capabilities.

It is crucial to monitor the performance during this iterative process. If increasing TpCacheSize leads to new failures, revert to the last stable value. The relationship between ApBlockSize and TpCacheSize is synergistic; setting ApBlockSize too low without adequately adjusting TpCacheSize will lead to diminished performance, despite resolving fragmentation issues. This fine-tuning process ensures that your WDS multicast deployments are both reliable and as fast as your network infrastructure allows.

Network Hardware Considerations¶

If you find that disabling IP fragmentation by adjusting ApBlockSize is necessary to get multicast working, it might indicate limitations in your network infrastructure. Specifically, it could point to low-end switching or routing hardware that may not efficiently support IP fragmentation or handle multicast traffic effectively. Older or less robust network devices might struggle with the demands of high-volume multicast streams, often lacking advanced features like efficient IGMP/MLD snooping or proper buffer management.

Multicast technology, by its very nature, can be demanding on a network. It requires switches and routers to intelligently forward traffic only to ports with interested listeners, manage group memberships, and handle potential packet loss or reordering. If your network infrastructure was not designed or configured with robust multicast support in mind, the introduction of WDS multicast can expose previously unknown problems or bottlenecks. These issues could manifest as dropped packets, inefficient forwarding, or general network instability during high-traffic periods. Therefore, successful multicast deployment often serves as a good benchmark for assessing the overall health and capability of your network.

Other Essential Troubleshooting Considerations¶

Beyond addressing IP fragmentation, several other factors can contribute to WDS multicast deployment failures. A comprehensive troubleshooting approach requires examining various aspects of the WDS server, network configuration, and client machines.

WDS Server Hardware Sizing¶

Ensuring the WDS server hardware is adequately sized is paramount for reliable multicast performance. Insufficient resources, especially RAM and network card capabilities, can severely bottleneck deployments. The server needs ample RAM to cache images and manage concurrent multicast sessions. Similarly, the network interface cards (NICs) must be high-performing (e.g., Gigabit Ethernet or higher) and correctly configured to handle the sustained bandwidth demands of multiple client connections. An undersized server might lead to slow transfers, dropped connections, or complete session failures, as it struggles to keep up with the data throughput. For optimal performance, always adhere to or exceed Microsoft’s recommended hardware specifications for Windows Deployment Services.

WDS Multicast Transfer Settings (Windows Server 2008 R2)¶

On Windows Server 2008 R2, administrators should also inspect the “Transfer settings” on the Multicast Tab within the WDS management console. These settings dictate how the multicast transfer is managed, including parameters like the minimum number of clients required to start a multicast stream or the transfer speed. Misconfigurations here can prevent sessions from starting or cause them to operate inefficiently. For example, if the minimum number of clients is set too high, smaller deployments might never initiate a multicast stream, defaulting to unicast or simply failing to start the session. Reviewing and adjusting these settings to match your deployment strategy is an important step.

Network Timeouts and IGMP Snooping¶

Network timeouts, particularly those related to IGMP (Internet Group Management Protocol) snooping, can disrupt multicast sessions. For instance, on Cisco switches, the default value for ip igmp query-interval might be 60 seconds. This setting dictates how frequently the switch sends IGMP queries to discover active multicast listeners. If the switch doesn’t receive IGMP traffic (indicating active listeners) within a certain period (e.g., three times the query interval, or 180 seconds), it may stop forwarding multicast traffic to the associated port. This can cause clients to drop out of the multicast session. Consulting your switch vendor’s documentation for configuring these timeouts and ensuring that IGMP snooping is properly configured and aligned with WDS traffic patterns is crucial. Ensuring that IGMP queriers are active and timeouts are sufficiently long can prevent premature termination of multicast streams.

Multicast IP Address Range¶

The default multicast IP address range used by WDS, typically 239.0.0.1 to 239.0.0.254, might conflict with existing network configurations or be unsuitable for certain network topologies. Depending on your network’s design, this range might be in use for other services, subject to routing restrictions, or simply not optimal. It is advisable to change this range to a known unused private multicast range, such as 239.192.0.2 to 239.192.0.250. Always consult with your network administrator to identify an available and non-conflicting multicast IP range that is properly routed and not filtered by network devices. Using an inappropriate or conflicting range can lead to packets being dropped or misrouted before they even reach the client machines.

Client Machine Network Interface Card (NIC) Issues¶

A single client machine participating in the multicast stream that has a faulty or poorly configured Network Interface Card (NIC) can sometimes cause problems for the entire multicast session. A bad NIC might drop packets, introduce errors, or fail to properly acknowledge received data, disrupting the flow for other clients or causing the WDS server to stall while waiting for acknowledgments. It is a good practice to test with different client machines, especially if you suspect a hardware issue. Updating NIC drivers to the latest version provided by the manufacturer can also resolve many network-related anomalies. Isolating a problematic client can often be achieved by removing clients one by one from a failing session until it stabilizes.

Best Practices and Monitoring for WDS Multicast¶

Establishing best practices and implementing effective monitoring strategies are vital for maintaining healthy WDS multicast deployments and quickly diagnosing issues. Proactive measures can prevent many common problems before they escalate.

Network Configuration Best Practices¶

Ensure your network infrastructure is optimized for multicast traffic. This includes configuring IGMP snooping on switches to prevent multicast floods and ensure traffic is directed only to necessary ports. Enable IGMP queriers on VLANs where WDS clients reside. For routed environments, ensure PIM (Protocol Independent Multicast) is properly configured on routers to enable multicast routing between subnets. Firewall rules on both the WDS server and client machines must allow WDS and multicast traffic (UDP ports 67, 68, 69, 4011, and the configured multicast IP range).

WDS Server Maintenance¶

Regularly check WDS server logs for errors or warnings related to multicast sessions. Keep the WDS server operating system and WDS components updated with the latest patches and hotfixes from Microsoft, as these often include performance improvements and bug fixes. Ensure the server’s disk subsystem is fast enough to serve images efficiently, as disk I/O can also become a bottleneck during high-volume deployments.

Monitoring and Diagnostics¶

Utilize network monitoring tools capable of analyzing multicast traffic. Tools like Wireshark can capture network packets on both the WDS server and client machines, allowing you to inspect multicast packets for fragmentation, drops, or reordering. This provides deep insight into how data is flowing and where issues might be occurring. Monitoring network interface statistics on the WDS server can reveal congestion or errors at the NIC level. Observing CPU, memory, and disk utilization on the WDS server during deployments can help identify resource bottlenecks.

Staged Rollouts and Testing¶

For critical or large-scale deployments, consider staged rollouts. Test multicast deployments on a small, isolated segment of your network before rolling out to the entire environment. This allows you to identify and resolve issues in a controlled manner, minimizing the impact on production systems. Vary client count during testing to understand how your network and WDS server perform under different loads.

Conclusion¶

Troubleshooting WDS multicast deployment failures requires a methodical approach that encompasses server configuration, network infrastructure, and client-side considerations. By understanding the role of IP fragmentation, properly adjusting WDS block sizes, and systematically addressing other potential issues like network timeouts, hardware limitations, and incorrect multicast ranges, administrators can significantly improve the reliability and performance of their image deployment processes. The iterative tuning of ApBlockSize and TpCacheSize is a critical step in optimizing WDS multicast for specific network environments, ensuring that the benefits of efficient, bandwidth-saving deployments are fully realized. Maintaining proper server hardware and regularly verifying network configurations are also key to sustained success.

What challenges have you faced with WDS multicast deployments, and what troubleshooting steps proved most effective in your environment? Share your experiences and insights in the comments below!
